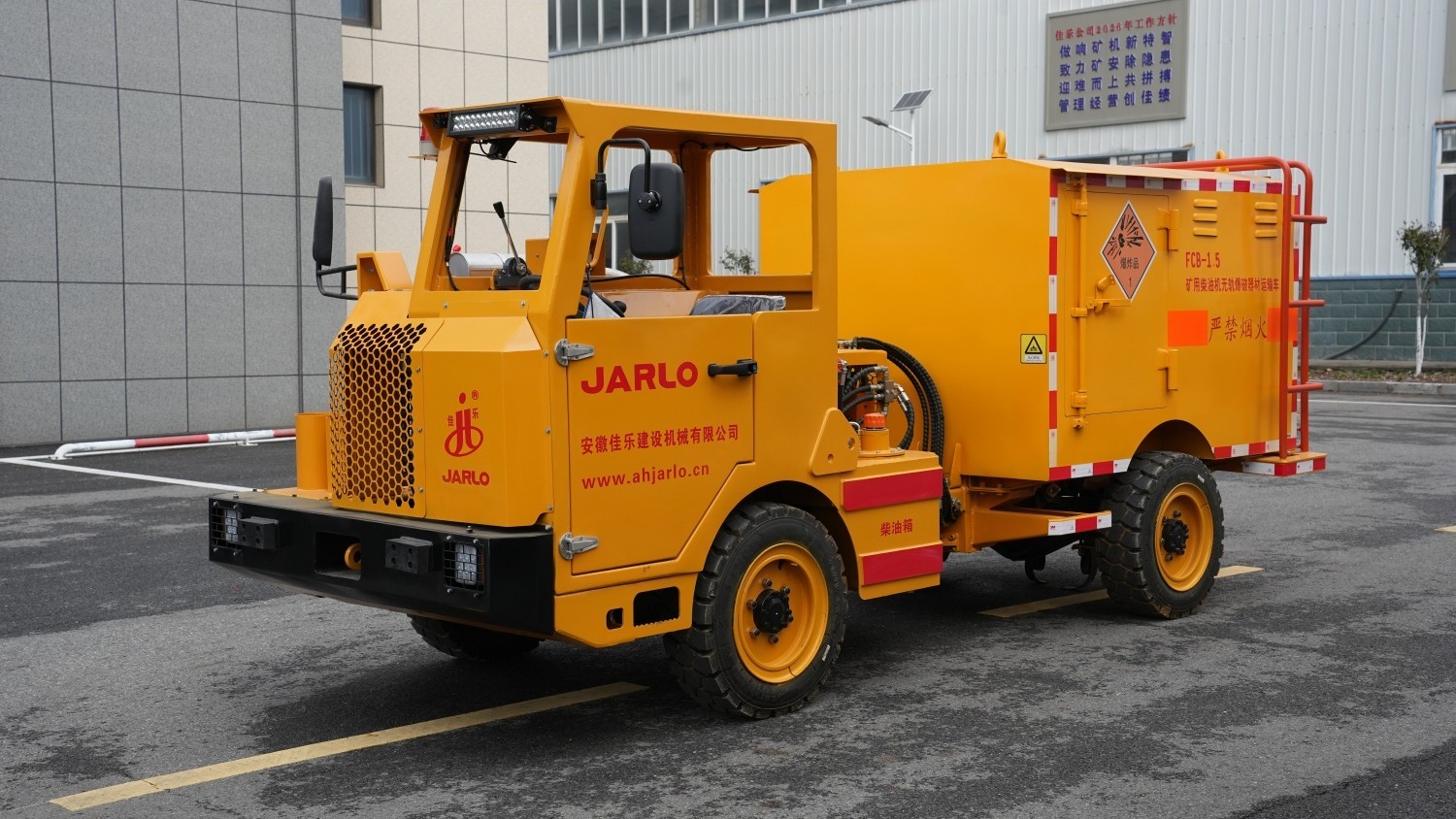

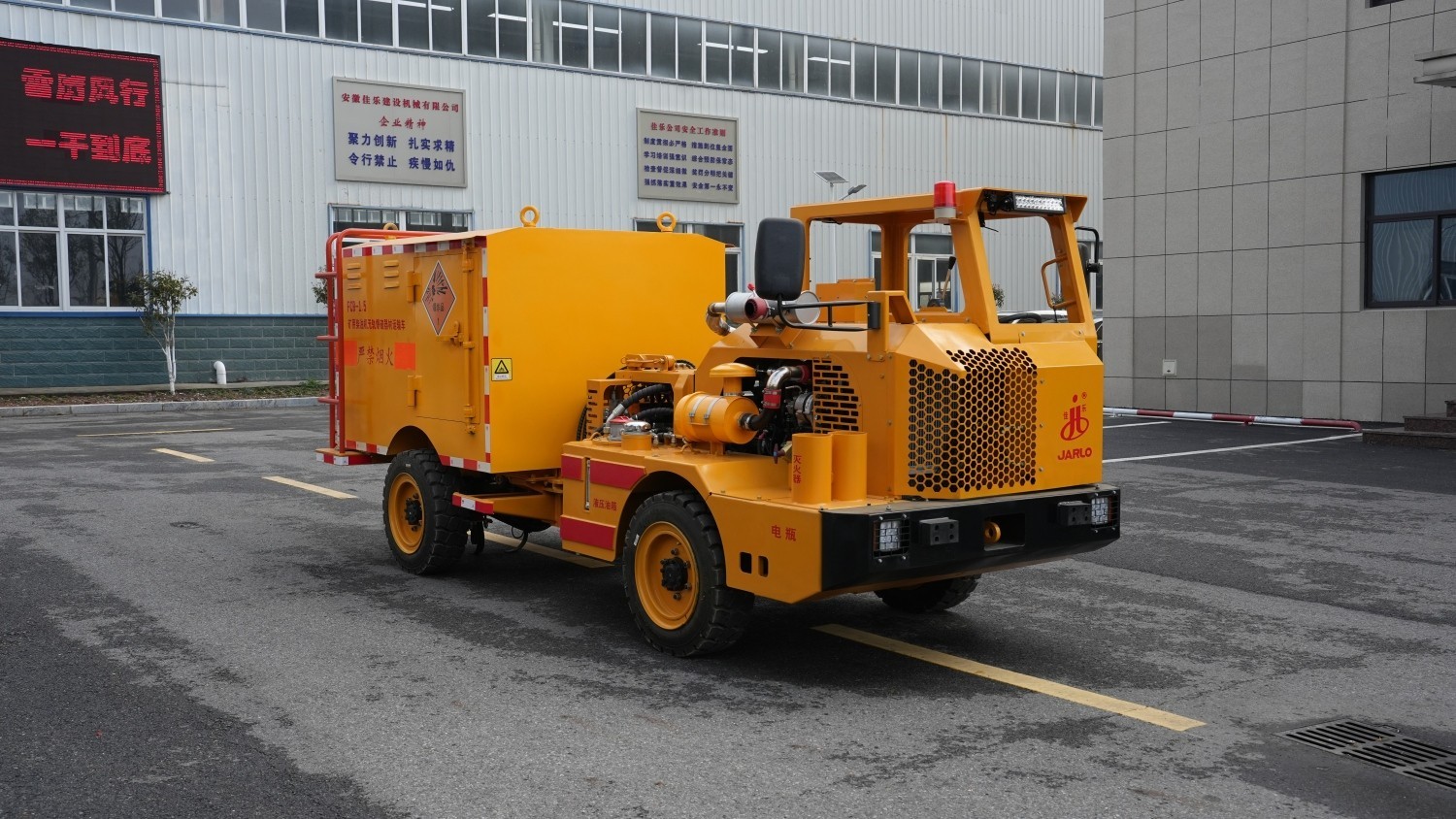

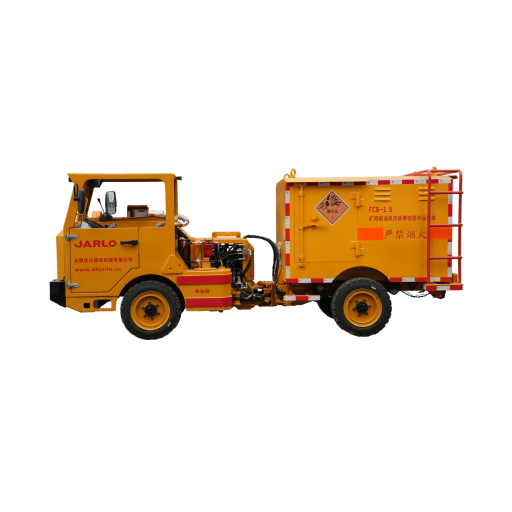

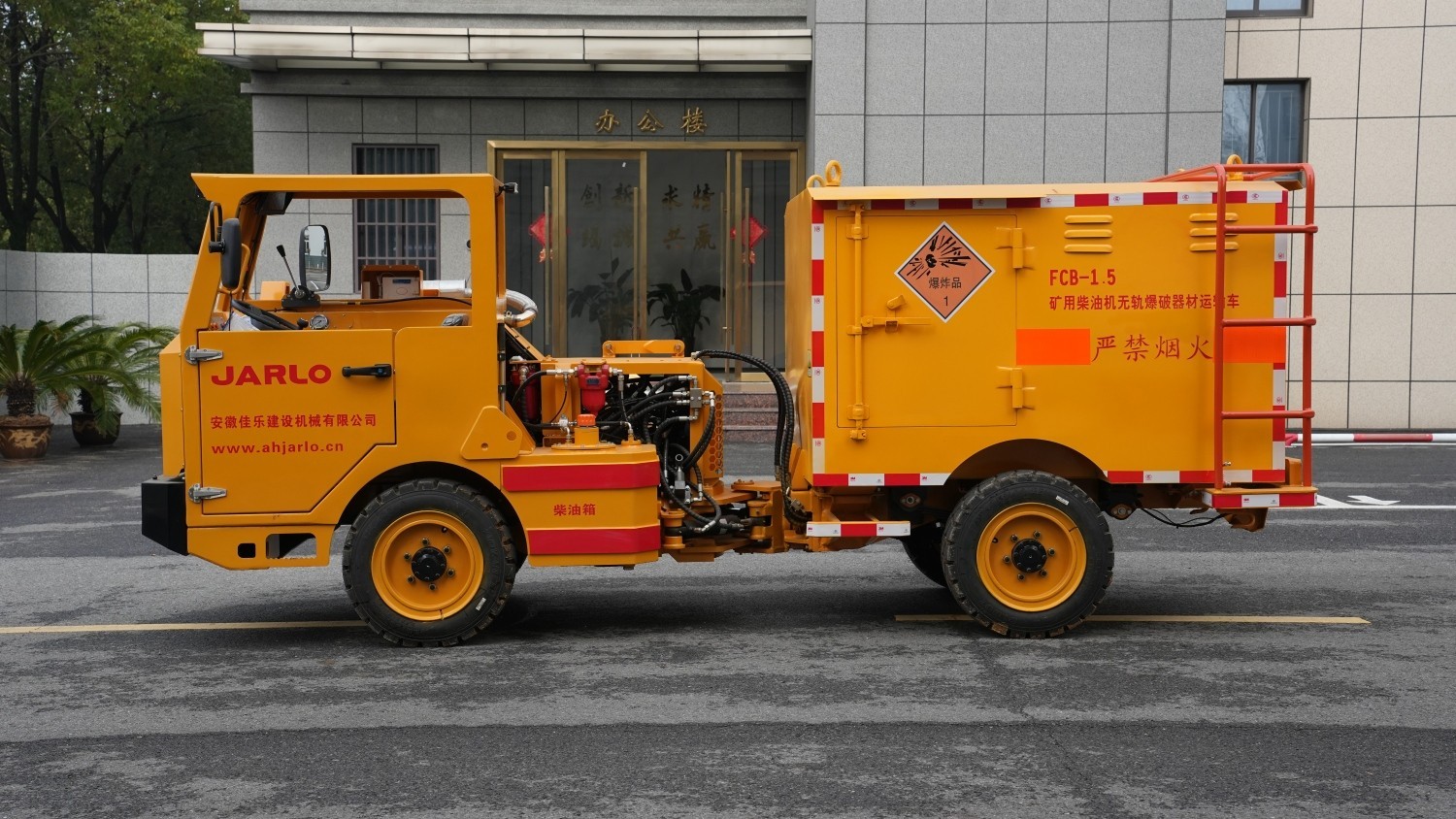

Recently, our company's independently developed FCB-1.5 mining diesel engine trackless blasting equipment transport vehicle was officially released. The vehicle has a rated load capacity of 1.5 tons and is designed strictly in accordance with the latest national safety standards. It is mainly used for transporting explosives and blasting equipment underground in mining tunnels.
Reliable performance and adaptability to complex working conditions
The vehicle adopts a 2.5-ton articulated fixed chassis, dual cylinder hydraulic steering, four-wheel drive, and small turning radius. The central hinge is equipped with a swing frame, which can achieve full wheel landing on muddy and bumpy roads with strong passability. The power is equipped with a four cylinder water-cooled turbocharged engine, which has low noise and long service life; The transmission system adopts a power shift gearbox that integrates a torque converter and a gearbox, with reliable climbing ability.
Multi security intelligent protection
The braking system adopts a dual circuit closed hydraulic braking system, equipped with fully enclosed wet multi disc brakes. The driving brake, emergency brake, and parking brake all use closed spring brakes and hydraulic release structures, which are fail safe driving and parking brake devices. The cab has passed ROPS/FOPS certification, ensuring high safety. The vehicle is equipped with a onboard computer system (real-time display of engine status, vehicle speed, and fault information), a reverse image system, anti-static towing, warning lights, spark arresters, smoke alarm systems, anti-theft systems, and dry powder fire extinguishers and other safety accessories.
Transport compliance passed authoritative testing
The vehicle has passed the inspection of the Ministry of Public Security and meets the GB 2702-90 standard. The external dimensions are 4800 × 1700 × 1950mm, the total weight of the machine is 4000kg, the maximum speed is 16km/h, the climbing angle is 14 °, and the minimum ground clearance is 180mm.
The launch of FCB-1.5 provides a new option for safe and efficient transportation of blasting equipment in mining alleys. Welcome to inquire about purchasing.
