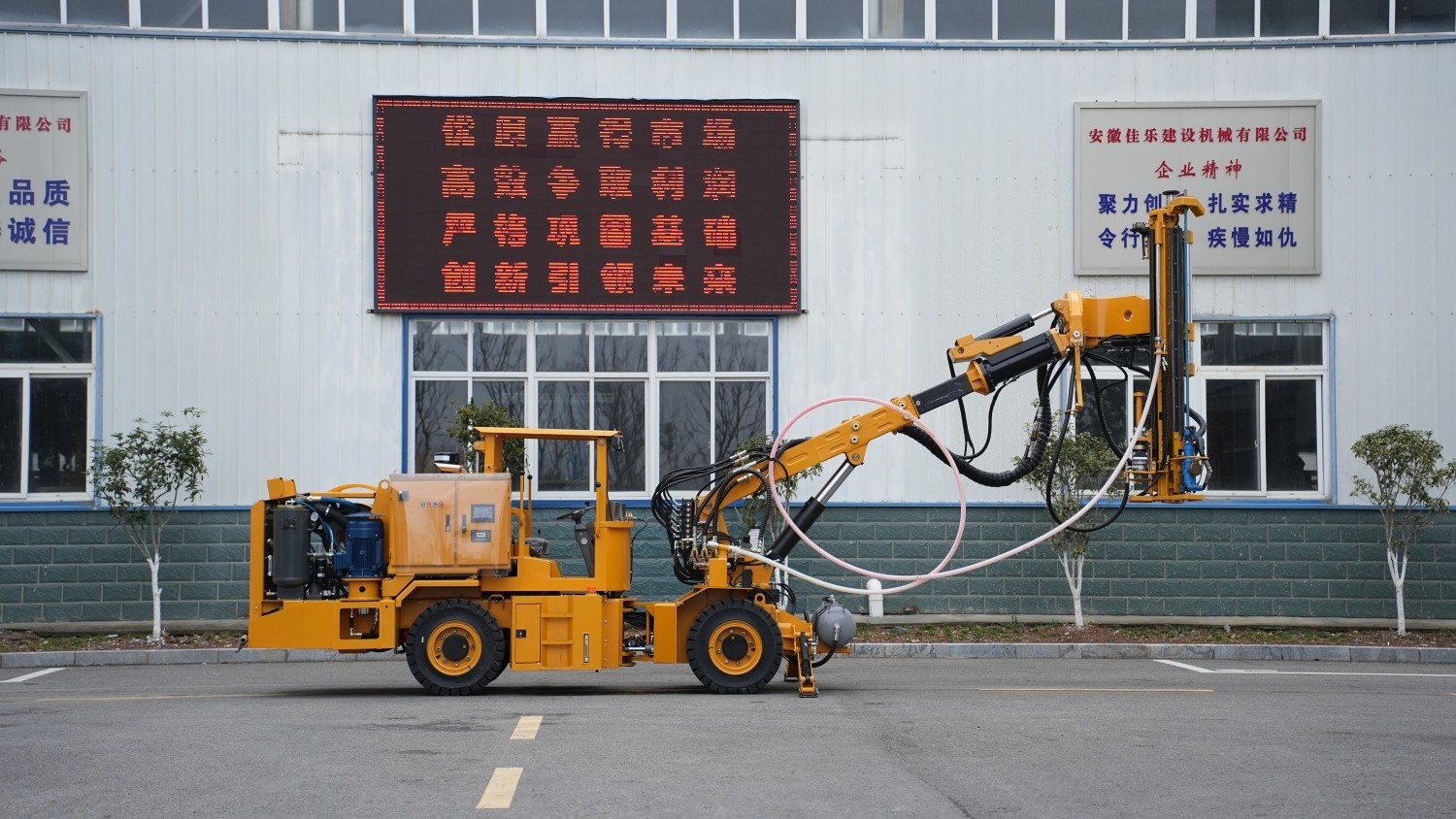

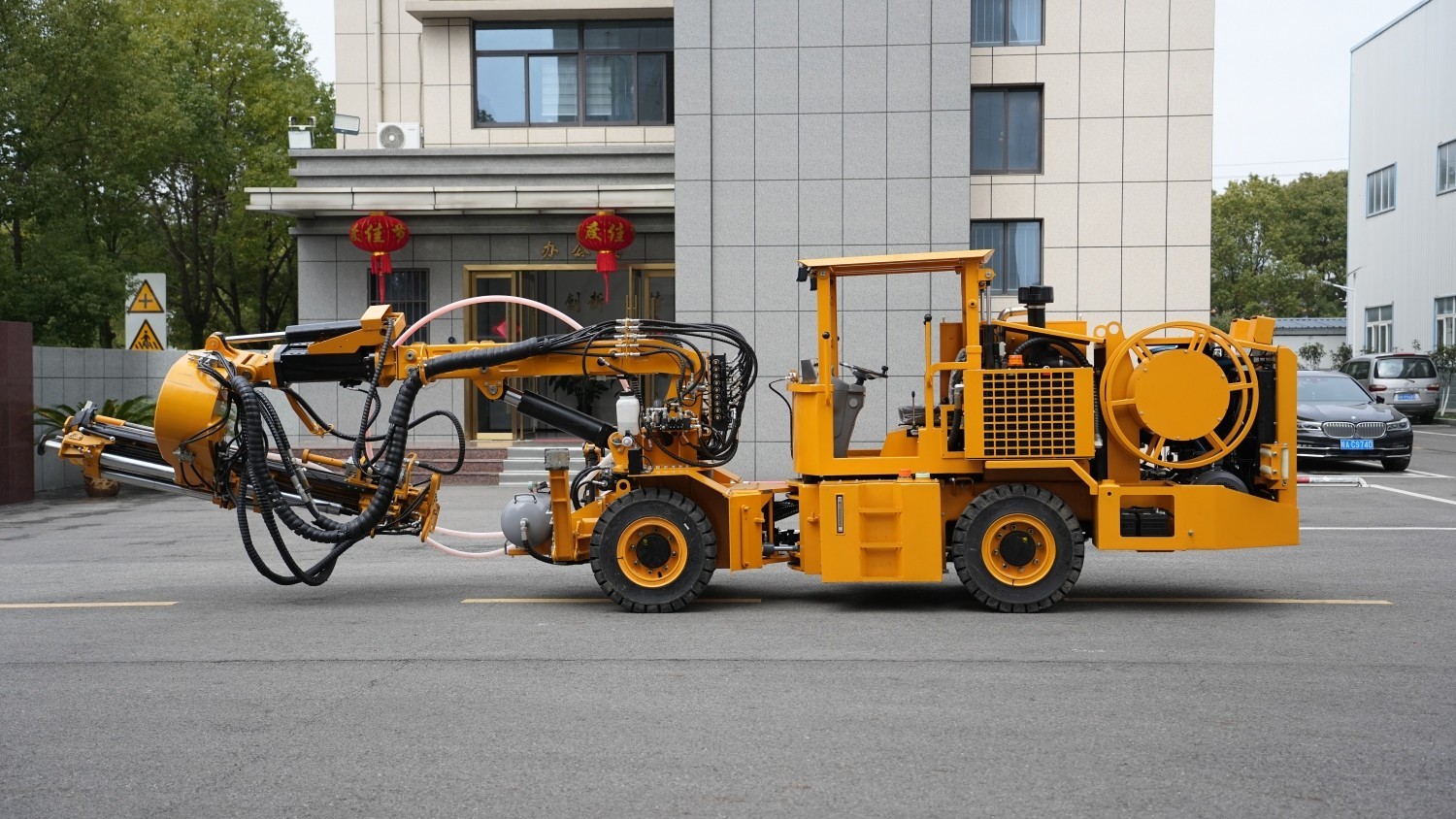

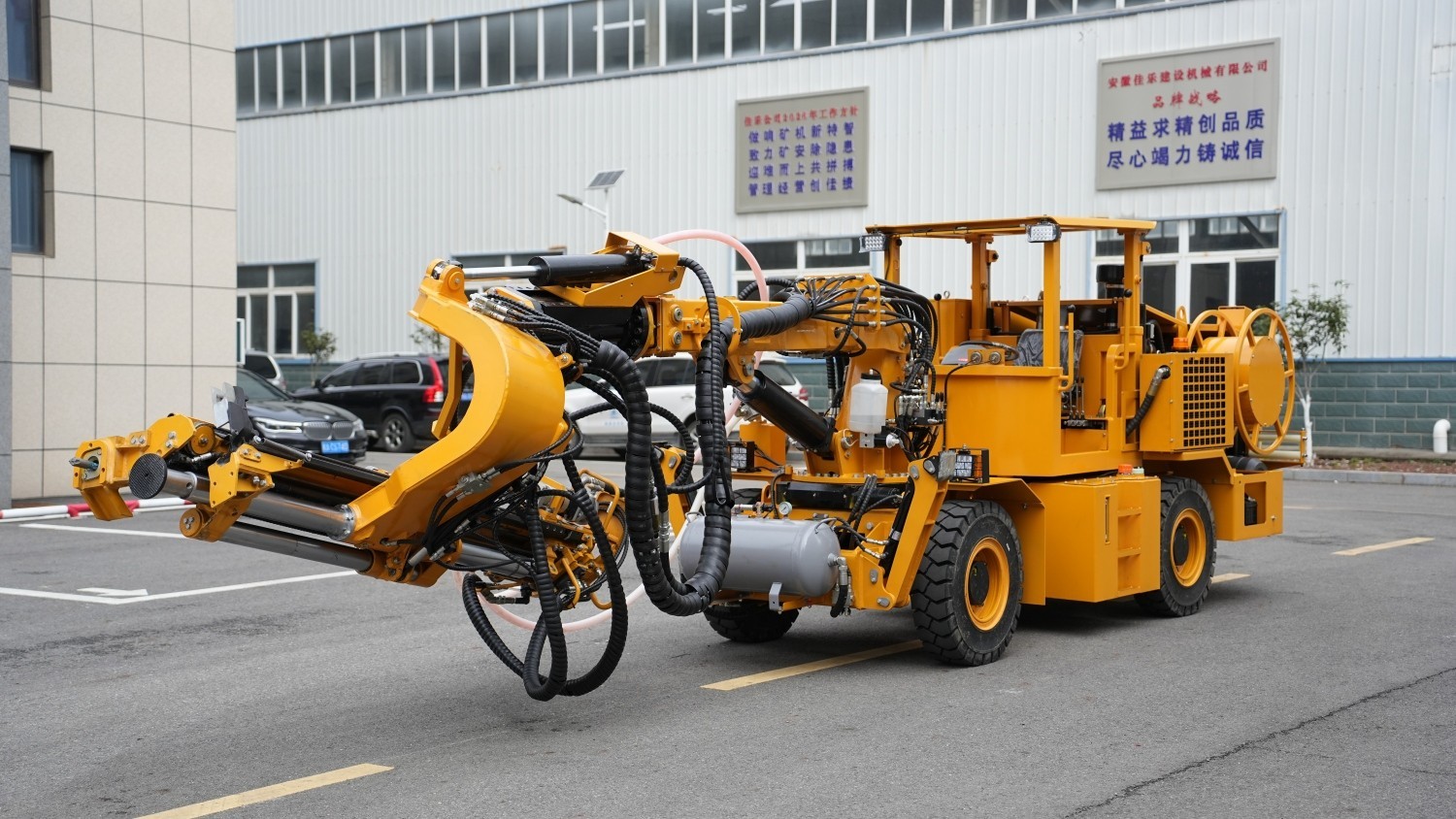

To meet the efficient and economical support needs of small and medium-sized tunnels such as underground mines, Anhui Jarlo has officially launched the CYTM41/2 (Q) mining hydraulic anchor drilling truck.
This equipment adopts a pneumatic rock drill, which has a higher cost-effectiveness. Adopting a narrow chassis and compact model design, it is suitable for anchor rod support operations in small and medium-sized underground tunnels and tunnels in various metal mines, non-metal mines, water conservancy and hydropower projects that do not require explosion-proof requirements.
In terms of performance and security, CYTM41/2 (Q) performs excellently:
1. Multi power system: diesel electric dual power system, diesel powered walking, electric motor hydraulic drive for various actuating components; When the power is cut off, the diesel engine can retract all actuating components;
2. Flexibility: The whole machine has a compact structure, adjustable walking speed in multiple gears, four-wheel drive, strong power, and flexible walking and turning in various complex working conditions of small and medium-sized tunnels;
3. Cost effectiveness: Equipped with pneumatic rock drills, which have the advantage of low cost compared to hydraulic rock drills;
4. Safety: Equipped with safety protection measures such as adjustable ceilings, fire extinguishers, emergency parking brakes, and various other safety warning systems to ensure operational safety while maintaining functionality;
5. Applicability of tunnel scope: Drive the beam to rotate 360 degrees, covering the tunnel face in all directions;
6. Maintainability: Open cab, modular component design, reasonable spatial layout, easy maintenance and repair;
7. Interchangeability: It has strong universality and interchangeability with the spare parts (hydraulic parts, rubber hoses, joints, lubrication, etc.) of imported well-known brand rock drilling equipment;
8. Accuracy of drilling positioning: Equipped with a stable support mechanism for the drilling arm, rock drilling machine rotation switching, ensuring the alignment of the drilling center, and ensuring the accuracy of drilling and anchor installation;
9. Propulsion form of rock drill: oil cylinder with steel wire rope propulsion form.
The release of CYTM41/2 (Q) mining hydraulic anchor drilling truck marks the further enrichment of Anhui Jarlo's product line in the field of mechanized anchor spraying support underground in mines, aiming to help customers improve construction efficiency with more efficient, safer, and more economical solutions.
