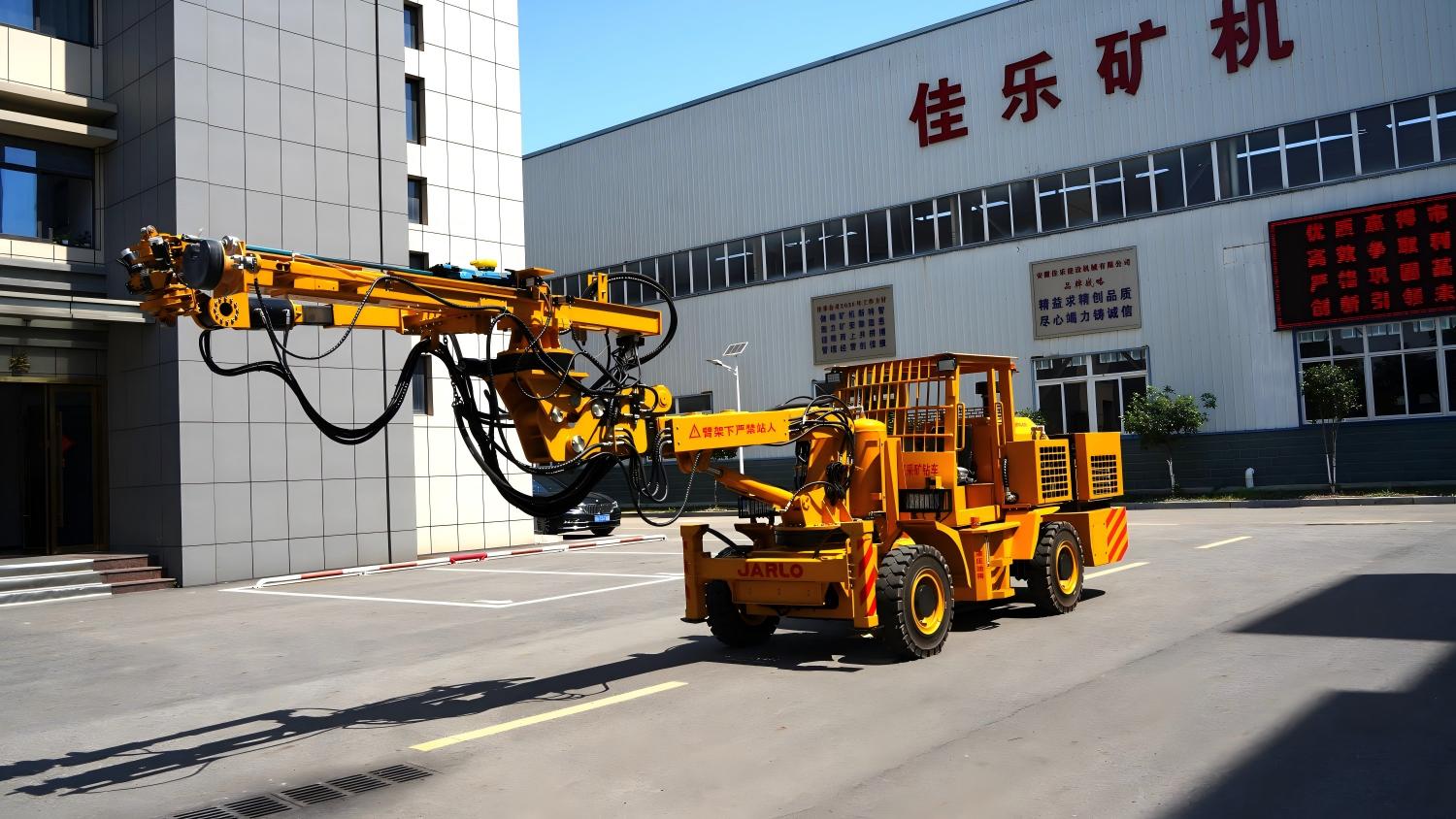

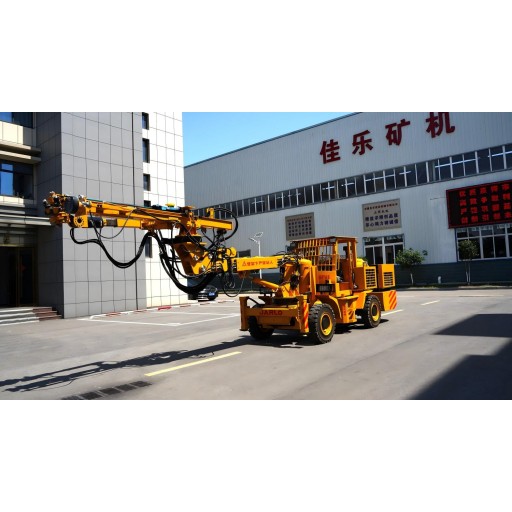

CYTC41Q(A) Mining Drawpoint Drilling & Blasting Jumbo is a mining-specific emergency clearance and blockage relief equipment specially designed by Anhui Jarlo to meet the needs of large-scale ore fragmentation and block removal at the rimline opening (mine exit). This equipment integrates functions such as drilling and installing explosives. The rock drill adopts an air-powered rock drill (with hydraulic rock drill as an optional choice), and has a high cost-performance ratio.

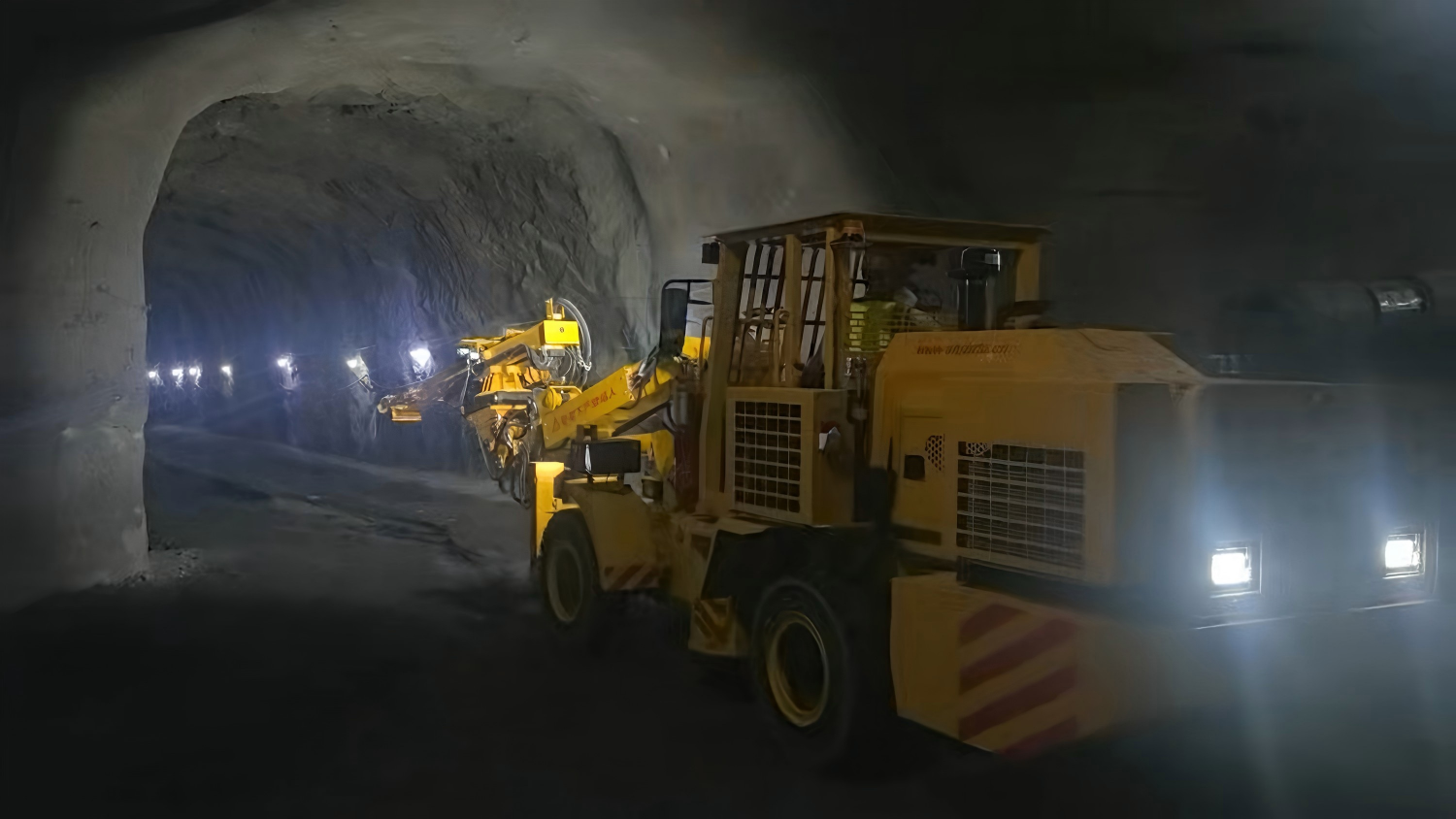

It is applicable to the secondary crushing operations of the eyebrow lines, tunnels and mining areas in various metal mines, non-metal mines, and non-explosion-proof underground mines. It can achieve the clearance of eyebrow line openings and the crushing of large pieces of ore, effectively avoiding the need for workers to enter dangerous areas for operations, and ensuring the safety of construction workers.
Five Core Advantages: Solving Construction Challenges

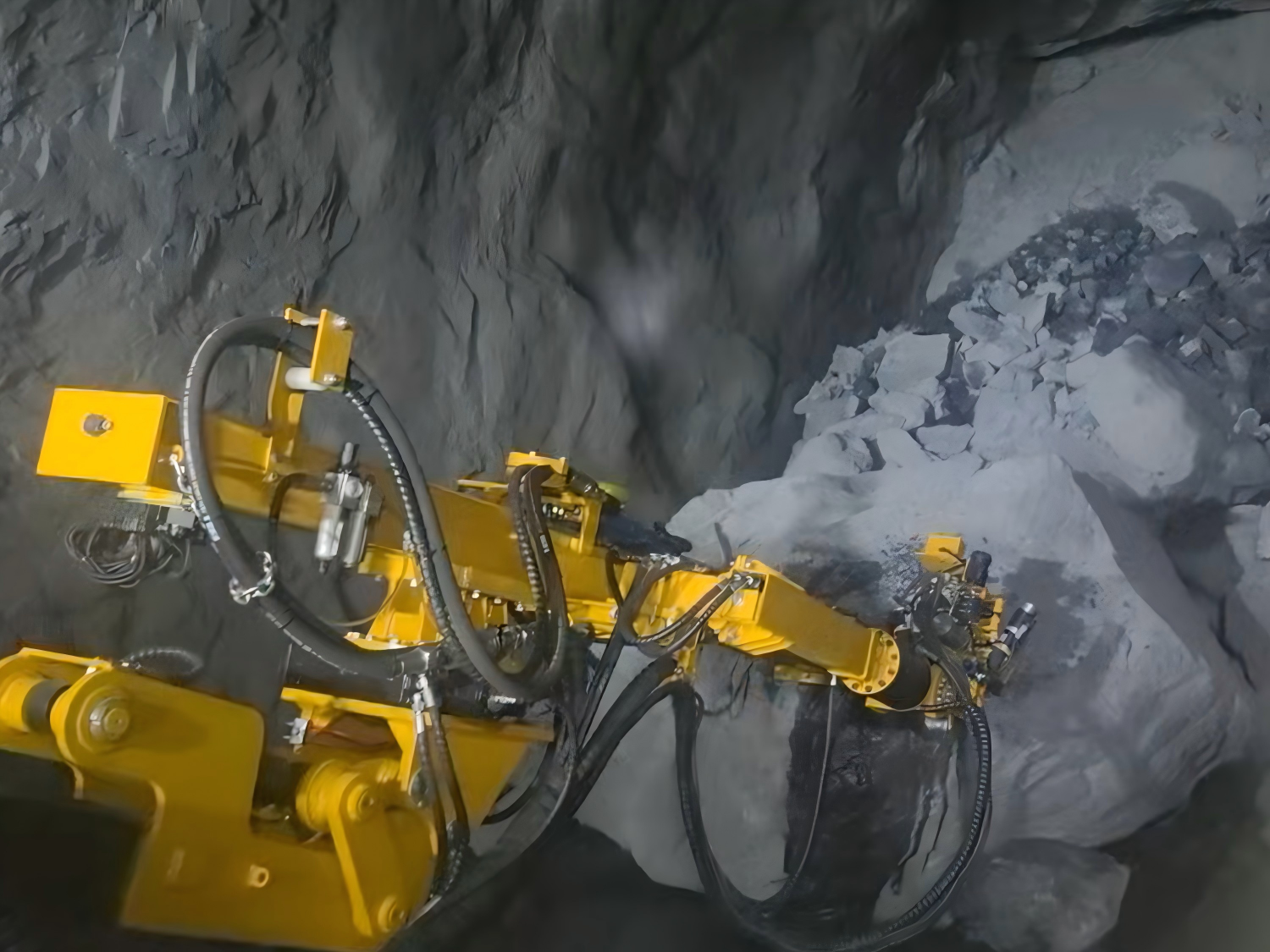

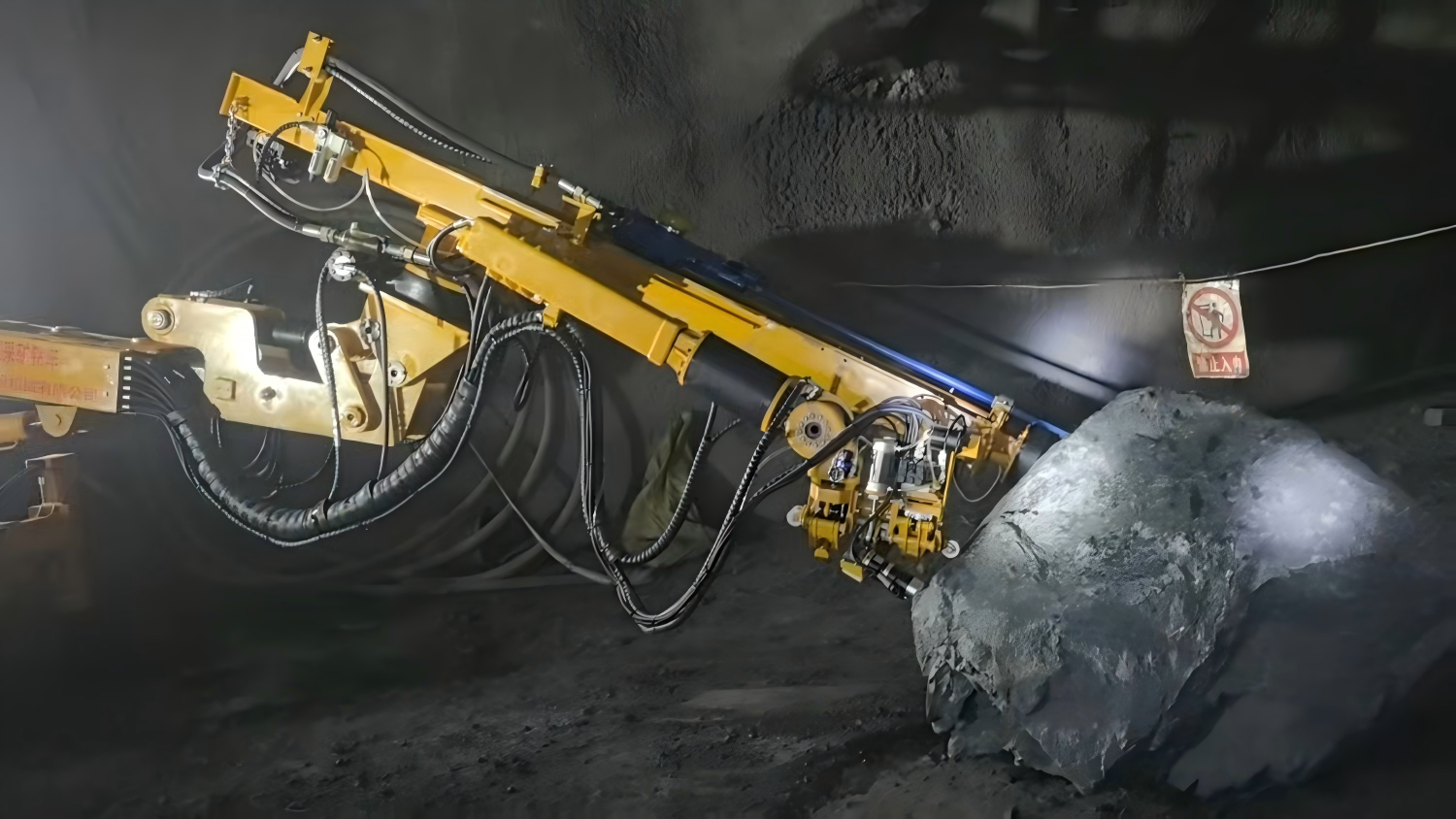

01 Integrated drilling and charging, with excellent rock-breaking effect
It integrates functions such as drilling and placing explosives. The drilling is carried out using an air-powered rock drill (with a hydraulic rock drill as an optional option). The operation cost is low and it is suitable for situations with a relatively small number of drilling operations. It adopts internal blasting, and the rock-breaking effect is better than that of conventional surface blasting.

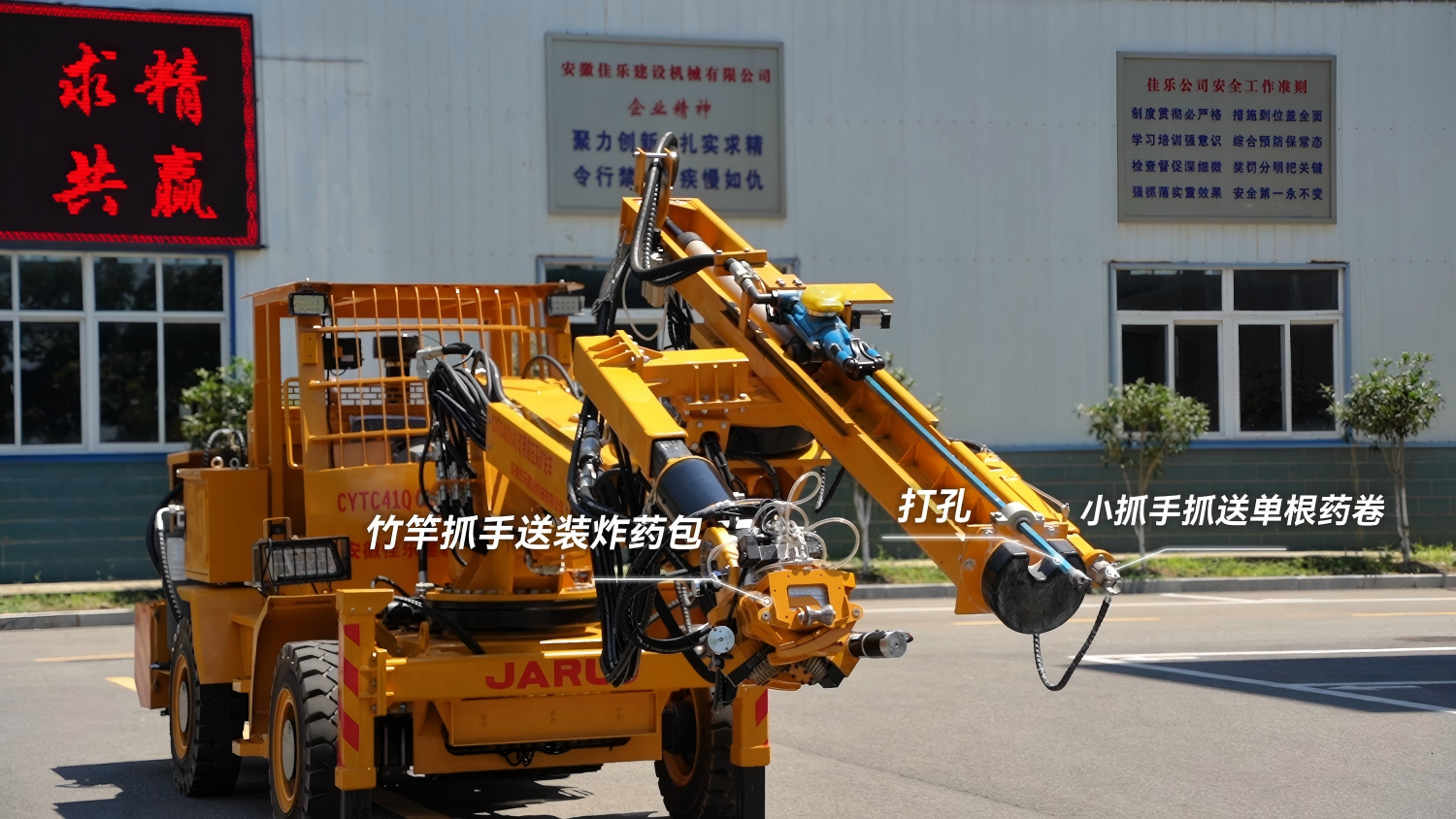

02 Dual-handers work together to deliver medicine, and efficiently load in complex situations

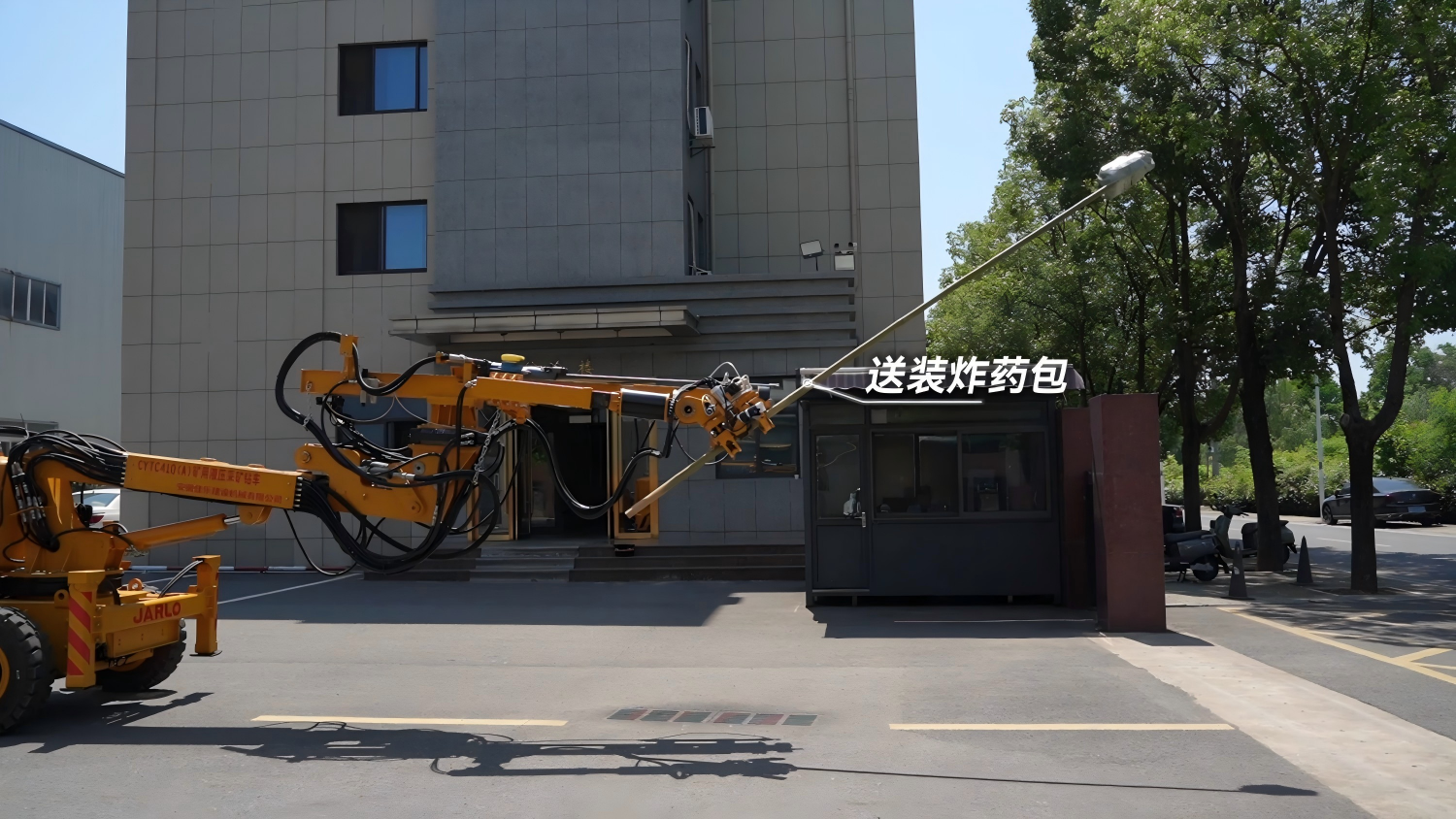

The entire machine is equipped with a dual-handling compound drug delivery mechanism: The left bamboo pole gripper can transport bamboo poles with explosives attached at the end to the inside of the chute, as well as to the large gaps in the high-position surrounding rocks at the wellhead.
The small-sized gripper on the right can precisely grasp and deliver a single cartridge of explosive; it can be adapted to various height positions and different loading conditions, significantly expanding the coverage of loading operations, ensuring precise and controllable drug placement, and making loading operations in complex blasting areas more efficient.

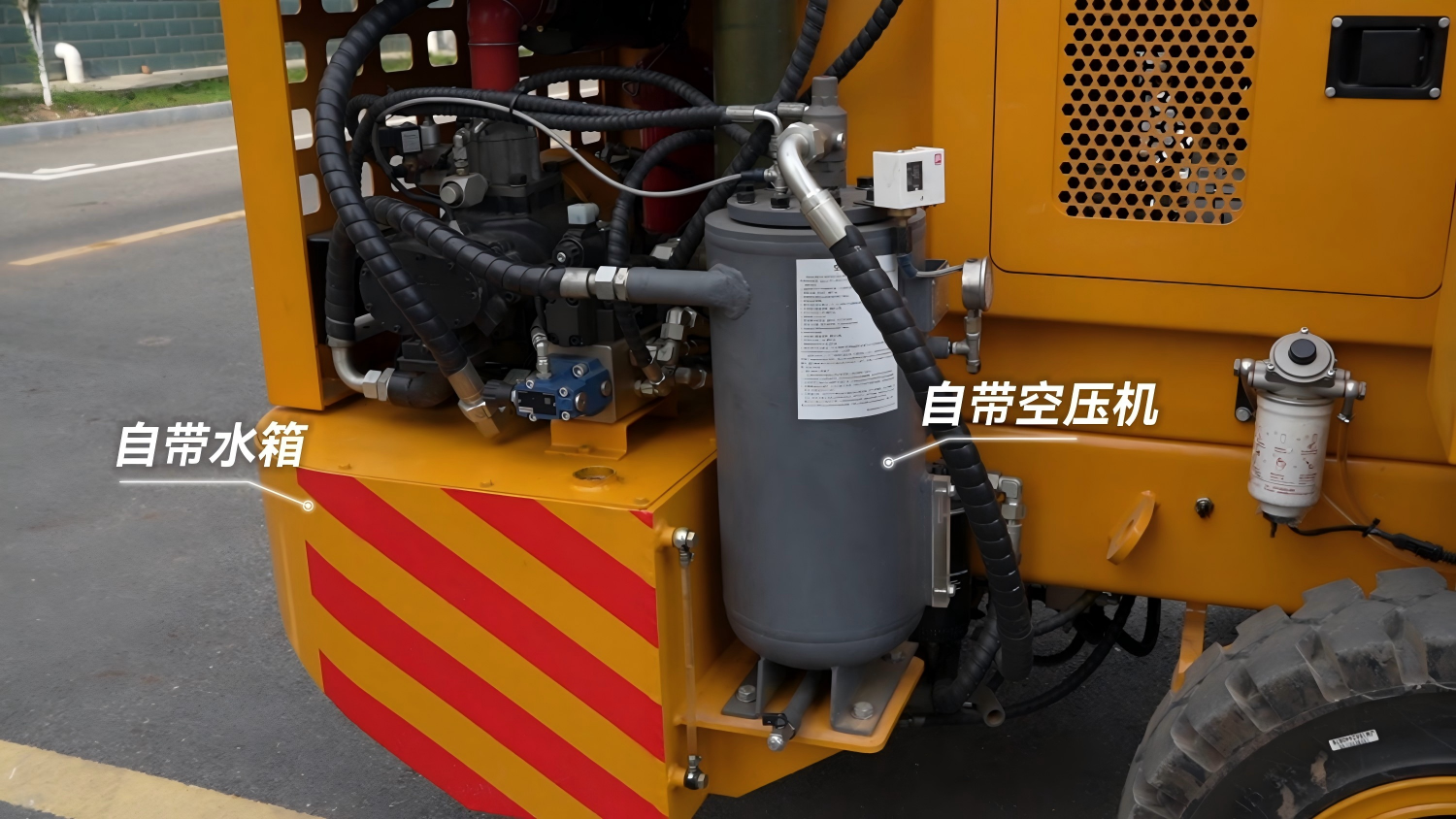

03 Integrated full-chip power, no need to connect water, electricity or gas underground

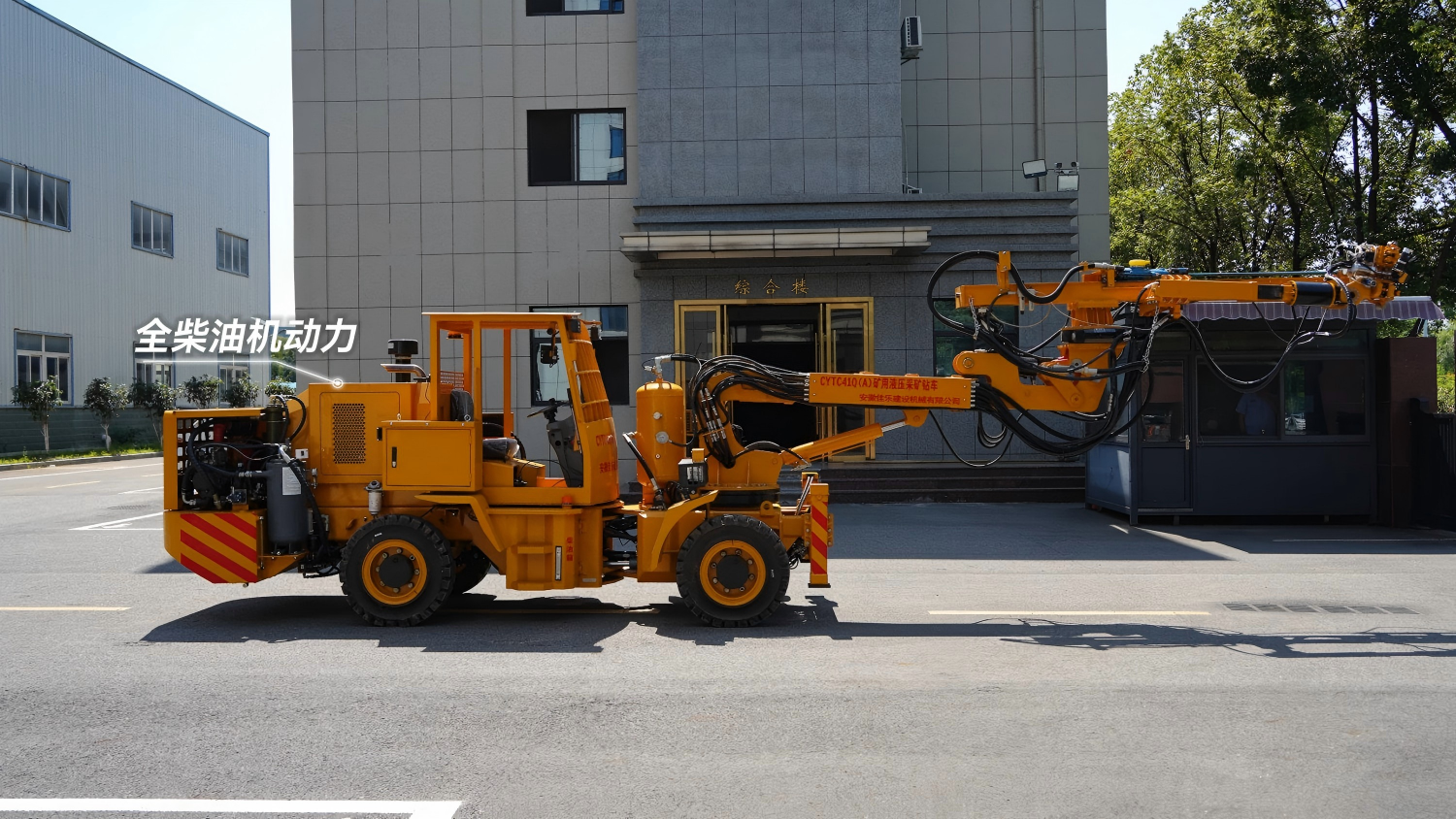

Equipped with the Cummins diesel power system, it boasts outstanding operational efficiency. The equipment integrates a power unit, water tank, and air compressor into one unit. During operation, it does not require external power supply, water source, or air source. It can break free from the constraints of external water, electricity, and gas supply in the well environment and can conduct construction independently with a single unit.

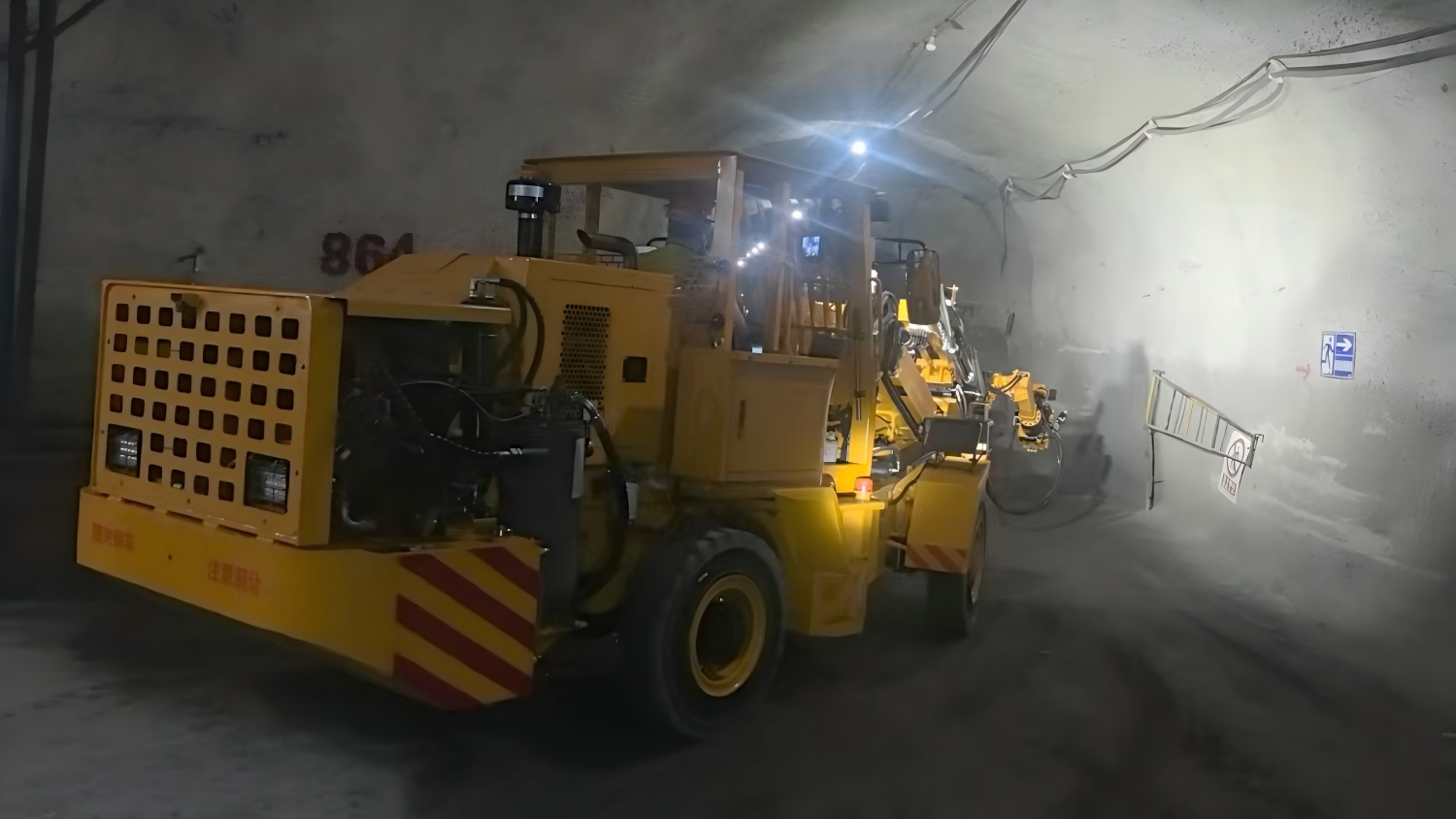

04 Four-wheel drive, articulated steering, ensuring safe driving and parking
It adopts four-wheel drive and articulated steering, allowing for flexible turning during movement. It is suitable for operations and construction in narrow tunnels of underground mines. The braking system of the entire vehicle uses a hydraulic wet dual-brake system, including road operation oil braking and parking closed spring braking, meeting the safety usage requirements for long slopes and low tunnels in mines.
05 Intelligent remote control operation, making construction safer
Operators only need to operate through the intelligent remote control equipment within the safe area to remotely control and complete various operations such as drilling and loading explosives. This effectively avoids safety risks such as roof and side wall collapses, noise and dust, and mechanical injuries, improves the working conditions on site, and ensures the safety of the operators.
As a masterpiece deeply rooted in the field of mining equipment by Anhui Jarlo, the CYTC41Q(A) Mining Drawpoint Drilling & Blasting Jumbo integrates an integrated drilling and charging process, a dual-handling precise charging mechanism, a fully-charged independent power system, and an intelligent remote control operation mode, thus establishing a comprehensive security and efficiency guarantee system for both operations and personnel safety.
The equipment is based on the actual needs of complex underground working conditions. It integrates efficient rock breaking, flexible maneuverability and safe operation, providing professional and reliable solutions for the line-clearing and secondary crushing of large blocks in underground projects such as metal mines, non-metal mines and water conservancy and hydropower projects. This helps mining enterprises achieve the dual goals of safe production and efficiency improvement.
