The transportation of blasting equipment underground in mines is of paramount importance for the safety of mine operations. Explosives and related blasting materials are classified as high-risk special dangerous goods. The transportation vehicles must not only adapt to the harsh underground road conditions but also strictly meet the national safety standards for the transportation of dangerous goods.

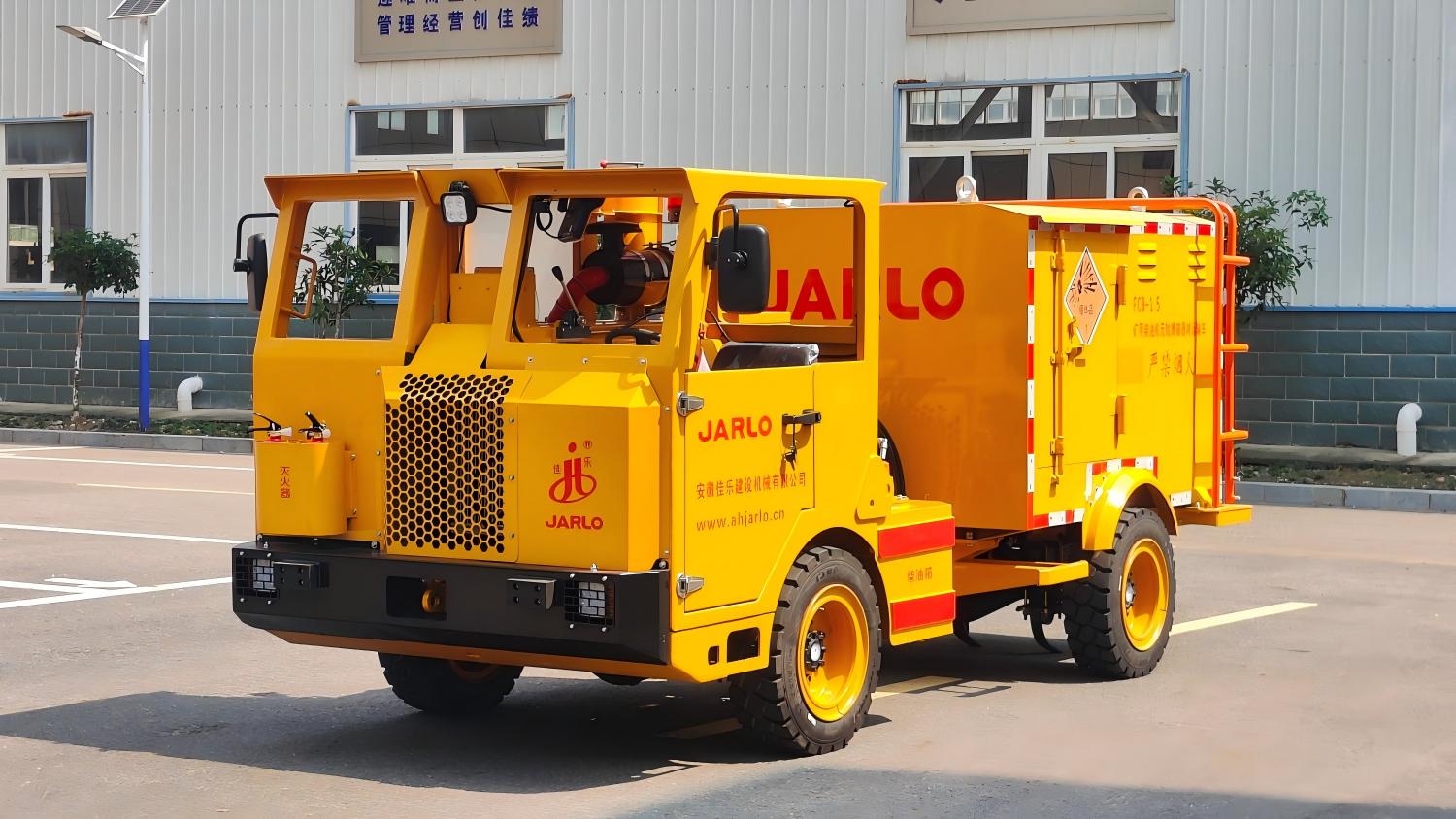

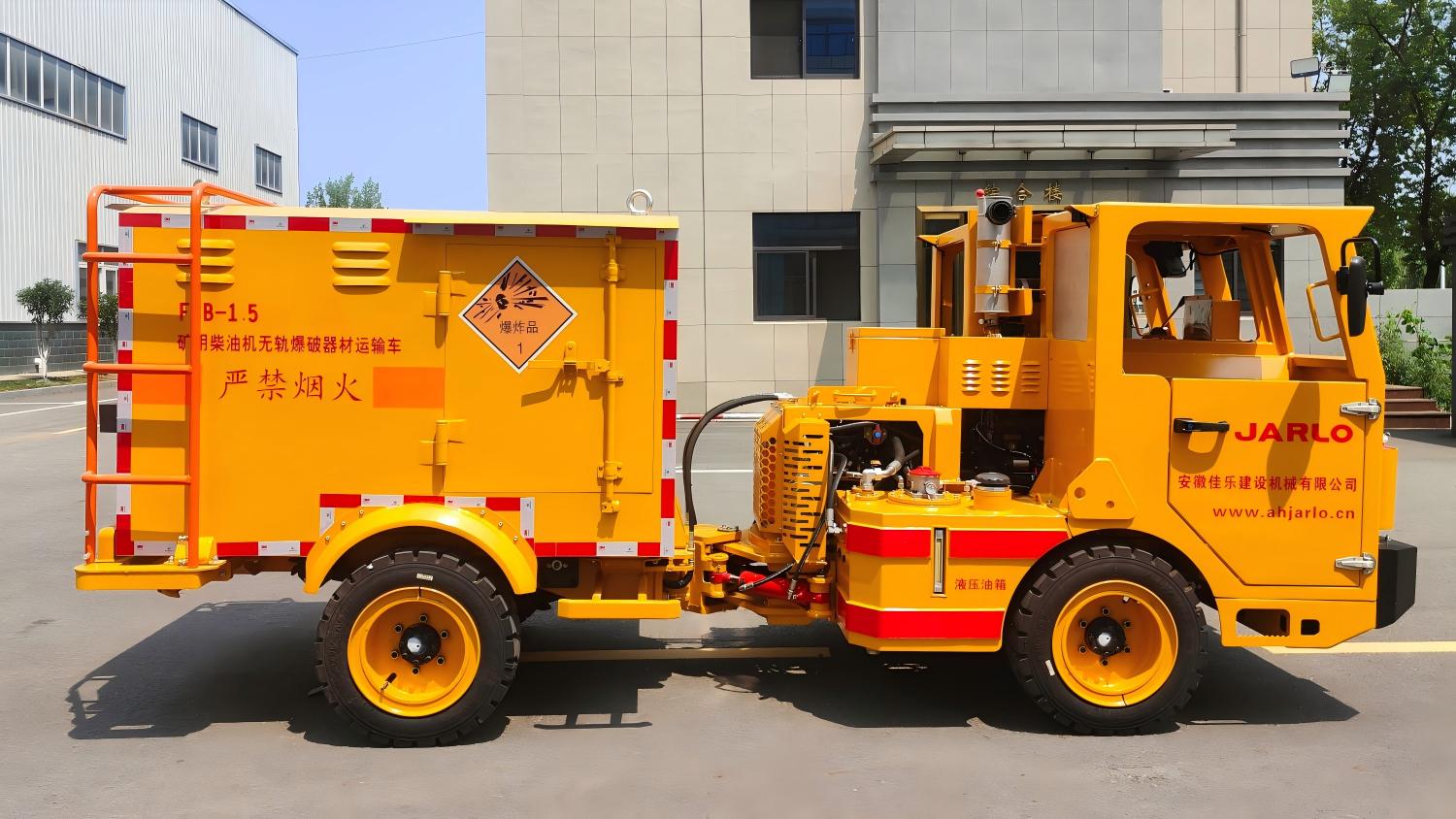

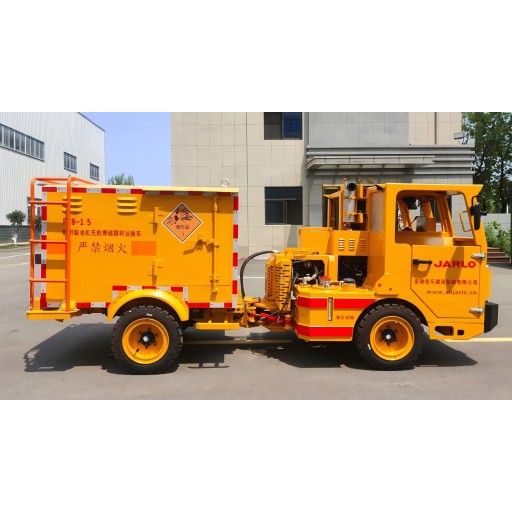

The Anhui Jarlo FCB-1.5 Mining Diesel Engine Trackless Explosives Transportation Vehicle is designed and developed in strict accordance with the latest national mining safety standards, effectively solving the safety problems of transporting blasting equipment underground in mines. The equipment is safe and compliant, intelligent and efficient, has strong adaptability to working conditions, and efficiently supports the standardization of blasting operations in mines.
Applicable scenarios
FCB-1.5 is widely applicable to:
Transportation of blasting materials in underground mines for metals and non-metals;
Supply of materials for blasting operations in tunnels and underground projects;
Transportation environments with strict requirements for explosion prevention, fire prevention, and static electricity prevention.
Flexible body, no pressure in tunnel passage
Compact size, adaptable

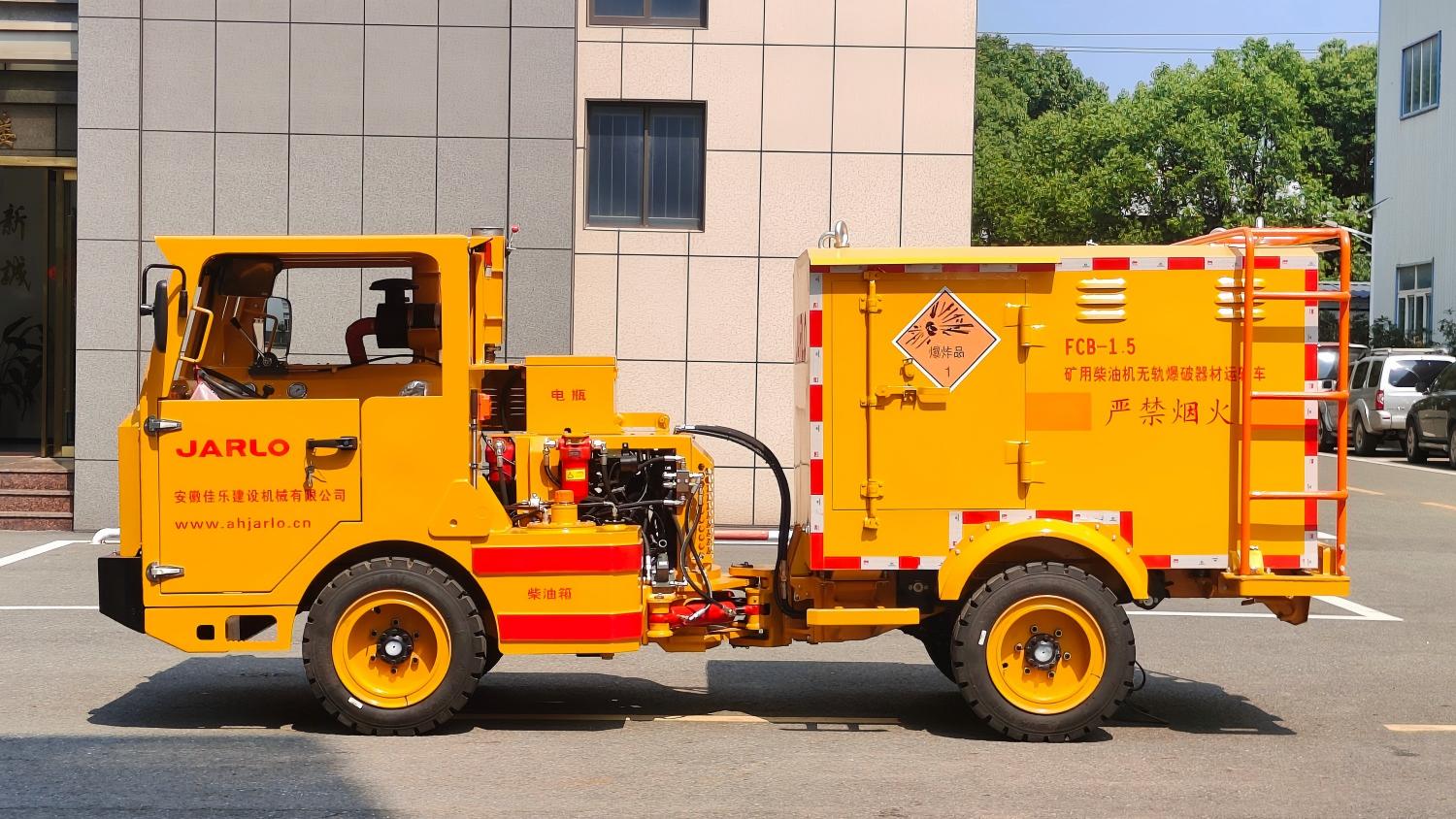

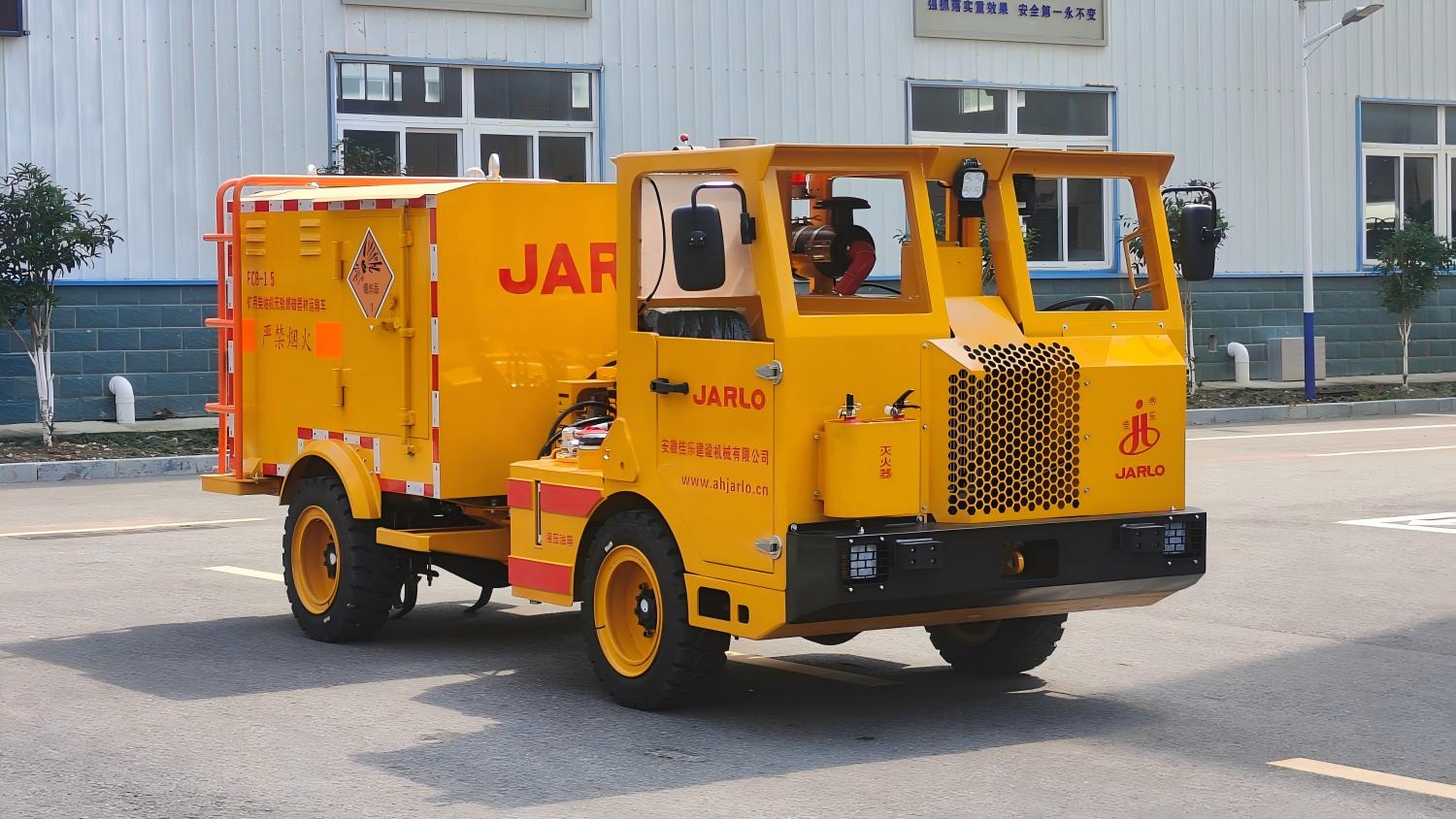

The vehicle's overall dimensions are approximately 4800×1700×1950mm, with a length of less than 5 meters, a width of only 1.7 meters, and a height controlled within 2 meters. It can easily enter and exit both main transportation tunnels and branch liaison tunnels.
Very small turning radius, capable of handling narrow alleys and bends

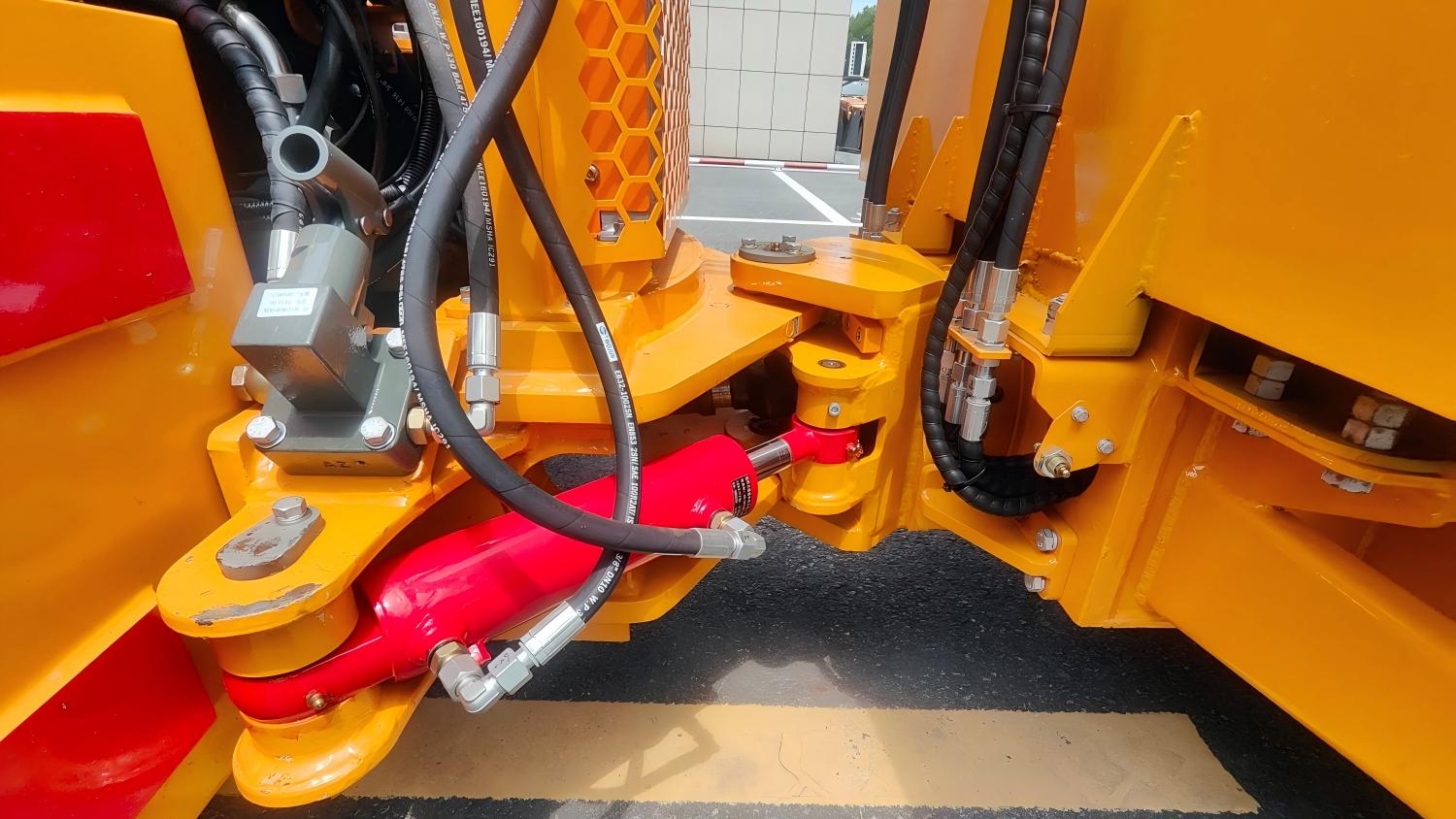

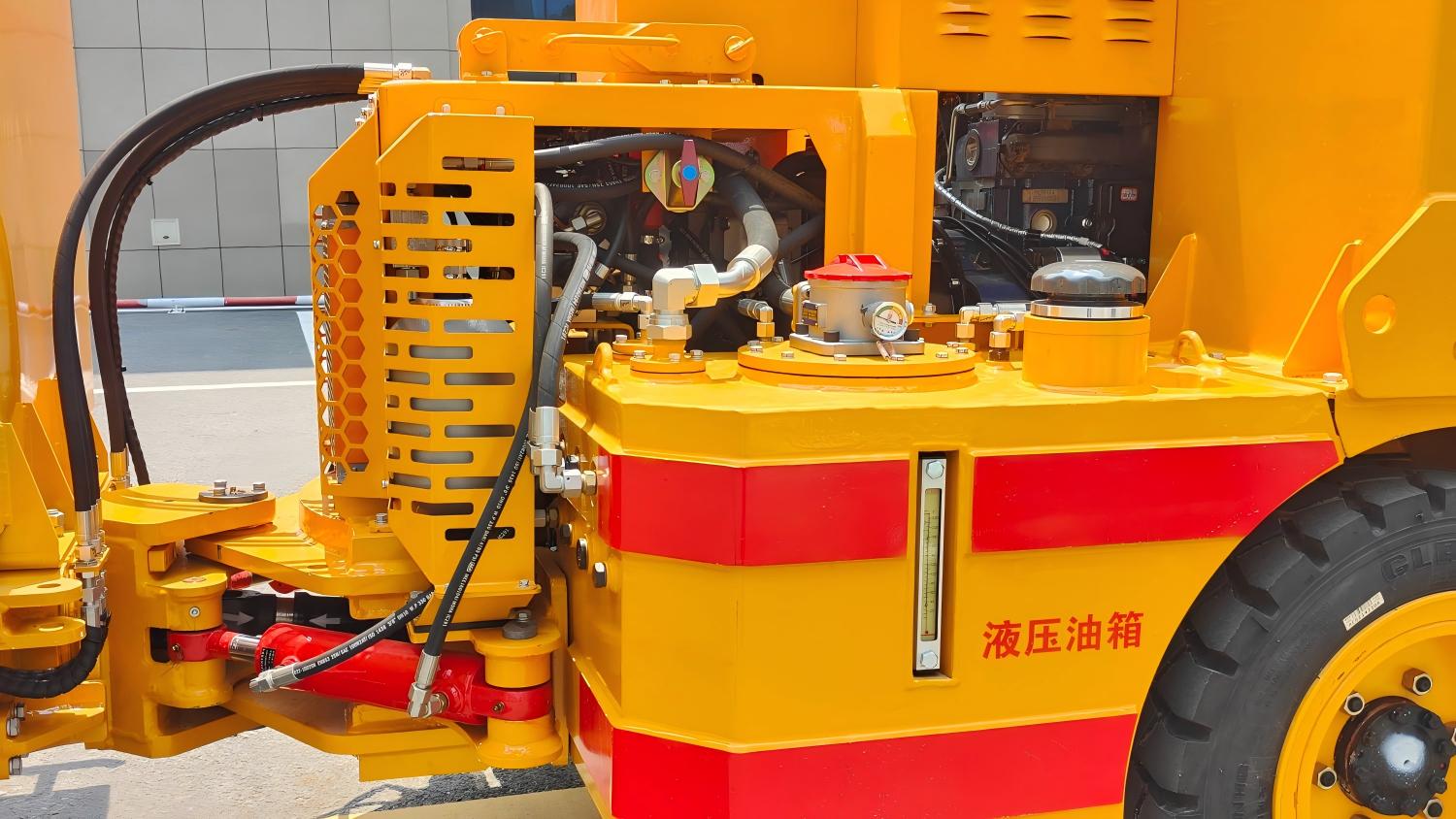

The minimum turning radius is 4800mm on the outside and 2950mm on the inside. Combined with the central hinge connection and dual hydraulic cylinder steering system, the four-wheel drive enables flexible movement and turning in underground narrow spaces.
Swing frame design, full-wheel contact on complex road surfaces
The central hinge installation has a swing frame, which increases the swivel angle of the front and rear vehicle bodies in the vertical plane, allowing the entire vehicle to be fully grounded on muddy and uneven roads, effectively enhancing the adhesion of the wheels and the overall passing ability.

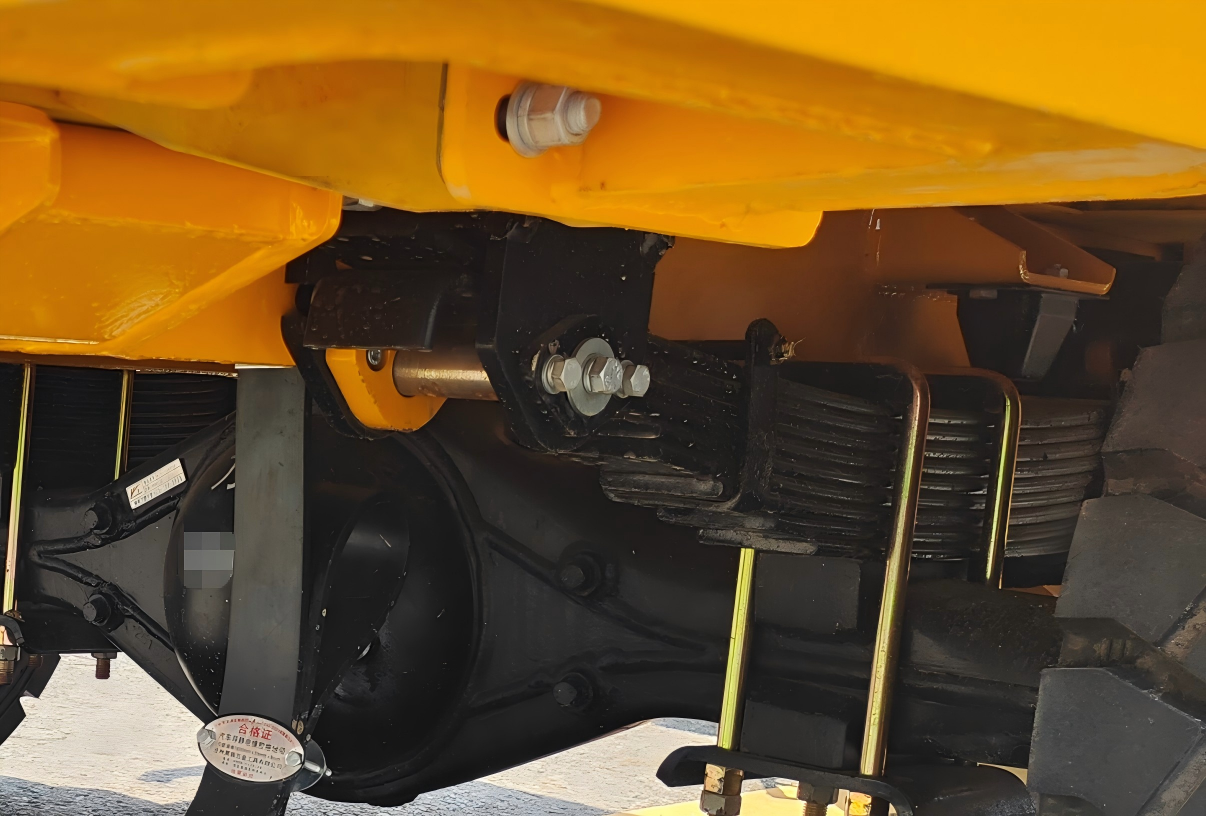

Dampers and spring plates, comfortable and stable
The chassis design features a dampers and spring plate structure, effectively reducing vehicle body vibrations in complex transportation environments, ensuring the stability and safety of the frame.
Powerful engine, no problem with climbing transportation

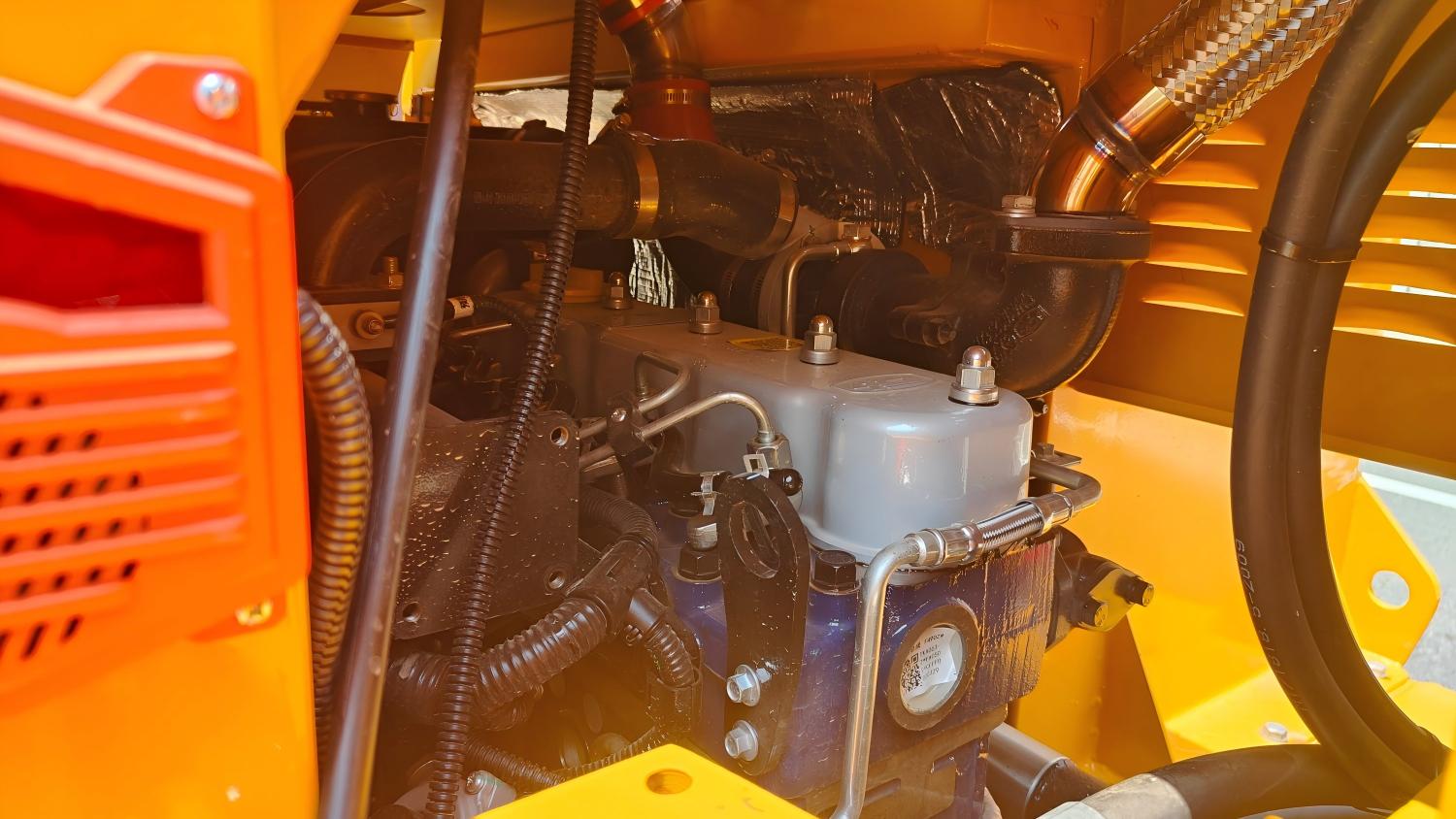

The power system uses a Yunnei four-cylinder water-cooled turbocharged engine, with a water-cooled unit that is quiet, has a long lifespan, and can provide stable output even during long-term underground operations.
Reliable transmission, strong climbing ability
The transmission system uses a power shift transmission gearbox integrating a torque converter and a gearbox, which is reliable and has strong climbing ability. It can handle both gentle slopes and steep slopes with ease.
Safety first, compliant transportation guaranteed
Safety first, compliant transportation guaranteed

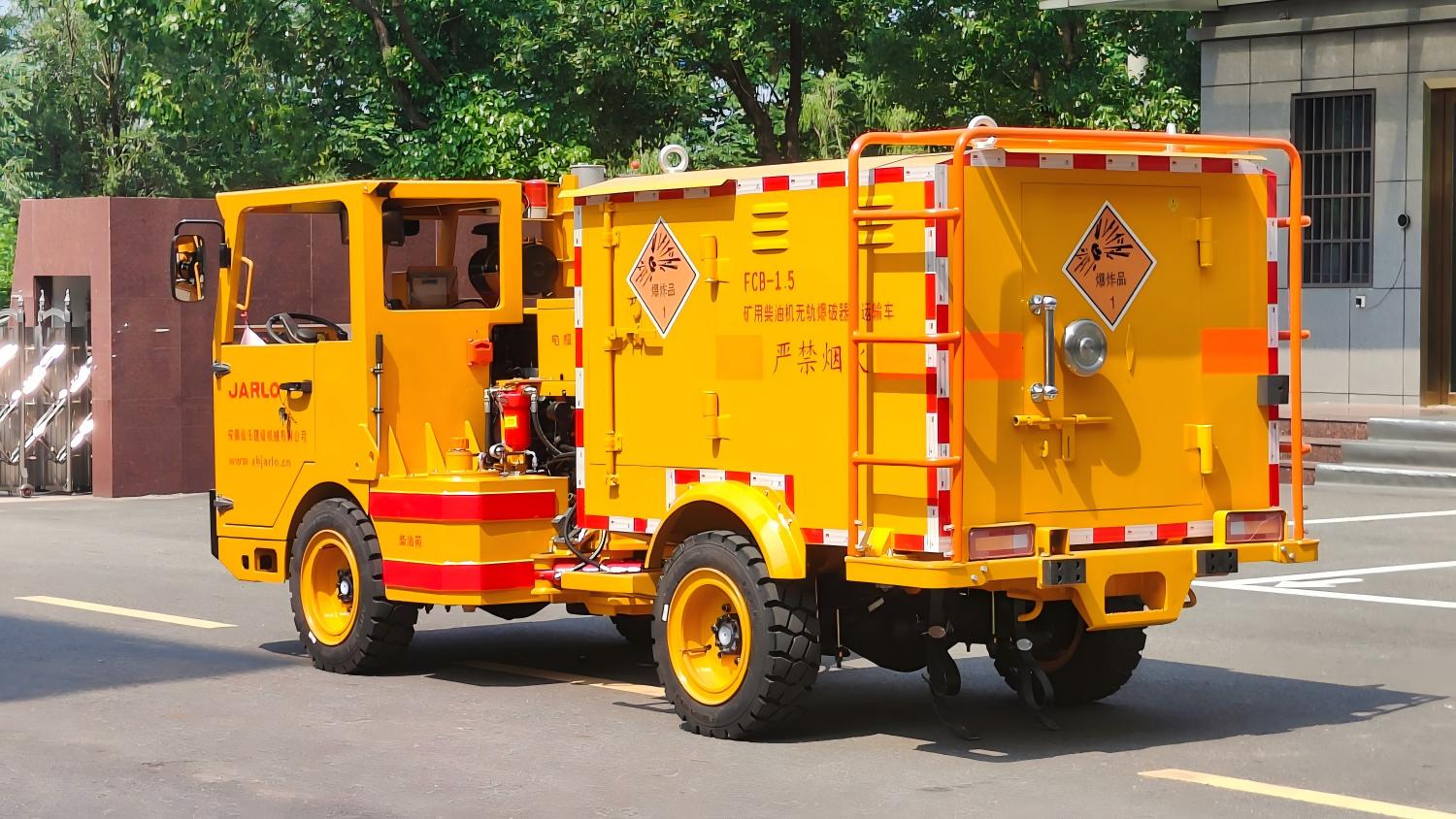

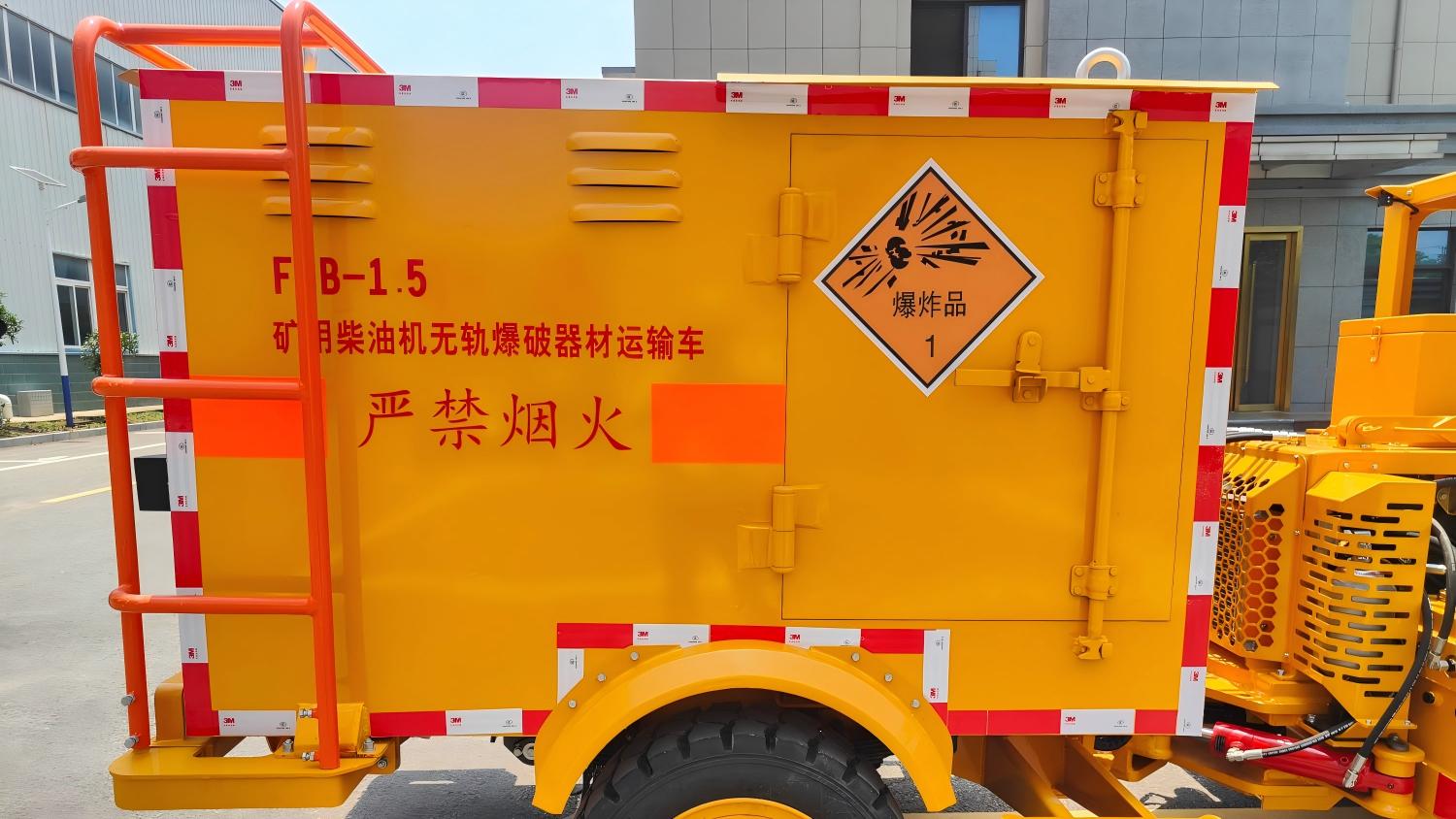

The rated load capacity of the transport compartment is 1.5 tons. It has passed the Ministry of Public Security's inspection and complies with the GB2702-1990 standard for explosion-proof safety boxes. The internal dimensions of the compartment are 1850×1450×1150mm, providing ample space and standardized loading.

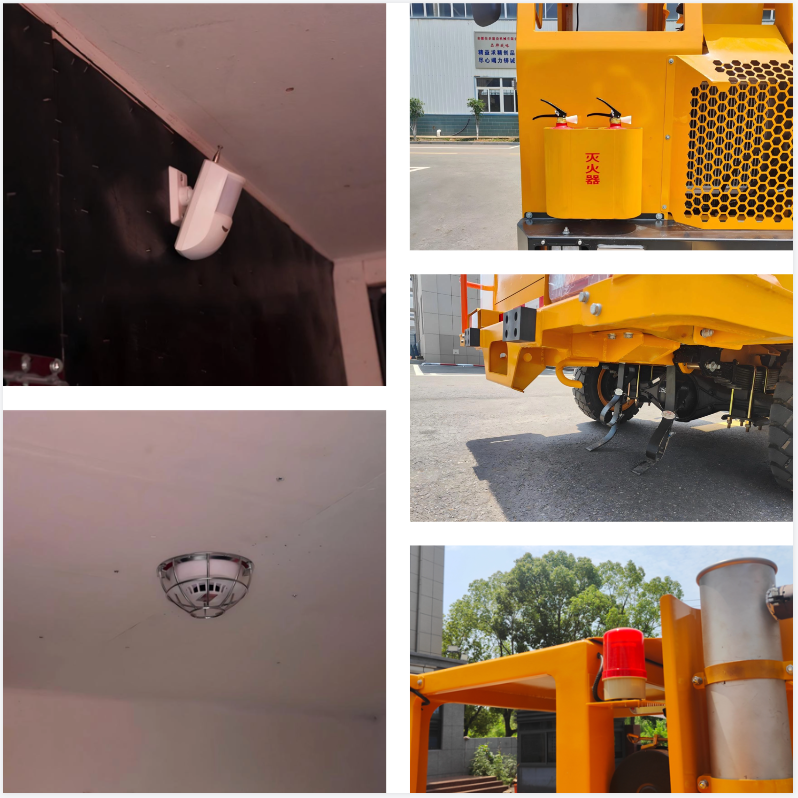

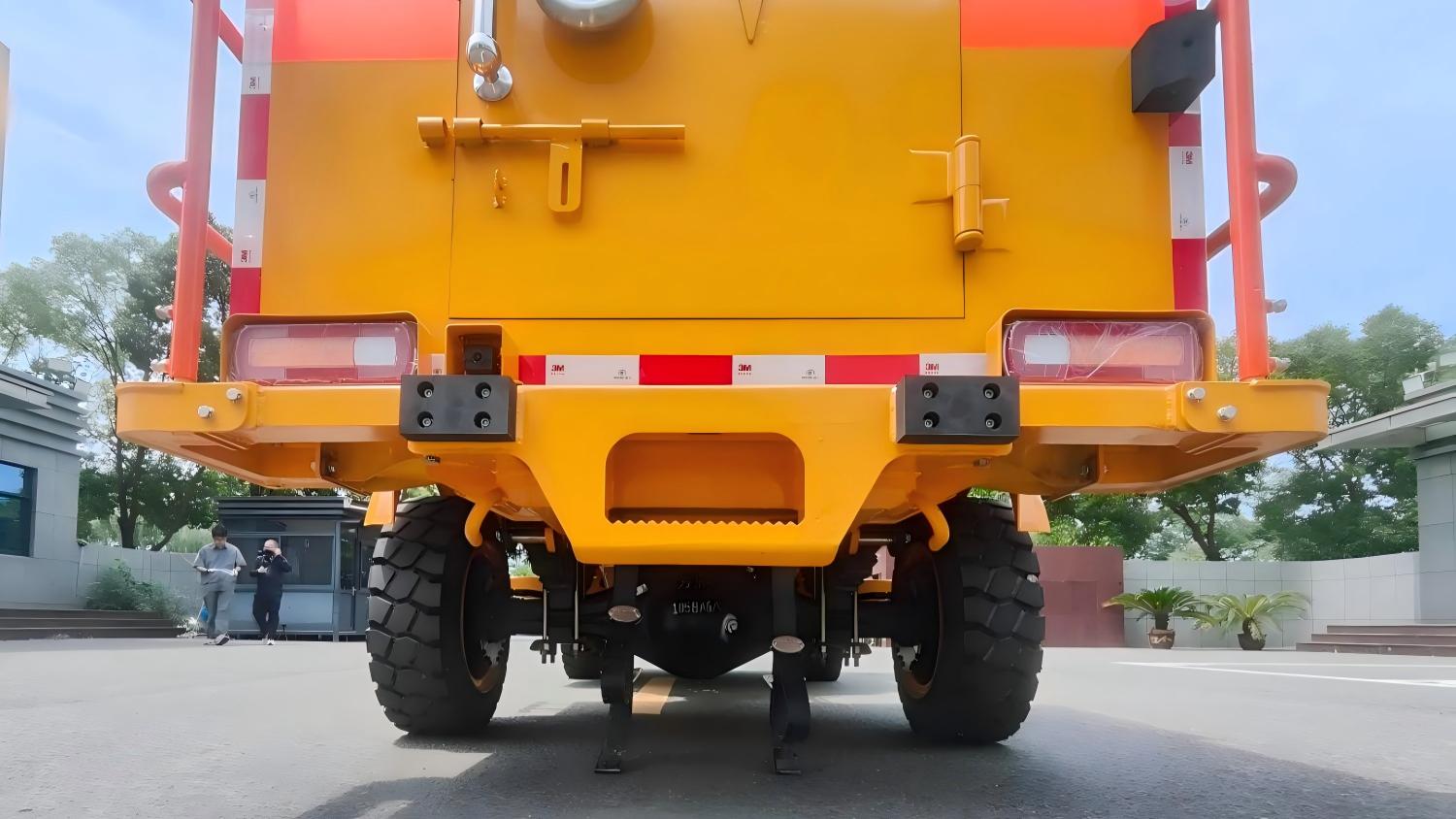

Multiple safety attachments, fully equipped

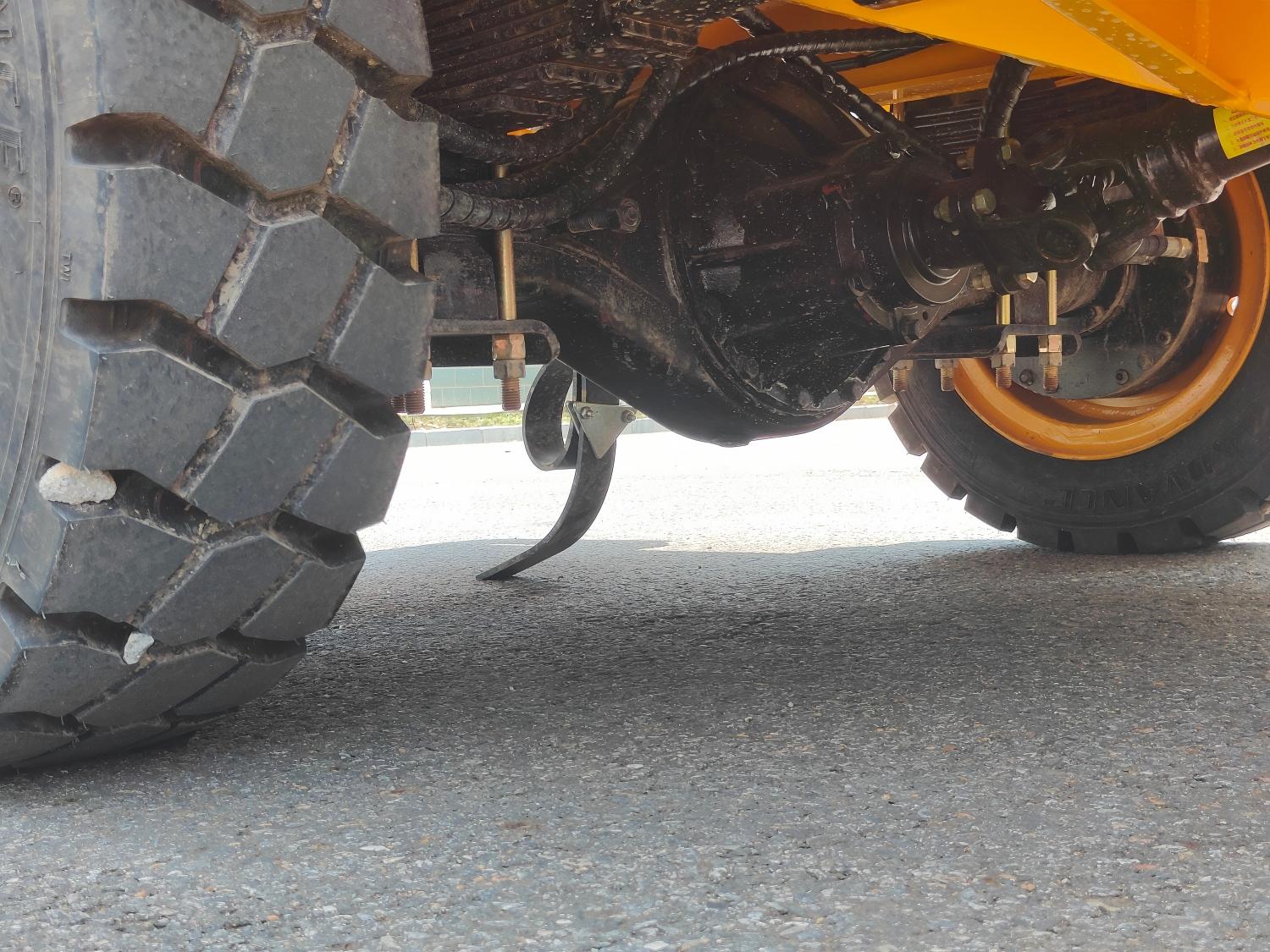

Standard safety attachments include anti-static towing straps, warning lights, spark extinguishers, smoke alarm systems, and anti-theft systems, along with a dry powder fire extinguisher. These safety attachments prevent potential safety hazards from the source, ensuring every transportation is safe.
Dual circuit braking, fail-safe design
The braking system uses a dual-circuit hydraulic closed-loop braking system, with fully enclosed wet multi-disc hydraulic brakes. The driving, emergency, and parking brakes are closed-loop spring brakes, and the hydraulic release fail-safe driving and parking brakes ensure the safety of vehicle driving and parking.

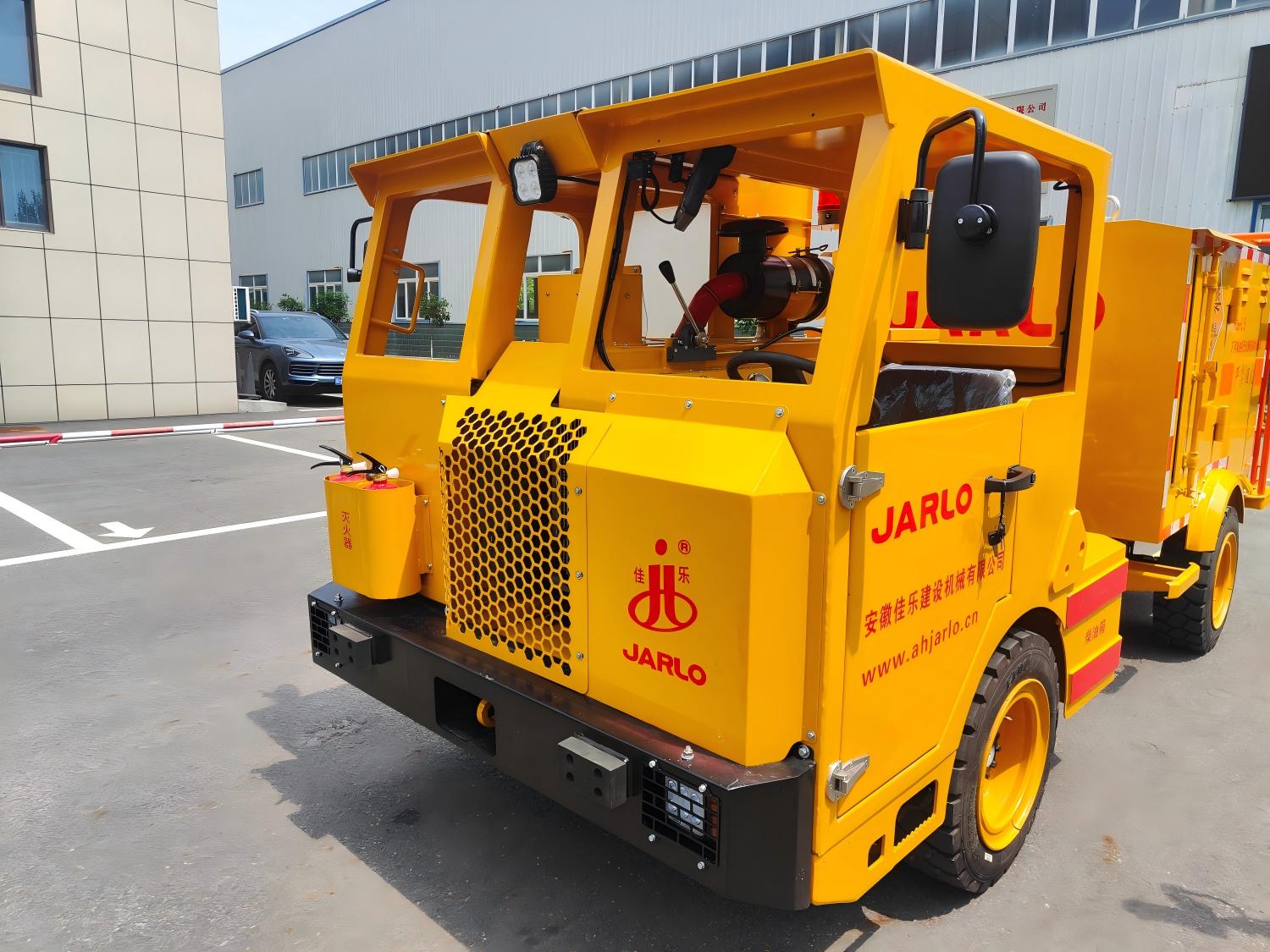

ROPS/FOPS certified driver's cabin
The driver's cabin is designed with ergonomics and has passed ROPS (roll-over prevention) / FOPS (impact prevention) safety certification, providing a sturdy safety barrier for the driver.
Intelligent monitoring, upgraded driving experience

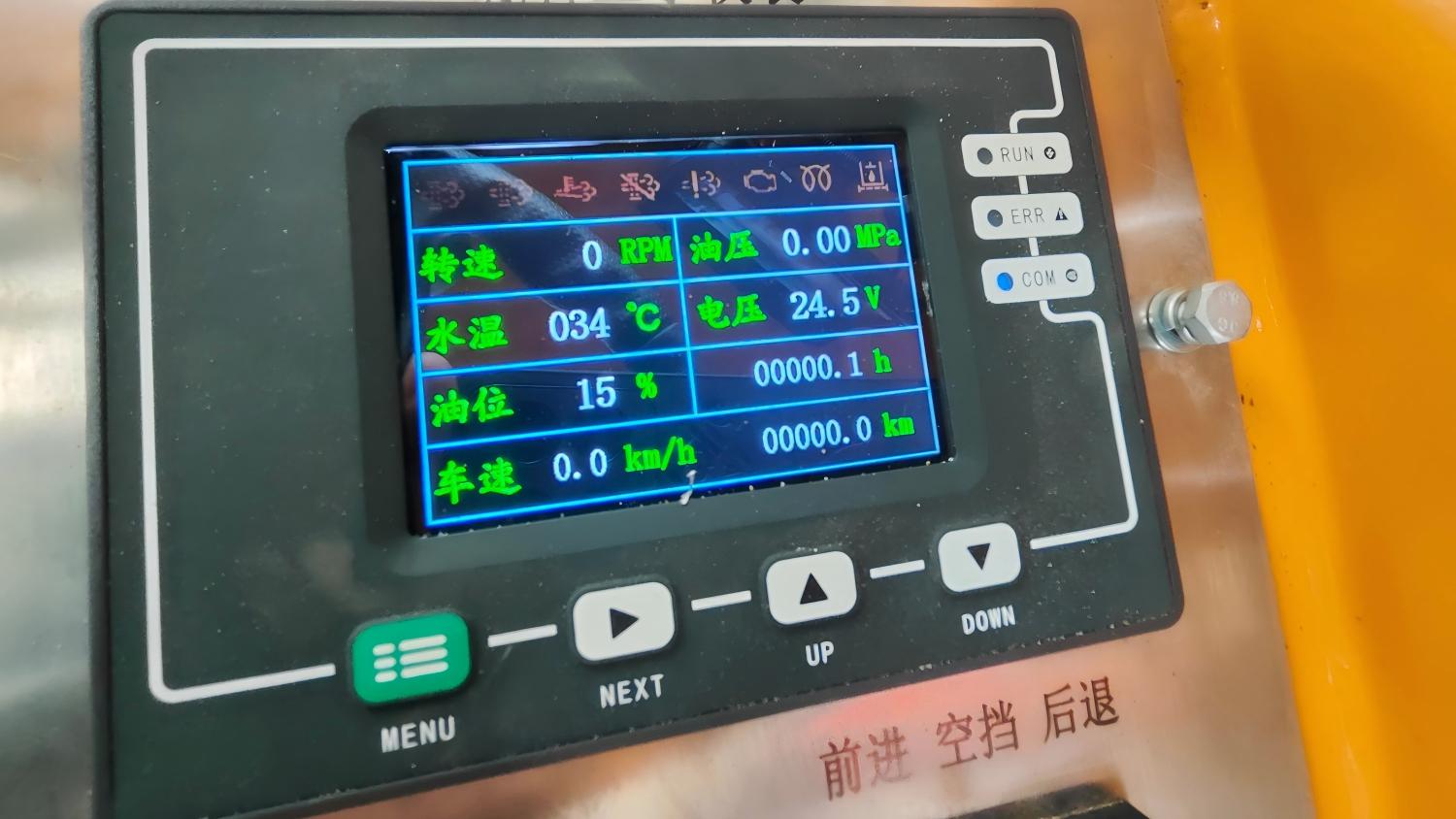

On-board computer system
An on-board computer system is installed in the driver's cabin, which can display real-time information on engine status and protection, driving speed, and faults, allowing the driver to monitor the vehicle's condition at any time and take early warnings and preventive measures.

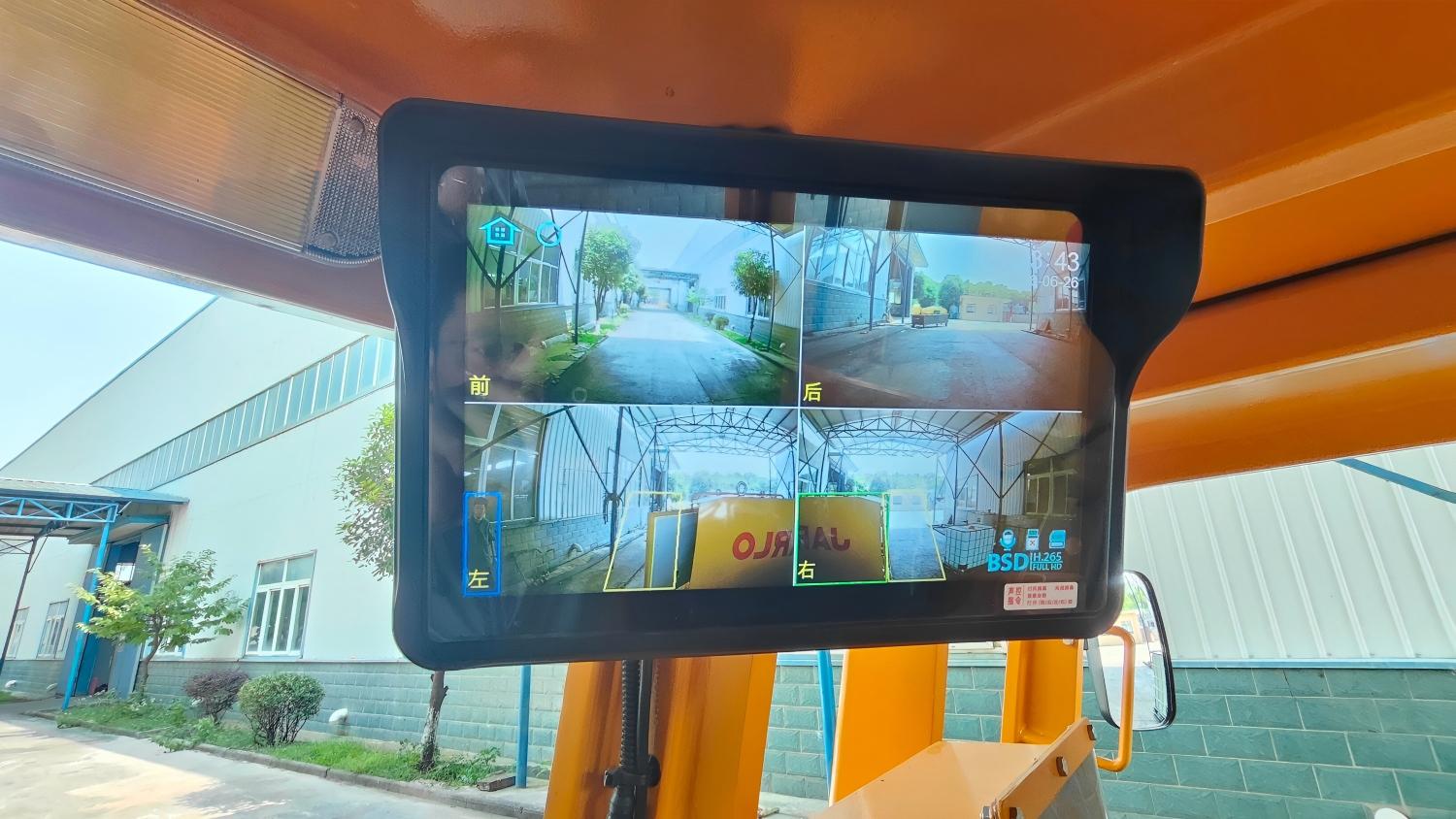

Reverse camera system
The vehicle is equipped with a reverse camera system, which can record and store relevant information. It features front and rear dual-view cameras with night vision capabilities, eliminating blind spots and ensuring driving safety in narrow spaces.

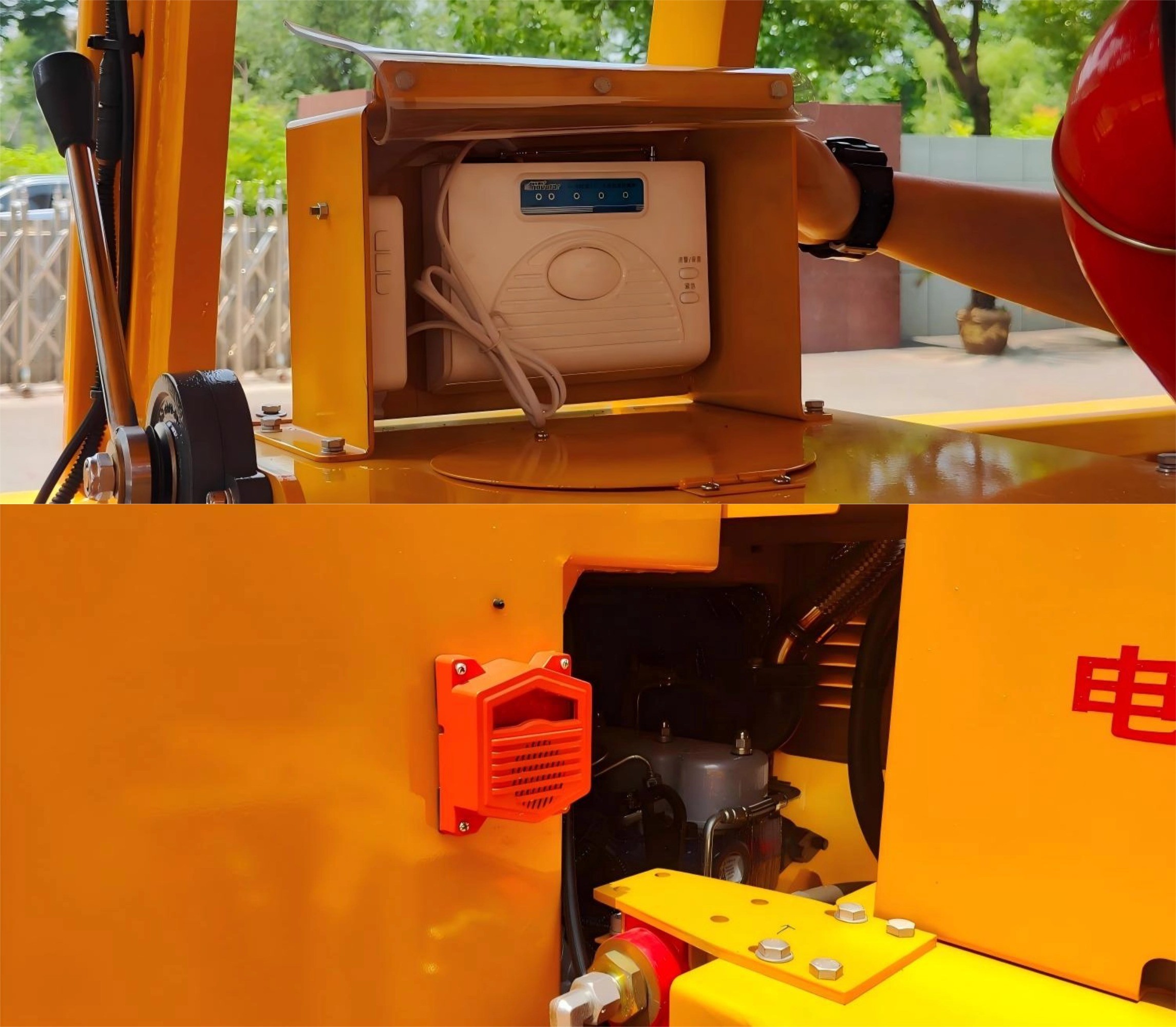

Near-sensor warning device
The entire machine is equipped with a near-sensor warning device. Once there is a person or object approaching the blasting material box, the system immediately activates an automatic voice alarm, providing real-time safety risk prevention.
Craftsmanship details, quality guarantee
2.5-ton articulated fixed chassis
The mature and reliable 2.5-ton articulated chassis is used, with a sturdy structure and strong load-bearing capacity. It has been verified by the market for a long time and is stable and reliable.
Imported/brand-name hydraulic components
The main components of the hydraulic system adopt imported or domestic brand-name products to ensure the reliability and durability of the system during long-term operation.
Post-weld annealing + shot blasting treatment
The frame undergoes post-weld annealing treatment and shot blasting treatment to eliminate welding stress and enhance surface strength, ensuring the structural quality and lifespan of the entire vehicle.

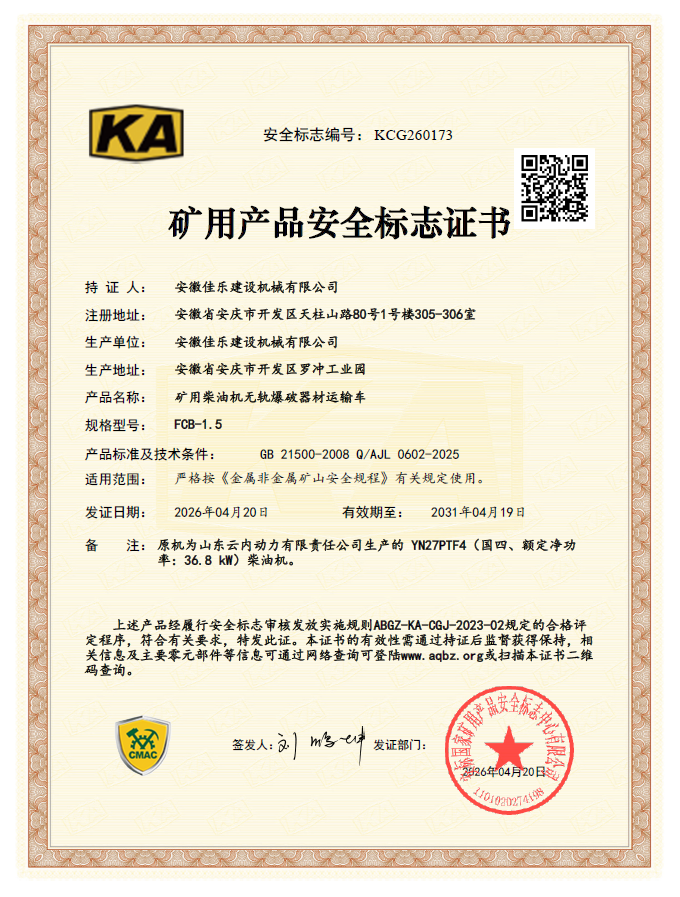

FCB-1.5 Mining Diesel Engine Trackless Explosives Transportation Vehicle has obtained the national mining product safety certification. It is safe and compliant, agile in operation, has reliable power, and is intelligent in monitoring - the professional choice for transporting underground blasting materials!
