In the narrow sections of mining tunnels, space constraints, long ramps, and complex environments have always been the "obstacles" in the concrete transportation process. Traditional equipment has a high body, a large turning radius, and poor maneuverability, which not only affects efficiency but also poses safety risks.
Today, let's introduce a "powerful" solution specifically designed to address these problems: KJCJ-2.6(C) Mining Concrete Mixing Transporter.
Compact in size, able to navigate through the tunnels smoothly

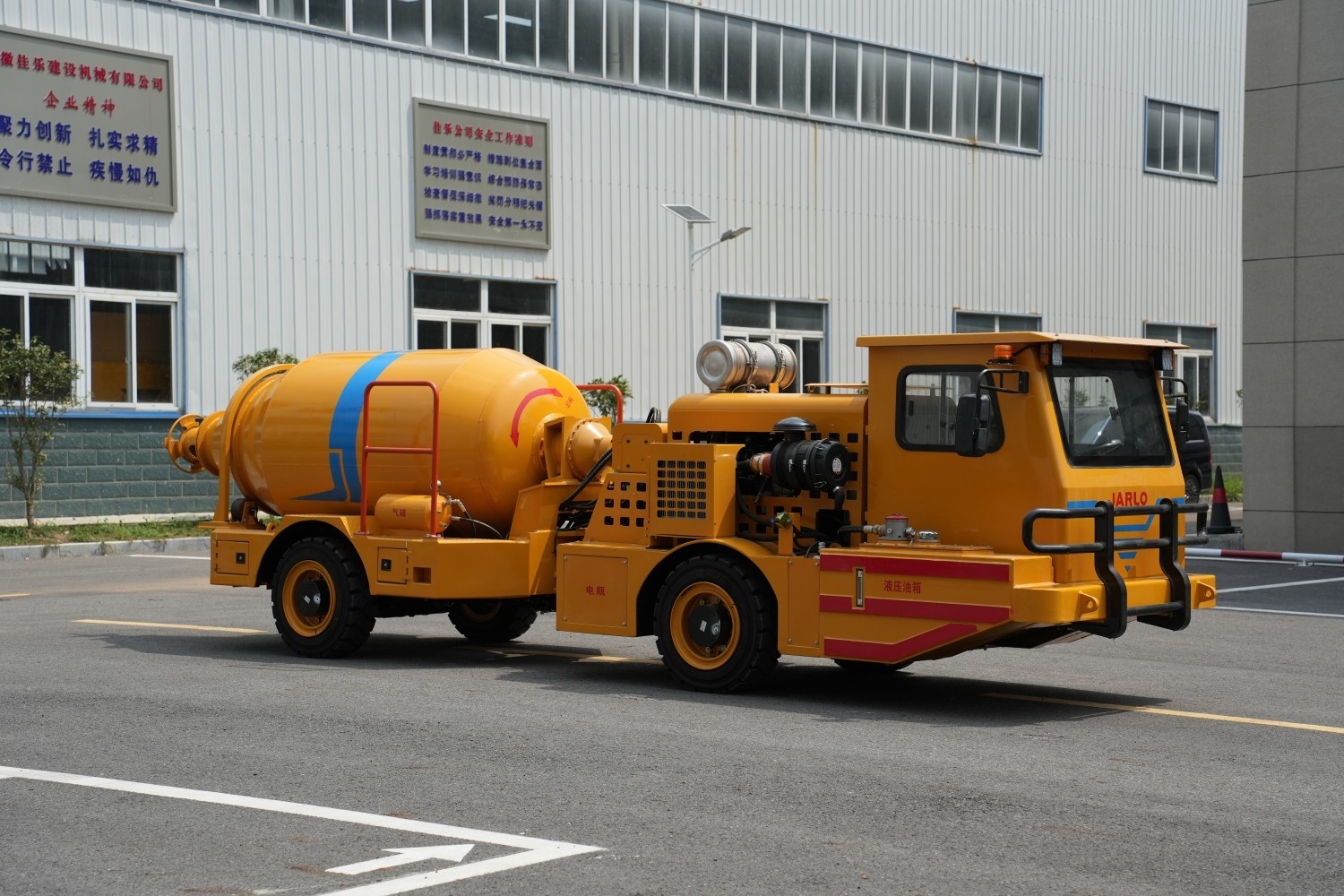

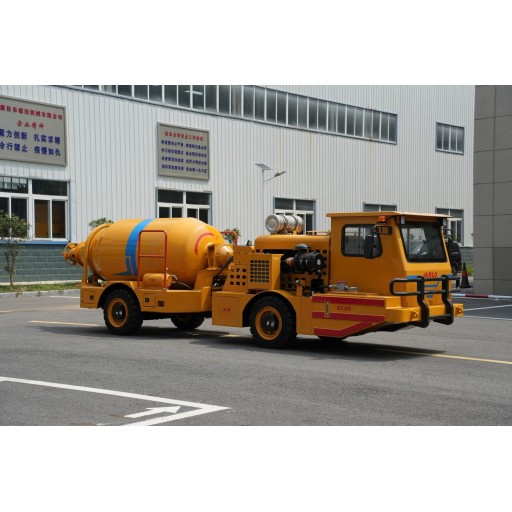

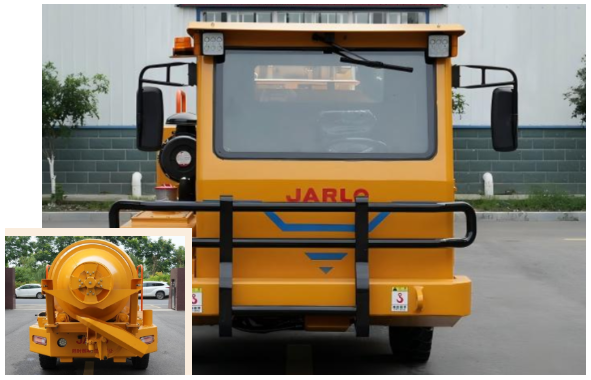

The vehicle's overall dimensions are only 7600×1720×1950mm, which enables it to easily enter and exit underground tunnels, even in small-section and long-slope complex environments, and can flexibly pass through.

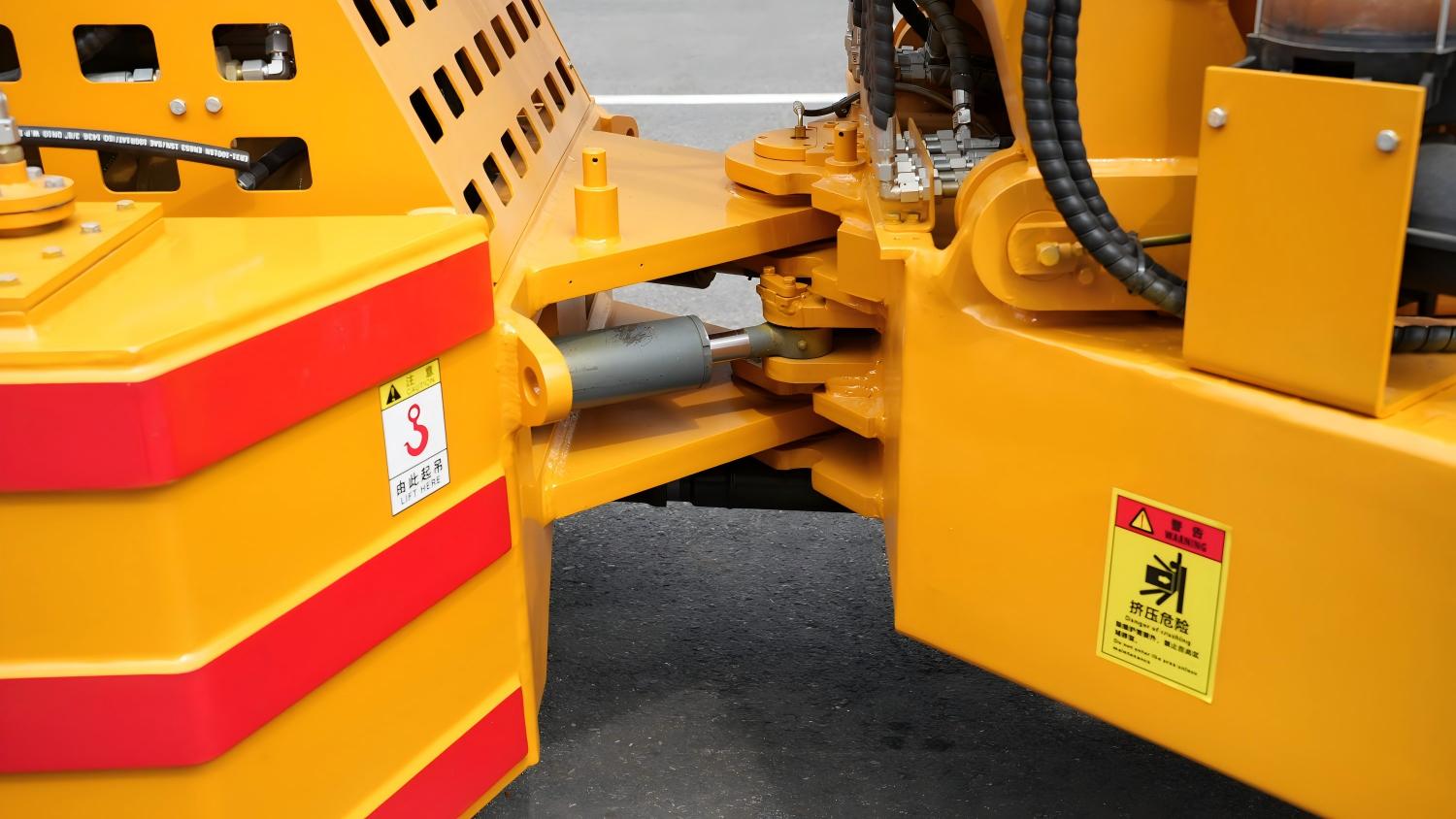

What's more noteworthy is that its minimum turning radius is only 5.8 meters, combined with the central hinge connection and hydraulic power steering system, the steering angle can reach ±40°, making it easy to turn and make turns in the narrow underground spaces.
Powerful engine, effortless climbing and crossing obstacles

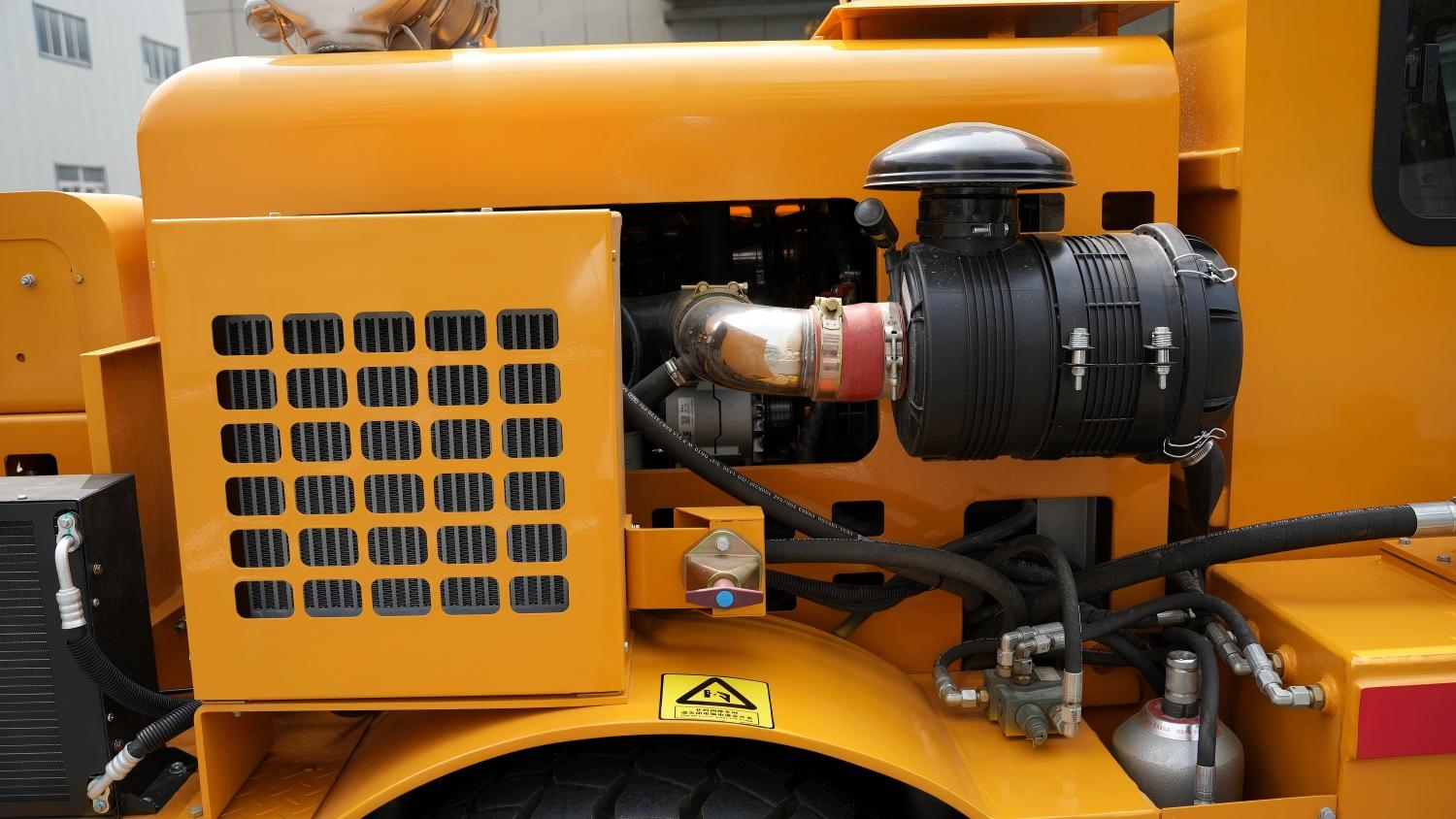

Equipped with a Cummins turbocharged water-cooled engine, with a maximum power of 96kW/2500rpm and a maximum torque of 520N·m. The self-made super-performance engineering chassis provides strong power and climbing ability.
Two-speed transmission design - slow gear 6.5km/h, fast gear 15km/h, ensuring smooth and powerful climbing during heavy-load transportation, and improving transportation efficiency on flat roads.
Safety first, comprehensive protection
The braking system adopts a dual-loop braking system, using wet multi-disc brakes. The driving brake is a dual-bridge independent hydraulic-assisted dual-loop oil-immersed multi-disc brake, and the parking brake is a spring braking and hydraulic release fail-safe design, providing dual guarantees.

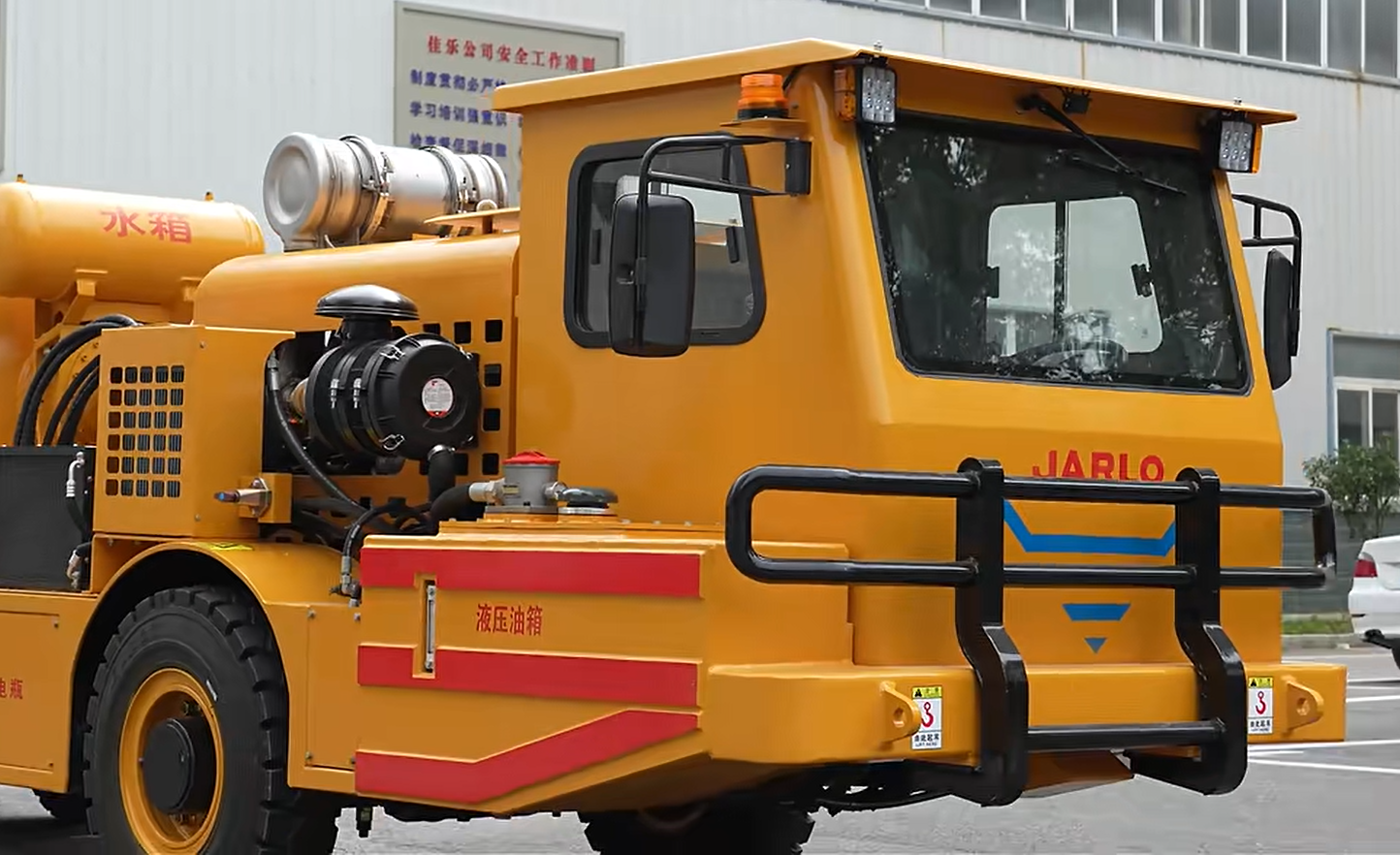

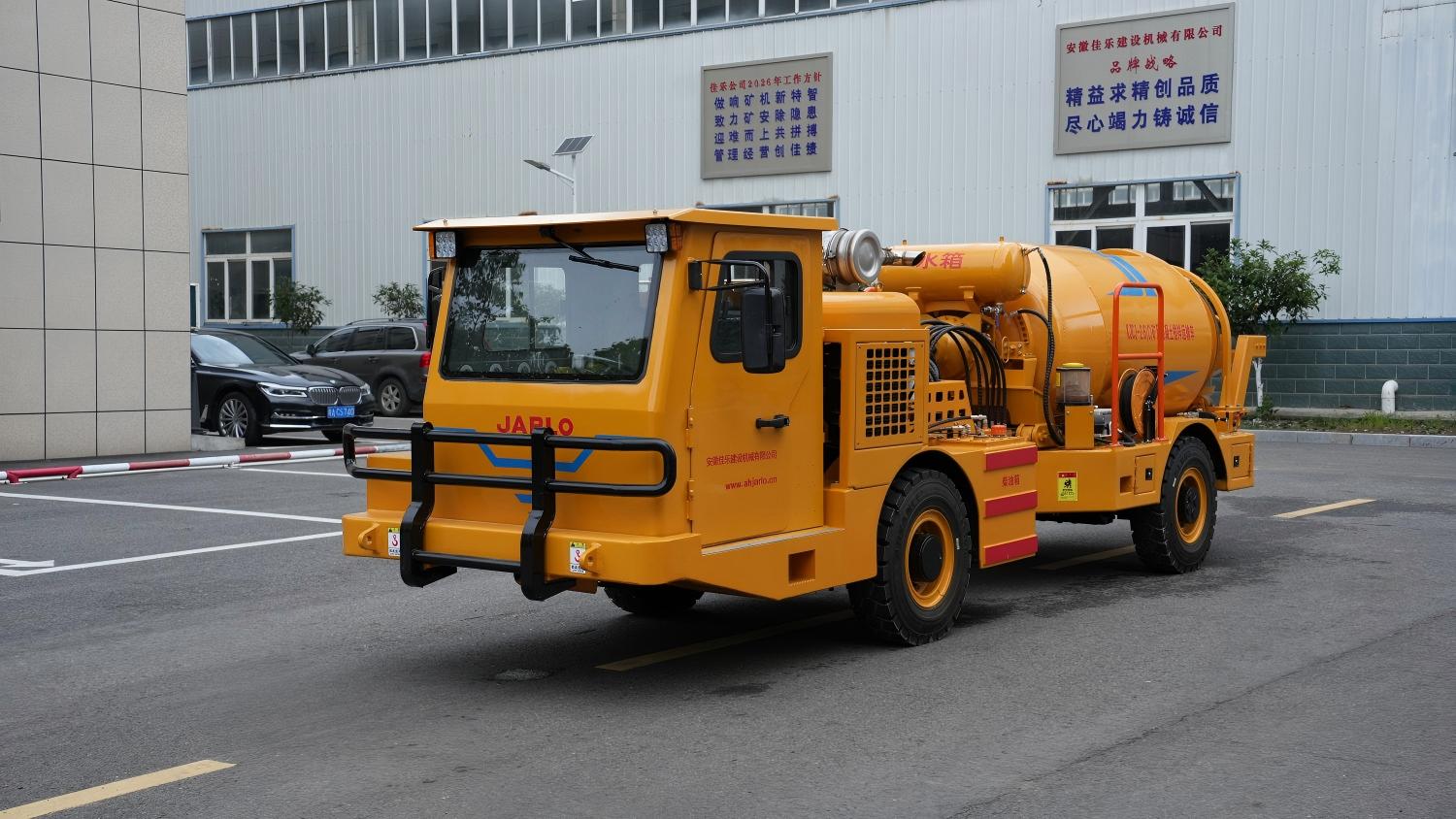

The enclosed driver's cabin is certified by FOPS/ROPS, meeting safety standards for protection against falling and rollovers, equipped with air conditioning, with a wide field of vision, and control panels both inside and outside the driver's cabin are accessible for easy operation.

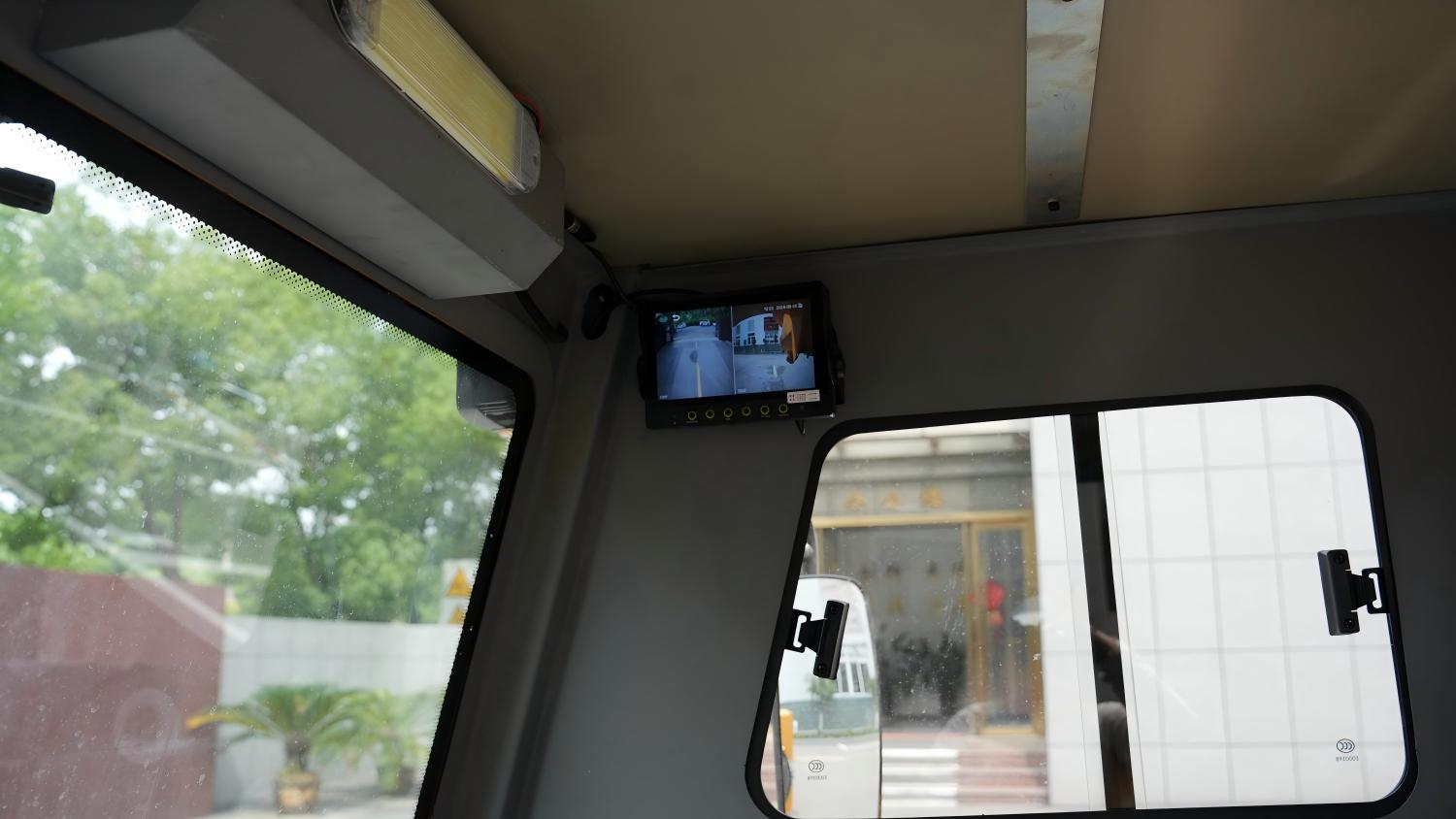

The vehicle is equipped with a reversing camera system, capable of recording and storing relevant information. It is equipped with front and rear dual-view cameras with night vision function, eliminating blind spots and ensuring driving safety in narrow spaces, and is fully illuminated by 2 45W lighting lamps on the front and rear, along with the roof signal warning lights, providing comprehensive illumination in the underground dark environment.
Craftsmanship design, balancing practicality and durability

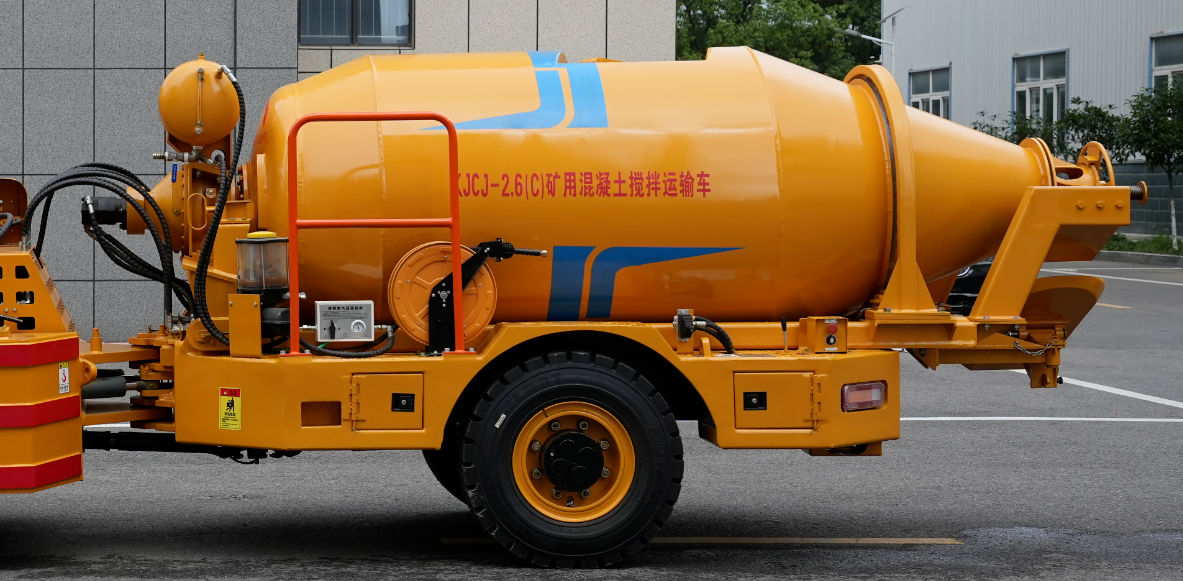

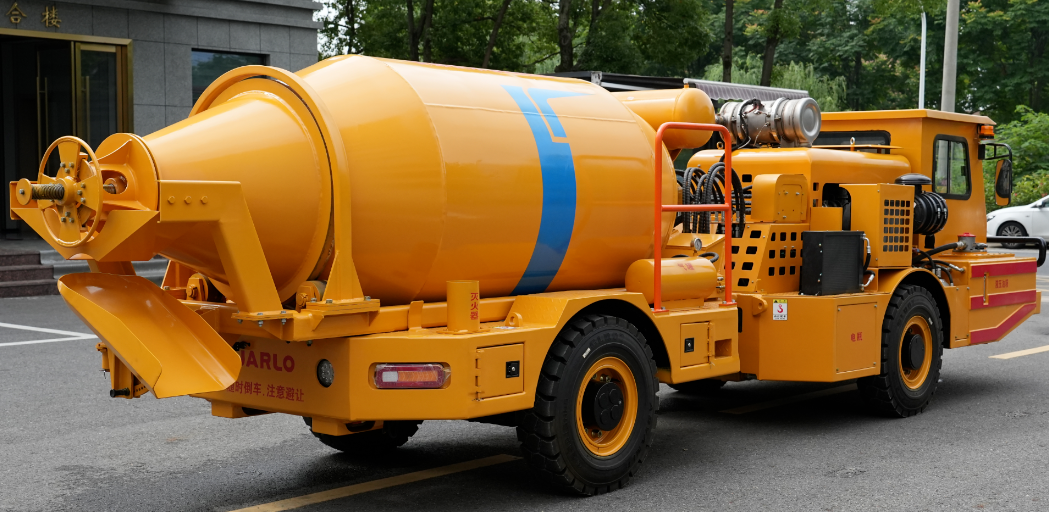

The mixing tank is placed flat on the frame, which can not only fully mix the concrete but also effectively prevent leakage during uphill transportation. The feeding port is located at the tail of the tank, facilitating connection with the ground mixing device.

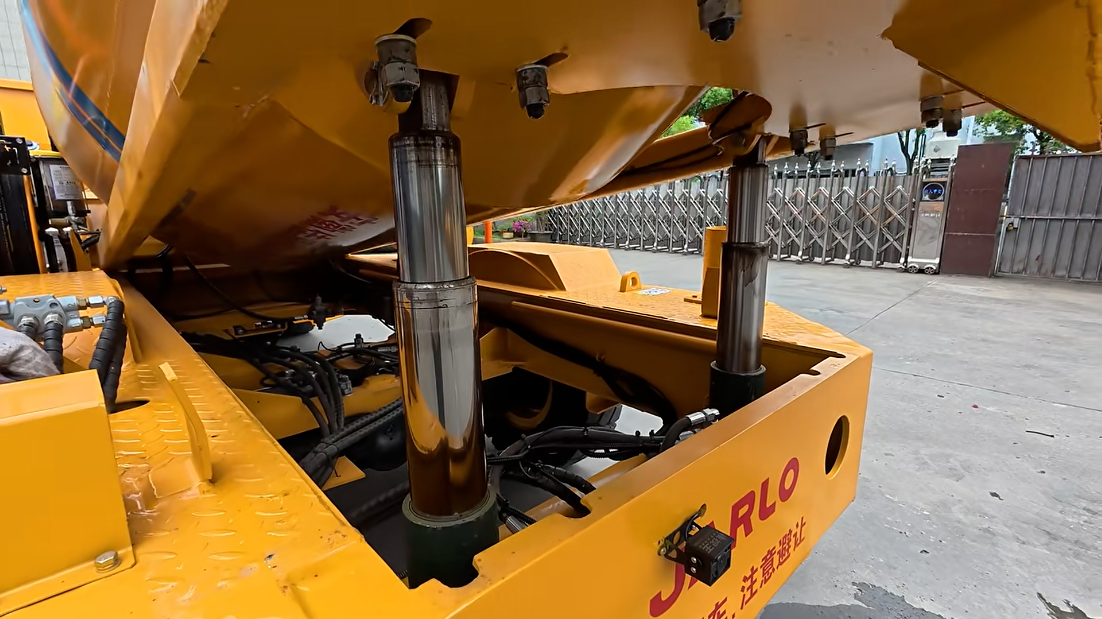

The tank tail is equipped with an elevation oil cylinder, allowing adjustable discharge height, which can be adjusted within the range of 850-1300mm, suitable for different construction scenarios.
The front axle of the chassis is designed with a leaf spring shock absorption device, effectively reducing vehicle vibration in complex road conditions, improving driving comfort and stability. The frame undergoes post-weld annealing treatment and shot blasting treatment to eliminate welding stress, ensuring the structural strength and service life of the entire vehicle.
Market verification, a trusted choice
Deeply rooted in the challenges of underground concrete transportation, the KJCJ-2.6(C) Mine Concrete Mixing and Transportation Vehicle has refined every aspect, from navigating through narrow tunnels, efficient discharging, safety protection to durable construction, layer by layer, using powerful configurations to solve multiple pain points in underground construction, meeting the actual on-site operation requirements of small-section mines, and effectively enhancing the quality and efficiency of underground projects. This equipment has been used in numerous mine sites, demonstrating stability, reliability, and high efficiency, earning customer trust and receiving numerous industry praises.
