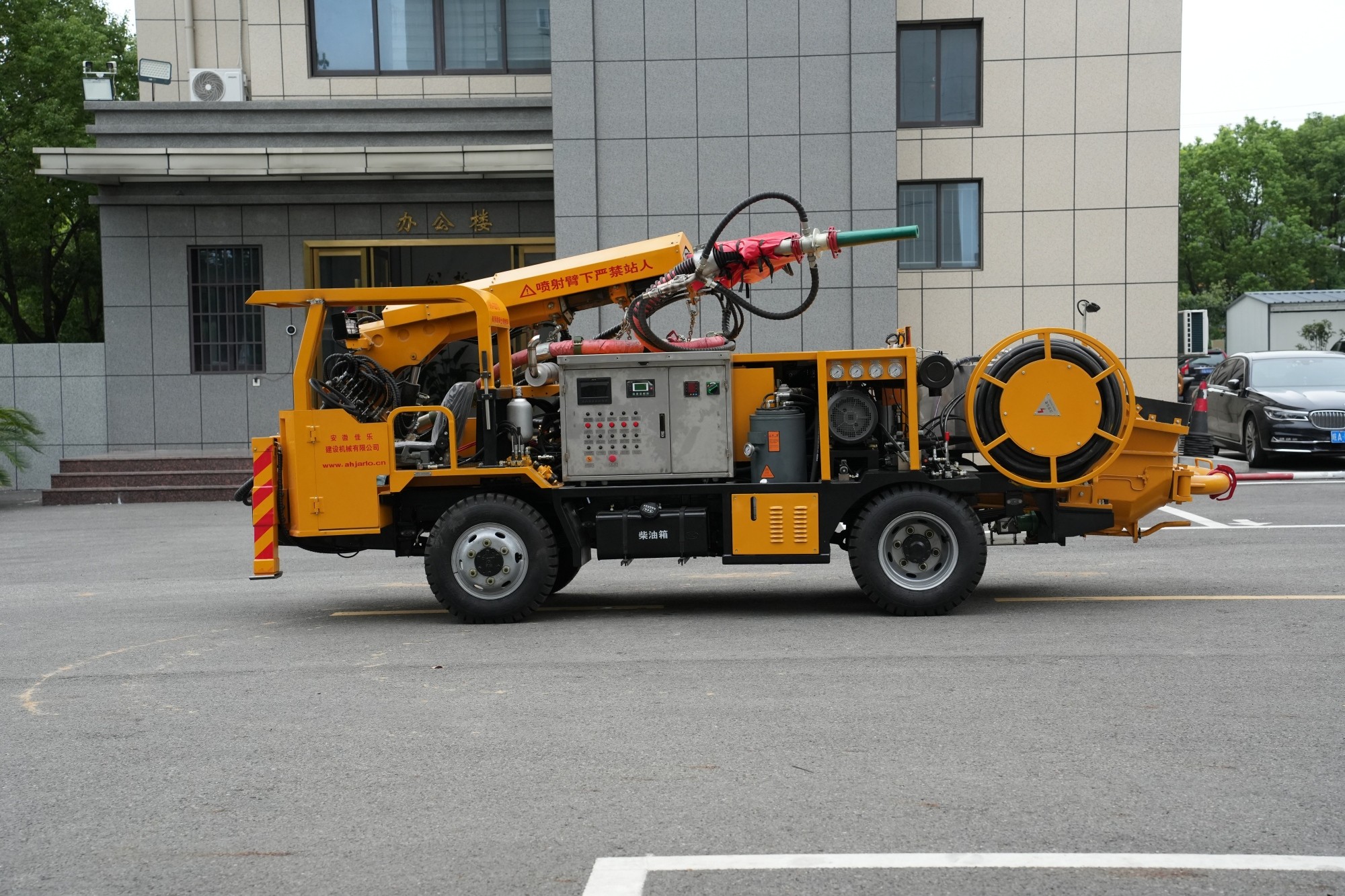

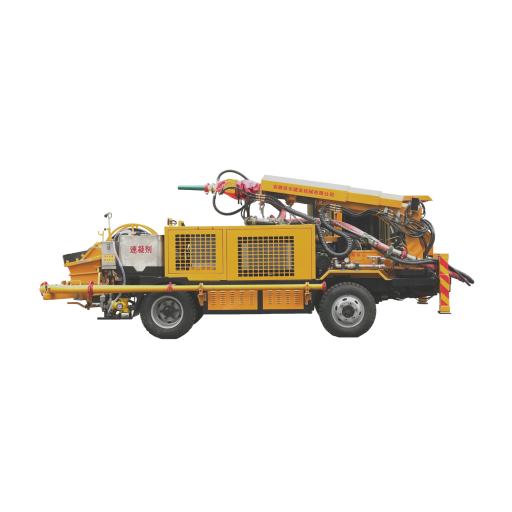

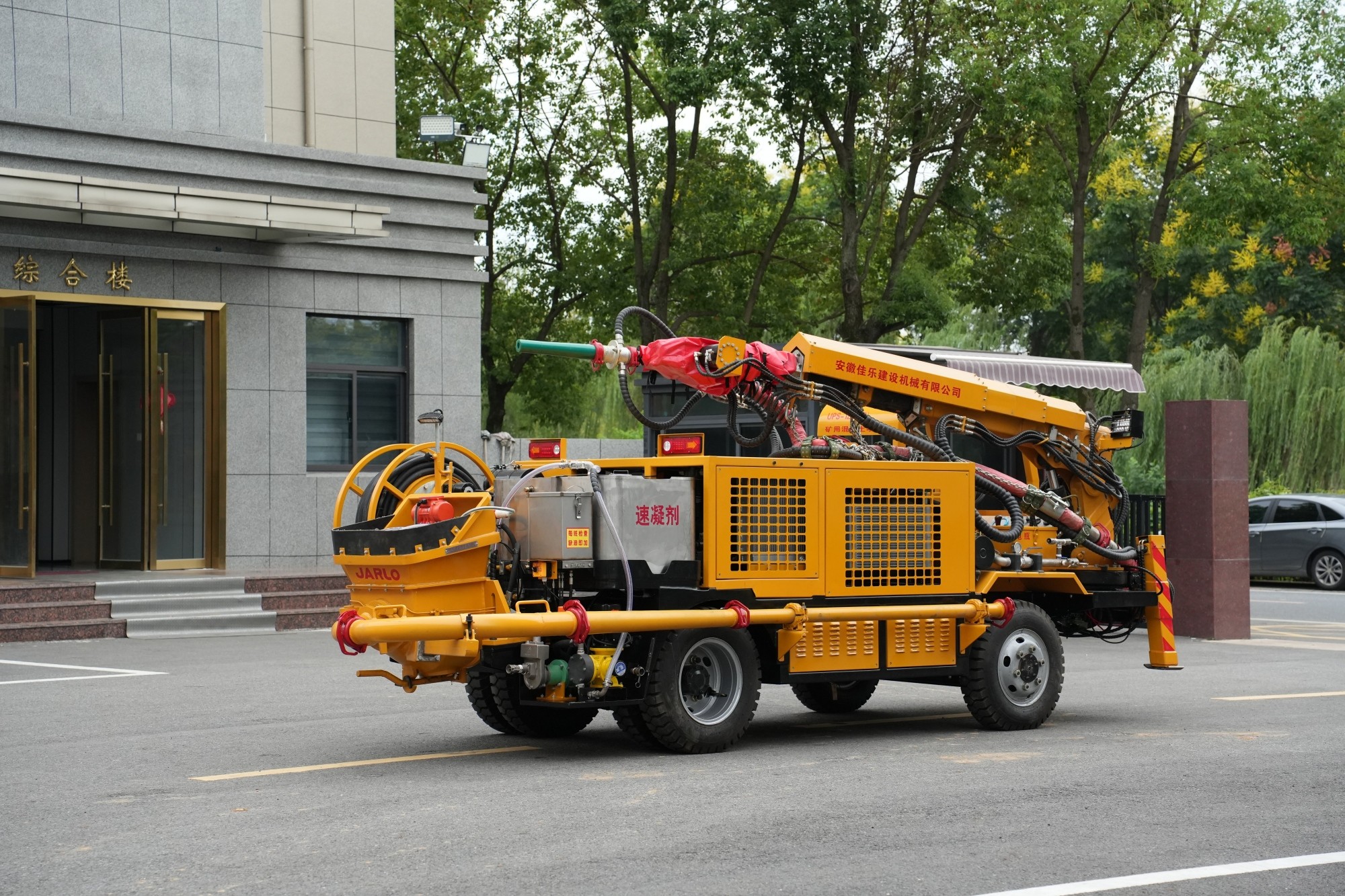

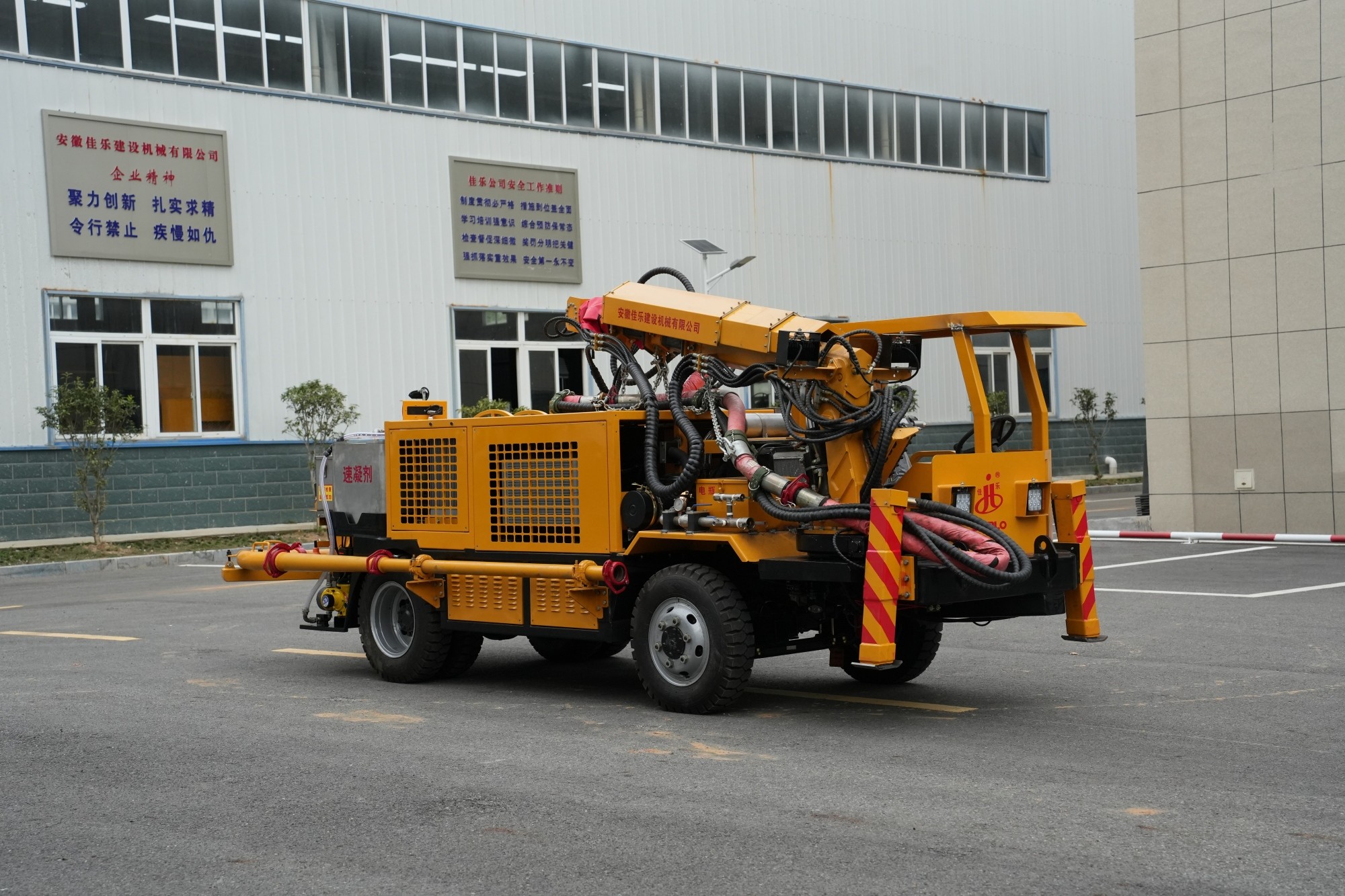

To meet the demand for concrete spraying operations in small section mining tunnels, our company has launched the UPS-12ZT mining concrete spraying truck. This product is a low and compact wet spraying trolley that integrates flexible mobility, efficient operation, and intelligent control. It is widely used in wet spraying support operations in metal and non-metal mining tunnels, hydraulic tunnels, underground buildings, and other scenarios.
Intelligent control, efficient operation

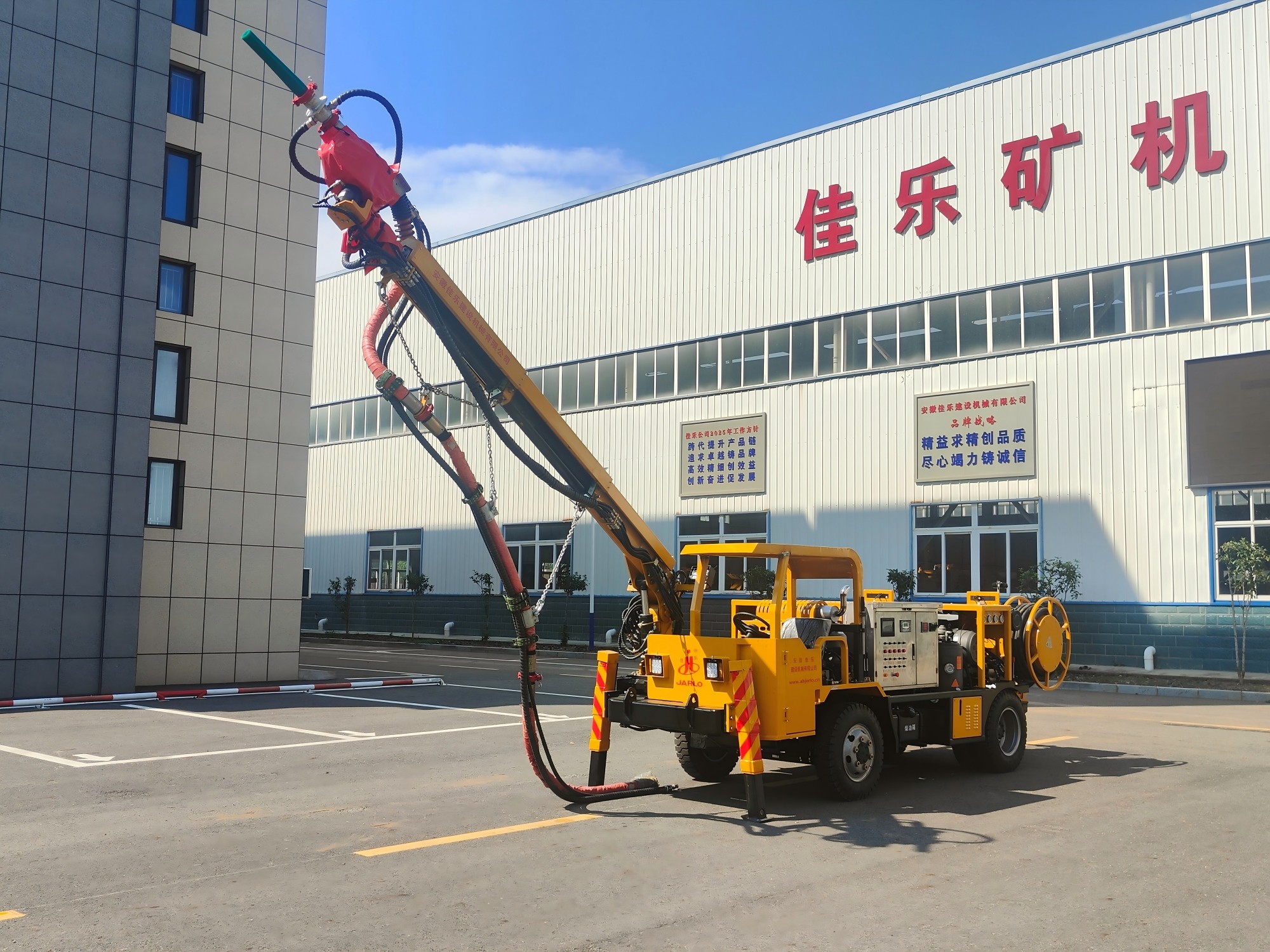

The UPS-12ZT adopts a multi-stage telescopic arm structure, combined with a fully integrated proportional wireless+wired dual control system, supporting 16 meter wired and 100 meter wireless remote control operations. The upward spraying height reaches 7 meters, and the forward spraying distance is 6 meters, which can achieve flexible coverage of a wide range of working surfaces. The equipment has a concrete spraying capacity of 12m ³/h, combined with low rebound technology, significantly improving construction efficiency and reducing material loss.
Flexible and maneuverable, with strong passability
Based on the chassis of the car, the overall size of the vehicle is 5855 × 1680 × 2000mm (transport size), with a maximum driving speed of 25km/h, a minimum turning radius of 4.45 meters on the inside and 5.65 meters on the outside, and quick transition. The climbing performance of 14 ° and the ground clearance of 180mm enable it to adapt to complex underground working conditions and easily cope with the challenges of narrow roadway operations.
Intelligent, reliable, and durable
The equipment is equipped with a dedicated controller and customized human-machine interface, which monitors operating parameters in real time and supports fault alarms. It is easy to operate and safe and reliable. Adopting a hydraulic wet braking system, equipped with mining pneumatic tires, and optimized design of key components, effectively reducing mechanical wear and extending service life.
UPS-12ZT provides a professional and reliable solution for small section roadway support with its compact structure, efficient spraying performance, and intelligent operating experience.
