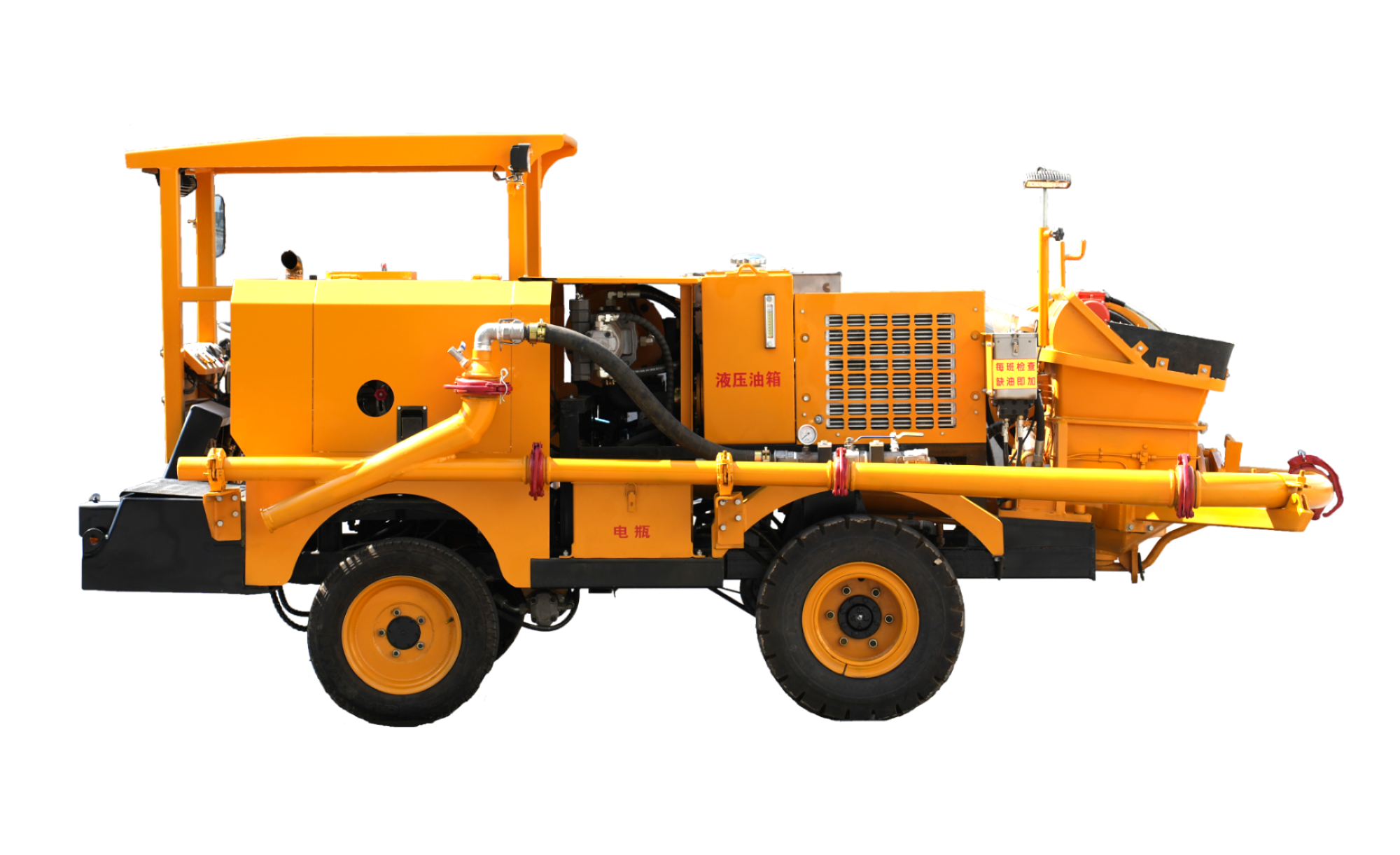

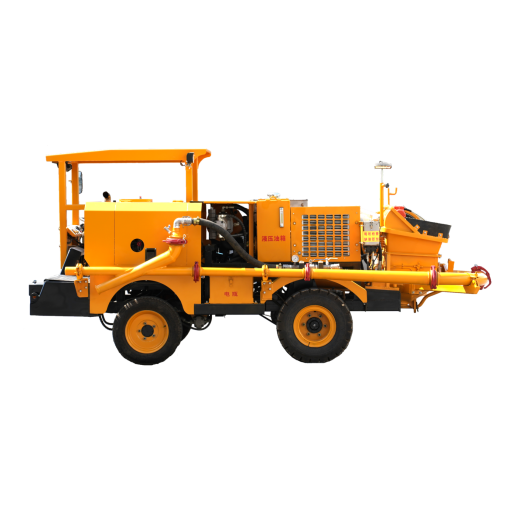

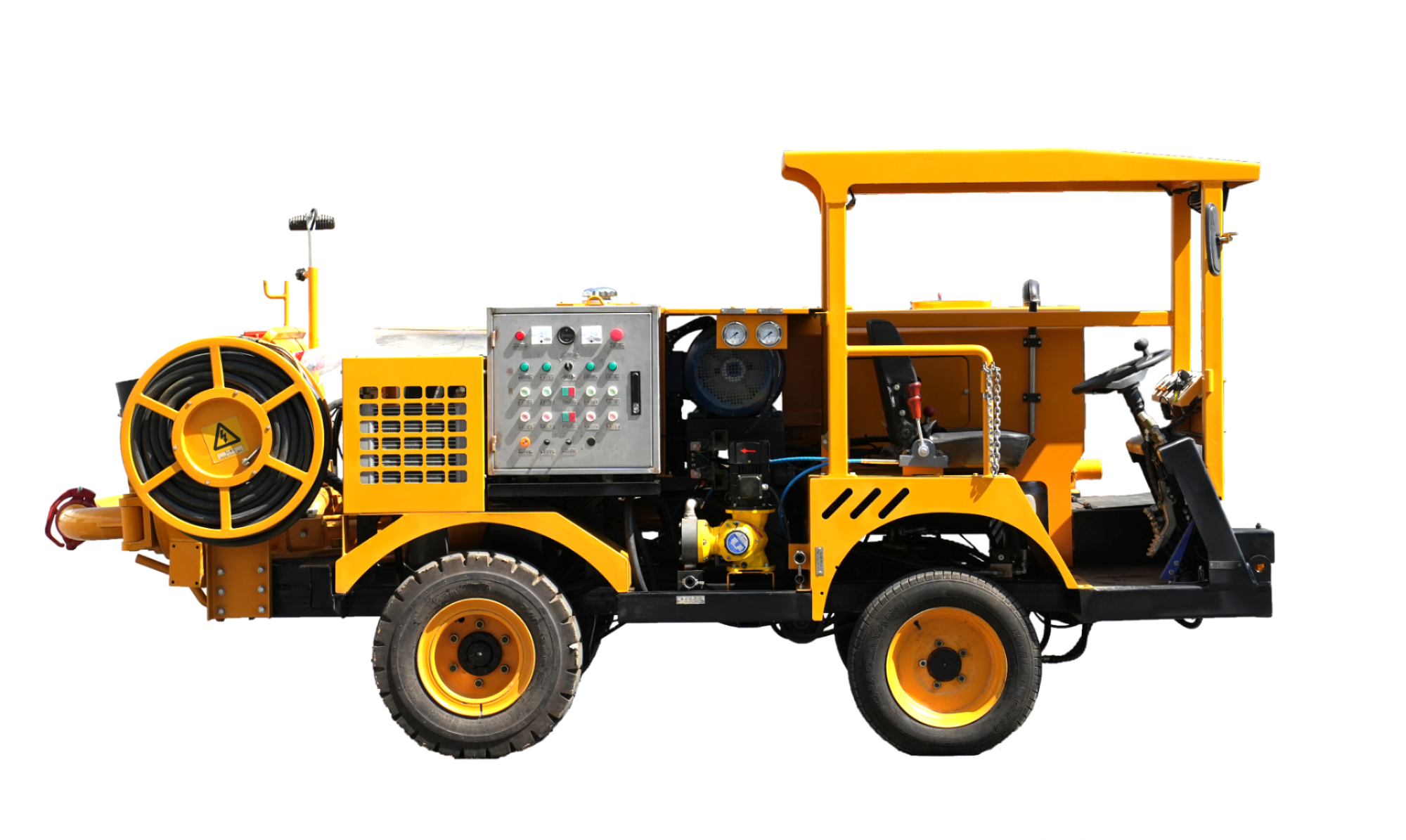

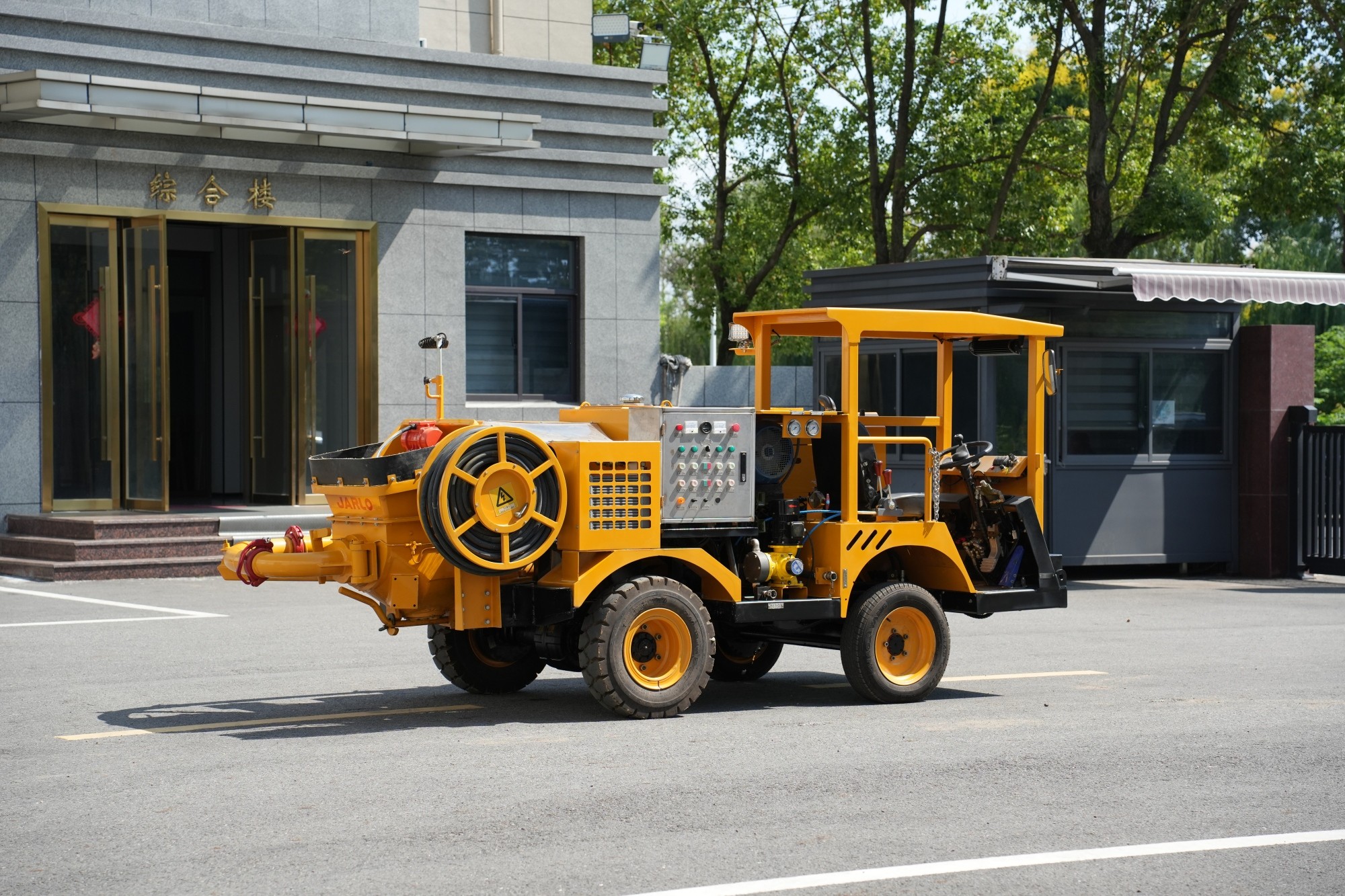

To meet the concrete support needs of low alleys and narrow spaces in mines, our company has officially launched the UPS-10ZT (E) mining concrete spraying truck. This product is a low and compact wet spraying trolley, which effectively fills the operational gap of large equipment in positions that cannot be reached by the boom with its flexible passability and efficient spraying ability.
Core application: Focusing on narrow spaces, widely used
This equipment is designed specifically for wet shotcrete operations in metal and non-metal mining tunnels, hydraulic tunnels, military and civilian underground buildings, road slopes, and other scenarios where there is no risk of explosion. Its compact and low profile allows for easy access and efficient completion of support work in areas that are difficult to cover with traditional large-scale spraying equipment.
Excellent performance: flexible and efficient, stable and reliable
Low and compact, with strong maneuverability: The vehicle size is only 4035x1570x1800mm, and the overall weight is light. Paired with a rear wheel drive steering chassis and mining inflatable tires, it is exceptionally flexible for passage and transition in narrow alleys, with a maximum driving speed of 11km/h.
Handheld spraying, flexible operation: Handheld nozzles are used for spraying operations, which can achieve flexible switching between single head or multi head simultaneous spraying, with low technical requirements for operators and the ability to adapt to complex working surfaces.
Efficient wet spraying, excellent performance: with an actual spraying capacity of 10 cubic meters per hour, long conveying distance, low rebound rate, not only improves construction efficiency, but also reduces material loss and mechanical wear.
The UPS-10ZT (E) mining concrete spraying truck equipment integrates a rigid self-propelled chassis, a 50 meter long cable, and a reliable power system (engine rated power of 15.5kW), ensuring stability and continuous operation capability under complex working conditions. Due to its simple operation and convenient maintenance, it has become an ideal choice for improving the efficiency and safety of concrete spraying operations in narrow spaces.
