Mining wet concrete spraying machine
UPS-12ZL

Mining wet concrete spraying machine

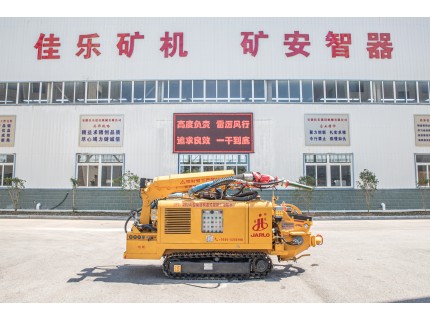

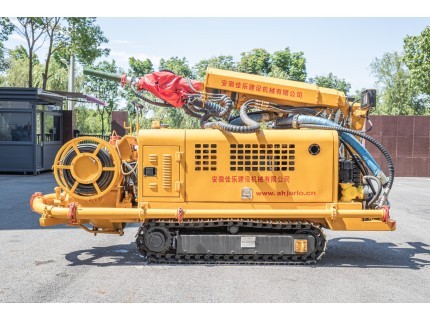

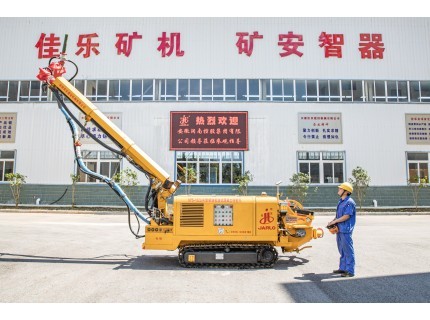

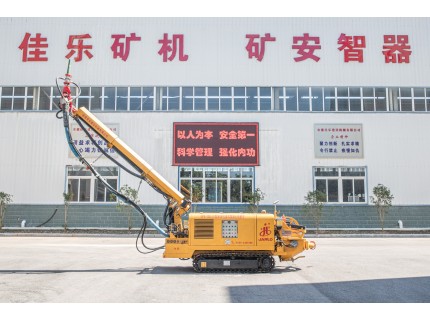

It is a low and compact wet spraying trolley developed for concrete spraying operations in small-section mine tunnels. It is widely used in metal and non-metal mine tunnels, hydraulic tunnels, underground buildings (military and civilian), and road slope wet spraying support and shotcrete operations without explosion hazards. This machine has full functions, small size, and high degree of integration. It adopts crawler walking chassis and wireless remote control walking. It is easy to operate, flexible, safe, reliable, and has strong adaptability to working conditions.
  • Engine power:16.3kW
  • Spraying capacity:12m³/h
  • Walking style:Track drive steering

Product Introduction

Product Pictures

Product Features

1.  Self-propelled crawler chassis design, wireless remote control walking system, according to the needs of on-site construction, it can be moved or transferred to a suitable position at any time by its own power.

2.  Fully hydraulic telescopic and rotating mechanical arm, strong carrying capacity, stable movement, flexible operation, no construction blind spot.

3.  Small size, can flexibly shuttle and operate in mines of different sizes.

4.  High degree of integration, with built-in quick-setting agent pump and self-priming pump, reducing on-site external components, complete functions, convenient for operators to perform spraying operations.

5.  Each wet spraying machine only requires two people, a spraying operator and an auxiliary staff, which reduces the investment in human resources.

6.  The pumping system assembly has good absorption of concrete, long service life, and is not easy to block the pipe.

Equipment View

Equipment Parameters

Project

Unit

Parameter value

Machine parameters

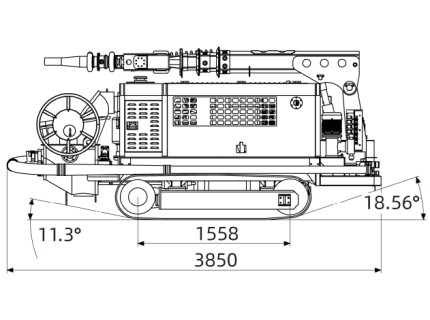

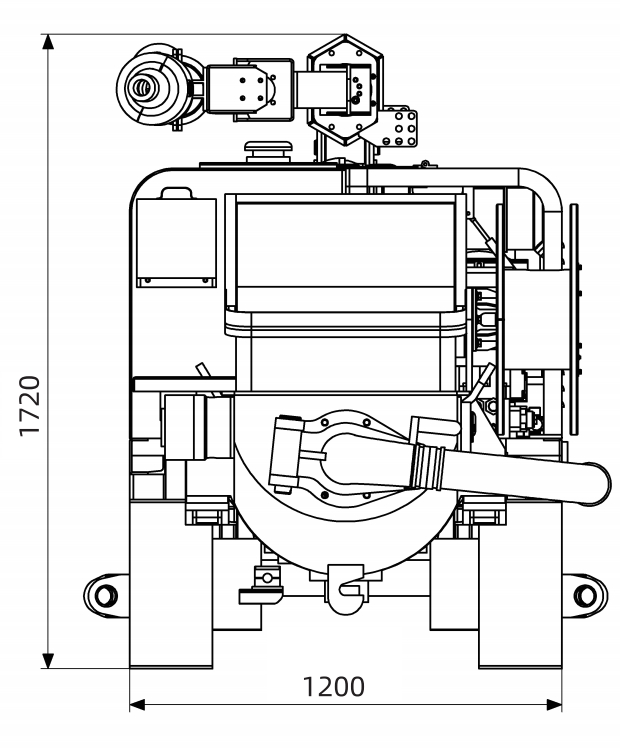

Overall dimensions (length x width x height)

mm

3850×1200×1720(±50)

Weight

kg

4120

Actual concrete spraying capacity

m³/h

12

Power mode

Driving: Diesel engine (retractable boom)

Working: External 380V AC power supply

Total power

kW

Engine: 16.3

Motor: 18.5

Travel system

Minimum ground clearance

mm

110

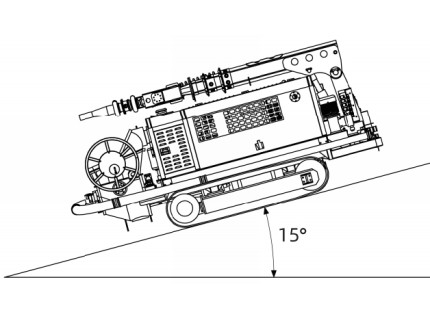

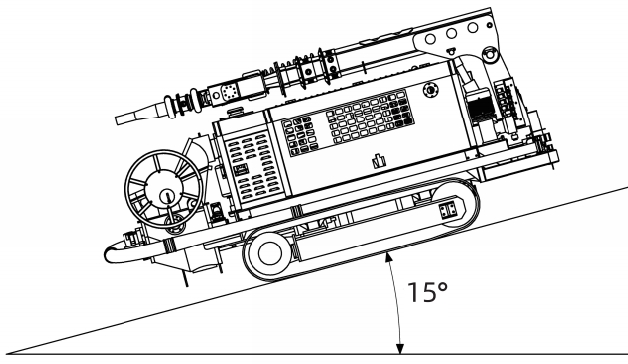

Maximum climbing ability

°

15

Top speed

km/h

3.4

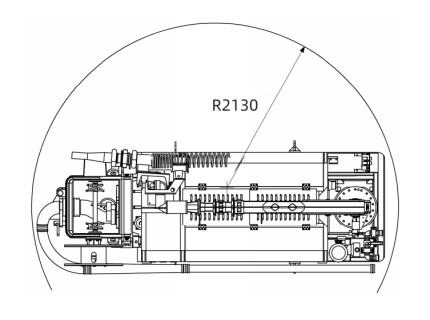

Turning radius

mm

2130

Drive and steering mode

Track steering drive

Braking system

Driving: Hydraulic wet

Parking: Hydraulic release

Unit boom

Structural form

Main arm rotation spray arm pitch + extension

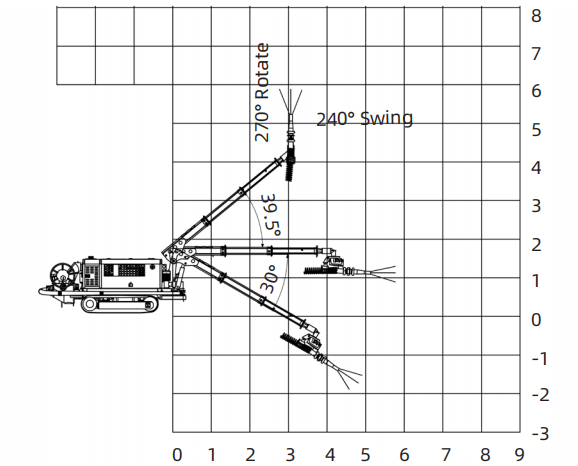

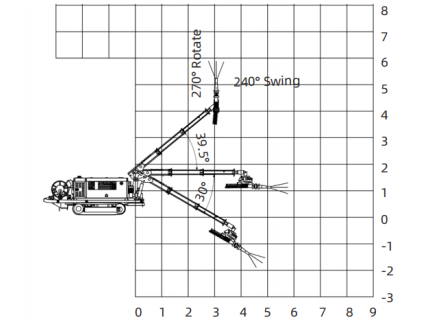

Maximum effective spray range

m

Up: 6

m

Forward: 6

m

Down: 2

m

Width: 12

Boom rotation angle

°

360

Boom lifting range

°

Up: 39.5 Down: 30

Axial rotation range of nozzle seat

°

270

Axial swing range of nozzle seat

°

240

Nozzle holder angle × brush movement

8°×360° non-stop brushing

How it works

Wireless remote control

Delivery pipeline

mm

Steel pipe: 75 Hose: 64

Transportation pipeline cleaning method

Water washing + air washing

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
