In the underground mines, the commuting issue for workers may seem simple, but it actually affects the daily production rhythm and safety. Taking the bus to work consumes a lot of physical energy and has low efficiency? Ordinary vehicles encounter complex underground conditions, making safety and comfort difficult to guarantee? For underground personnel transportation, what is needed is a special vehicle that truly understands mines and safety.

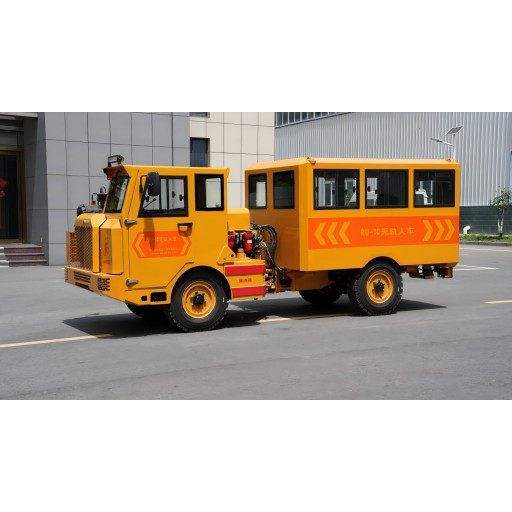

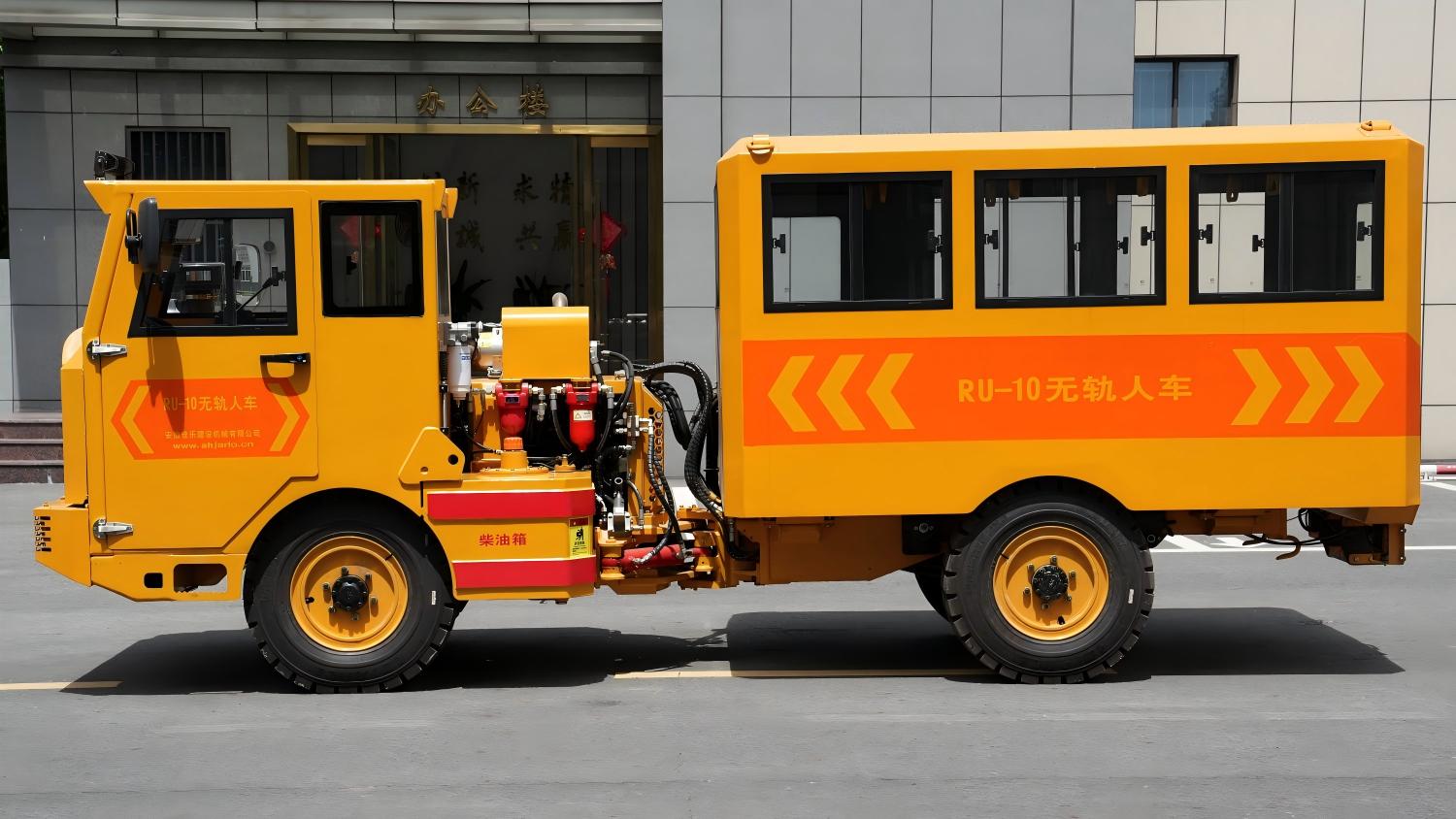

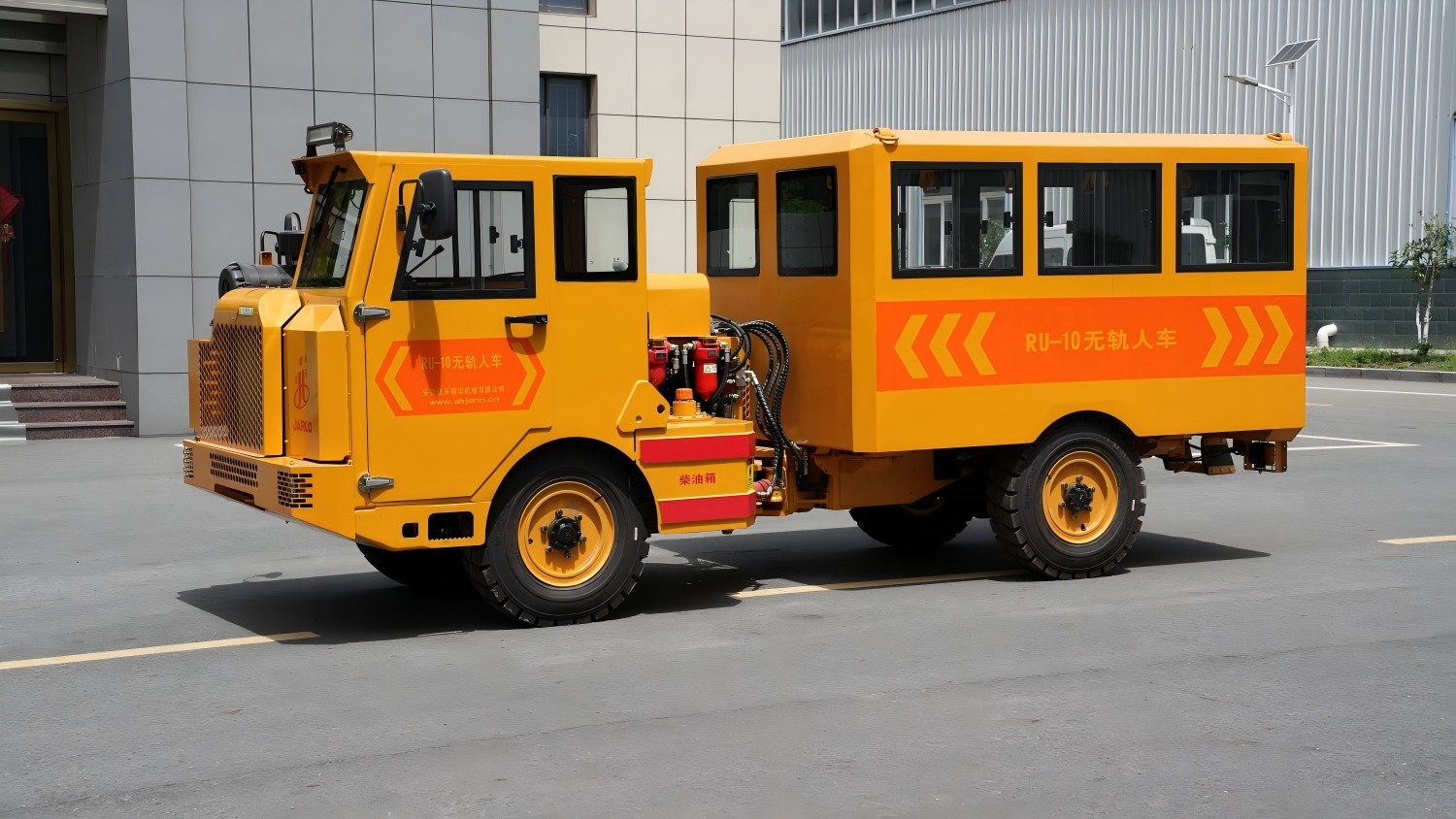

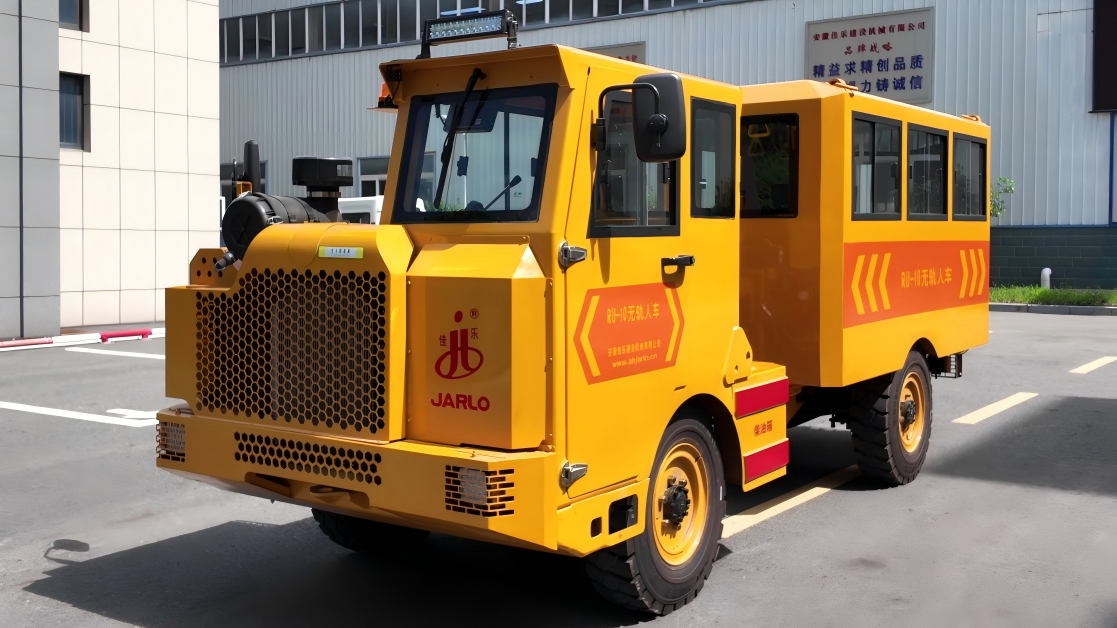

The RU-10 Trackless Personnel Transportation Vehicle, with a rated capacity of 10 people, is specifically designed for personnel transportation in underground mines. It is safe, comfortable to ride, and has strong passability, making underground commuting no longer a physical task.
Applicable scenarios
RU-10 is widely applicable for:
Transportation of personnel in underground mines for metal and non-metal industries
Transportation of workers in tunnels and underground construction sites
Daily commuting between underground working faces and the surface
Routine inspections and personnel transportation in multi-working faces and long-distance tunnels
Safety first, ensuring safe travel underground
FOPS/ROPS dual-certified cab and vehicle body
The cab and the passenger compartment have both passed FOPS (impact prevention) and ROPS (rollover prevention) safety certifications, providing a sturdy safety barrier for the driver and passengers. The underground working environment is complex, and with this "golden shield", every journey becomes more reassuring.
Fail-safe braking system
The braking system adopts a dual-circuit hydraulic closed-loop system, with fully enclosed wet multi-disc hydraulic brakes. The braking, emergency braking, and parking braking are all of closed-spring fail-safe design - even if the hydraulic system fails, the brakes can automatically lock, ensuring the vehicle safely stops.

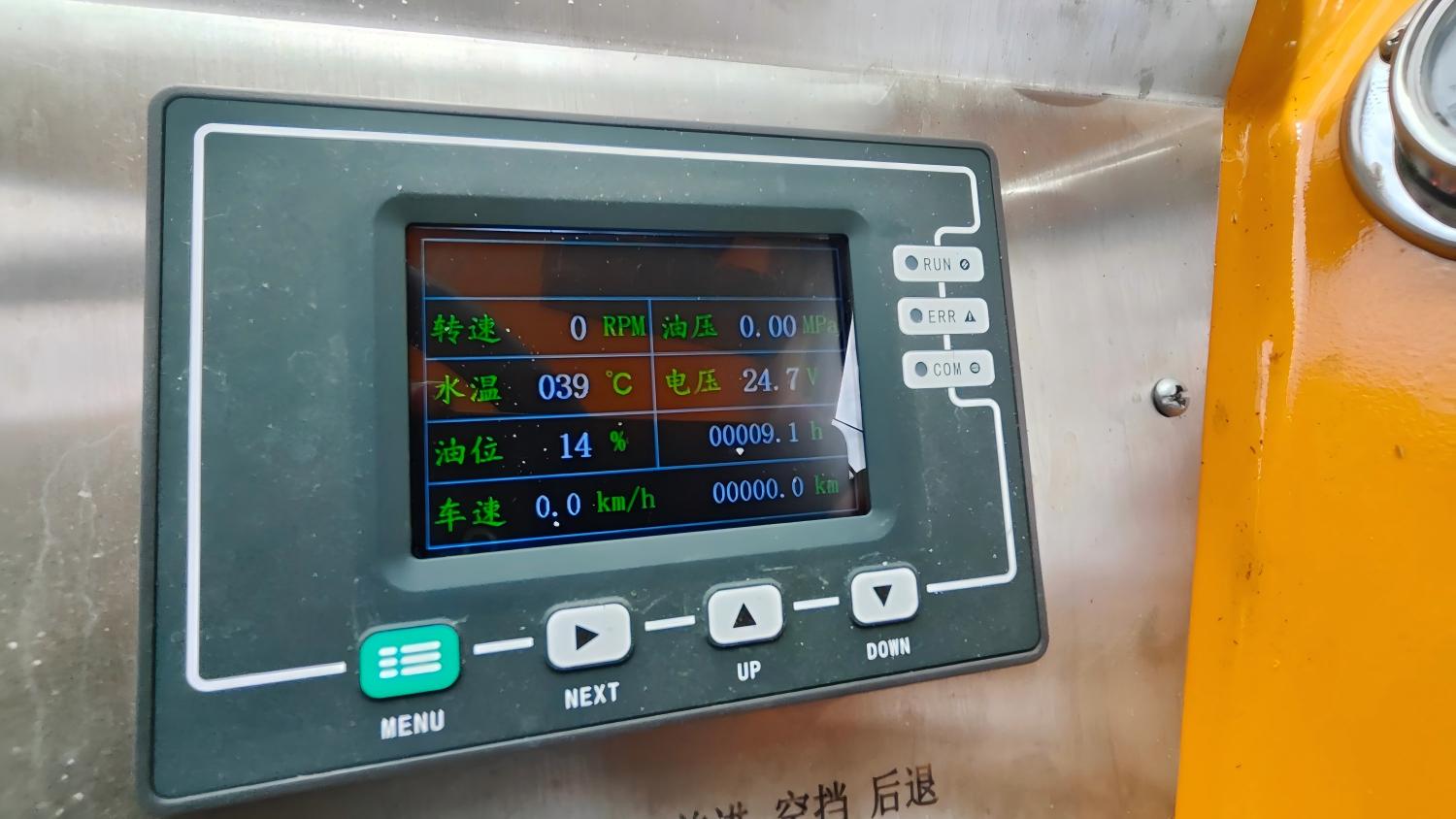

Vehicle-mounted computer system, real-time monitoring
A vehicle-mounted computer system is installed in the cab, which can display real-time information such as engine status and protection, driving speed, and fault information, allowing the driver to always keep track of the vehicle's condition and take early warnings and preventive measures.

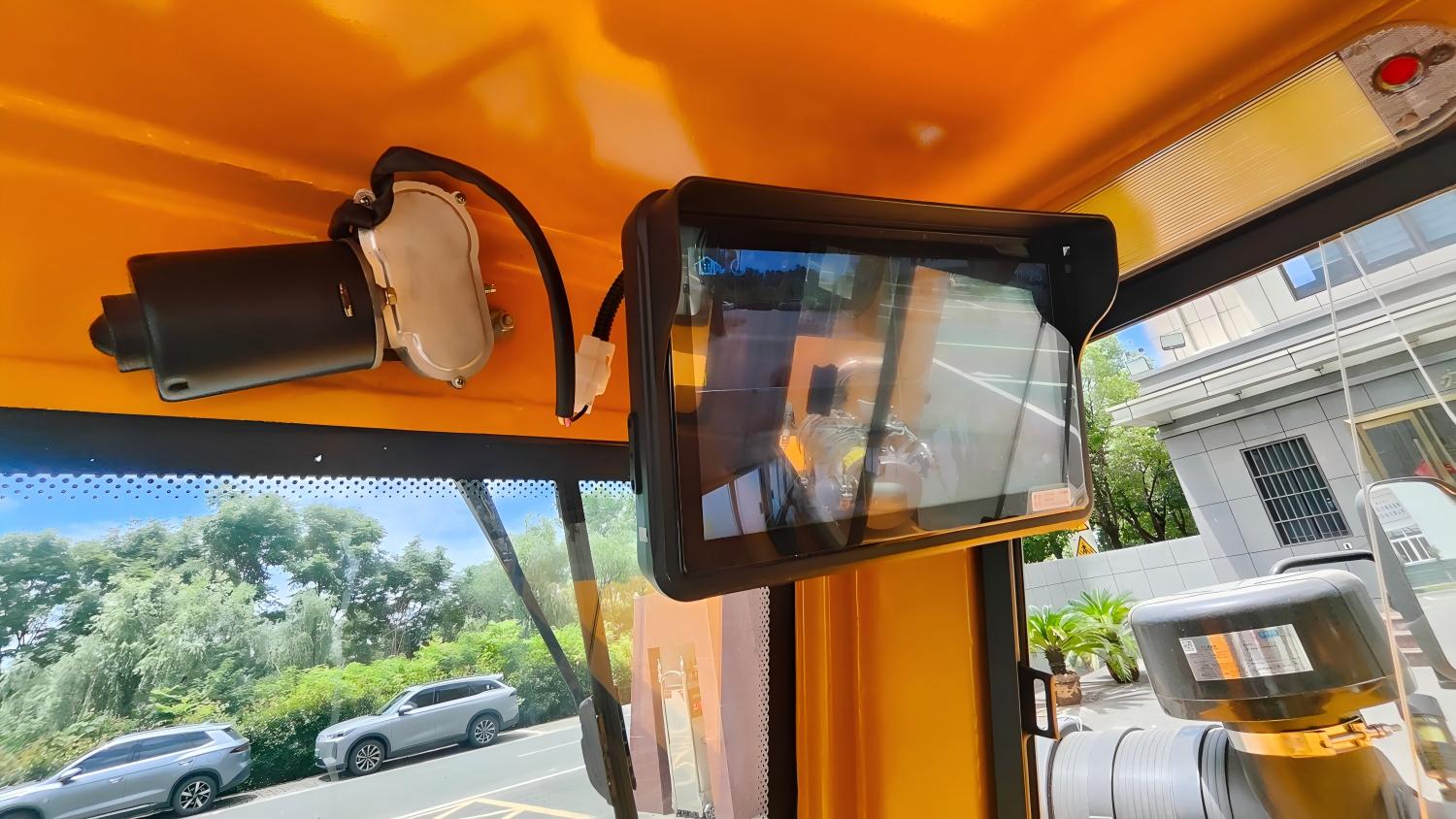

Reverse camera system, eliminating blind spots
Equipped with a reverse camera system and capable of recording and storing relevant information. Even in underground conditions with insufficient light, it can clearly grasp the rear situation, making reversing and overtaking more composed and safe.
Comfortable driving and passenger experience， making transportation operations more seamless

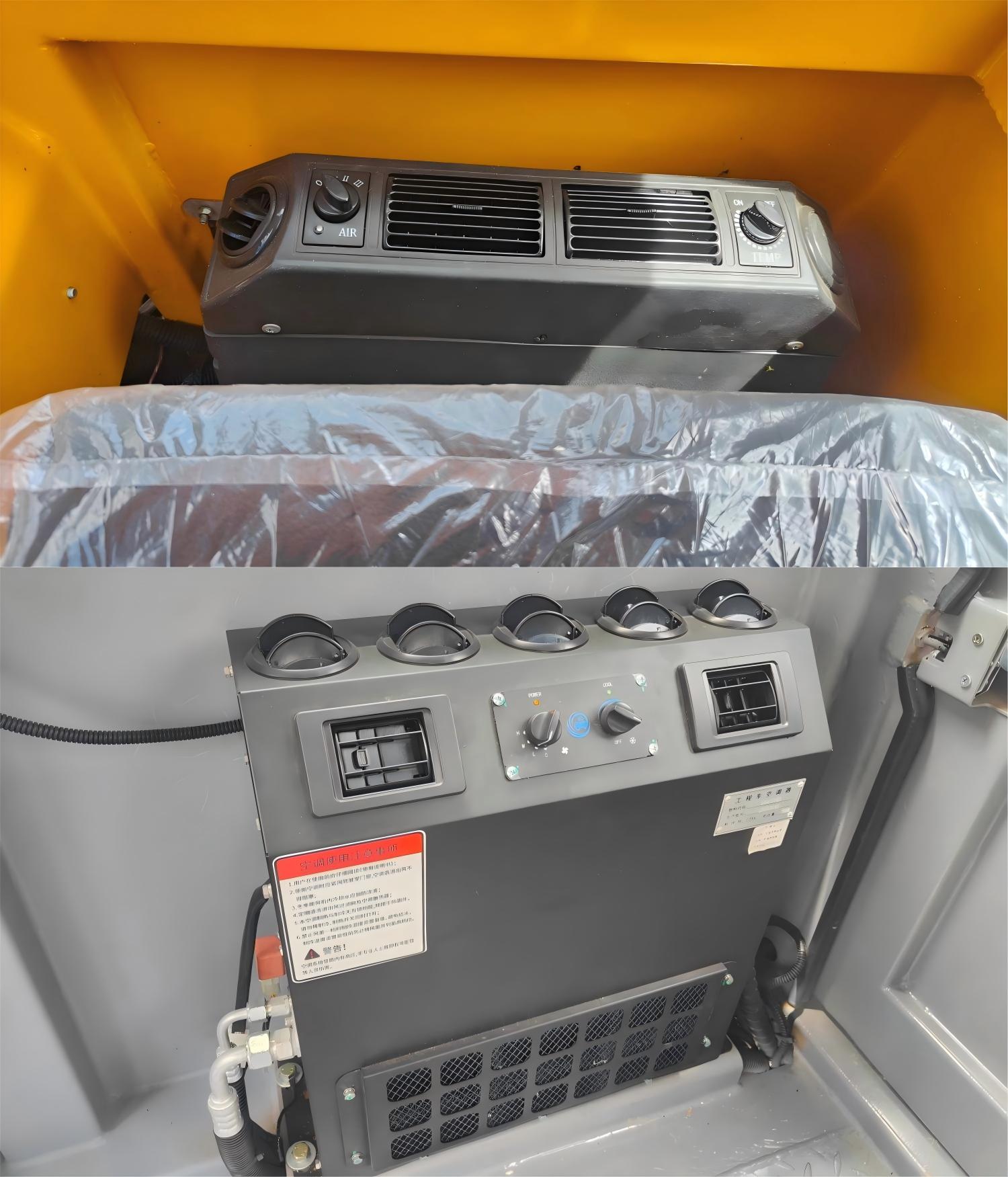

Heated and cooled air conditioning， adjustable temperature at any time
Both the cab and the passenger compartment are equipped with heated and cooled air conditioning， effectively addressing the hot and humid environment caused by high ground temperatures and restricted ventilation in deep well mining， and allowing for adjustment of the interior temperature as needed to improve the riding environment.

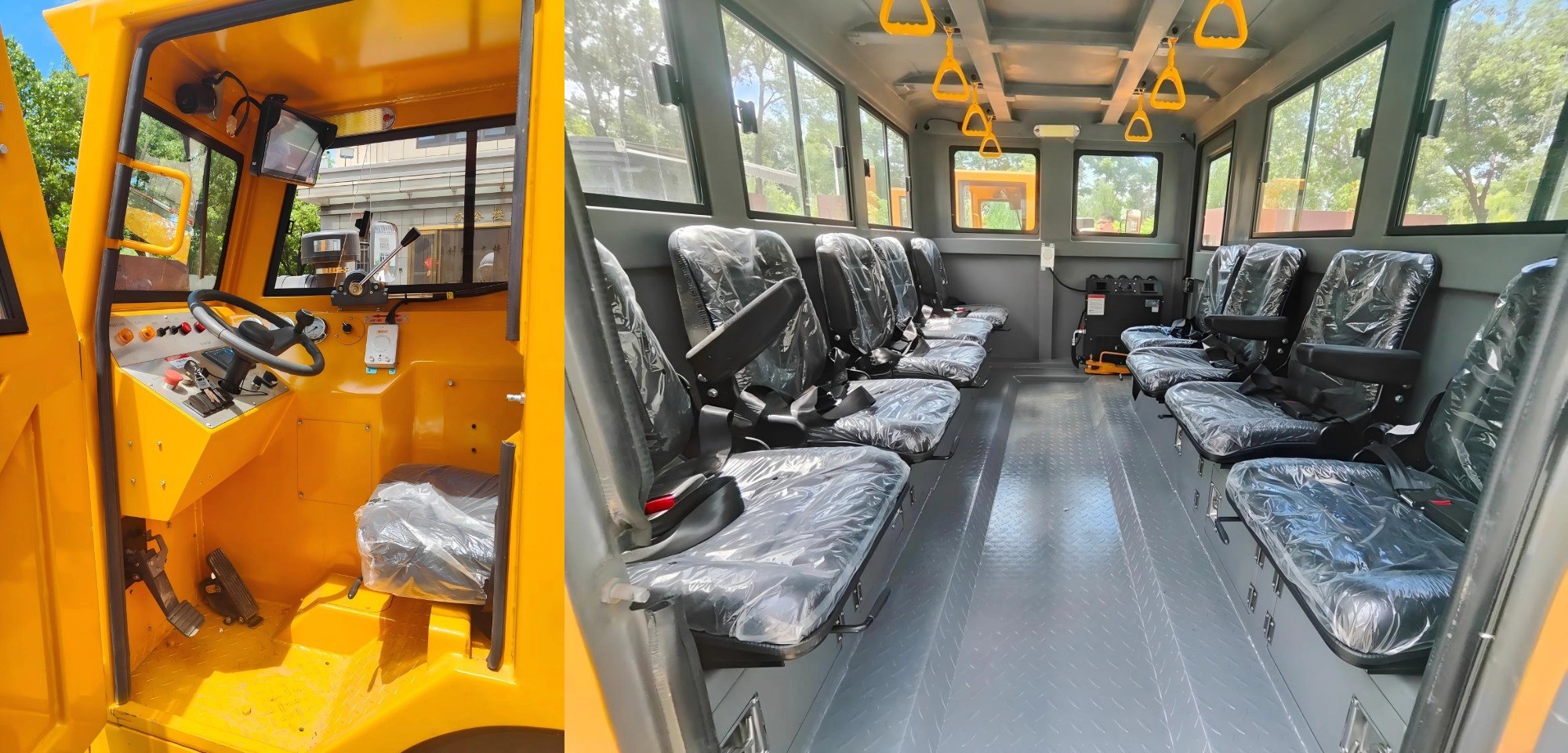

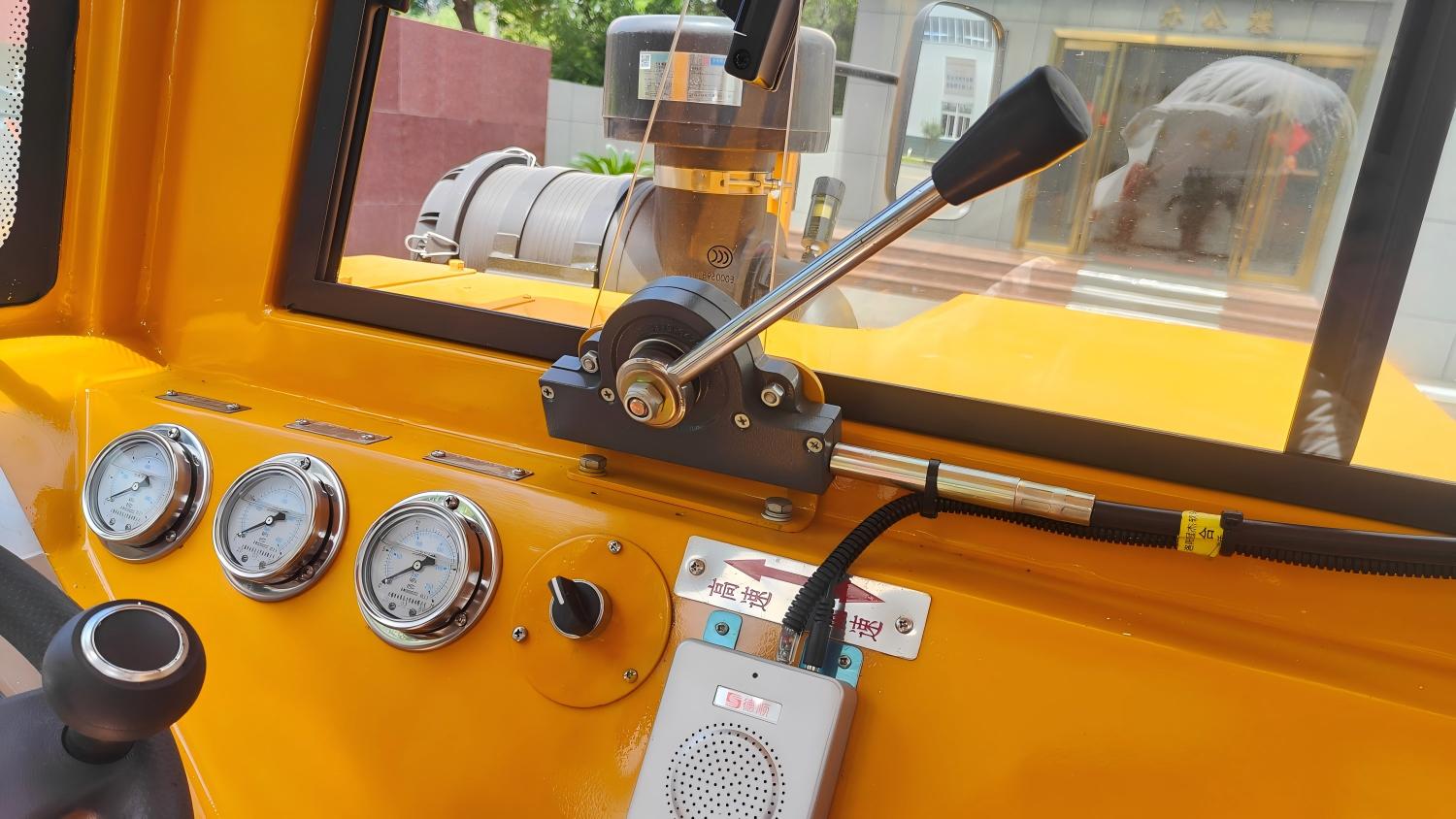

Ergonomic design

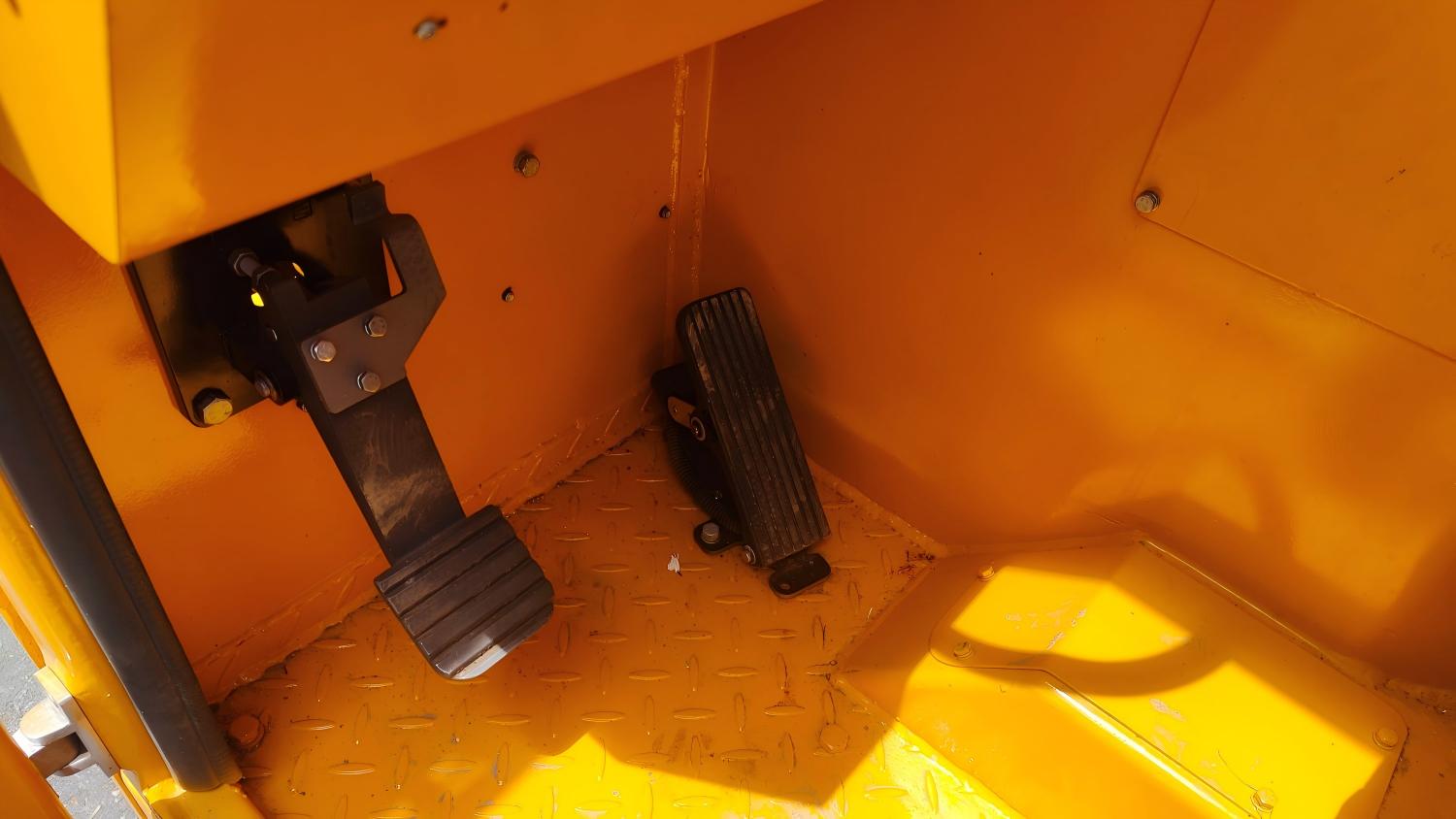

The cab and the passenger compartment adopt ergonomic design， with a reasonable seat layout. The control elements in the cab are centrally arranged， making the operation intuitive and convenient. The driver does not get tired even after long periods of driving， and passengers also enjoy a more comfortable ride.

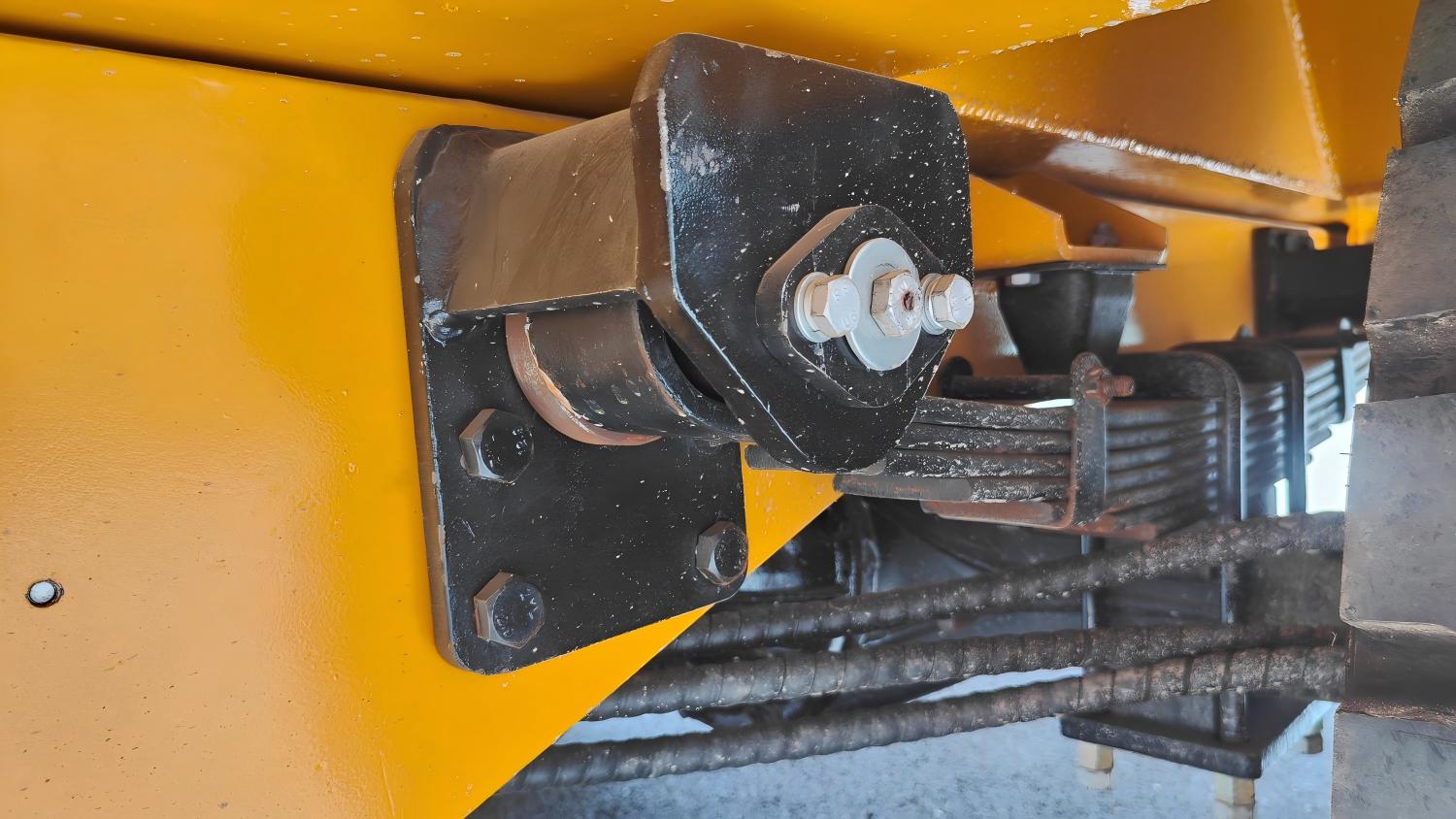

Leaf spring shock absorption， no discomfort on bumpy roads
The chassis adopts a mature shock-absorbing leaf spring structure， effectively reducing vehicle body bumps in complex road conditions， improving ride comfort and handling stability.
Strong power， capable of handling complex road conditions

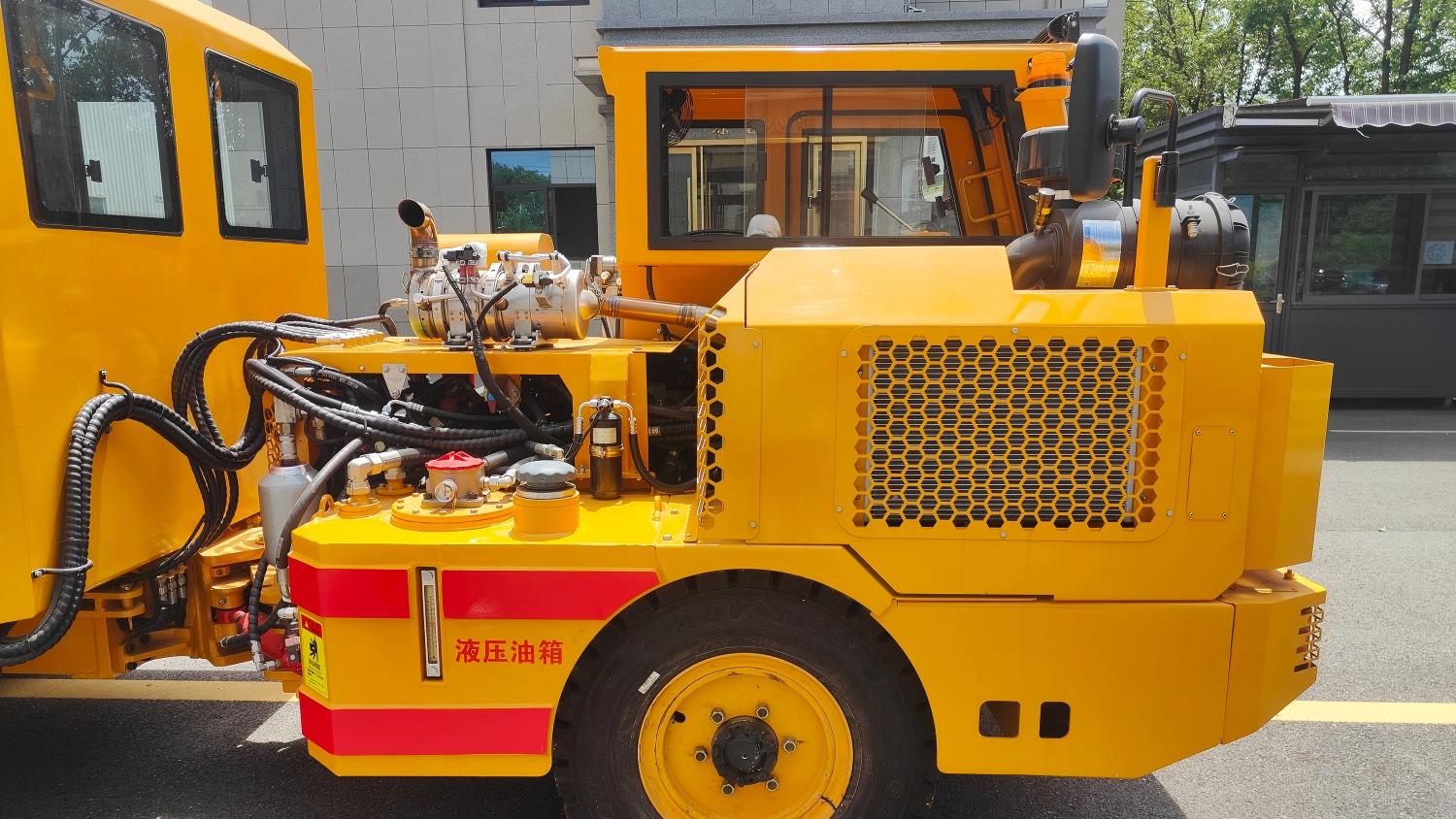

Yuchai engine， reliable and durable
Equipped with a four-cylinder water-cooled turbocharged engine with a rated net power of 96kW. The water-cooled model has low noise and long lifespan， and can stably output power during long-term underground operations. The power supply is continuous.

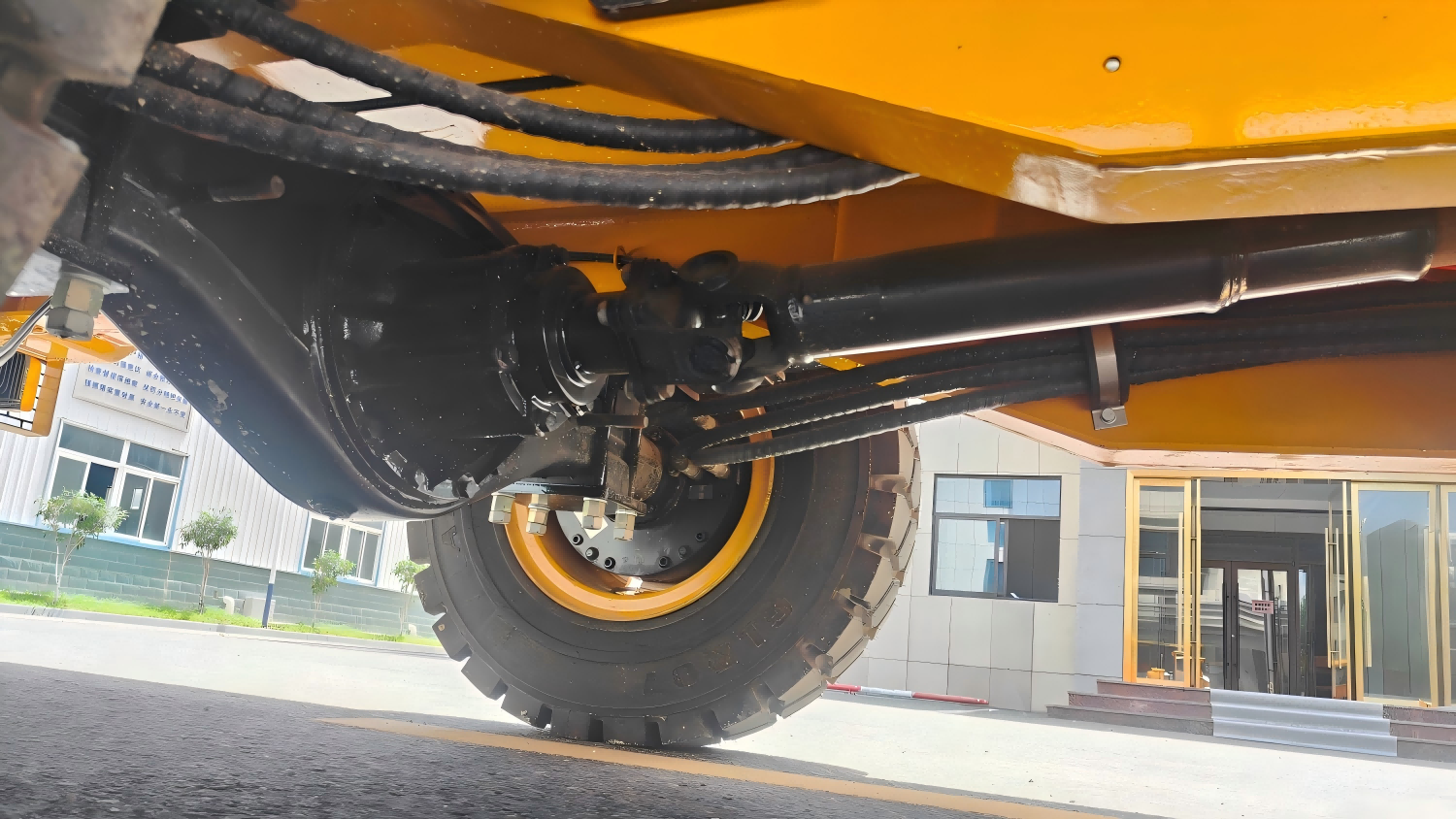

Four-wheel drive， powerful climbing ability
The design of four-wheel drive ensures a maximum traction of ≥30kN， allowing for ±14° climbing ability under full load. Whether it's a gentle slope or a steep one， it can handle it with ease.
Three-speed transmission， speed at your command
I gear 5km/h， II gear 10km/h， III gear 17km/h. The three forward gears cover all working conditions from low-speed heavy load to high-speed light load. Underground low-speed driving is safer， and high-speed driving on flat roads is more efficient.
Flexible and maneuverable， easy to pass through narrow alleys

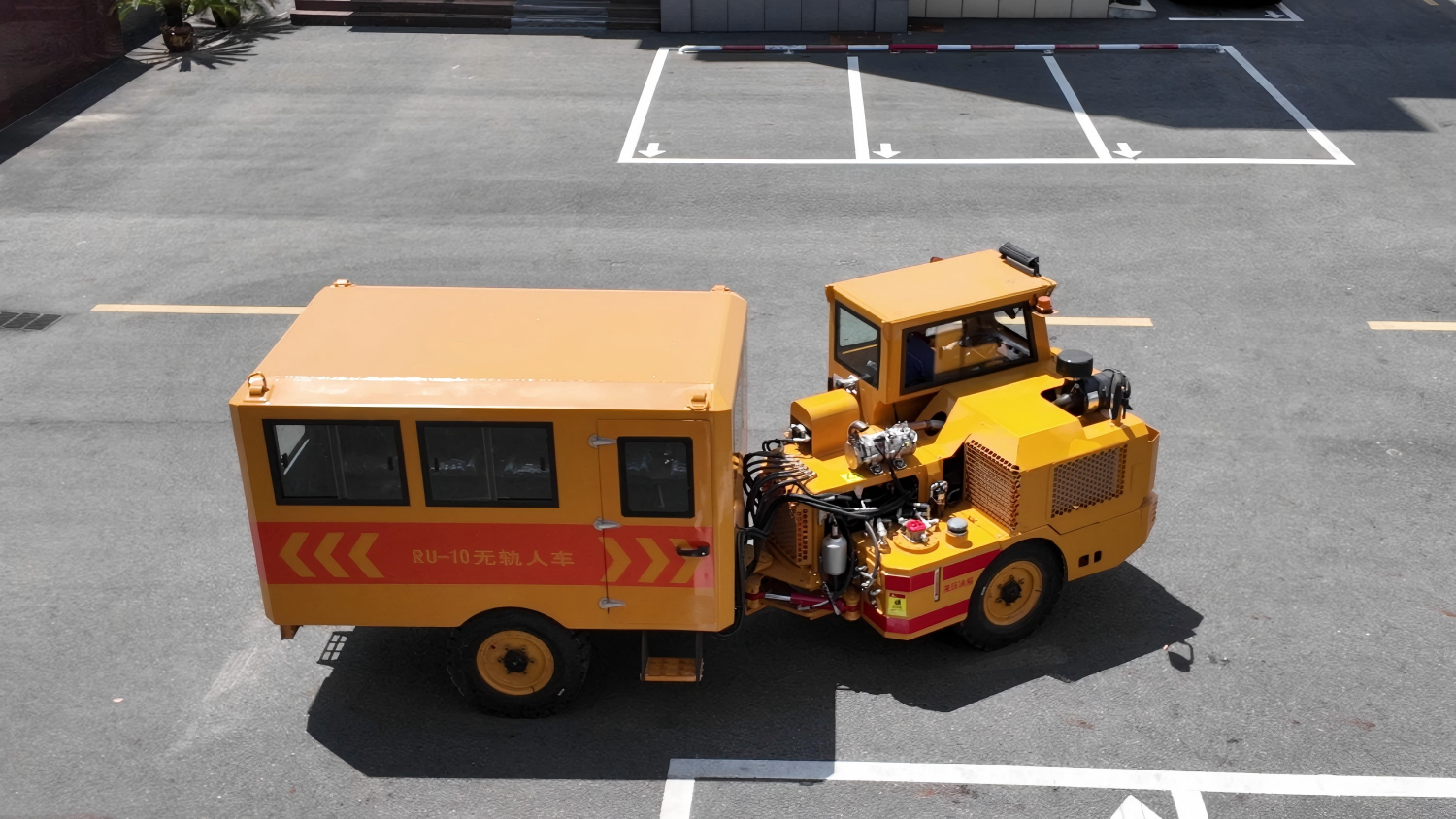

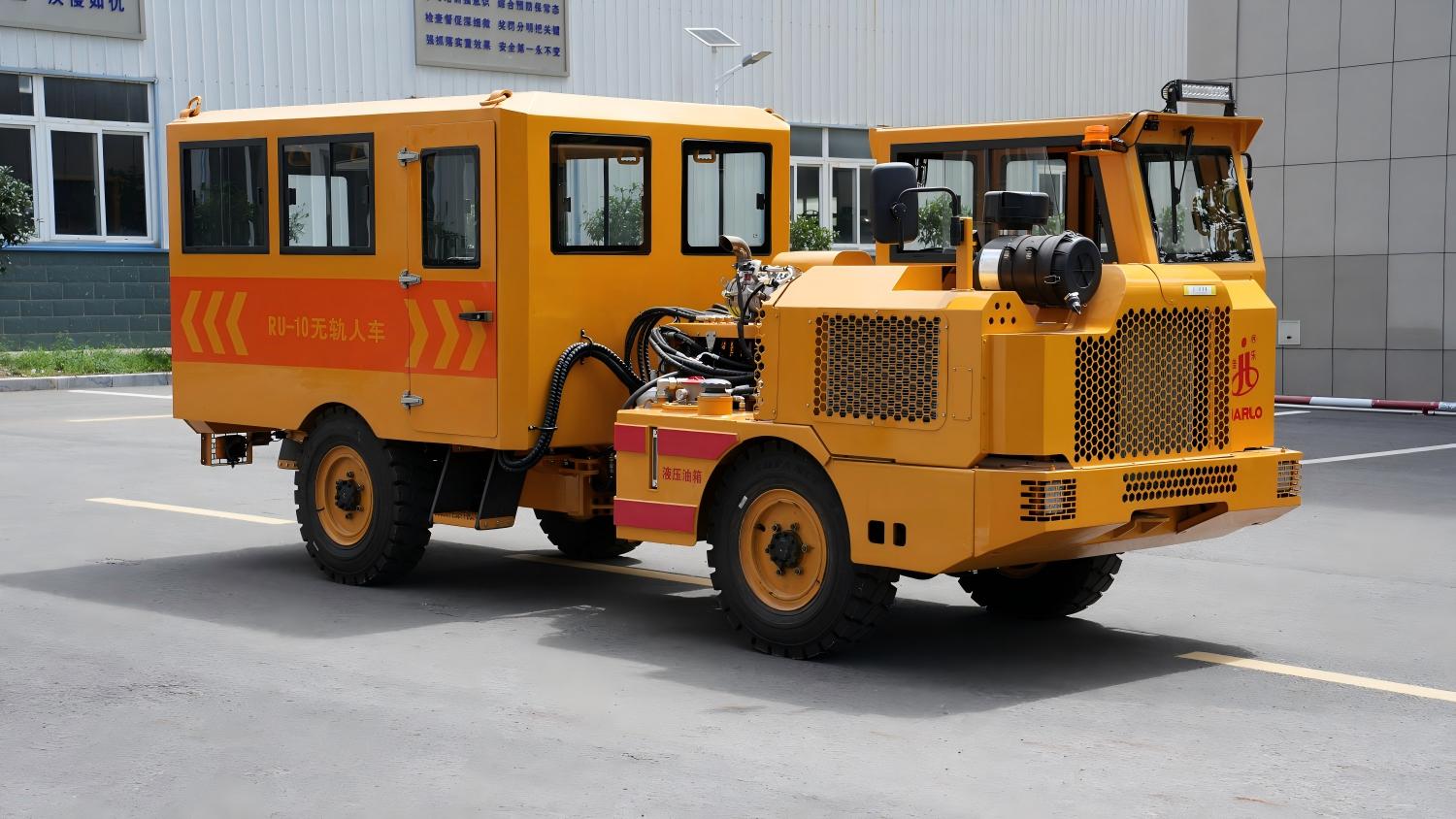

Compact body， adaptable

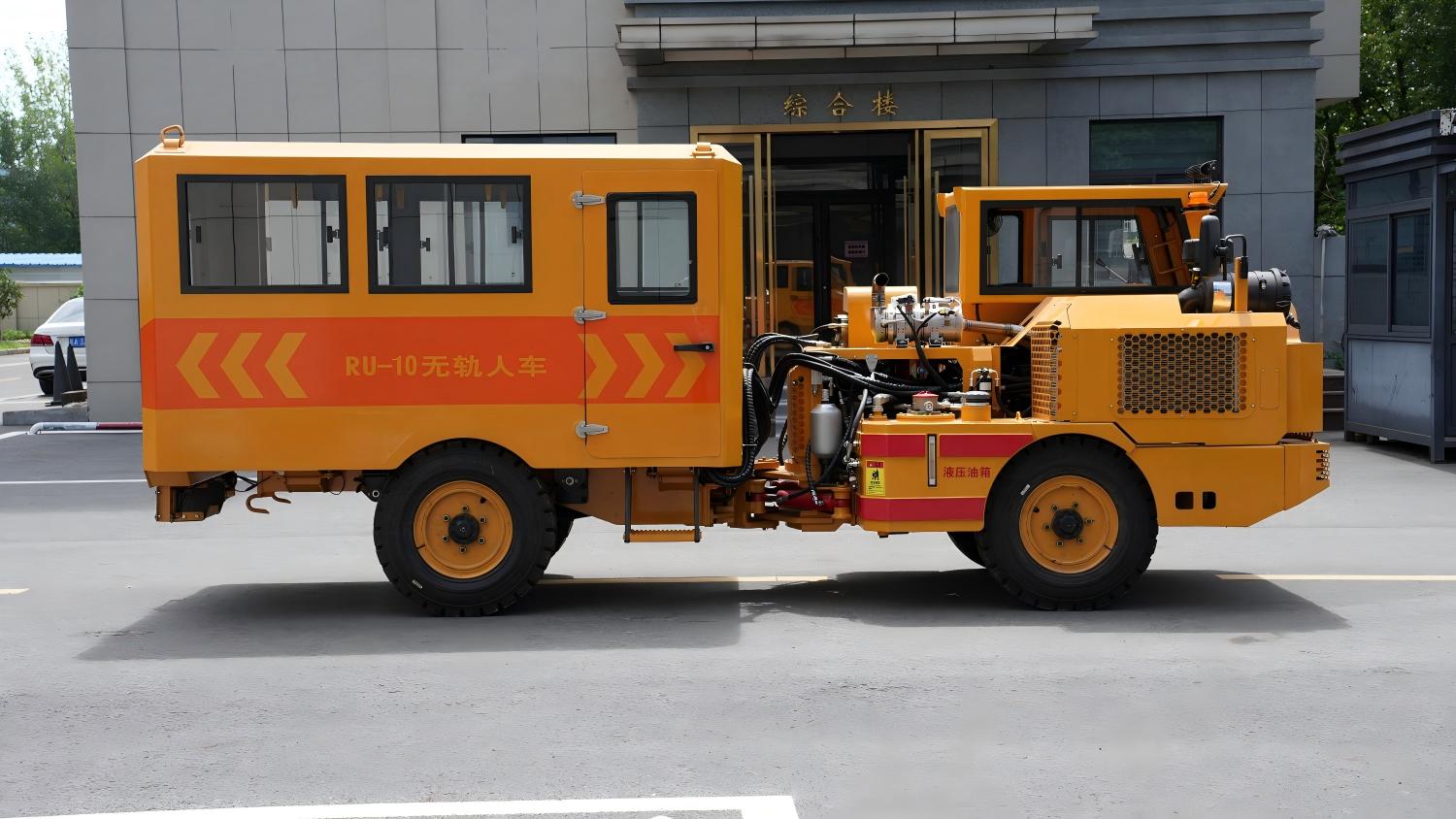

The vehicle size is approximately 5500×1700×2250mm， with a length of only 5.5 meters and a width of only 1.7 meters. It can easily enter and exit even main transportation alleys or branch connection alleys.
Very small turning radius， no worries about turning in narrow alleys

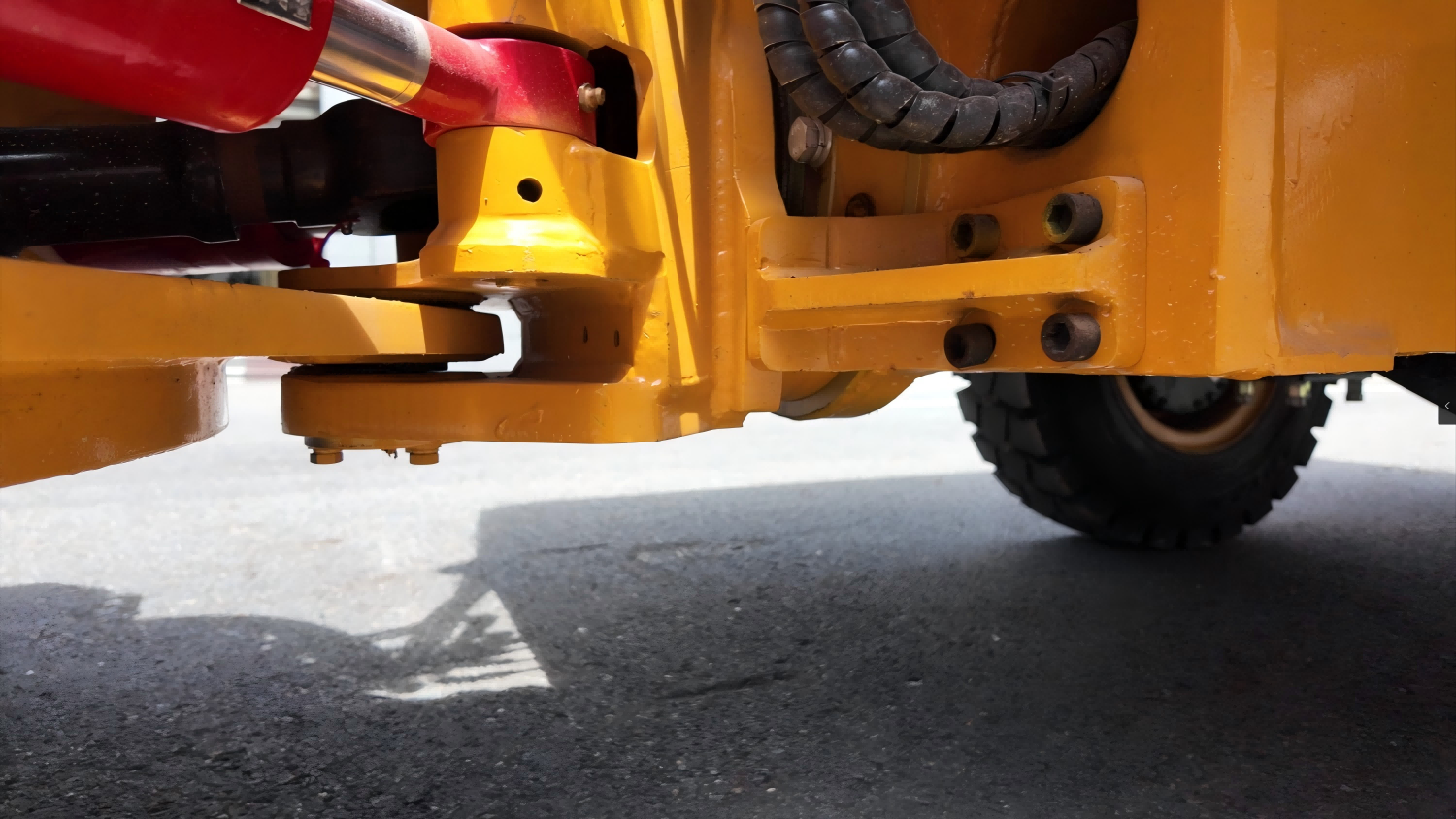

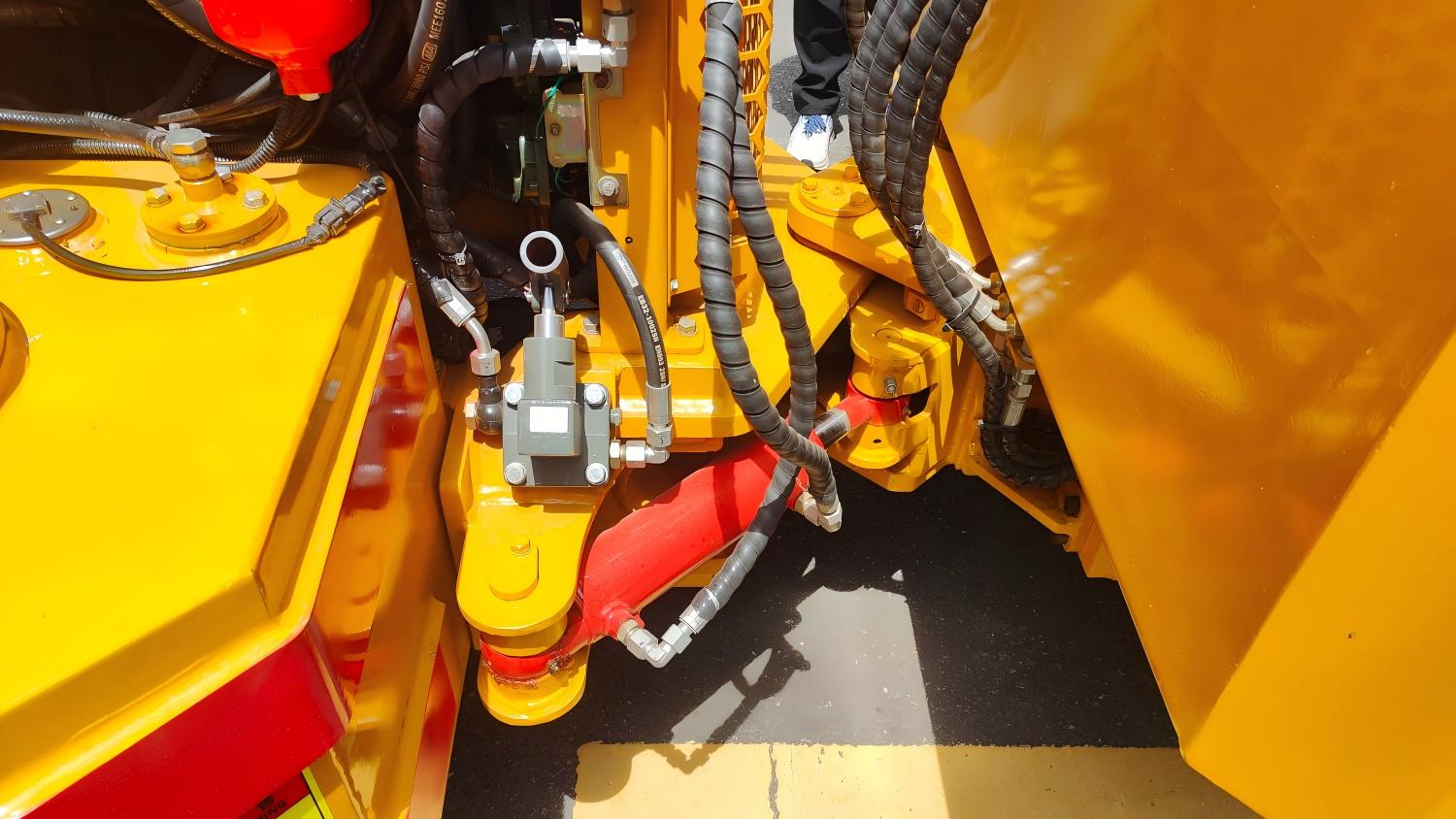

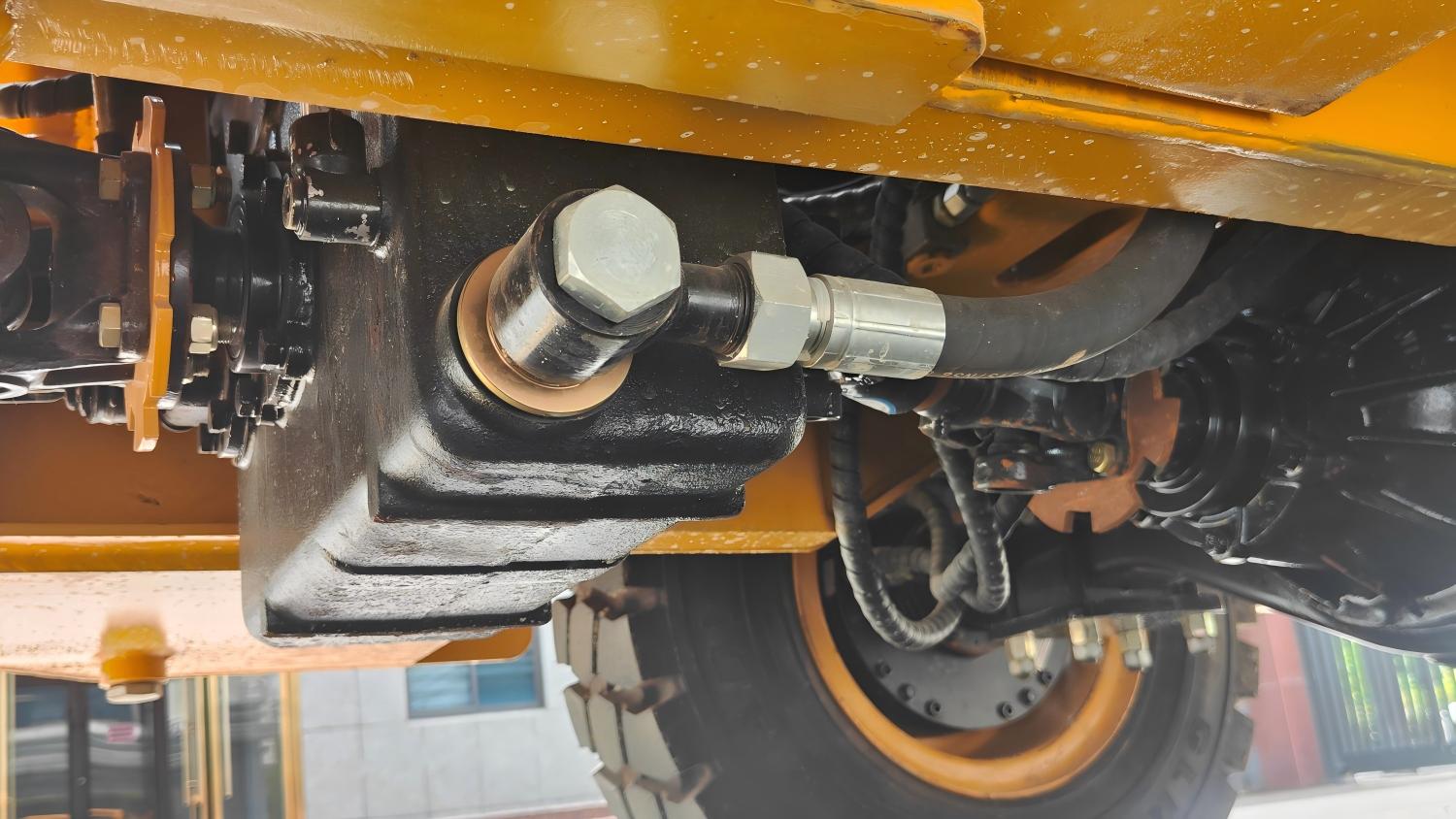

The minimum turning radius on the outside is ≤5800mm， and on the inside is ≤4000mm. Combined with the central hinge + double oil cylinder hydraulic steering system， it can perform flexible steering and precise positioning in underground narrow spaces.
Swing frame design， all-wheel contact on complex road surfaces
A swing frame is installed between the front and rear bodies， with a swing angle of 8±1°， enabling the entire vehicle to maintain full-wheel contact on muddy and potholed roads， effectively improving wheel adhesion and passing ability.
Craftsmanship quality， details reveal the essence
Hinged fixed chassis， solid and reliable
The dedicated hinged fixed chassis is structurally solid and has a strong load-bearing capacity. It has been verified by the market for a long time and is stable and reliable.
Imported/brand-name hydraulic components
The main components of the hydraulic system adopt imported or domestic brand-name products to ensure the reliability and durability of the system during long-term operation.
Split-type power shift transmission gearbox
The transmission system adopts a power shift transmission gearbox with a coupling and a gearbox, which is reliable, has strong climbing ability, and is easier to maintain.
Safe and reliable, comfortable ride, powerful and flexible - The RU-10 rail-less vehicle for personnel transportation in mines is the professional choice for underground personnel transportation in mines. It makes every miner's commute safer and more comfortable.
