Recently, the Anhui Jarlo CYTM41/2(H) mining hydraulic bolting rig passed the inspection by the Anji Safety Standardization Center and obtained the mining safety certificate.

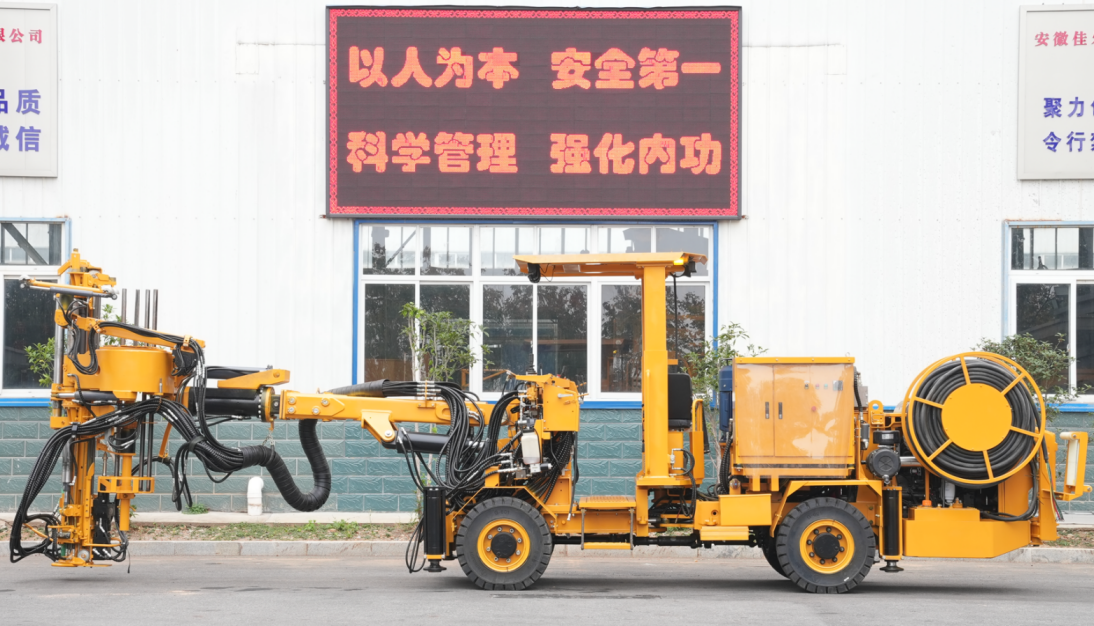

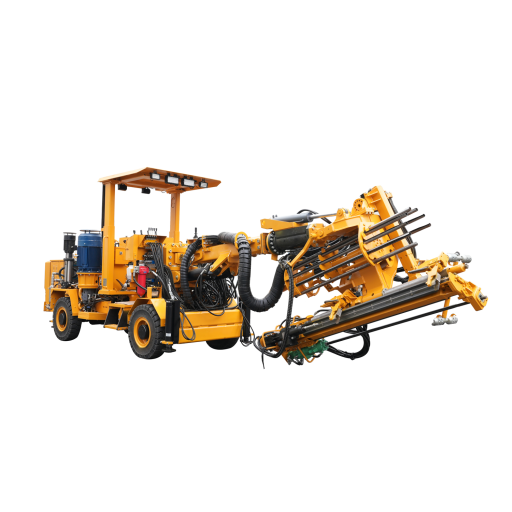

This product is a fully mechanized rock anchor drilling vehicle that integrates functions such as hole drilling, anchor rod installation, mesh hanging, and resin application (optional). It is a compact model with a narrow chassis and is suitable for anchor rod support operations in small and medium-sized tunnels and shafts of various metal mines, non-metal mines, and water conservancy and hydropower projects that do not have explosion-proof requirements.
The overall structure of the machine is compact. It has multiple speed settings for traveling and is equipped with four-wheel drive. It is powerful and flexible in turning and traveling in various complex working conditions in small and medium-sized tunnels. It is equipped with a hydraulic anchor drill, which has the advantages of lower noise and higher efficiency compared to the pneumatic anchor drill.

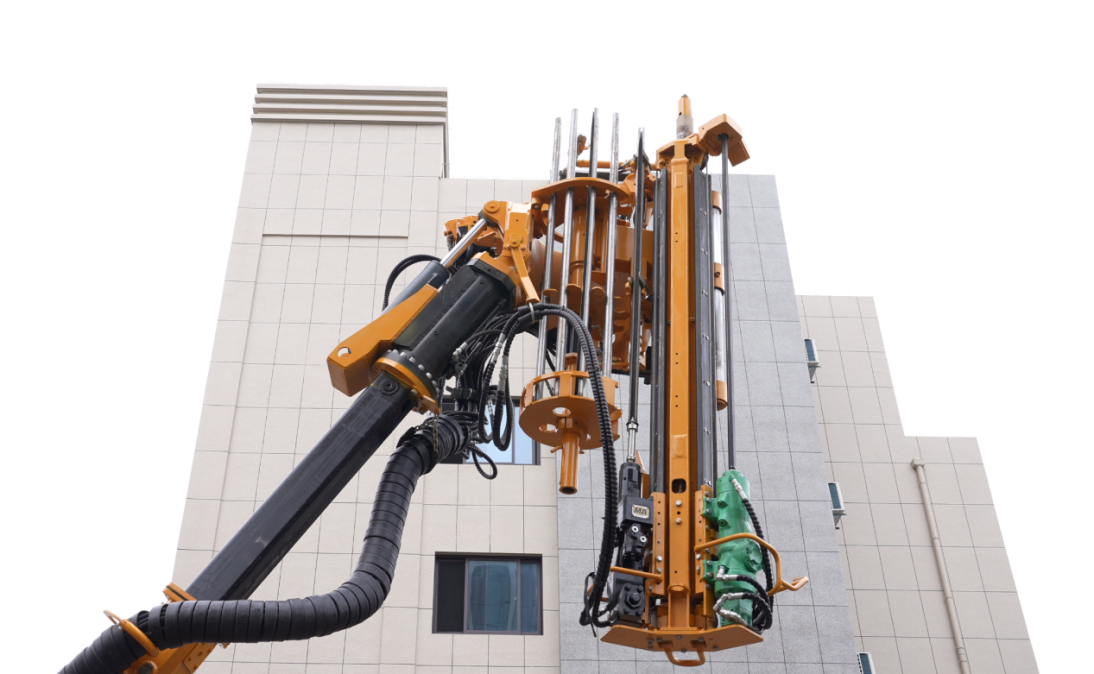

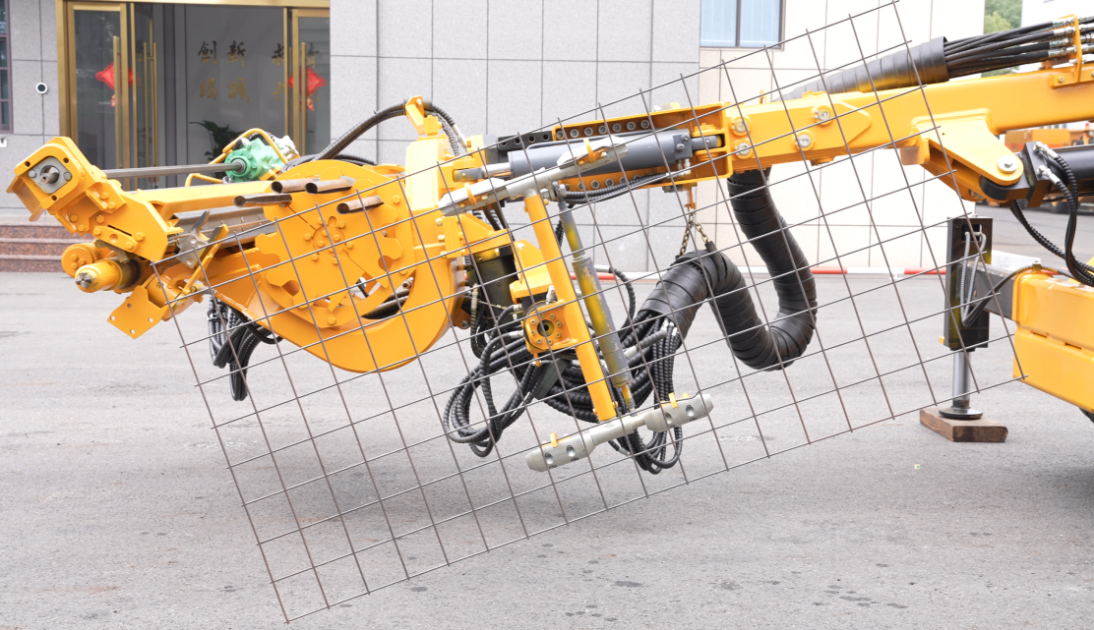

A bolt storage system is provided, which can automatically replace the bolts. An automatic net hanging mechanism is also equipped, enabling mechanized automatic net grasping, lifting and hanging, thereby enhancing the overall support efficiency. Additionally, safety protection features such as a movable ceiling, fire extinguishers, emergency parking brakes, and various other safety warning systems are included. These features are implemented while ensuring operational safety.

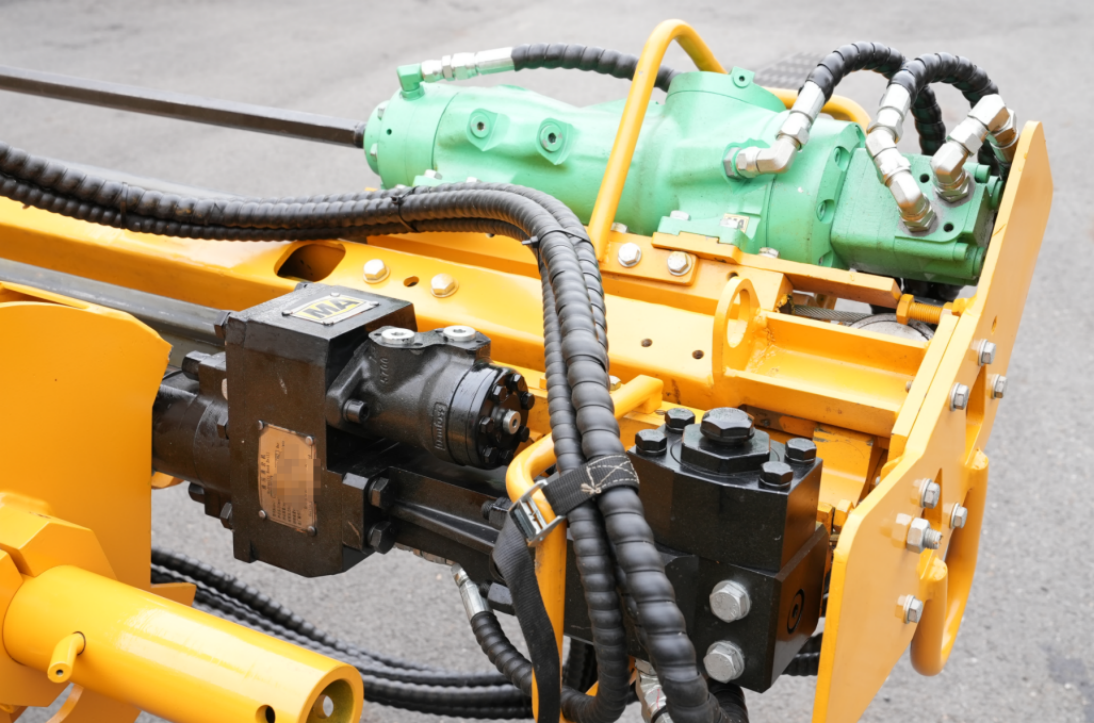

The rock drilling machine adopts a system of oil cylinder with steel wire rope for propulsion, and it has strong compatibility and interchangeability with the components (hydraulic parts, hoses, joints, lubrication, etc.) of imported well-known brand rock drilling drilling machine equipment. It is equipped with a stable support and stabilization mechanism for the drill arm, allowing for rotation switching of the rock drilling machine, ensuring the alignment of the drilling center and guaranteeing the accuracy of the drilling holes and anchor bolt installation.

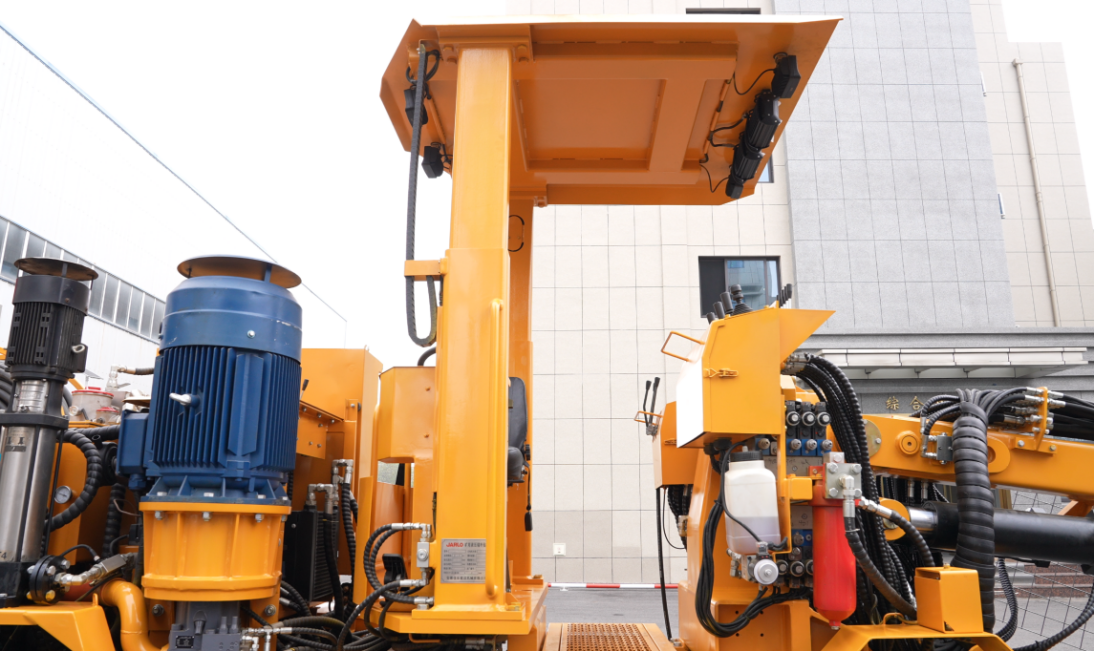

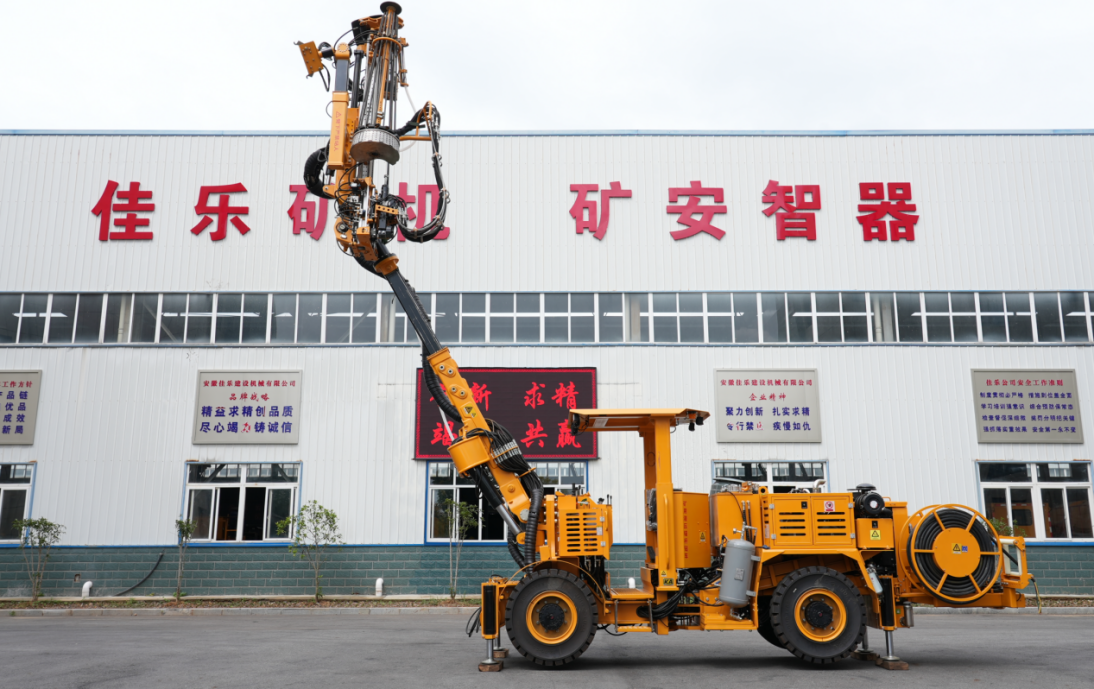

In addition, this anchor bolt drilling vehicle features an open cab design and a modular component layout. The space arrangement is reasonable, facilitating maintenance and repair. The propulsion frame can rotate 360 degrees, enabling full coverage of the tunnel portal.
This equipment features environmental friendliness, high efficiency, safety, interchangeability, and precise drilling positioning. It has a wide coverage area, high operational efficiency, and good economic performance. It is the ideal choice for mining anchor bolt drilling vehicles.
At present, the main models of the Anhui Jarlo mining hydraulic bolting rig that have been finalized for production include the CYTM41/2(H) model, as well as the CYTM41/2(E) model and the CYTM41/2(F) model. If you have any inquiries or wish to make a purchase, please feel free to contact us.
Product customization and quotation request? Please call the consultation hotline 400-878-8080.
