Mining concrete mixer
JDY-20L

Mining concrete mixer

JDY-20L is a concrete production equipment that integrates feeding, mixing and unloading, which is specially designed and developed by our company for continuous feeding of wet spraying operation in mine tunnels. This machine is equivalent to a portable simple mixing station, which can mix concrete mixtures in the mine, effectively reducing the concrete transportation link and avoiding the stratification and segregation phenomenon and concrete slump loss that are easy to occur during the concrete transportation process. The equipment mixes concrete with good quality, high production efficiency, accurate water supply metering, simple operation and convenient maintenance.
  • Production capacity:20m³/h
  • Discharging height:1300mm
  • Feeding height:1470mm

Product Introduction

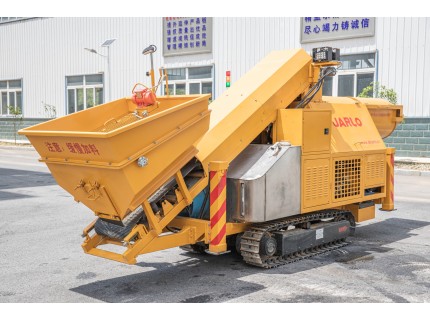

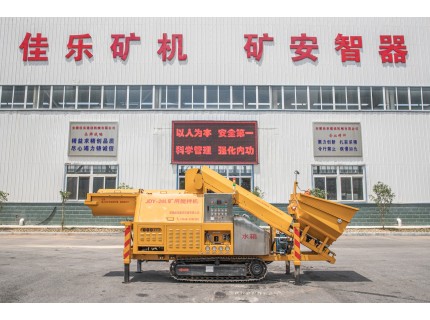

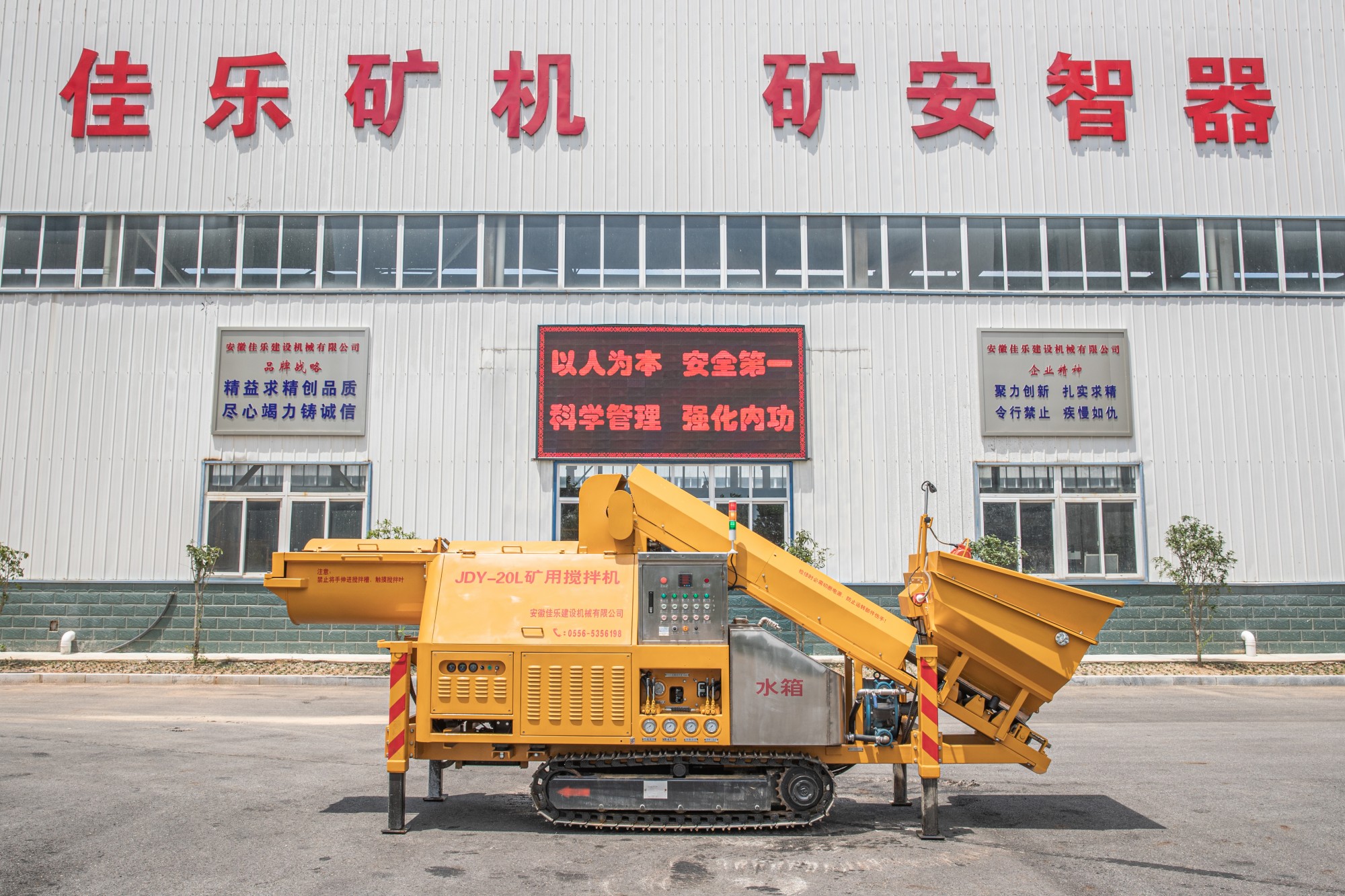

Product Pictures

Product Features

1.It has a high degree of integration, integrates automatic feeding and mixing, and can realize continuous mixing to prepare concrete. Traditional mixers on the market now have intermittent feeding, while crawler continuous mixers can be used as needed on site, taking the amount and mixing at the same time, avoiding waste.

2.Feeding, watering and mixing are all fully hydraulically driven, which can achieve accurate control of feeding speed and water adding amount. The hydraulic system has good overload protection performance, safety and reliability.

3.The self-propelled crawler walking chassis design can be moved or transferred to a suitable position at any time according to the needs of on-site construction, relying on its own power, which can effectively save manpower.

4.Through the strong circular motion, axial motion and shear motion of the material, the material is quickly and evenly mixed, which can effectively shorten the mixing time.

5.It can be used in conjunction with the Jarlo wet concrete spraying machines to effectively improve the wet spraying efficiency and economic benefits.

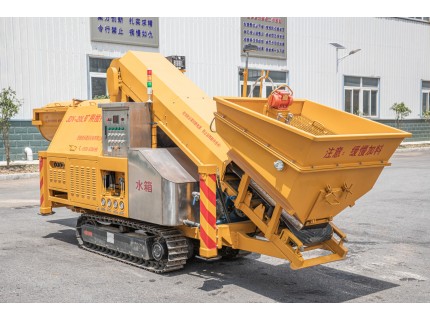

Equipment View

Equipment Parameters

Item

Parameter

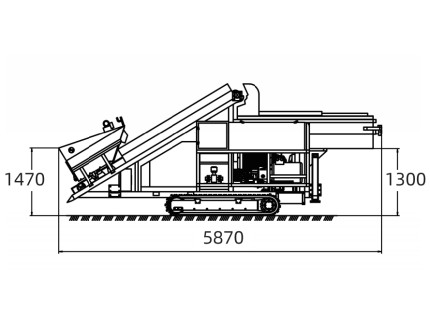

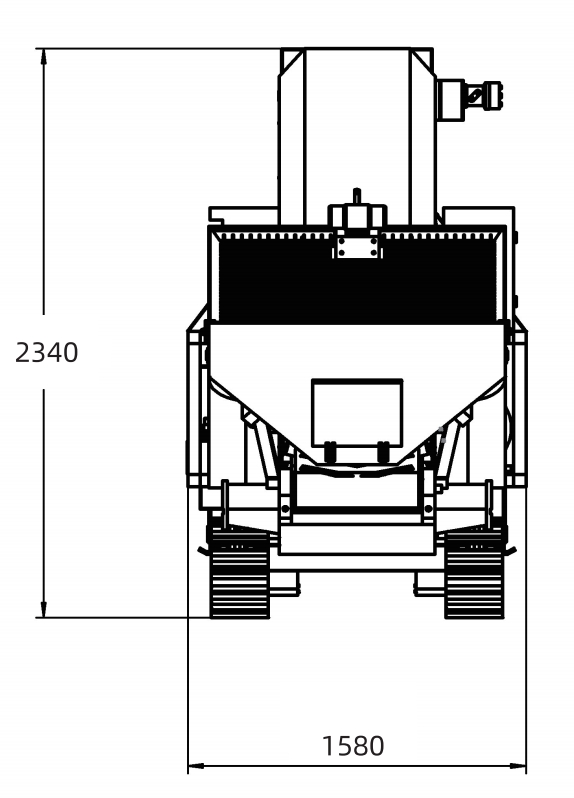

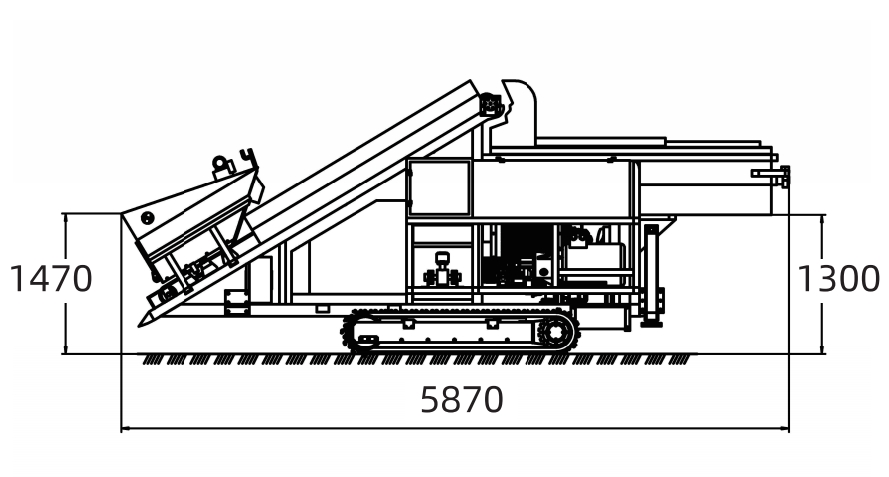

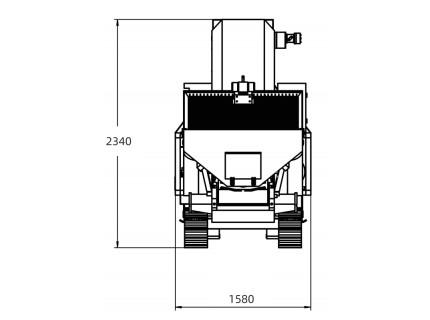

Overall dimensions(L×W×H)

5870×1580×2340mm

Machine weight

3780kg

Engine rated power and speed

Changchai 22.1kW/2500rpm

Production capacity

20m³/h

Applicable water-cement ratio

0.4~0.5W/C

Rated working pressure

1MPa

Rated working flow

80L/min

Water pump type

Hose pump

Water pump control method

Hydraulic stepless speed regulation

Chassis type

Steel track chassis

Track shoe width

230mm

Max.Driving speed

4km/h

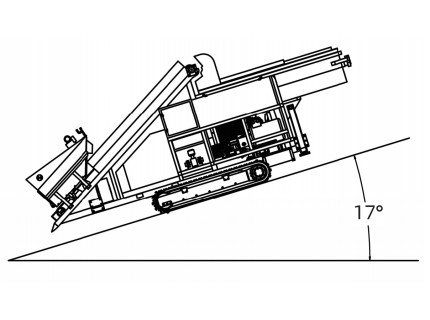

Max.Climbing ability

17°

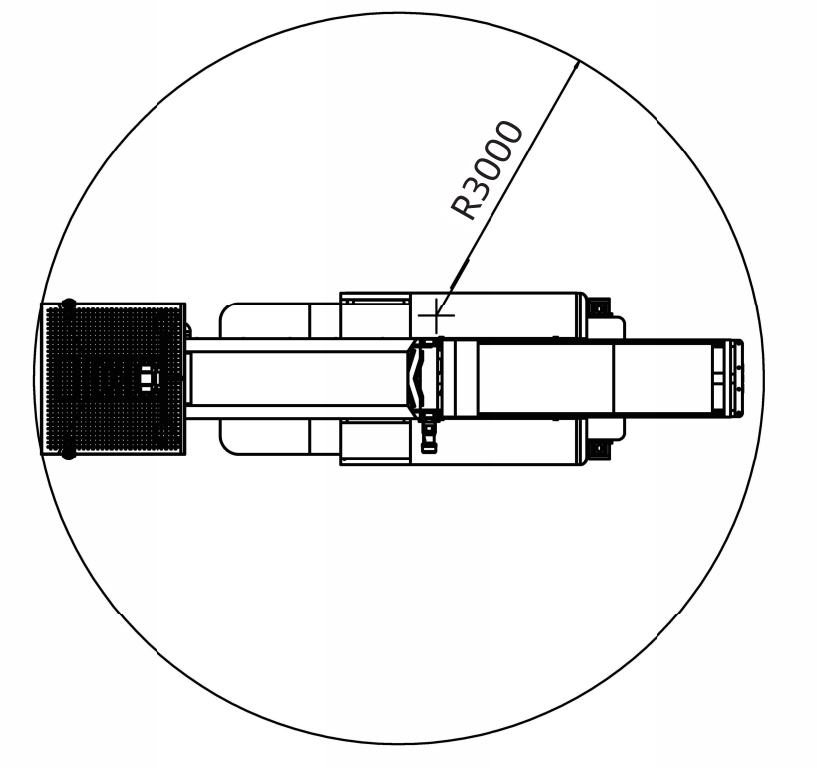

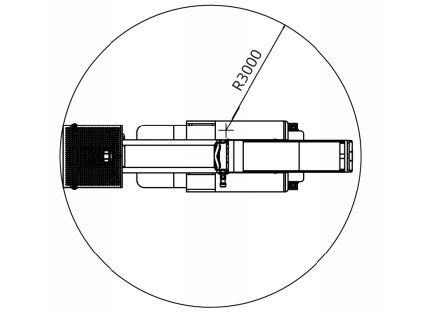

Min.Turning radius

3000mm

Conveying length

3000mm

Conveyor belt width

500mm

Feeding mechanism belt speed

0.7m/s

Hopper volume

1m³

Feeding height

1470mm

Discharging height

1300mm

DOC+CDPF(exhaust gas purification system)

Yes

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
