Product Introduction

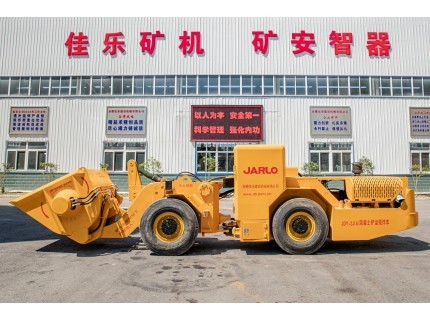

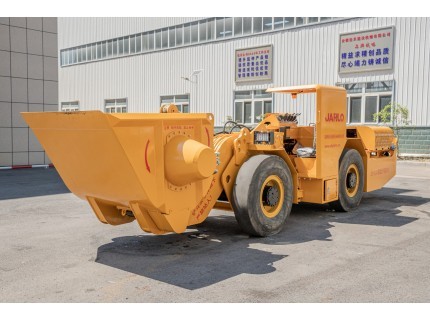

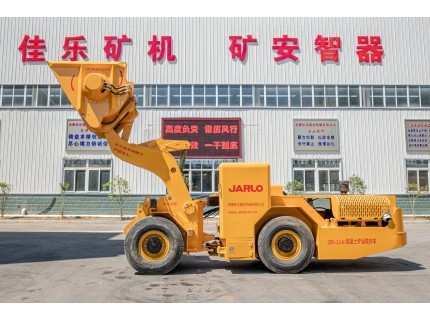

Product Pictures
Product Features
1.Small appearance, convenient operation (lifting arm, tipping bucket, mixing, driving, turning), suitable for narrow mine tunnels.
2.Two low-speed and high-torque inner-curve radial piston mixing motors are used, which have small body, large torque and long life.
3.Adopt hydraulically controlled stepless variable speed mixing motor.
4.The mixing bucket is made of high-strength steel plate with long service life; the detachable mixing blades are used, which are easy to replace and have low maintenance costs.
5.Equipped with a high-pressure common rail engine (190hp), strong power and low energy consumption.
6.Adopt Haihong hydraulic braking system, closed hydrostatic drive, high reliability, strong climbing ability and good control performance.
7.The lifting arm adopts double cylinders, symmetrically placed, stable structure and strong lifting capacity.

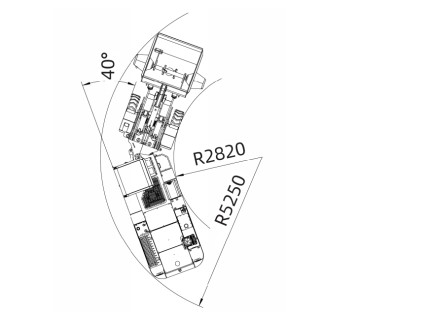

8.Adopt articulated body, which can be disassembled for going down the well under special conditions, flexible steering and large steering angle (±40°).
9.Service brake: adopts oil bath multi-disc brake, hydraulic type, with independent circuit.
10.Parking brake: spring brake, hydraulic release.

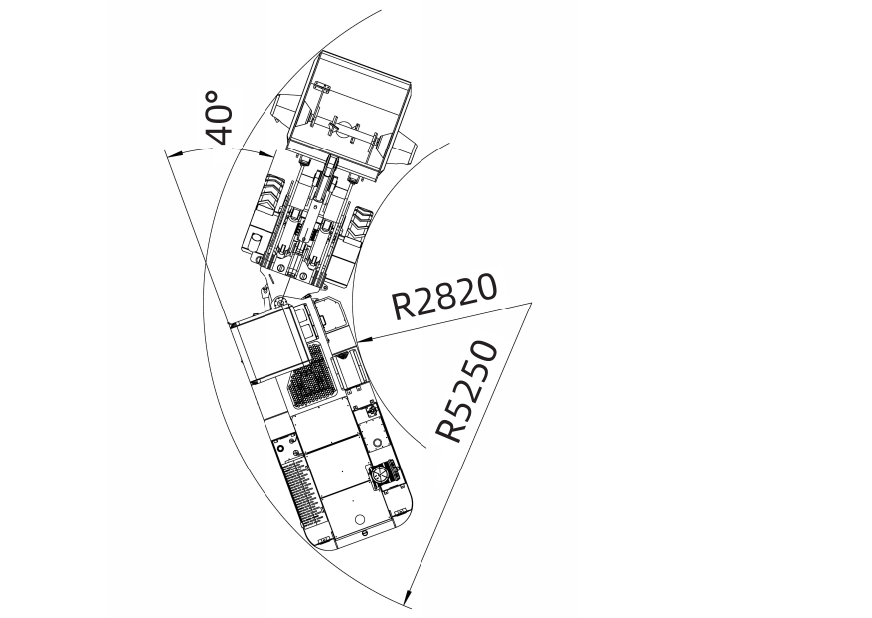

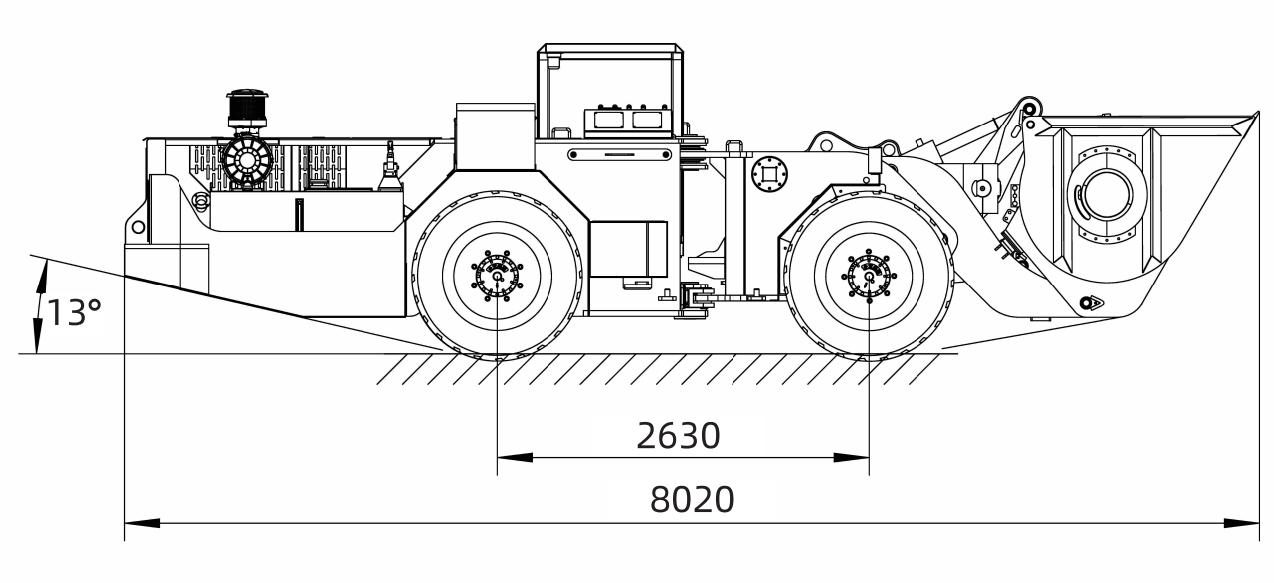

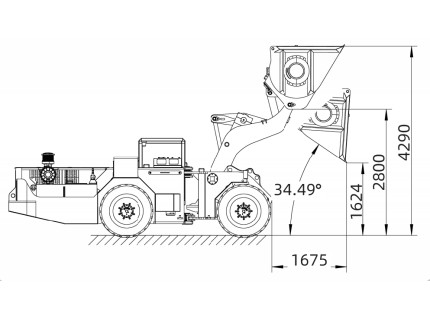

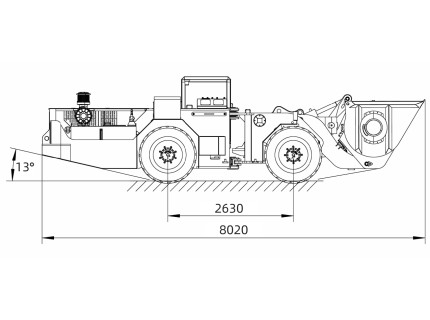

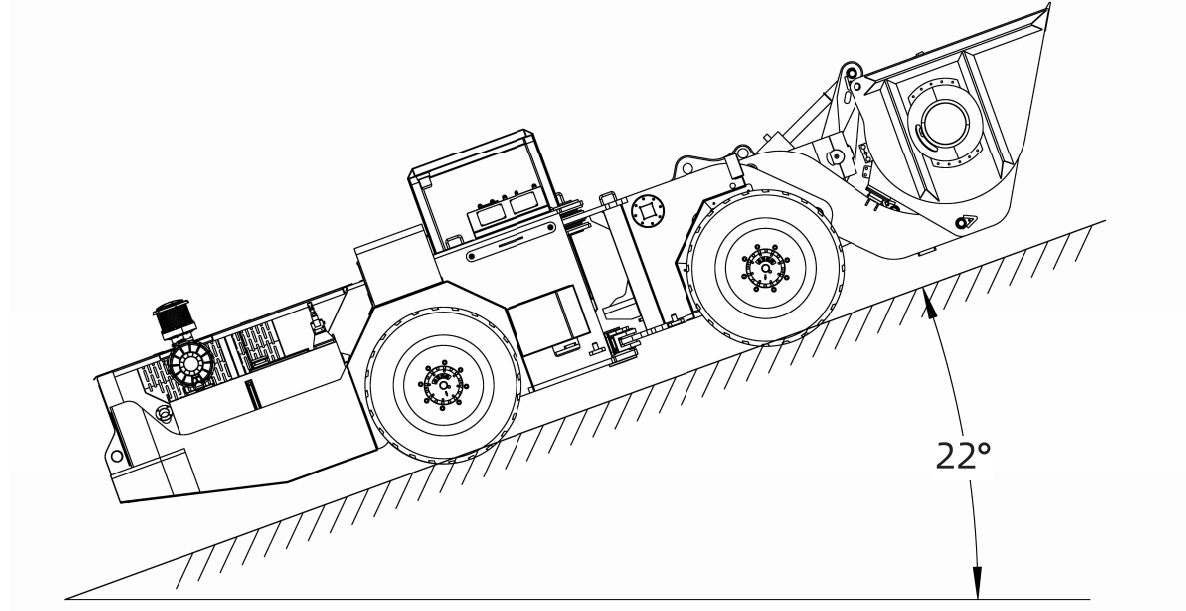

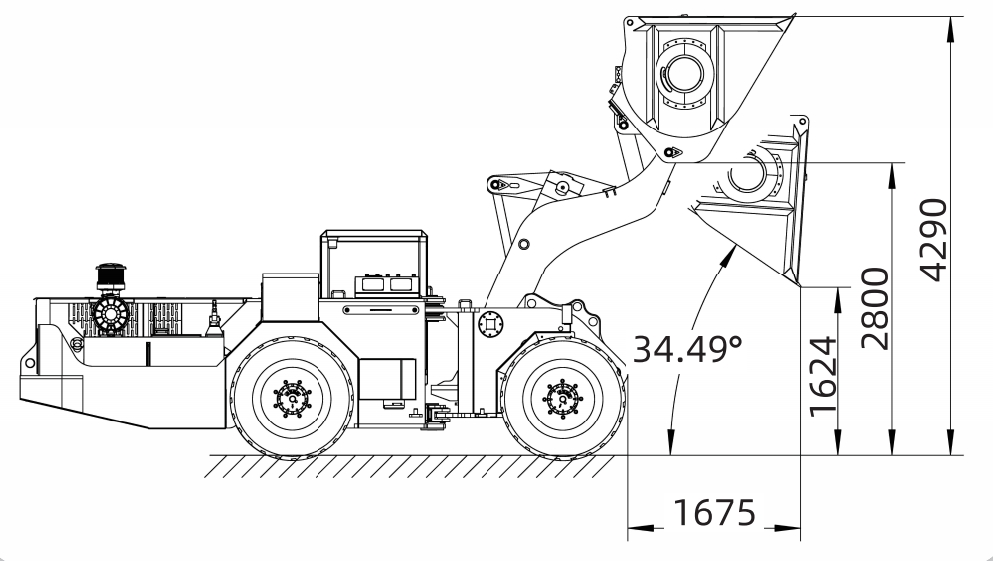

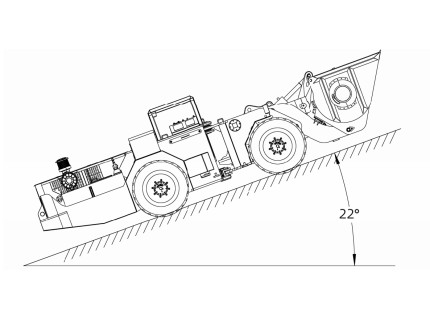

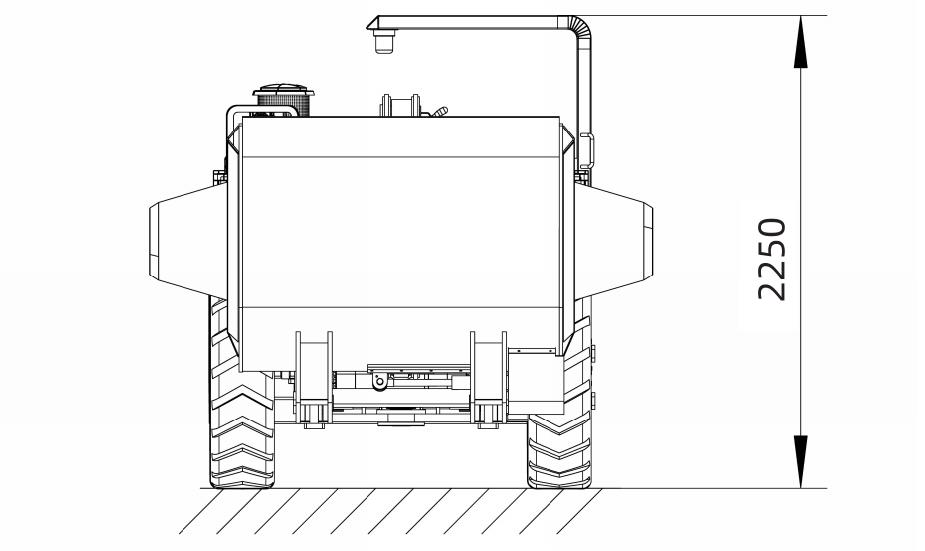

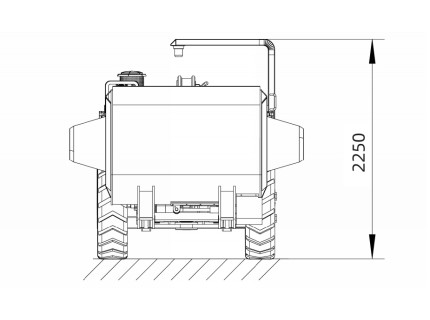

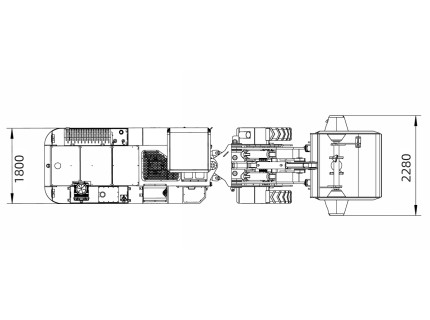

Equipment View
