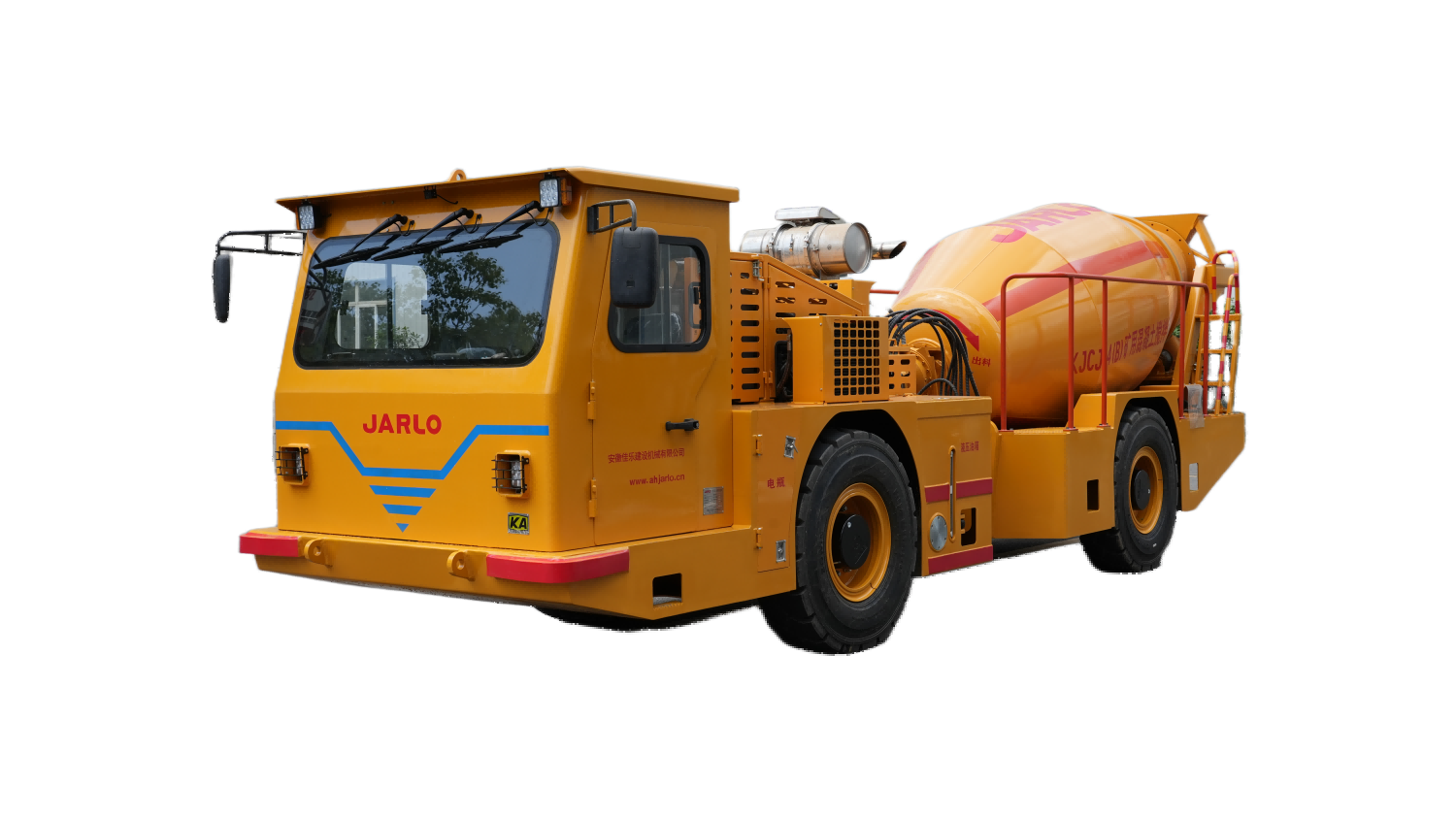

Mining concrete mixer truck
KJCJ-4

Mining concrete mixer truck

KJCJ-4 is an underground auxiliary transportation equipment for mine tunnels independently developed by the company. It is mainly suitable for concrete mixing and transportation in mines, tunnels, construction sites and other fields. The total volume of the tank is 5.5m³ and the rated stirring volume is 4m³. It can continuously supply materials for wet spraying operations of Jarlo mining concrete spraying machines, effectively improving wet spraying efficiency and economic benefits.
  • Max. Driving speed:16km/h
  • Rated stirring volume:4m³
  • Drum discharge height:1540mm

Product Introduction

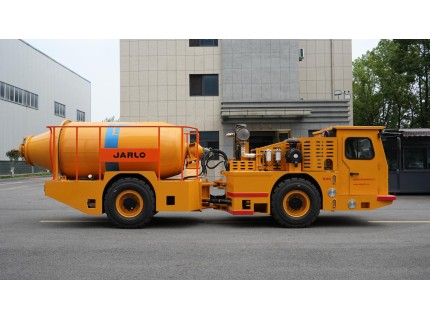

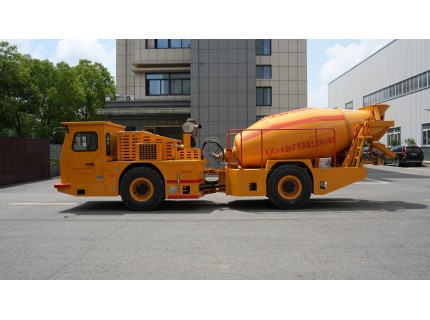

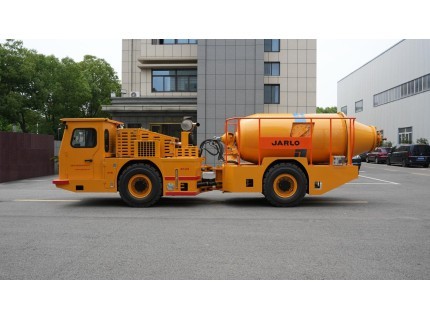

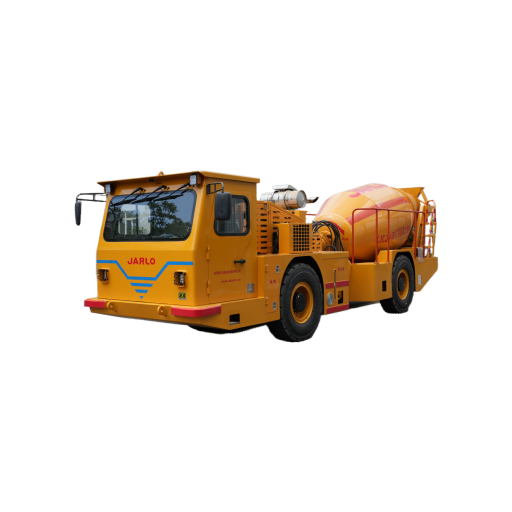

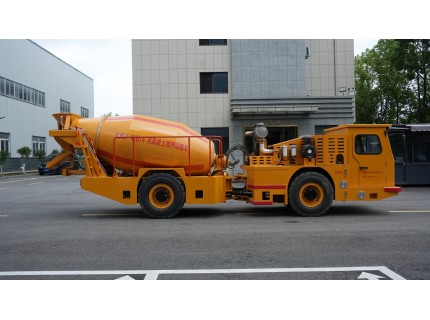

Product Pictures

Product Features

1.Wet multi-disc brakes and dual-circuit brake systems are used to meet the safety requirements of mines.

2.The enclosed cab adopts ergonomic design, meets FOPS/ROPS (anti-smash/anti-rollover) standards, and is equipped with air conditioning to improve driving comfort.

3.Enclosed mixing tank, equipped with water tank and gas tank, easy to clean.

4.The frame adopts post-weld annealing and shot blasting to eliminate welding stress and ensure the quality of the whole machine.

5.The main purchased accessories are well-known domestic brands, which can ensure the normal operation of the equipment, low failure rate and low maintenance frequency.

6.Cummins engine is selected, which has good fuel economy and can provide excellent climbing and power performance.

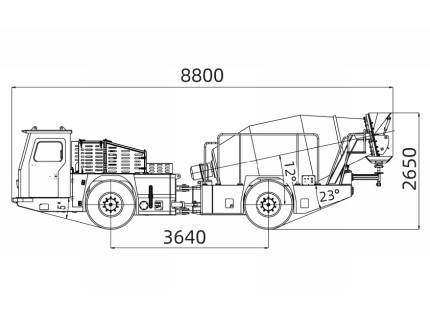

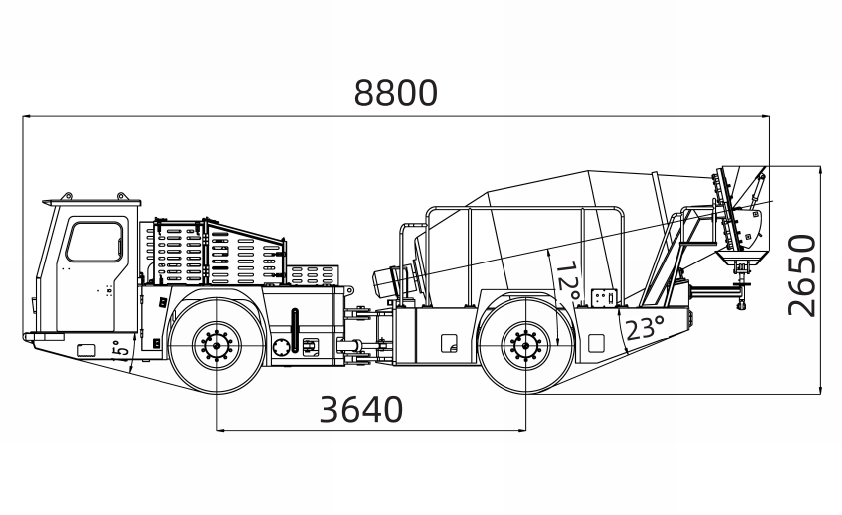

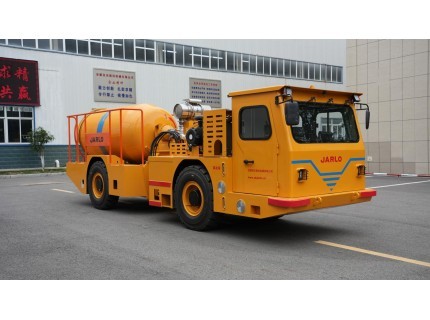

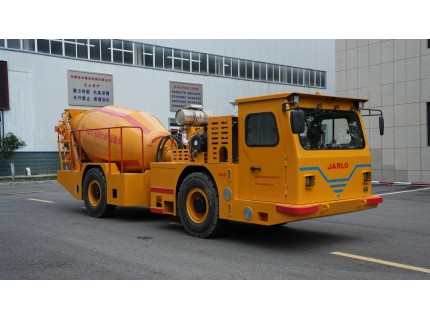

Equipment View

Equipment Parameters

Item

Parameter

Overall dimensions(L×W×H)

8800×2100×2650mm

Machine weight

12500kg

Cab

ergonomically designed, ROPS/FOPS certified, equipped with air conditioning, on- board computer system,reversing camera and vibration-reducing seat

Drive mode,steering mode

Torque converter four-wheel drive,articulated steering

Braking system

Driving:Hydraulic wet brake,dual-axle independent hydraulic power-assisted dual-circuit oil-immersed multi-disc brake

Parking:Closed spring brake,hydraulic release,fail-safe parking brake

Max.Driving speed

16km/h

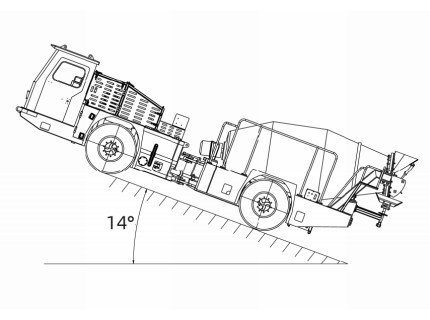

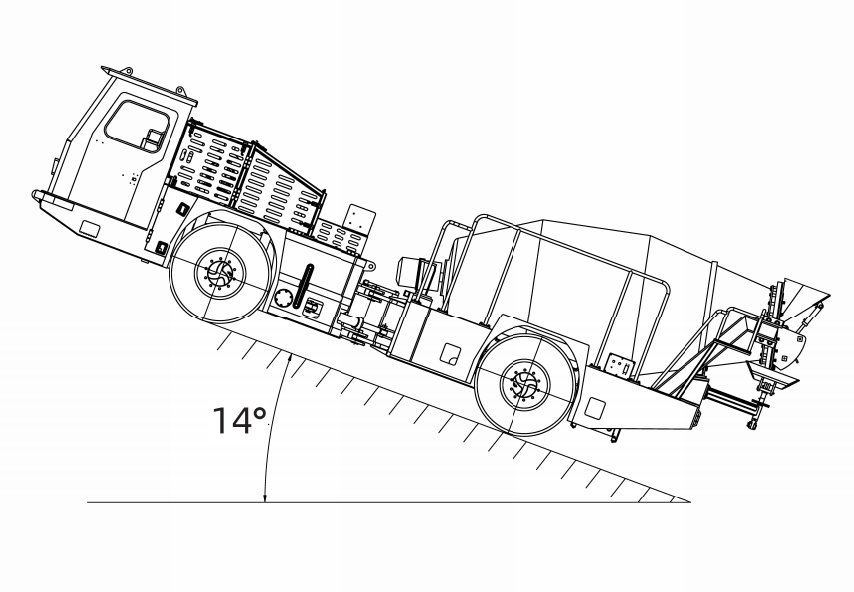

Max.Cllimbing ability

14°

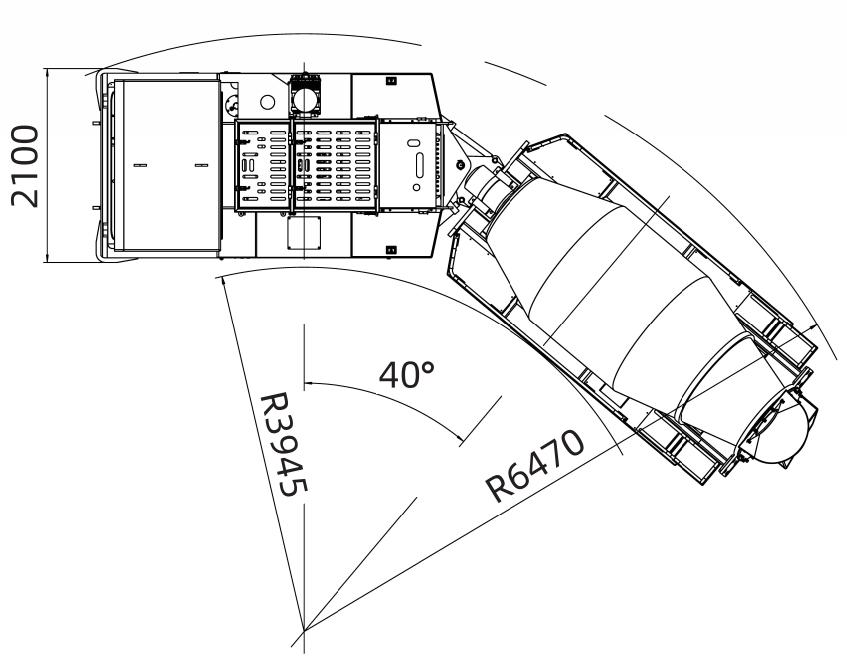

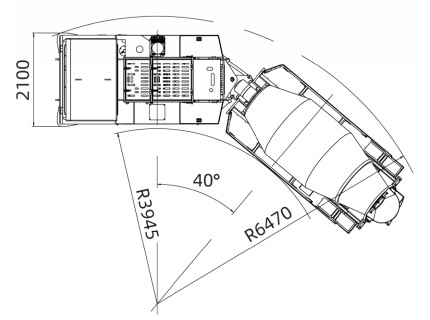

Min.Turning radius

Inner:3945mm;Outer:6470mm

Steering angle

40°

Ground clearance

320mm

Track

1660mm

Wheelbase

3640mm

Concrete tank capacity

5.5m³

Rated stirring volume

4m³

Drum discharge height

1540mm

Engine rated power and speed

Cummins 140kW/2200rpm

Diesel tank capacity

180L

Electromagnetic retarder

Optional

Tire

Mining pneumatic tire

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
