Product Introduction

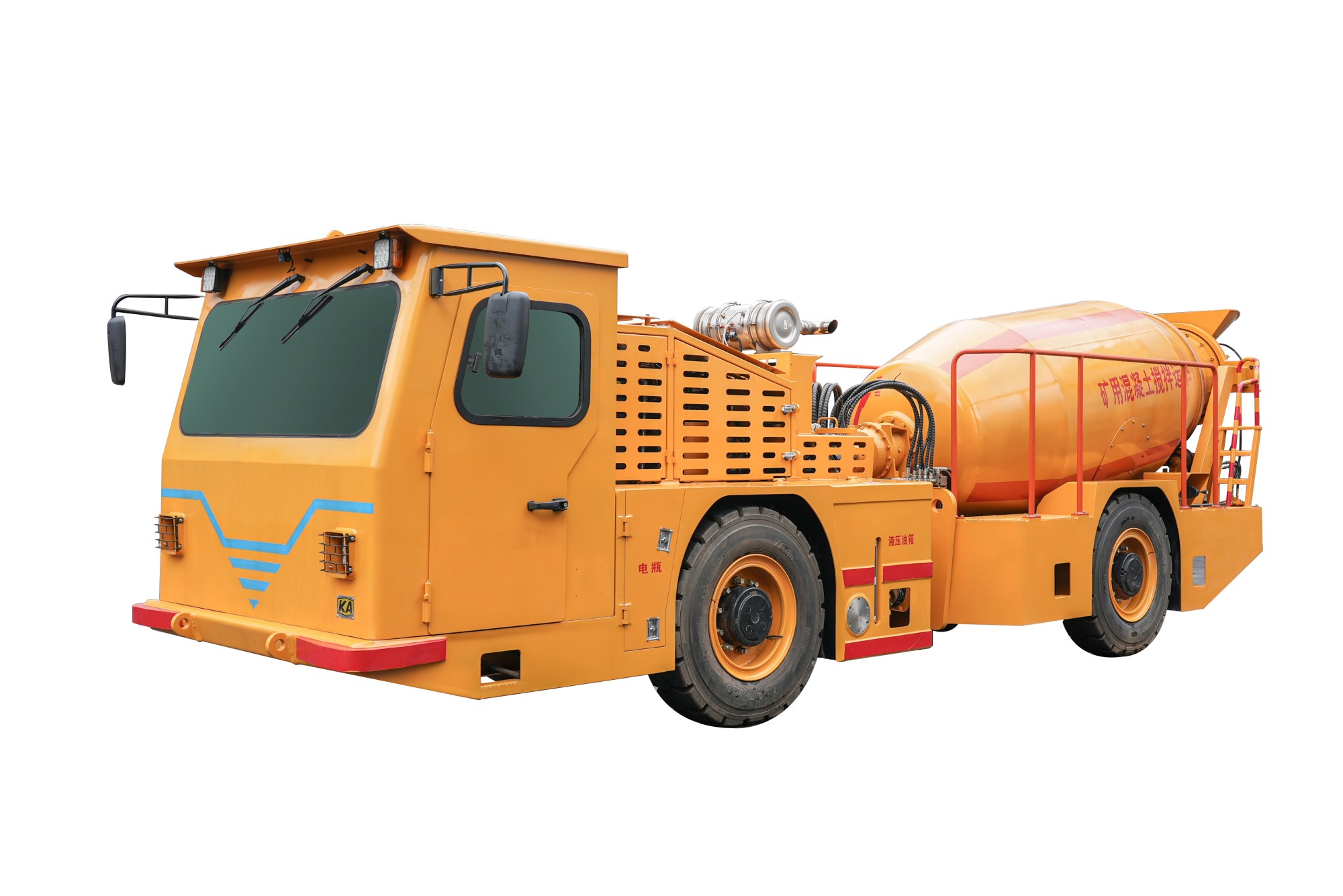

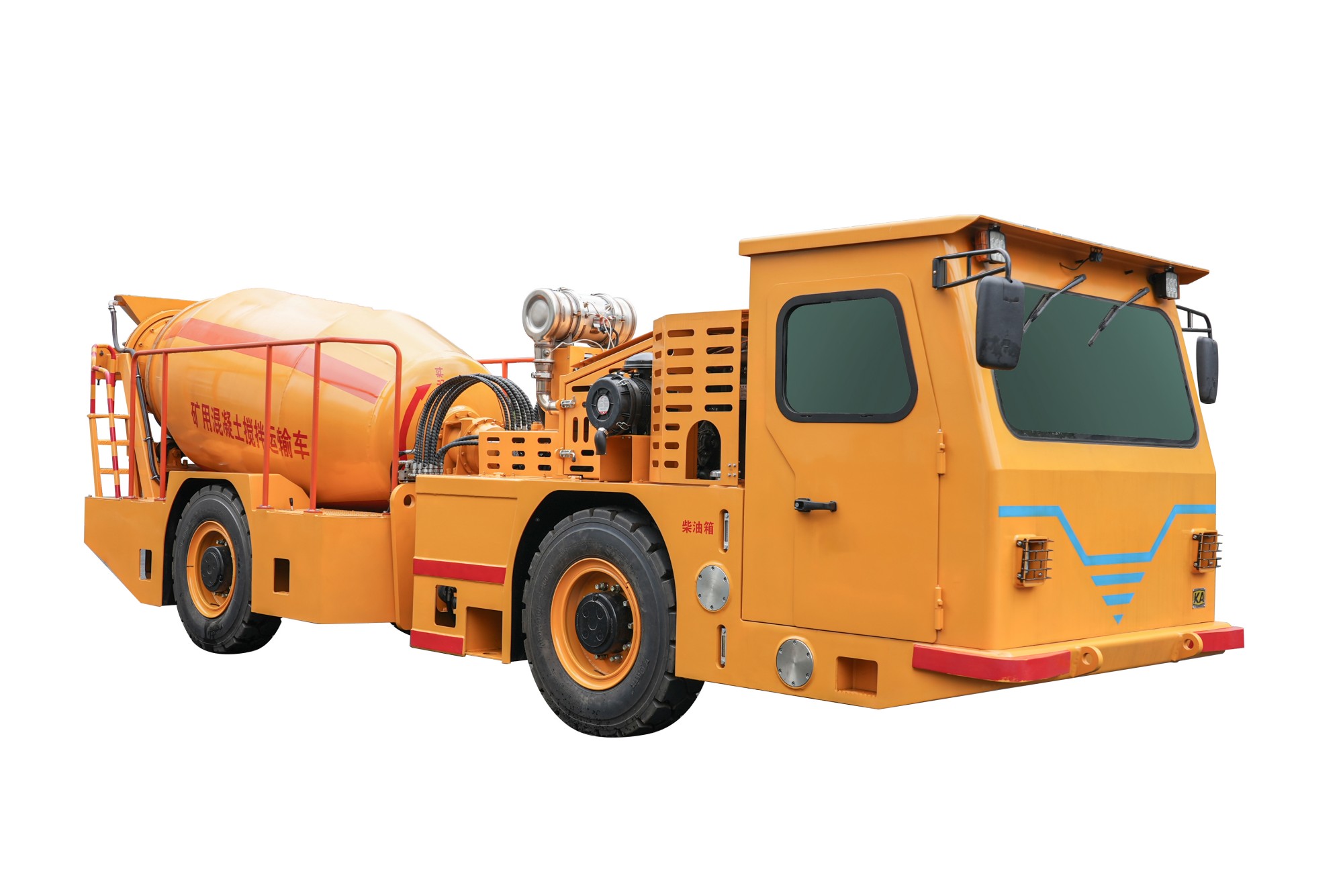

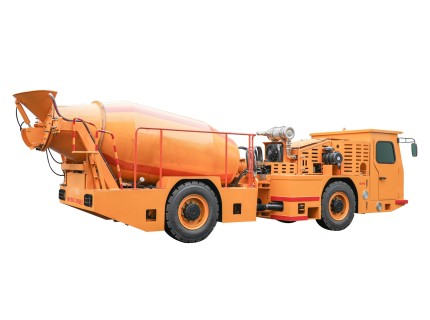

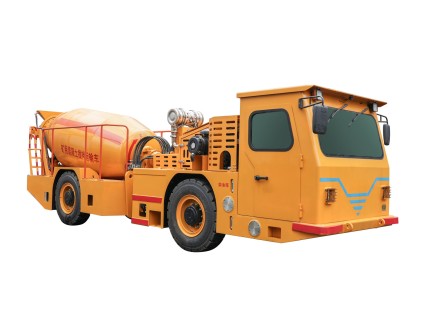

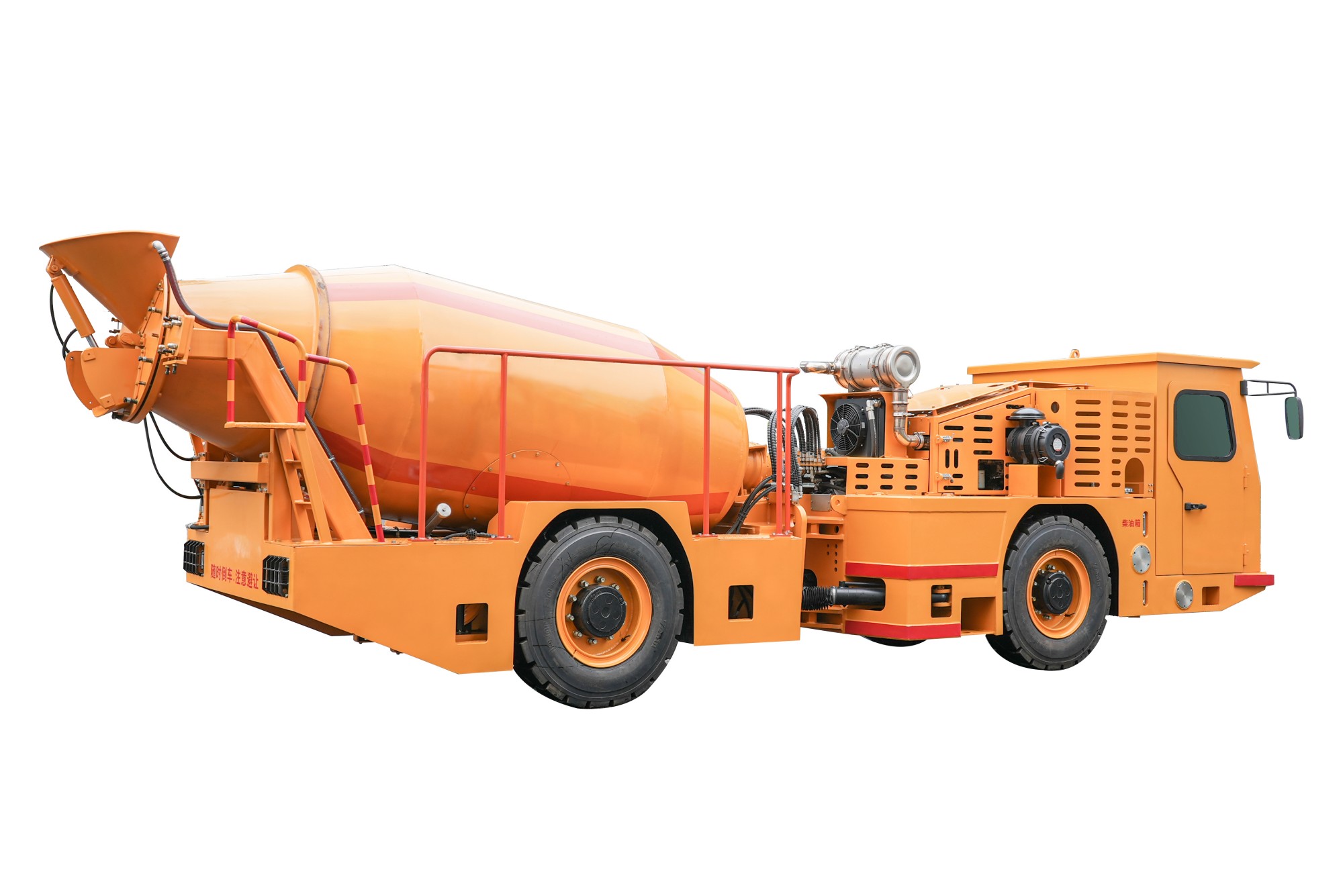

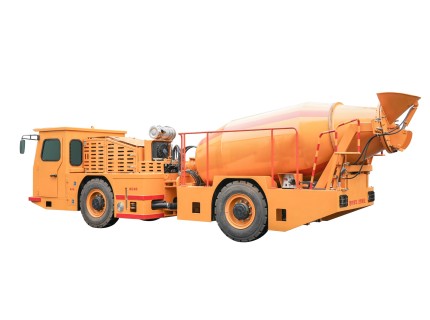

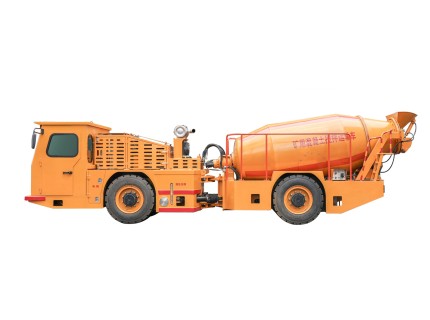

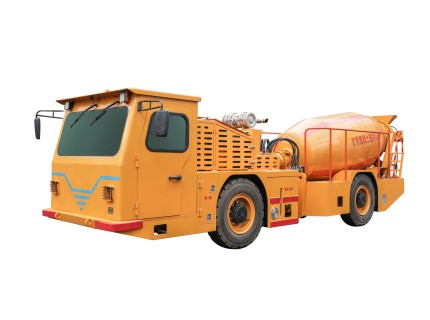

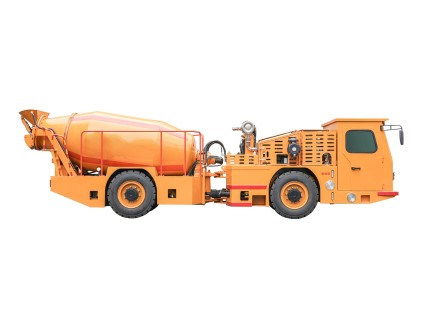

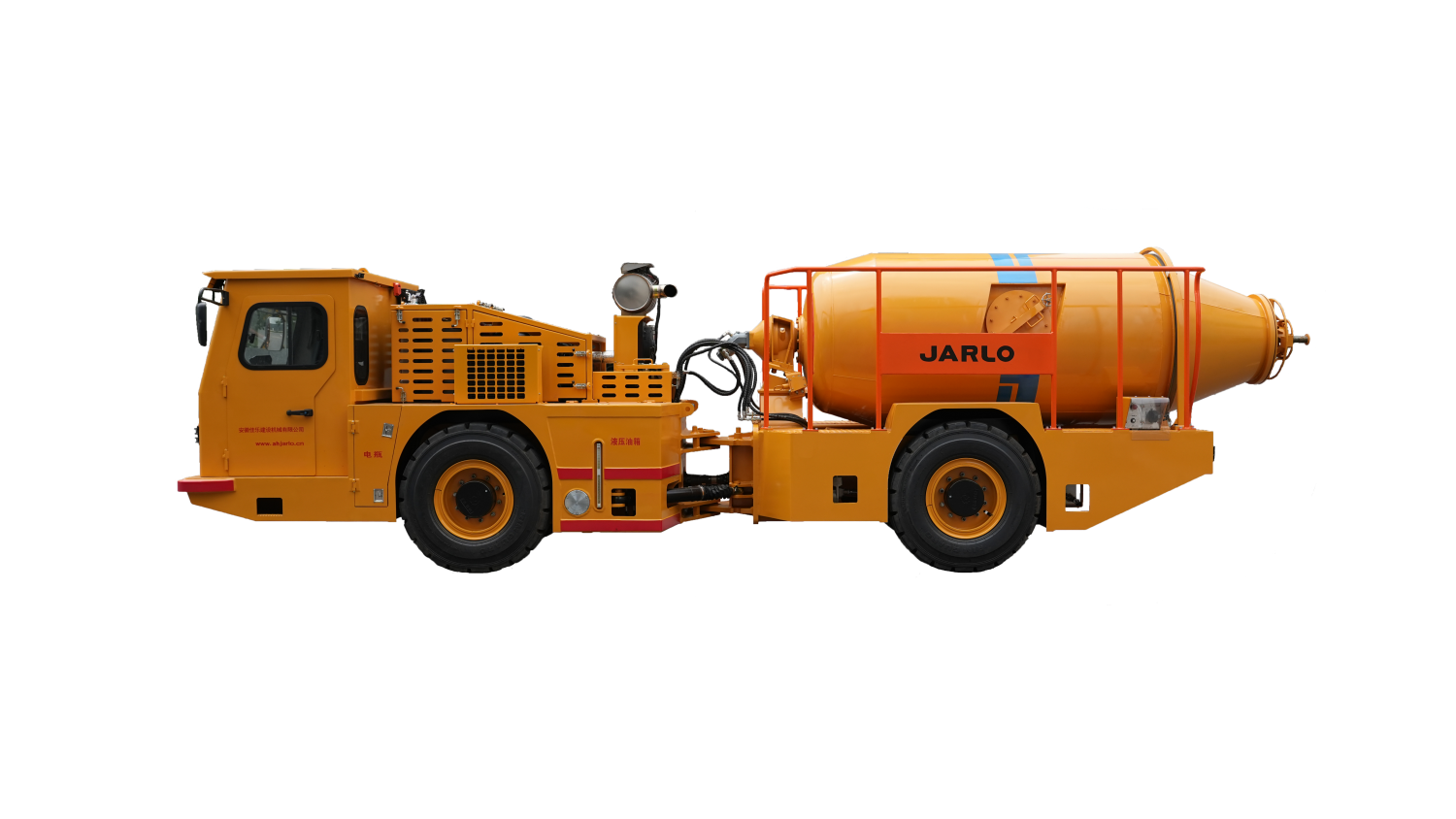

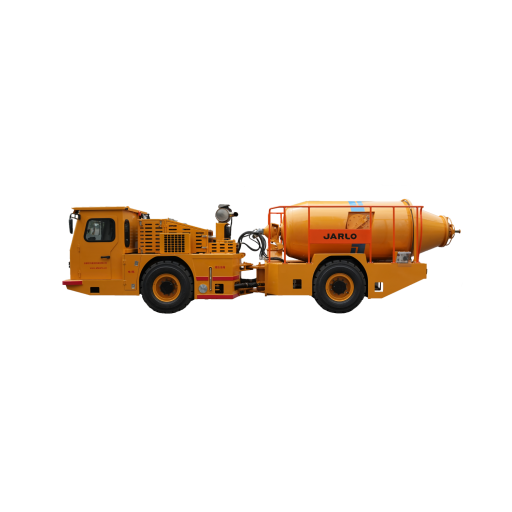

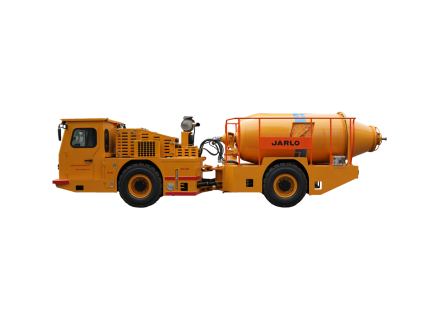

Product Pictures
Product Features
1.Featuring an 8-ton articulated specialized chassis design, it offers high load capacity and a long service life.

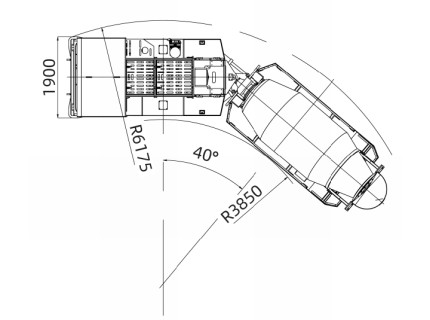

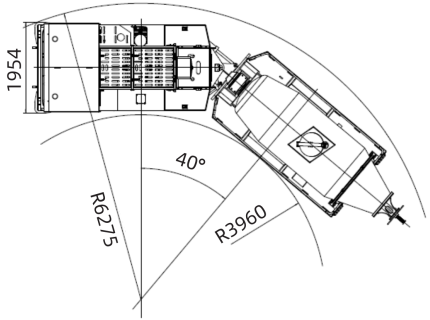

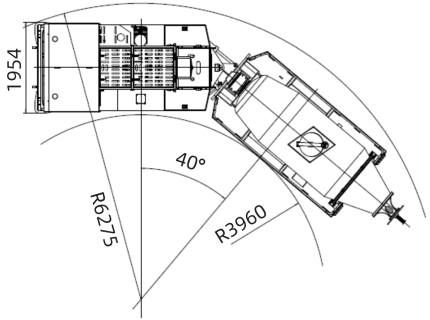

2.Double-cylinder hydraulic steering, four-wheel drive, small turning radius, especially suitable for underground roadway.
3.The front frame is equipped with a swing frame, which increases the swing angle of the front and rear car bodies in the vertical plane, so that the complete vehicle can land on the ground with all wheels on the muddy and pitted road, and more effectively improves the wheel adhesion performance and the passing capacity of the complete vehicle.
4.The power system adopts Yuchai turbocharged water-cooled engine, with low noise and long service life.

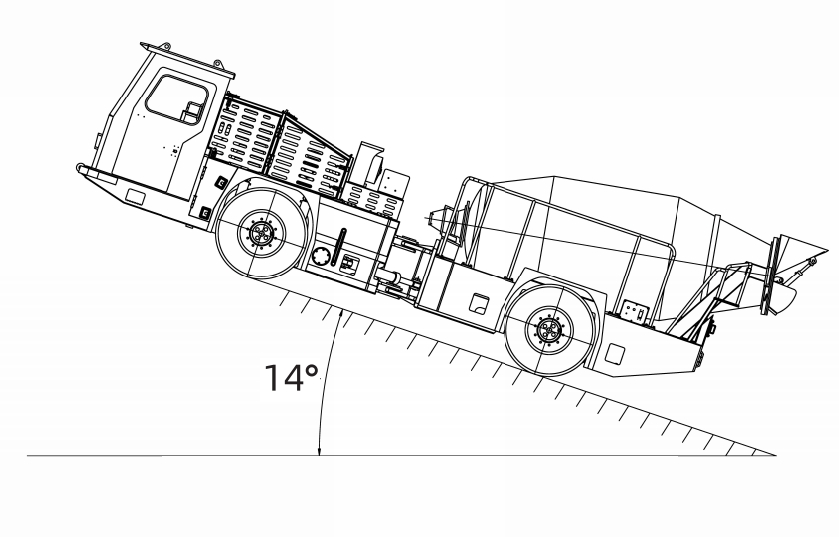

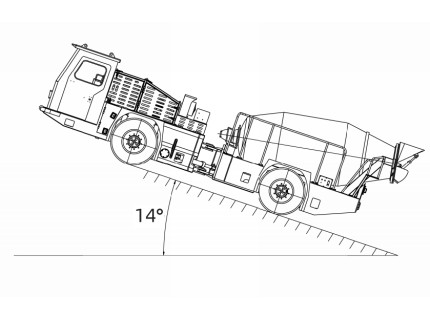

5.The transmission system adopts the power shift transmission and the front and rear drive axles of the well-known domestic brands integrating the torque converter and transmission, which are reliable in use and have strong gradeability.
6.The cab adopts ergonomic design, with ROPS/FOPS certificate, and is equipped with air conditioning, which improves the driving comfort and safety.
7.The main components of the hydraulic system are imported products or products of domestic famous brands to ensure the reliability of the hydraulic system.
8.The brake system is a dual-circuit hydraulic brake system (from SAFIM); The service brake is a fully enclosed wet multi-disk hydraulic brake, and the emergency brake and parking brake are hydraulic release spring brakes, which effectively ensure the brake safety.
9.In order to effectively ensure the low emission of pollutants, the National IV engine is adopted to make the exhaust emission meet the national emission standard and greatly reduce the exhaust noise.
10.The frame is subject to post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
11.The on-board computer system and reversing video system are installed in the cab, which can display the engine status, protection information and fault information in real time and store relevant information to ensure the safe operation of the vehicle.
12.Complete vehicle cleaning: hydraulic driving high-pressure cleaning water pump is used for cleaning.
13.The discharge end cover at the tail of the drum adopts the company's patented structure, featuring easy operation and good sealing.
14.In order to continuously reduce or maintain a stable speed and reduce or relieve the load of the service brake for a long time when going down a long slope, the machine is equipped with an auxiliary brake device of the retarder. The electromagnetic retarder can greatly improve the safety of the mine roadway transportation, and also improve the service life of the axle brake system.

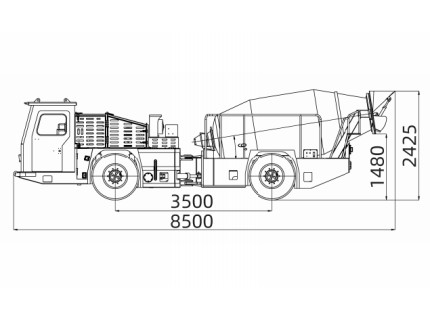

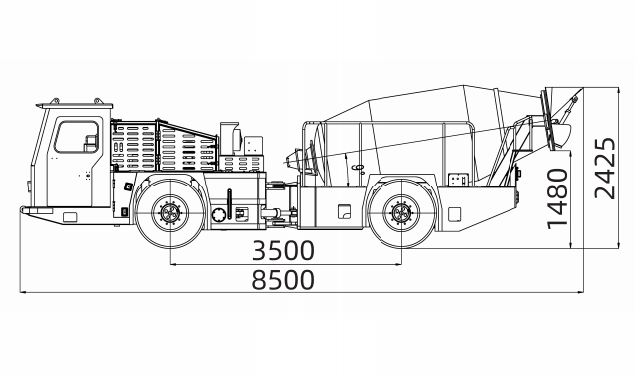

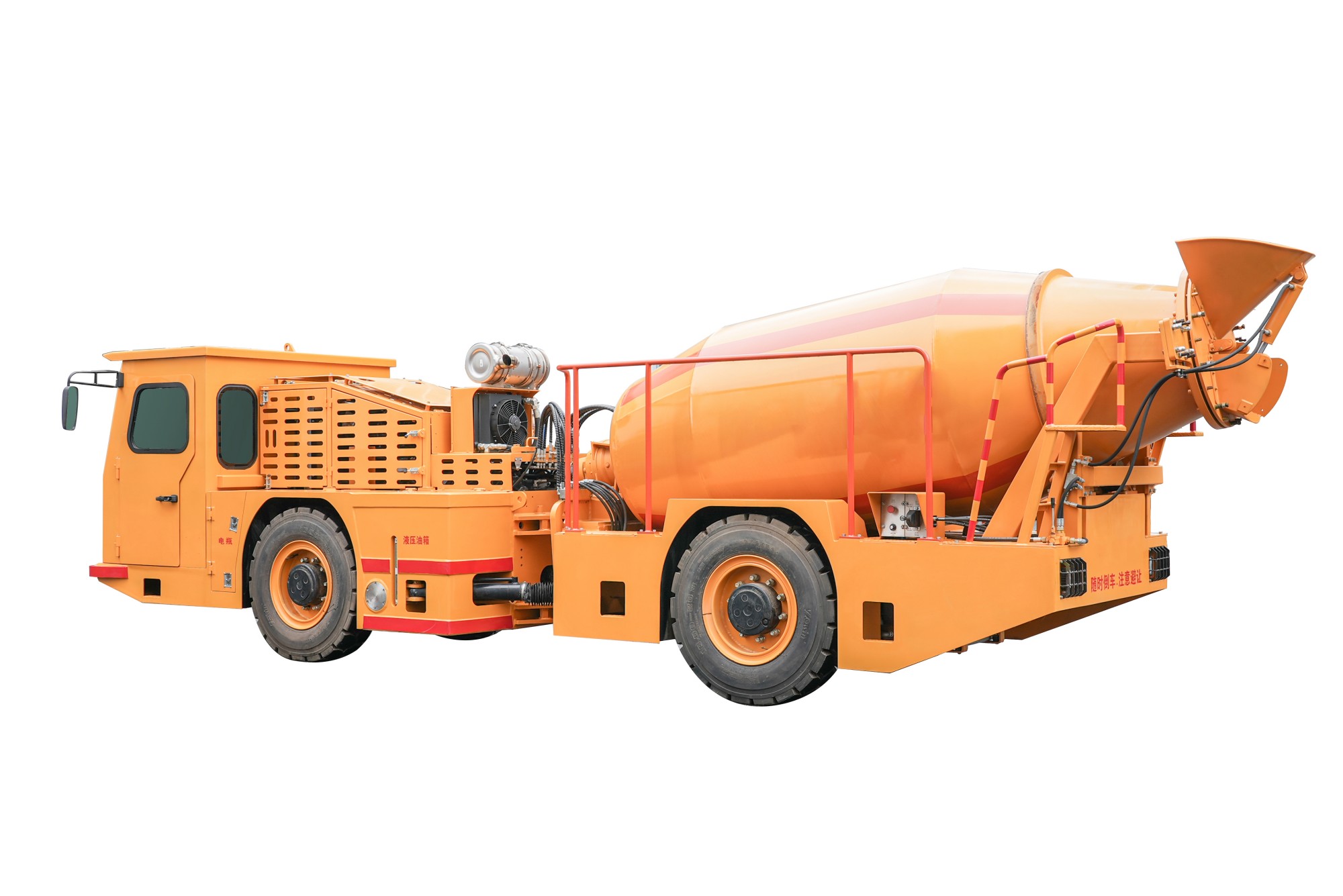

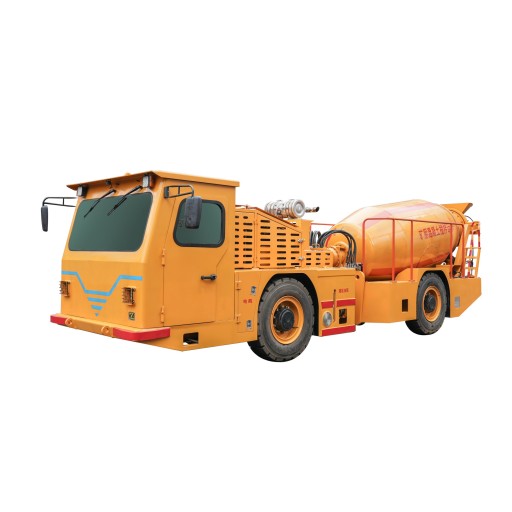

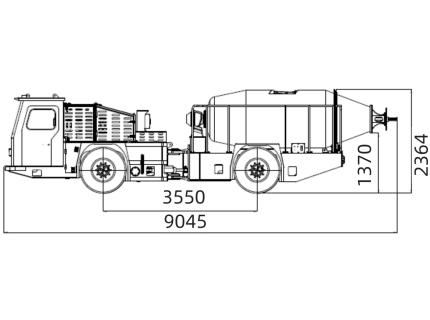

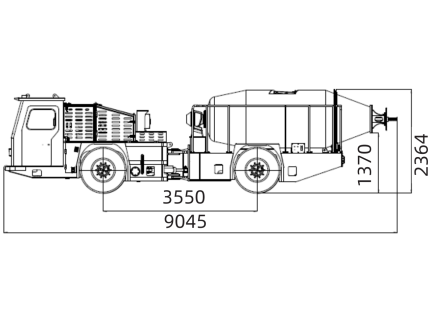

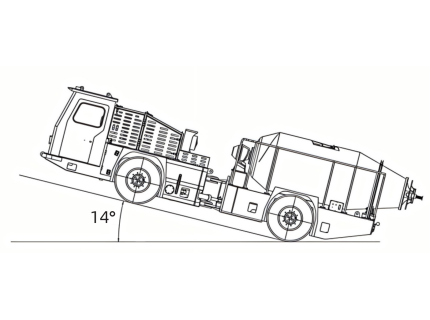

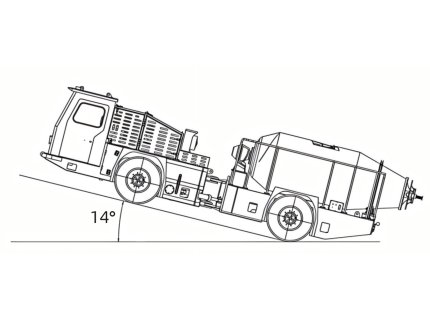

Equipment View
