Product Introduction

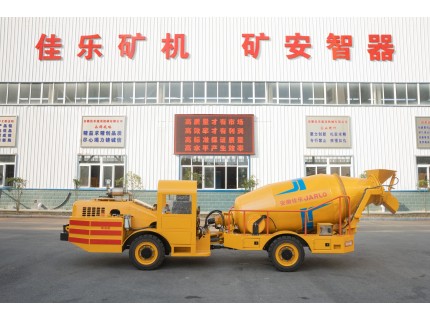

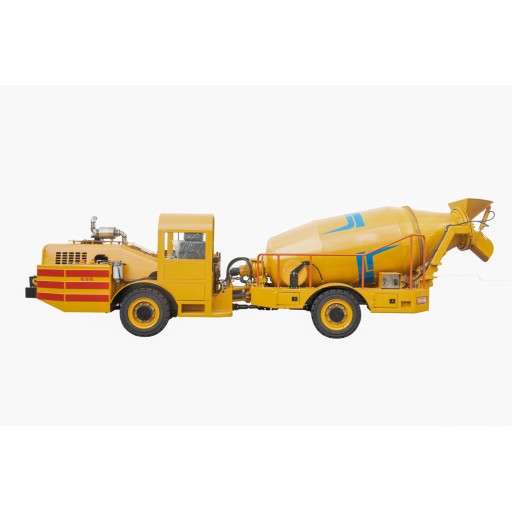

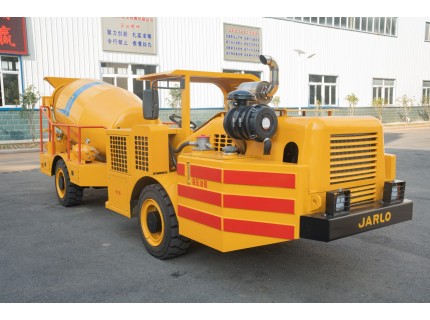

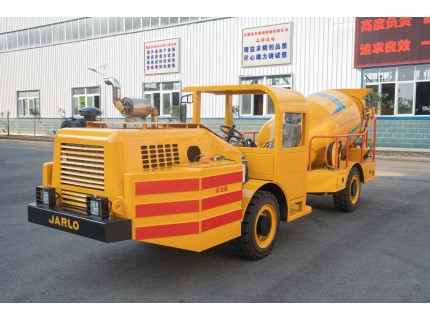

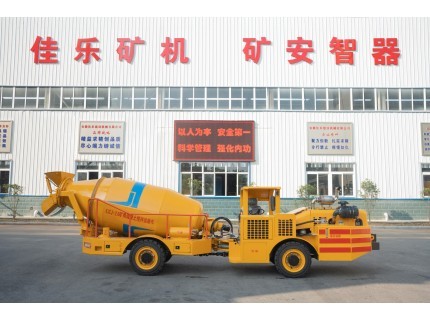

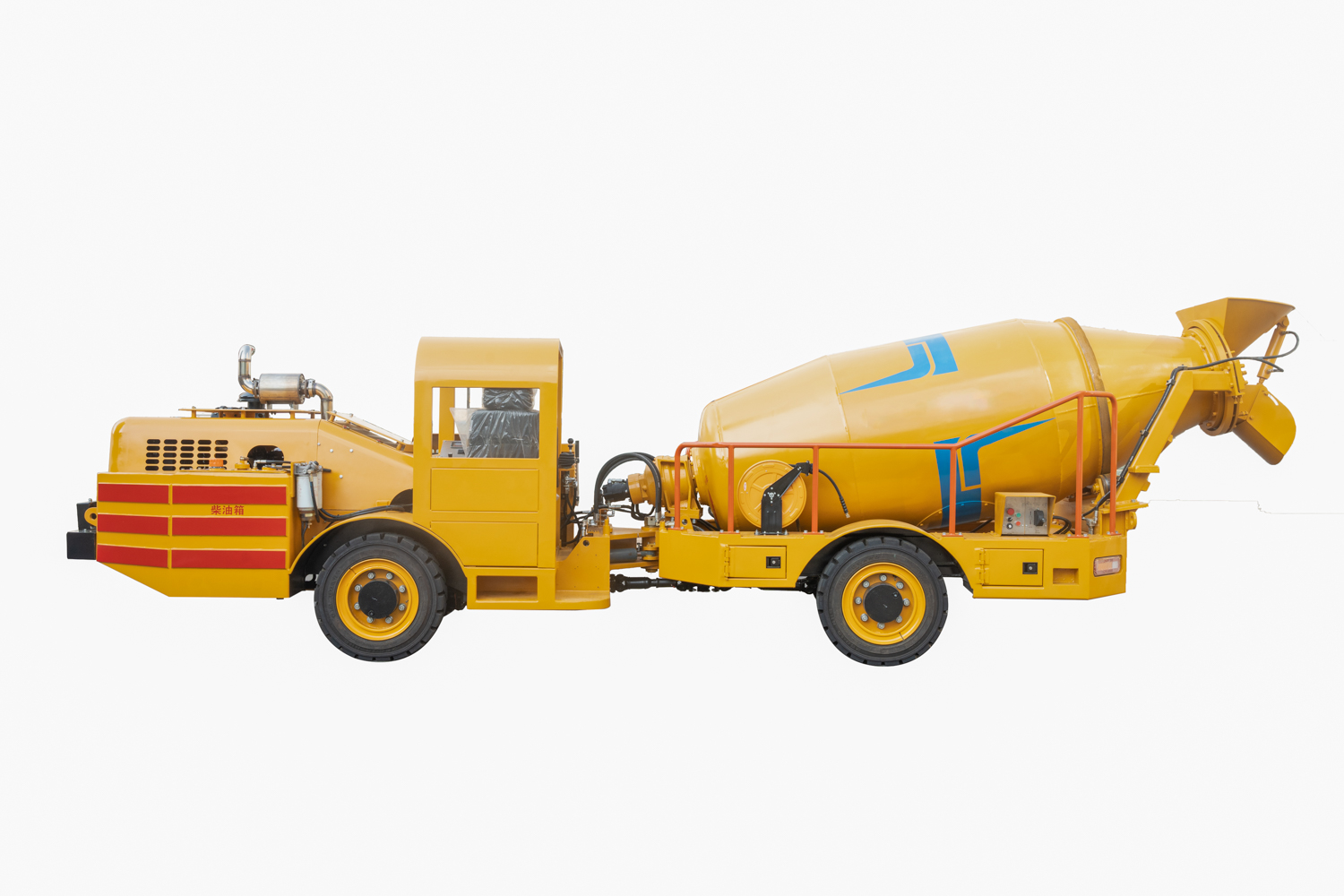

Product Pictures
Product Features
1.Uses wet multi-disc brakes, dual-circuit brake system, meeting mine safety requirements.
2.Imported Cummins turbocharged water-cooled engine, low noise, low failure rate, long service life, ample spare parts.
3.Service brake: Dual-axle independent hydraulic assisted dual-circuit oil-immersed multi-disc brake; Parking brake: Spring brake, hydraulic release fail-safe brake.
4.Gear pump and mixing motor from well-known domestic brands.
5.The frame is subject to post-weld annealing treatment and shot blasting treatment to eliminate welding stress, ensuring the quality of the complete machine.
6.Main electrical components adopt imported or well-known domestic brand products, improving the reliability of the electrical system.
7.Self-made high-performance engineering chassis, featuring power matching, torque adaptive control, strong power, etc. The whole vehicle body is compact, providing high maneuverability and operability in tunnels.
8.Adopts an enclosed mixing drum, equipped with an air tank and water tank for easy cleaning.
9.Adopts a wide-view transverse cab, enabling bi-directional driving in narrow mine drifts without turning around. Control panels are provided both inside and outside the cab for easy operation.
10.The mixing drum is horizontally mounted on the frame, which helps to fully mix concrete while preventing material and slurry leakage during uphill transport. The loading and feeding port is designed at the rear part of the drum for easy connection with on-site mixing equipment. A lifting cylinder is provided at the drum tail, allowing adjustable discharge height.
11.Manual opening of the loading/unloading port is more convenient, time-saving, and labor-saving in comparison.
12.Equipped with a water supply device, working together with the mixing drum made of high-quality wear-resistant high-strength steel plate, customized internal spiral blades, and a special chute, it can, under special circumstances, achieve the function of feeding dry mixed materials into the drum and adding water for mixing to produce concrete by drum rotation, providing more flexible and convenient handling methods for production.

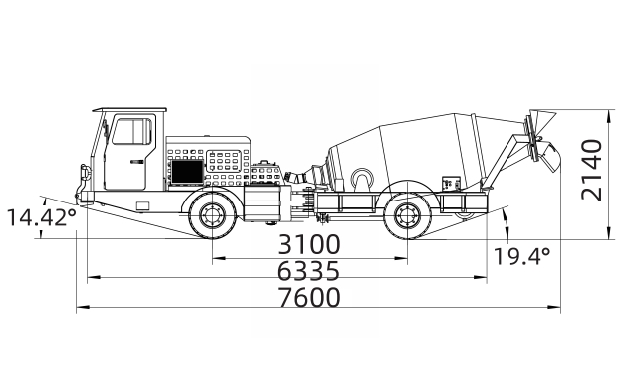

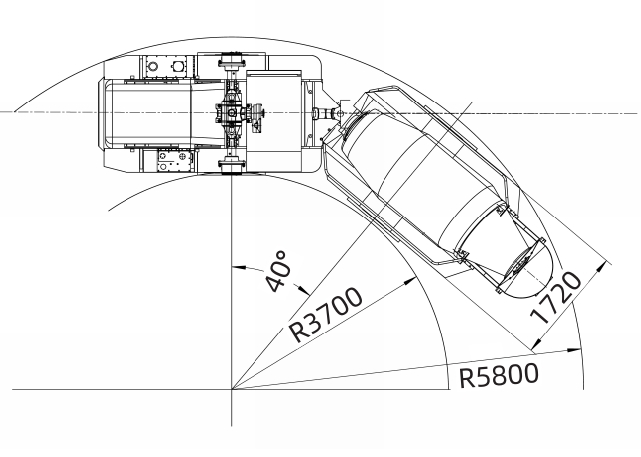

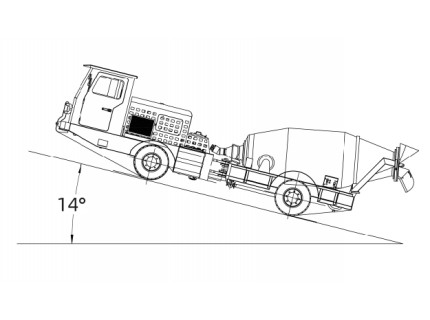

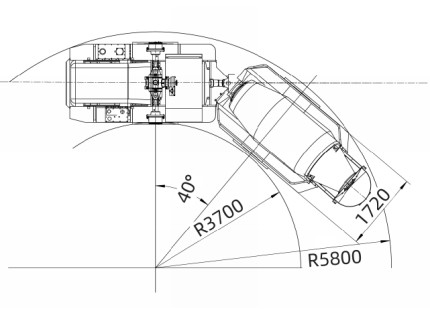

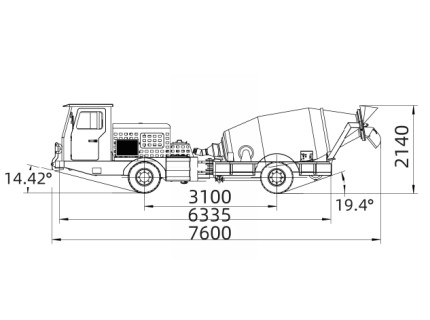

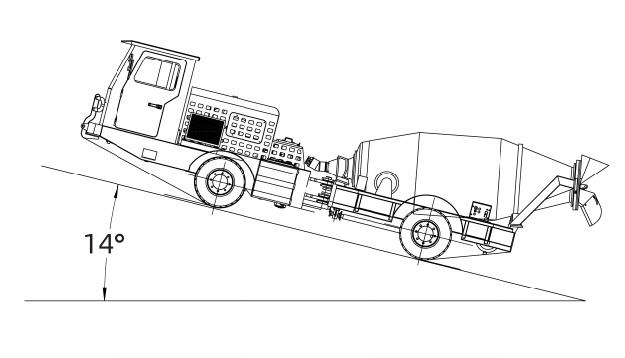

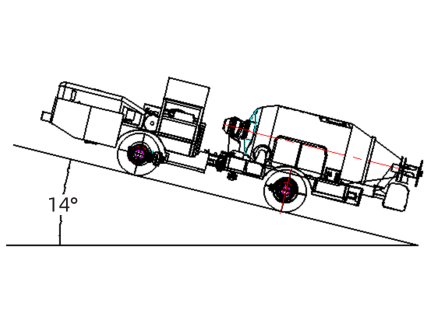

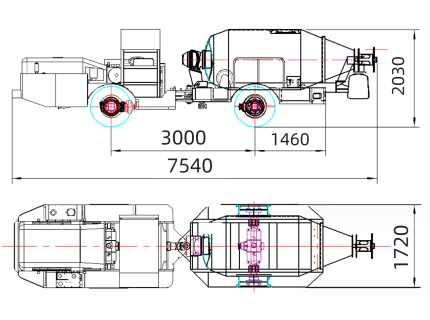

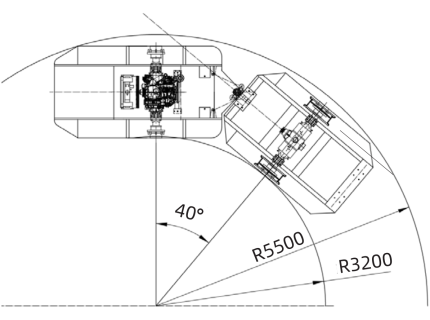

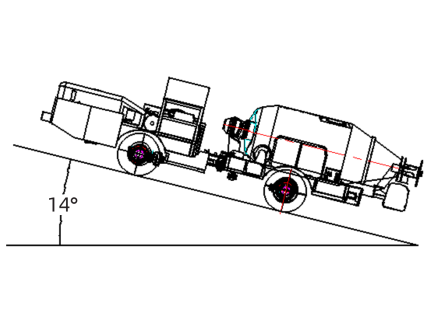

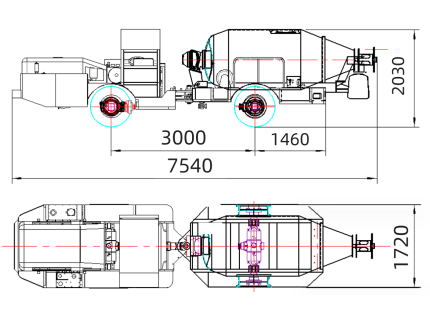

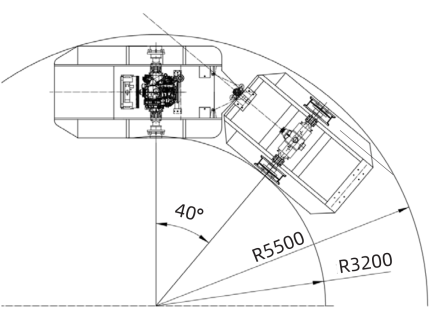

Equipment View
