CGZCZ-80/114

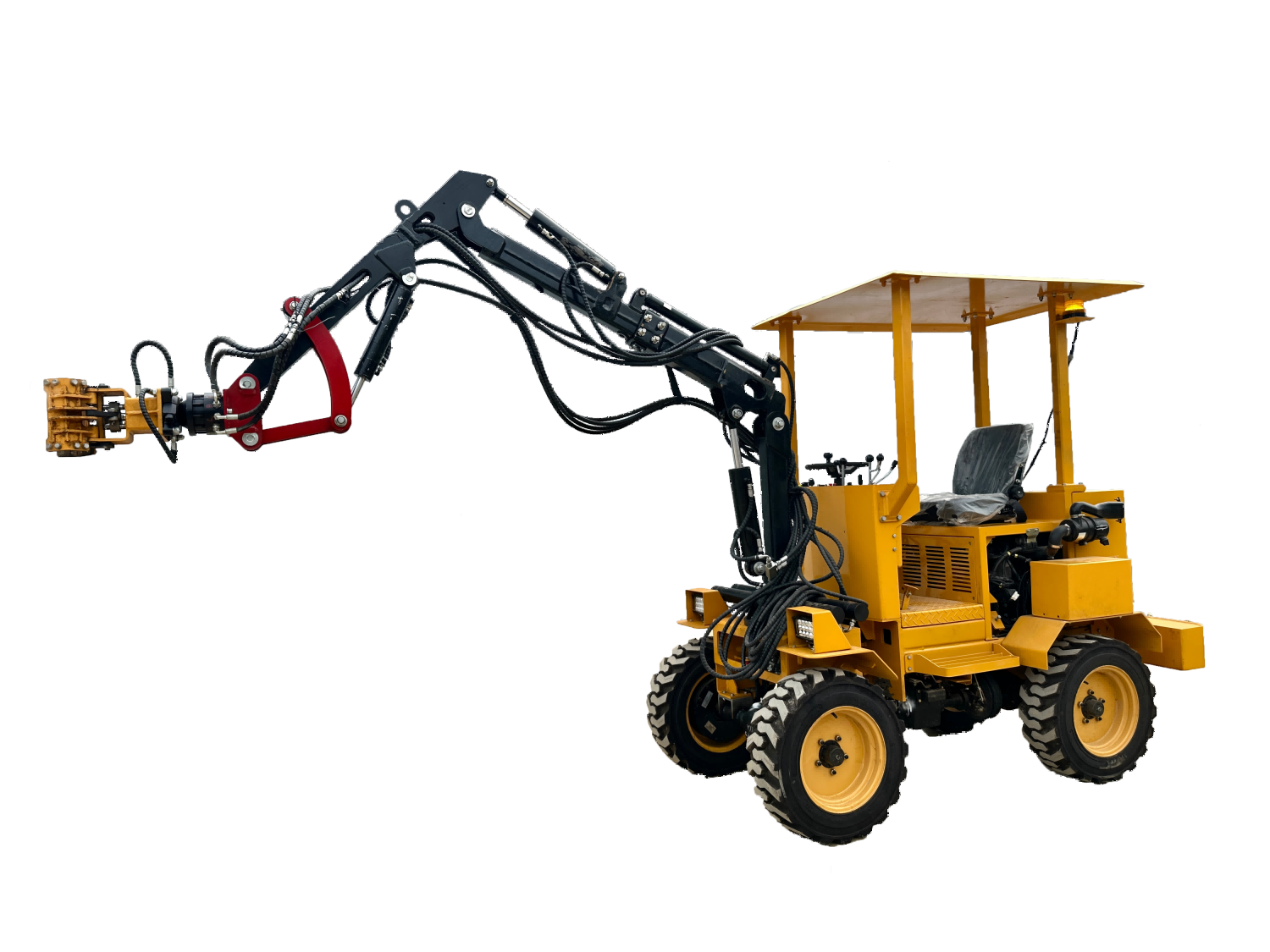

Mining drill rod handling truck

CGZCZ-80/114 Mining Drill Rod Handling Truck is an automatic rod handling equipment for DTH drills or large-diameter drills. It features full function, compact size, high integration, easy, flexible, safe, and reliable operations, and strong adaptability.

Max. Grip Weight：80kg
Max. Grip Diameter：114mm
Max. Grip Length：3200mm

Product Introduction

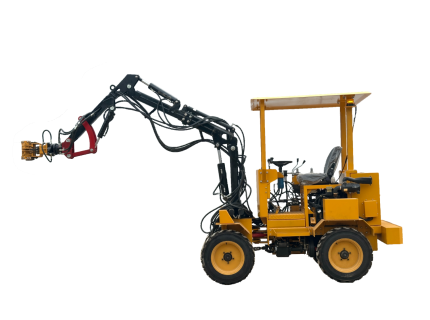

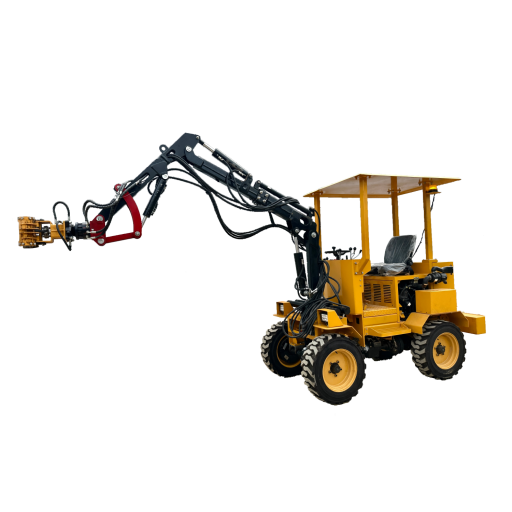

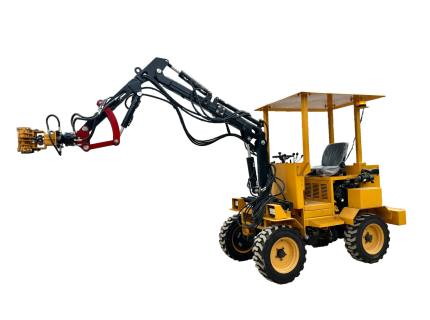

Product Pictures

Product Features

1.Non-road China-IV diesel engine, strong power, fuel-efficient, environmentally friendly, suitable for drill rod handling.

2.Compact structure, flexible mobility, manipulator gripper with good controllability, replaces manual rod handling, high safety.

3.Main raw materials and components from domestic well-known enterprises, quality assured.

4.Dual fuel/electric power options, meeting different working conditions, good adaptability.

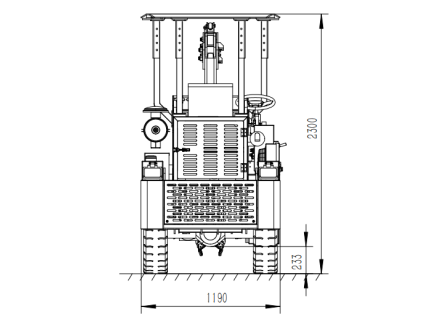

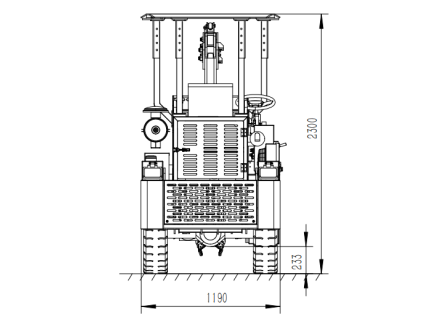

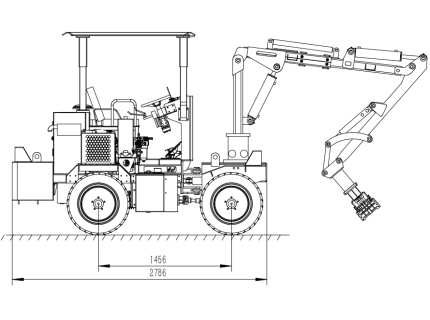

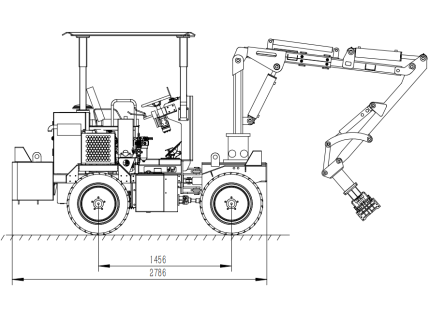

Equipment View

Equipment Parameters

Item		Parameter
Overall	Transport Dimensions ( L × W × H )	4220×1190×2300mm
	Overall Weight	2200kg
	Ground Clearance	200mm

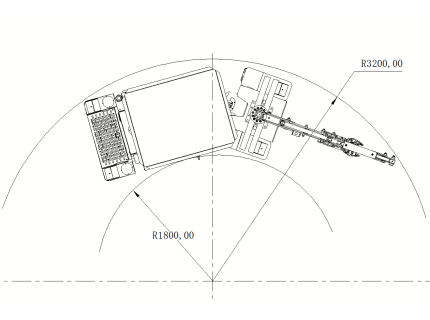

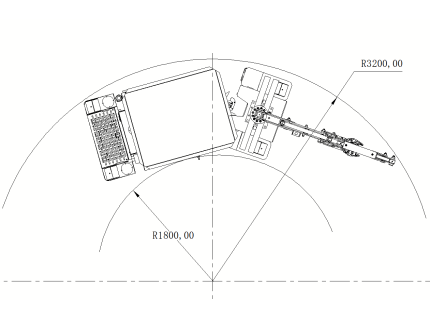

	Min. Turning Radius(outside)	≤3200mm
Driving System	Travel Mode	Tire travel
	Travel Speed	8km/h
	Gradeability	14°
	Swing Angle	9°
	Brake System	Service/Parking: Closed spring brake, hydraulic release, fail-safe wet brake
Electric Motor	Rated Power	5.5kW
Electric Motor	Rated Voltage	380V
Diesel Engine	Model	3M78-25G411G
	Power	18.5kW
	Speed	2600rpm
Grabbing Mechanism	Max. Grip Weight	80kg
	Max. Grip Diameter	114mm
	Max. Grip Length	3200mm
	Mechanical Arm Lateral Swing Angle	-60°~ +60°
	Working Pressure	≤10MPa

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
