CYTJ102/2

Mining hydraulic jumbo drill

CYTJ102/2 Mining Hydraulic Jumbo Drill is mainly used for tunnel excavation, mining, and drilling blast holes in underground projects. It has a maximum working area of up to 45 m² (max width 8.72m, max height 6.35m), and a drilling diameter of Φ41~Φ102mm. Dual boom design effectively improves drilling efficiency; automatic rod retraction system allows one operator to handle both booms. The hydraulic parallel mechanism on the booms enables quick and accurate positioning; The diesel-electric dual power system produces no exhaust during operation and allows fast relocation.

Impact power：18kW
Drilling diameter：Φ41~Φ102mm
Max. Working area：45㎡

Product Introduction

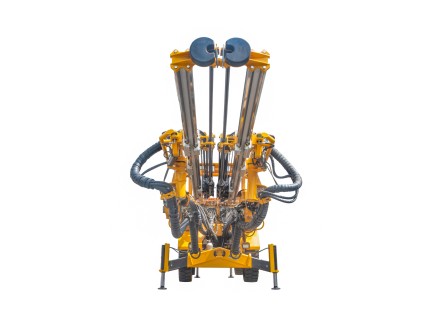

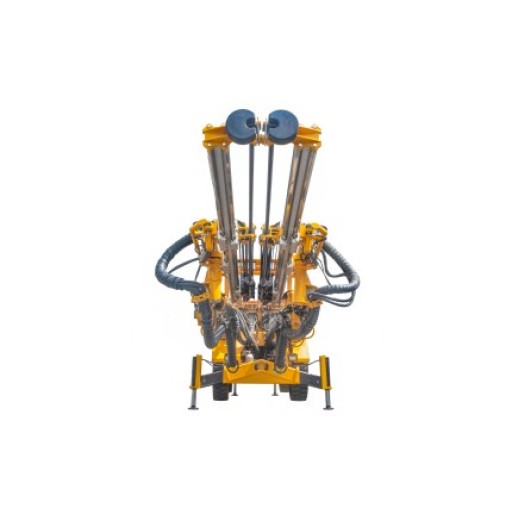

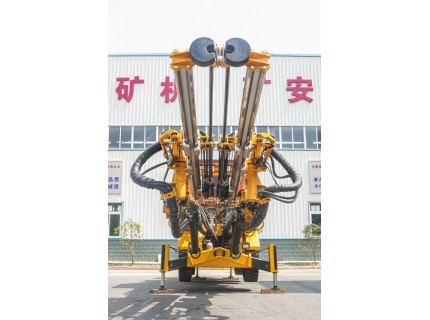

Product Pictures

Product Features

1.Rock drill: With buffer damping system, ensuring optimal tool life; pressure oil film protects and lubricates interfaces.

2.Hydraulic booms: Two heavy-duty booms; double-triangle suspension support provides accurate hydraulic parallel holding.

3.Hydraulic feed beams: Heavy-duty aluminum alloy feed beams, high bending and torsional strength; surface covered with stainless steel sheet, polyurethane rubber wear pads.

4.Control system: Hydraulic rock drilling control system with automatic anti-jamming RPCF.

5.Chassis: Sturdy articulated heavy-duty chassis, 4WD; water-cooled diesel engine drive; four hydraulic outriggers.

6.Other: Falling object protection adjustable safety canopy, cable reel, electric driven piston air compressor, electric driven booster water pump, work lights.

Equipment View

Equipment Parameters

Item		Parameter

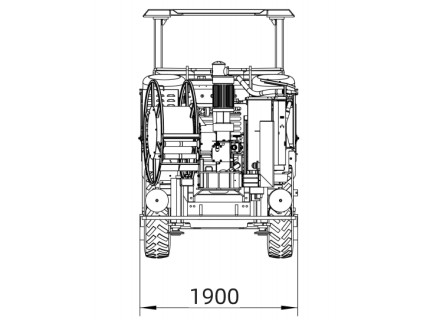

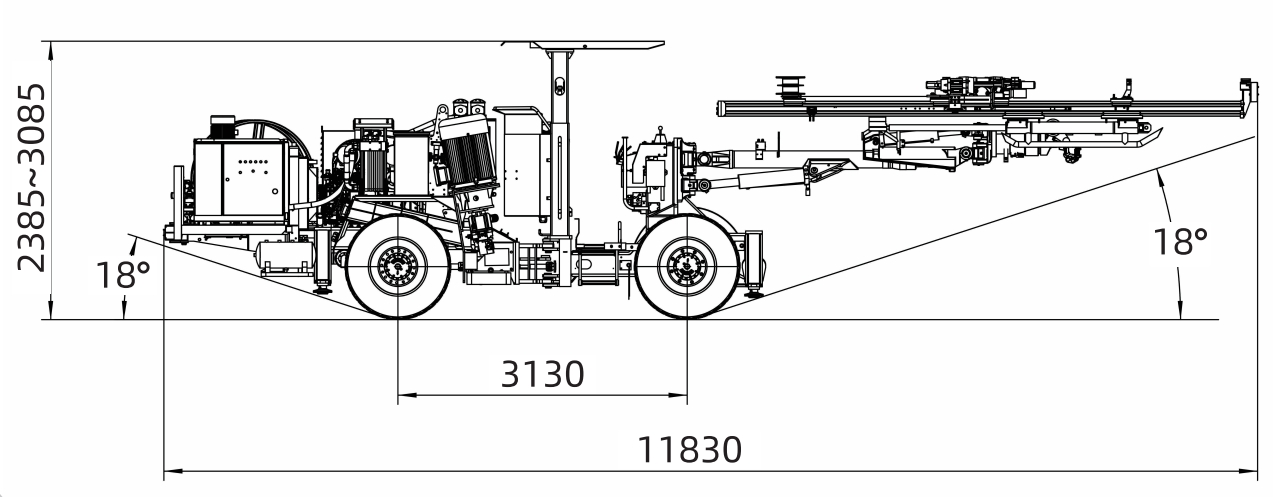

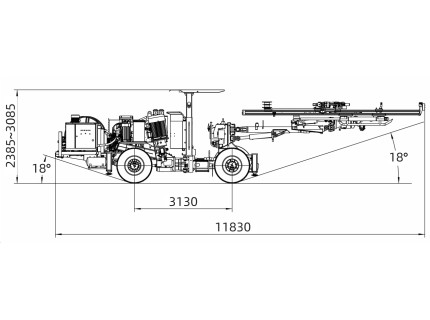

Overall Performance	Dimensions（L × W × H）	11830×1900×2385（max 3085）mm
	Overall Weight	18000kg
	Number of Booms	2

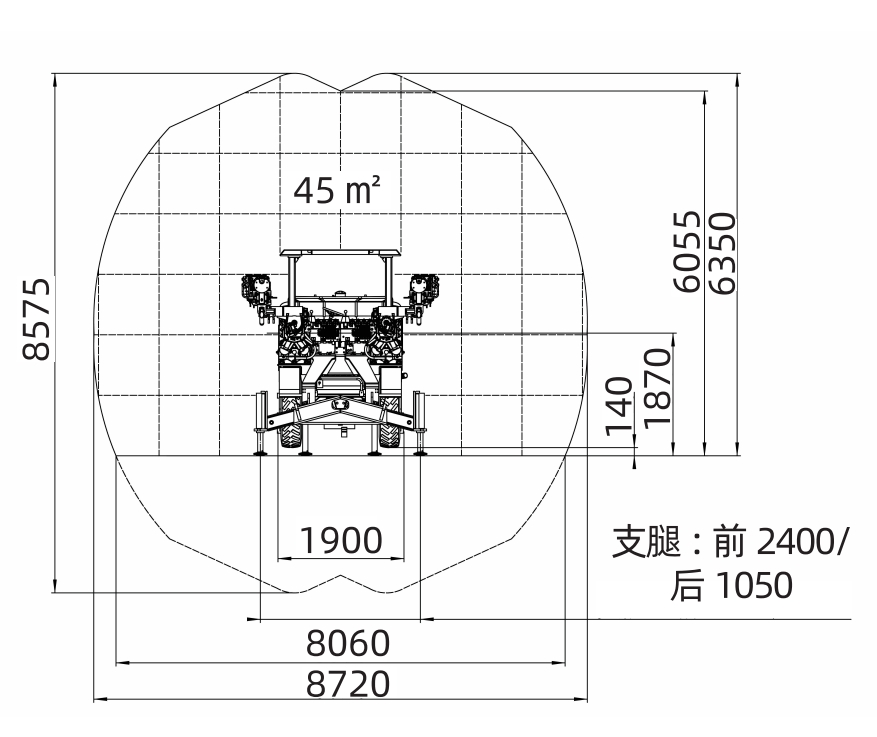

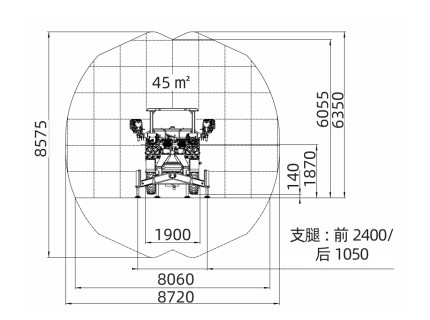

	Working Range（W × H）	8.72×6.35m
	Drilling Diameter	Φ41~Φ102mm
Driving System	Drive Type	Torque converter + gearbox
	Brake System	Service: Hydraulic wet brake, dual-axle independent hydraulic assisted dual-circuit oil-immersed multi-disc brake; Parking: Closed spring brake, hydraulic release, fail-safe parking brake
	Ground Clearance	340mm

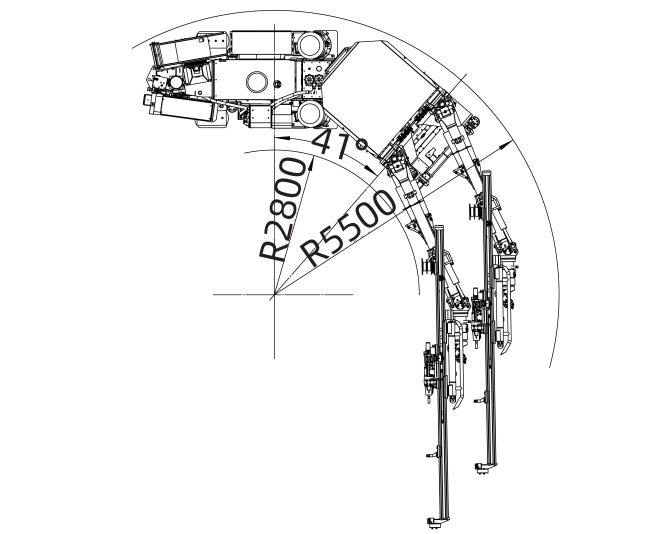

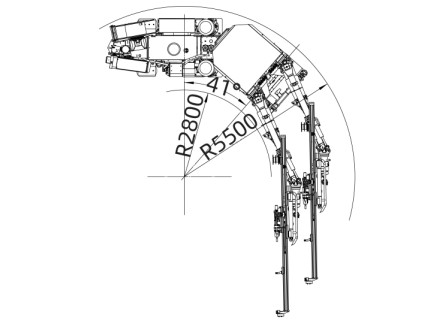

	Min. Turning Radius	Inner：2800mm；Outer：5500mm

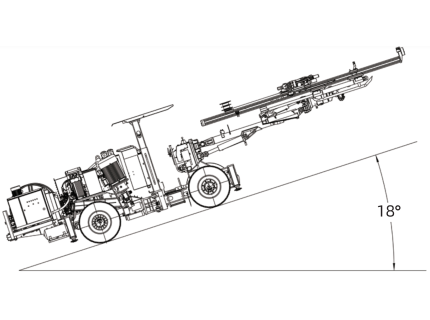

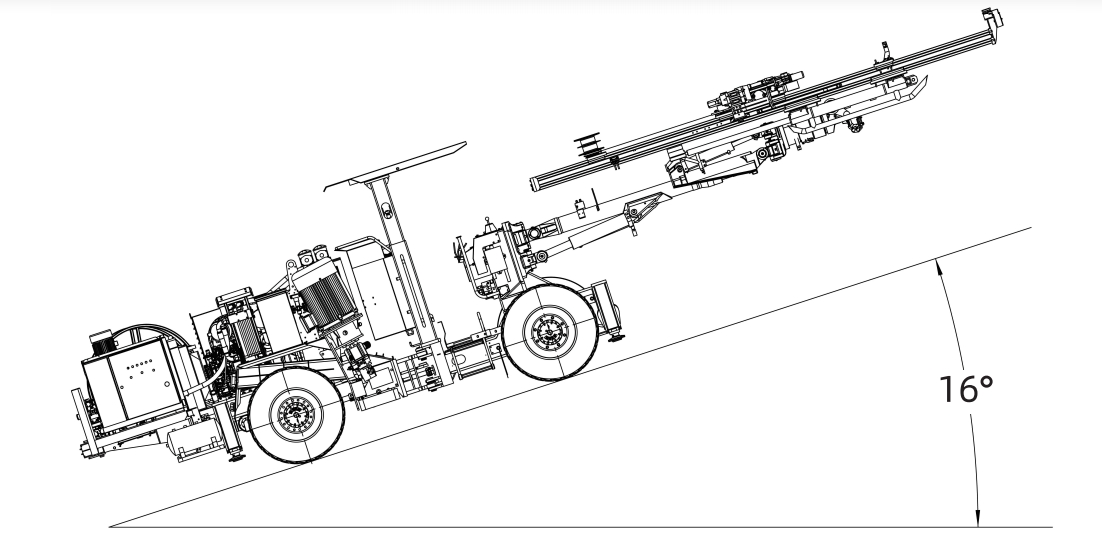

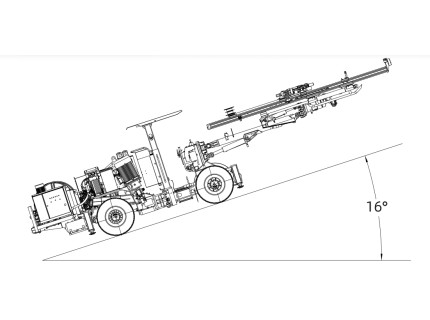

	Max. Gradeability	18°
	Rear Axle Swing Angle	±6~±8°
	Max. Driving Speed	16km/h
	Tires	Mining solid tires
Rock Drill	Impact Power	18kW（20kW Optional）
Propeller	Propulsion Method	Cylinder-wire rope
Propeller	Drilling Depth	4015mm
Dynamic System	Power Mode	Diesel-electric dual power: diesel for travel, electric for operation
	Engine Rated Power & Speed	Yuchai 88kW/2200rpm
	Main Electric Motor Rated Power	55kW
	Main Electric Motor Rated Voltage	380V（660V/1000V/1140V Customizable）
	Cable Length	100m

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
