CYTJ102

Mining hydraulic drilling rig

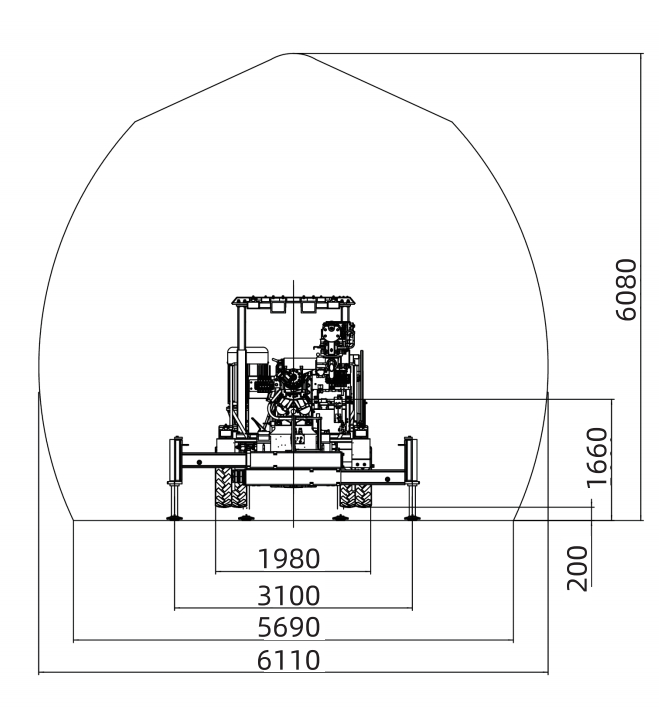

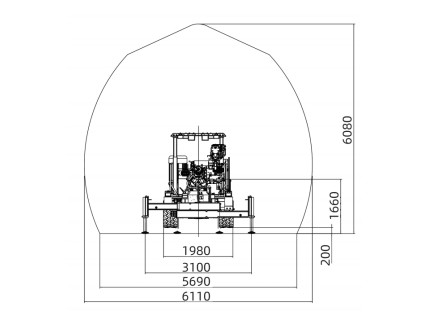

It is suitable for blasting drilling in underground mines, tunnels and underground workshops. The maximum working area is 31m2 (maximum width is 6.11m, maximum height is 6.08m), and the drilling diameter is 41-102mm. The overall structure is reasonably designed, highly applicable, easy to maintain, and the equipment has high operating efficiency and good economy.

Impact power：18kW
Drilling depth：4015mm
Engine power：88kW

Product Introduction

Product Features

1. Imported rock drills with double buffer shock absorption system ensure the best service life of drilling tools and low consumption of drilling tools.

2. Automatic lubrication system, pressure oil film protection and lubrication of each interface, reduce internal pollution of rock drill.

3. High-strength drill arm can ensure accurate hydraulic parallel holding function in all directions.

4. High-strength aluminum alloy propulsion beam, with high bending and torsional strength and long service life.

5. Hydraulic rock drilling control system, with automatic anti-stuck drill function (rotation pressure controls propulsion force).

6. Adopt hydrostatic drive articulated chassis, imported DANA axle, four-wheel drive.

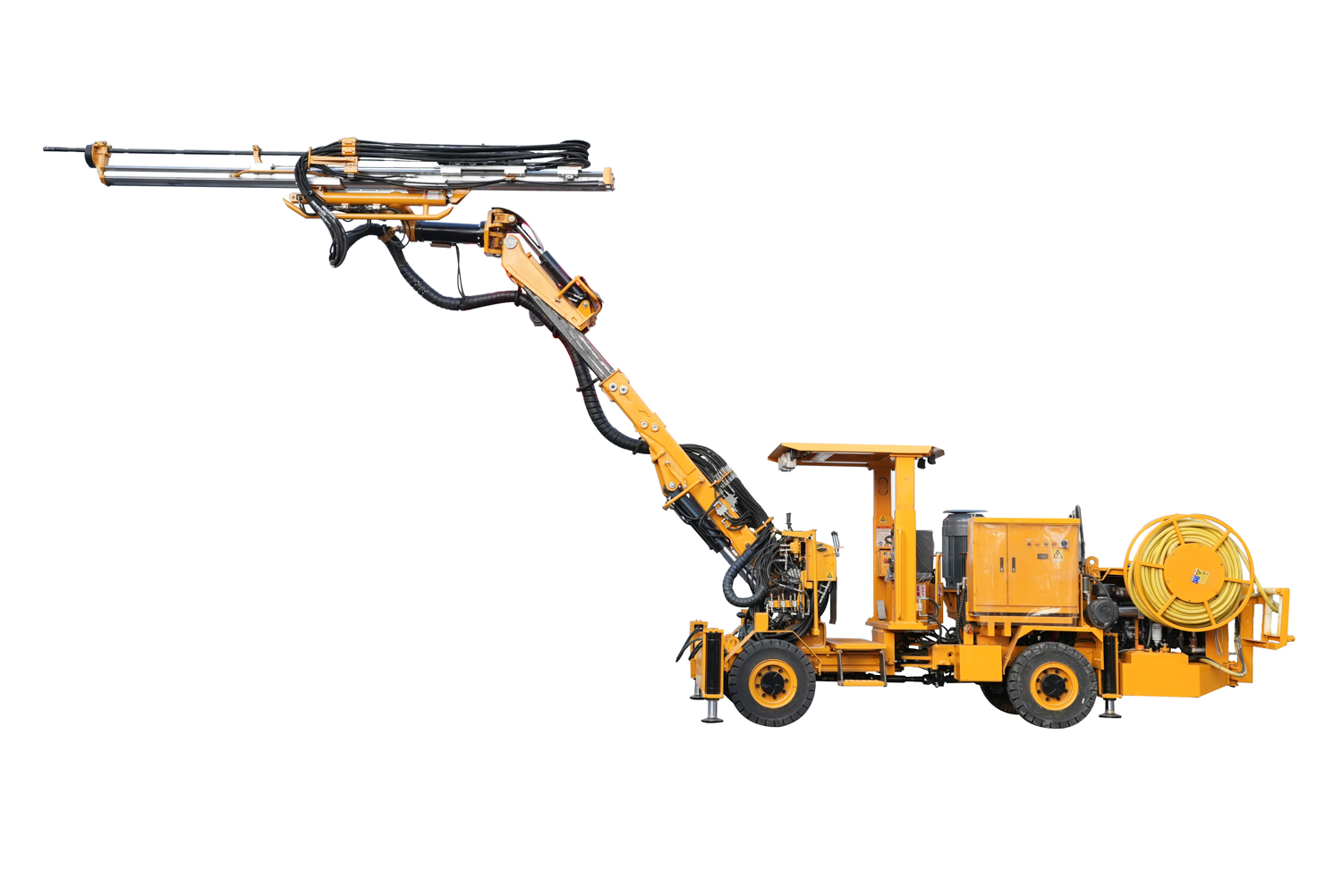

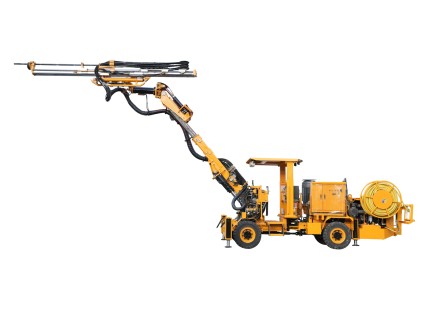

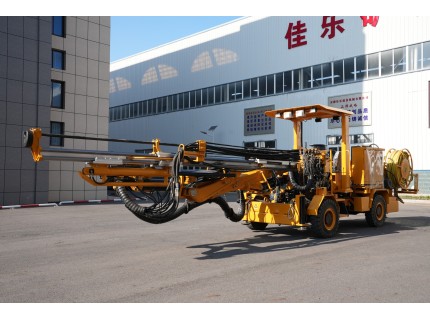

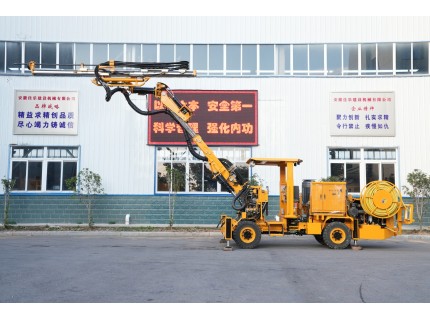

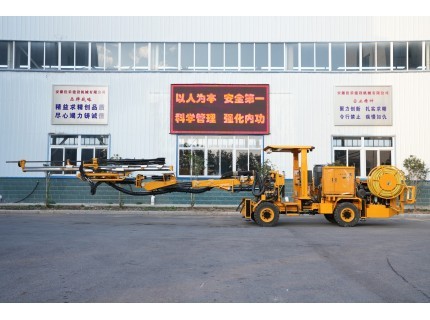

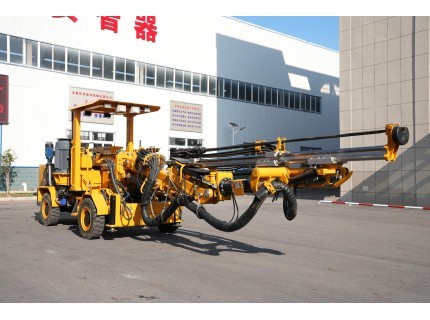

Equipment View

Equipment Parameters

Project				Unit	Parameter value
Overall performance	Number of drill arms			indivual	1
	Applicable tunnel section			㎡	2.6×2.6～6×6

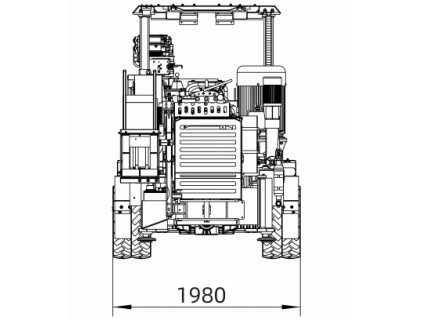

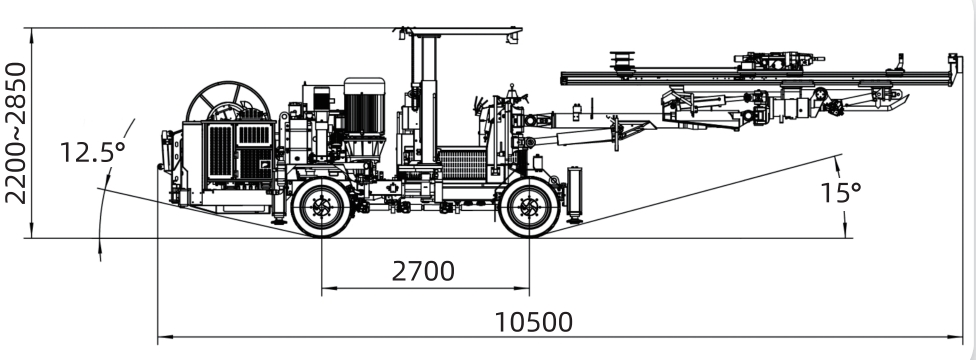

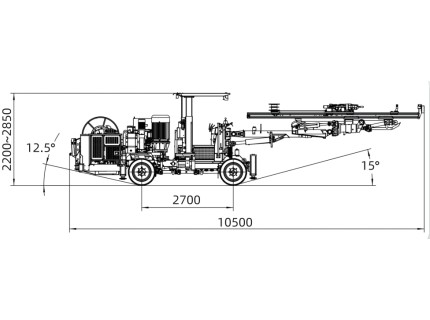

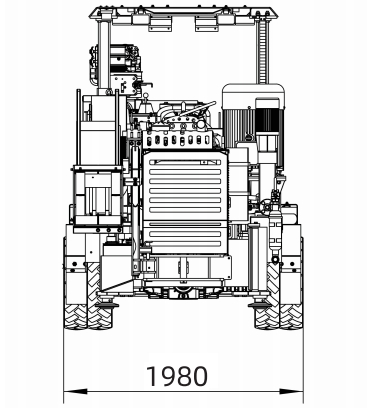

	Shipping size		Length × Width	mm	10500±300×1980±100
			High (with safety roof)	mm	Maximum: 2850±100 Minimum: 2200±100

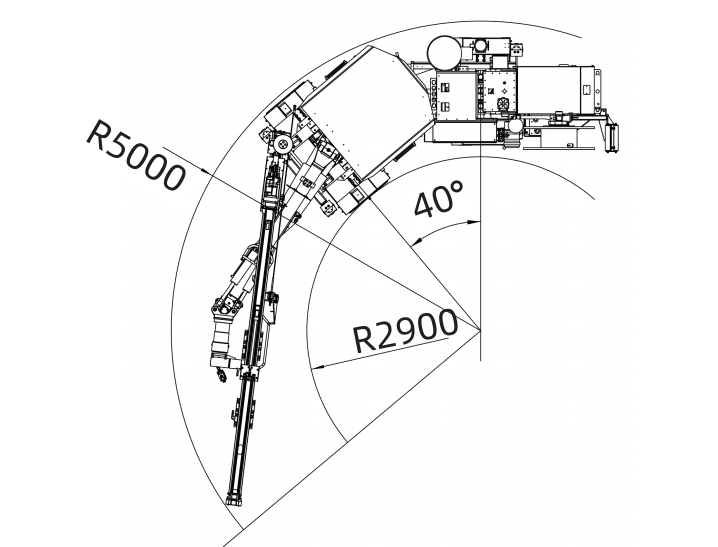

	Minimum turning radius			mm	Inner diameter: ≤2900 Outer diameter: ≤5000
	Minimum ground clearance			mm	≥190
	Working width in stable working state			mm	3294
	Machine weight			kg	11500
	Drilling diameter			mm	φ41-φ102
Drilling (chisel) machinery	Impact mechanism		Impact power	kW	20
Thruster	Propulsion method			—	Oil cylinder-wire rope
	Advancement			mm	3400/4310
Traveling mechanism	Walking speed	Fast block		km/h	10±1
		Slow gear		km/h	6±0.6
	Rear axle oscillation angle			(°)	±6~±8

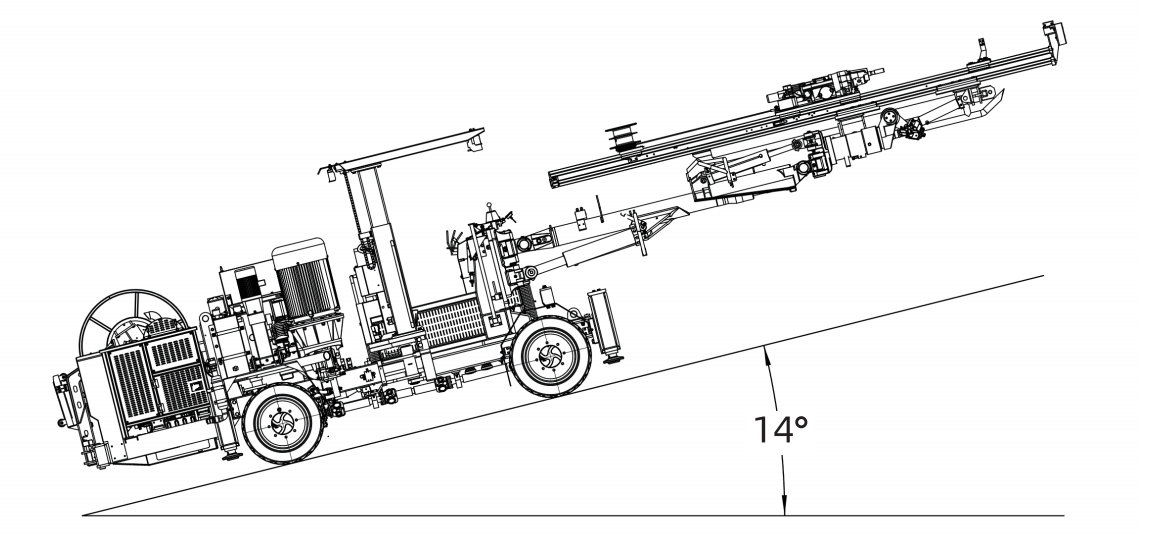

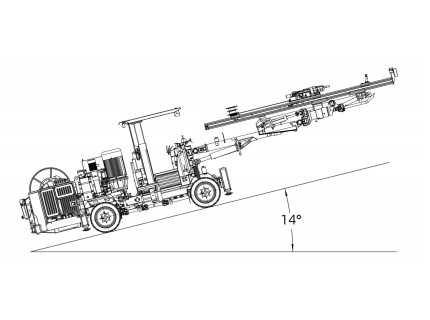

	Gradeability			(°)	≥14 (applicable to -14~+14°)
	Braking method			—	Wet hydraulic brake (travel) + spring brake (travel)
	Diesel engine		Rated power	kW	88
			Rated speed	r/min	2200
Electric motor hydraulic oil pump	Electric motor		Rated power	kW	55
			Rated voltage	V	380
	Oil pump (impact/positioning/rotation)		Rated pressure	MPa	twenty one
			Maximum working pressure	MPa	twenty three

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
