Mining hydraulic drilling rig
CYTC41

Mining hydraulic drilling rig

CYTC41 is a fully mechanized drilling and blasting jumbo that integrates drilling, explosive installation and other functions. It is suitable for secondary crushing operations in dangerous tunnels and mining areas where personnel are strictly prohibited from entering in underground mines such as metal mines, non-metal mines, water conservancy and hydropower, etc., which do not require explosion-proof requirements, so as to achieve the recovery of residual ore, and at the same time, it can also achieve bench crest dredging and crushing of large pieces of ore. The rock drill uses a hydraulic rock drill, which has higher drilling efficiency. Equipped with remote wireless video remote control, it has a high degree of automation. It is easy to operate, accurate and reliable, with a wide coverage of equipment, high operating efficiency and good economy.
  • Impact power:8kW
  • Drilling depth:1m
  • Drilling diameter:41mm

Product Introduction

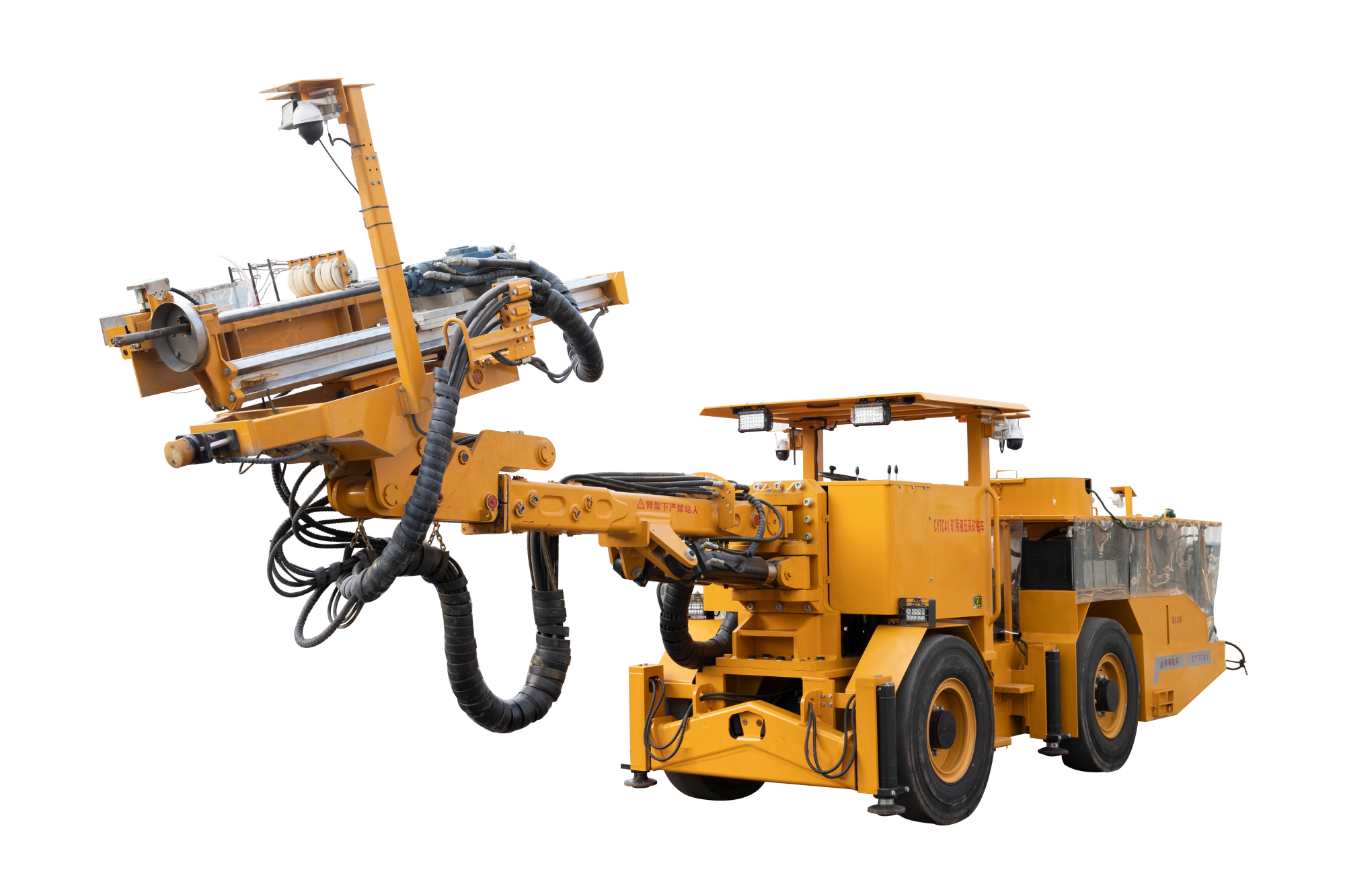

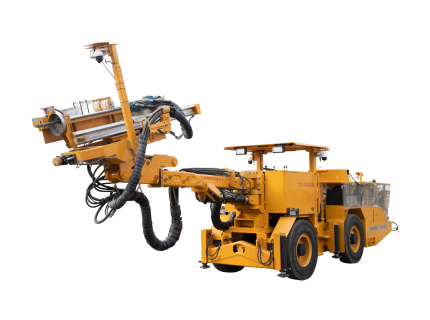

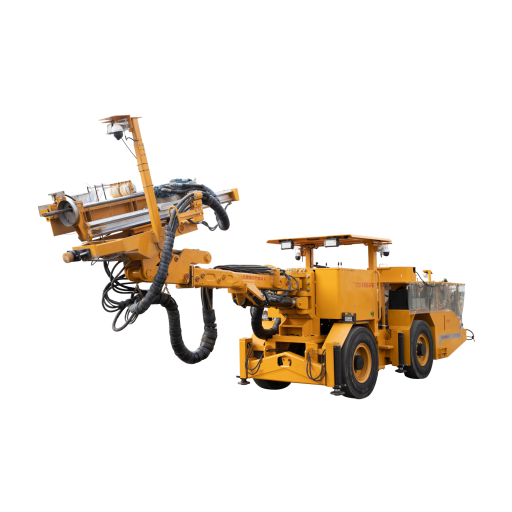

Product Pictures

Product Features

1.Multi-function: integrates drilling, placing explosives, and leading blasting lines.

2.Flexibility: modular design, compact and reasonable layout, articulated steering, flexible walking and turning.

3.Powerful power: adopts all-diesel power, closed hydrostatic drive engineering chassis, and four-wheel drive.

4.Safety: hydraulic wet dual braking system, driving oil brake, parking closed spring brake, can enter the tunnel or mining area where personnel are strictly prohibited.

5.High degree of automation: remote wireless video remote control, drilling and placing explosives are realized through remote control.

6.High efficiency: equipped with prefabricated PVC pipe blasting coil magazine, a single entry can complete the installation of 1 blasting coil, and the internal blasting effect far exceeds the currently commonly used surface blasting effect.

Equipment View

Equipment Parameters

Item Parameter

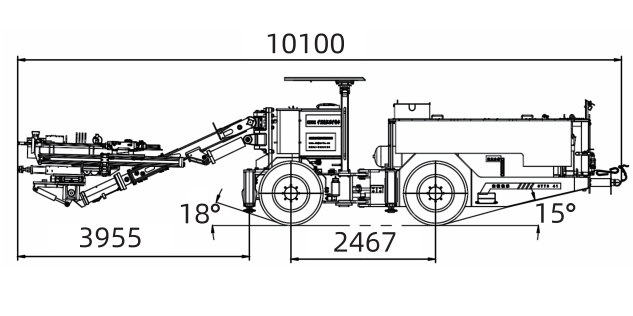

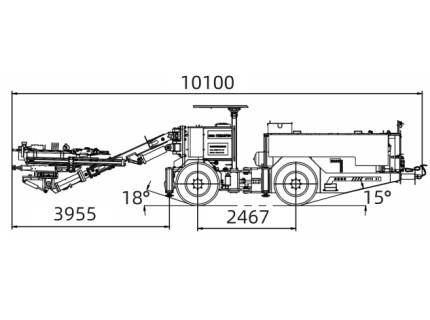

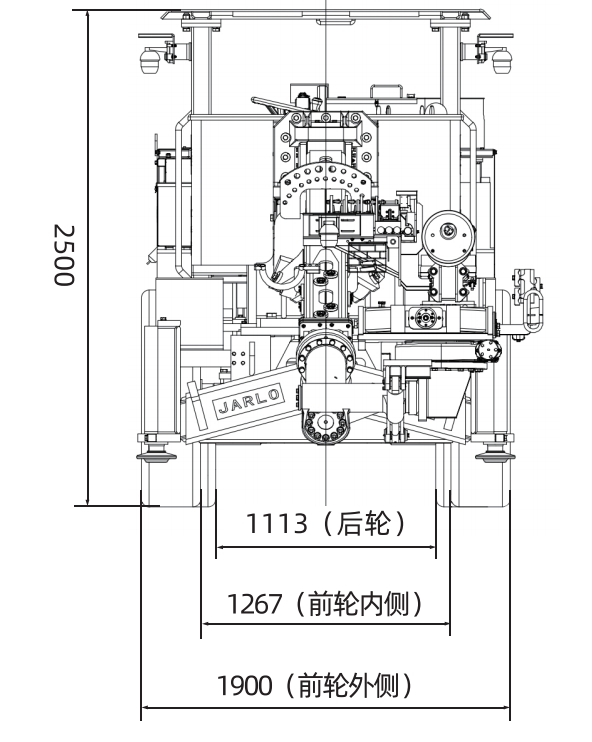

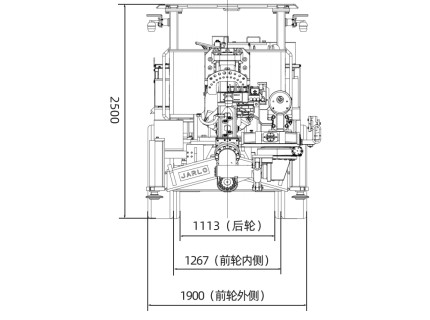

Overall performance Transport dimensions(L×W×H) 10100×1900×2500mm
Machine weight 13000kg

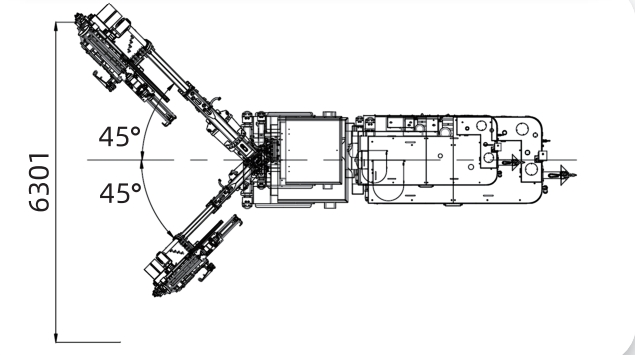

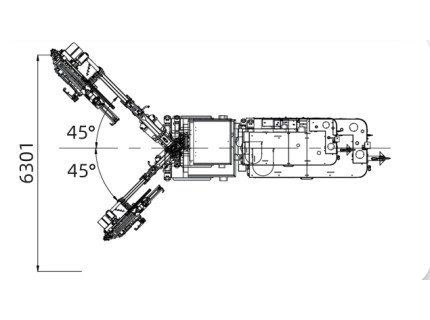

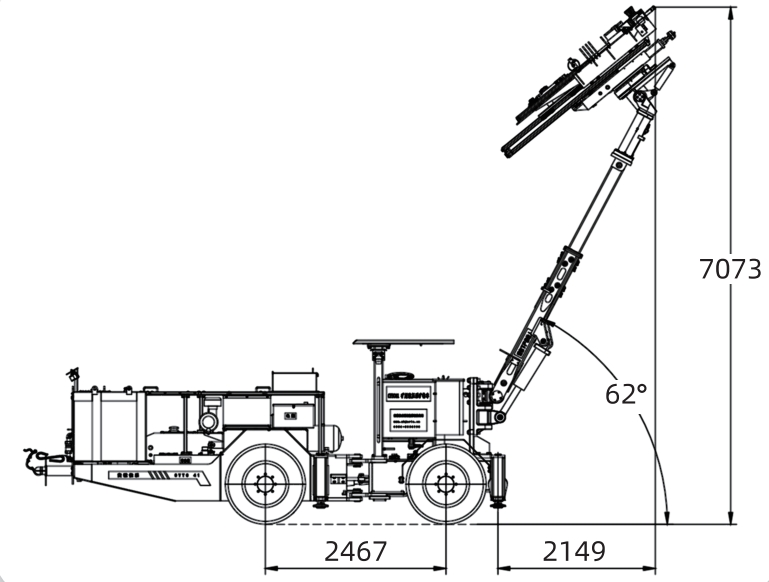

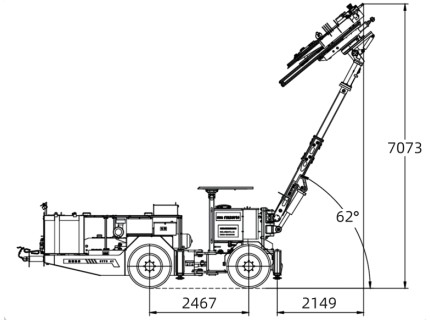

Operating range(W×H) 7750×6900mm
Drilling diameter 41mm
Drilling depth 1000mm
Remote control system 3 cameras + radar + remote controller (50m straight line)
Driving system Drive type Hydrostatic
Ground clearance 280mm

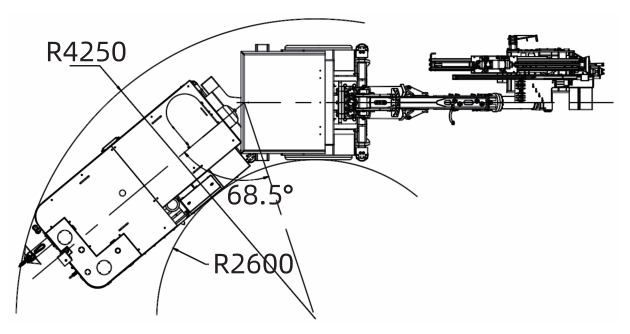

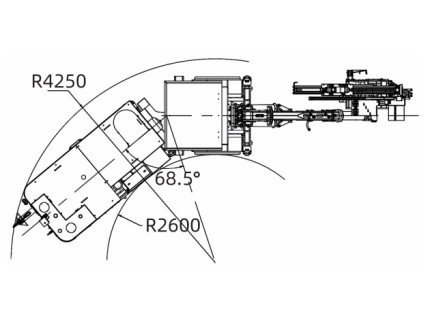

Min. Turning radius Inner:2600mm;Outer:4250mm

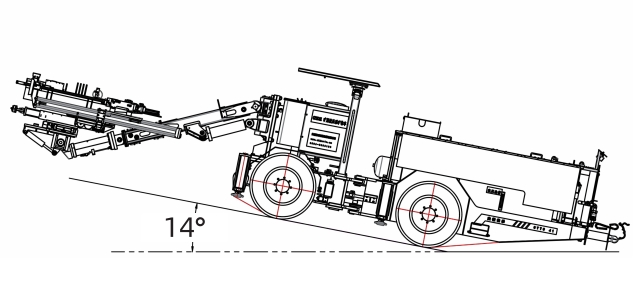

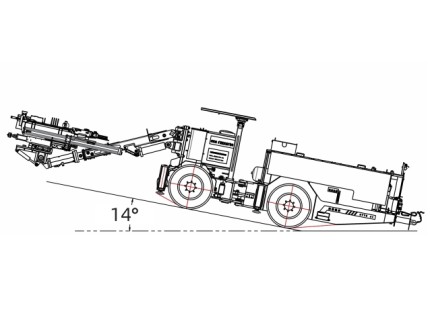

Max. Climbing ability 14°
Rear axle swing angle
Max. Driving speed 12.6km/h
Tires Solid tires for mining
Rock drill Impact power 8kW
Drill arm mechanism Telescopic length 1200mm
Power system Power mode Diesel engine drives travel and operation
Diesel engine rated power and speed Yuchai 88kW/2200rpm
Water supply device Water tank capacity 800L
Air supply device Displacement 0.2m³/min
Explosive roll push mechanism Diameter of explosive roll (test simulation) 32mm
Max. Propulsion stroke 1000mm
Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
