Product Introduction

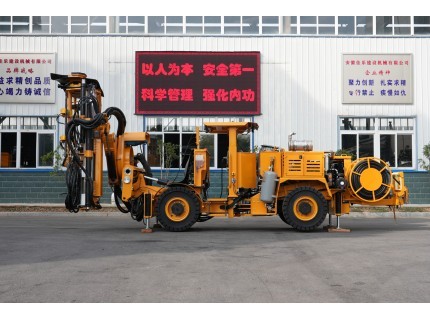

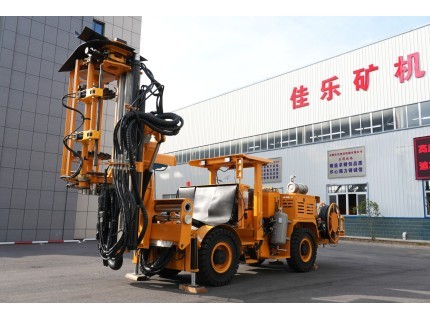

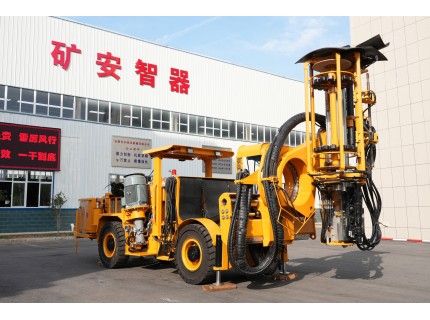

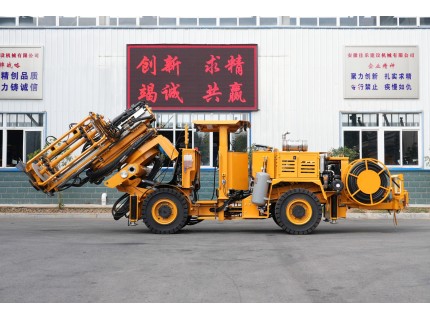

Product Pictures
Product Features
1. Multi-power system: diesel-electric dual power system, diesel power for travel, motor hydraulic drive for each actuator to work; diesel power can retract each actuator when power is off.
2. Flexibility: The whole machine has a compact structure, adjustable travel speed in multiple gears, four-wheel drive, strong power in small and medium-sized tunnels with various complex working conditions, and flexible travel and turning; the articulated engineering chassis is detachable and suitable for narrow tunnels, mine tunnels and mines without ramps and other working environments.
3. Safety: Equipped with a safety protection lifting roof, fire extinguishing device, double-bridge wet brake and other various safety warning systems to ensure operation safety while achieving functions; standard remote control console to ensure sufficient safe working distance, easy operation, good vision, and easy to observe various working conditions such as opening holes, drilling holes and connecting drill rods.
4. Interchangeability: It can be used with well-known domestic and foreign brands of rock drills, and has strong universality and interchangeability with the spare parts (hydraulic parts, hoses, joints, lubrication, etc.) of imported well-known brands of rock drills.

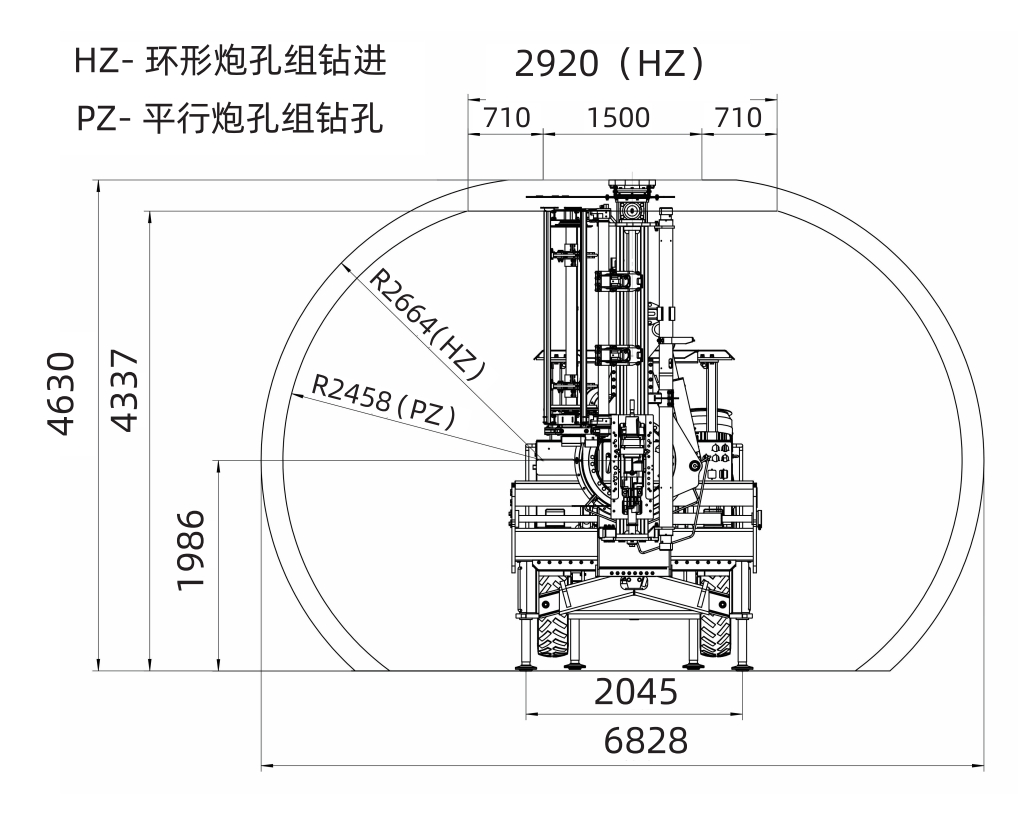

5. Accuracy: Equipped with a stable support mechanism for the drill arm, the positioning is convenient and fast, accurate and reliable, and highly flexible, and can achieve 360° annular drilling, fan-shaped drilling and step drilling.
6. Efficiency: Equipped with a drill rod library, it can realize automatic connection and removal of drill rods. The standard rod library can accommodate 17+1 drill rods, which improves work efficiency and effectively reduces labor intensity.
7. Open cab, modular component design, reasonable space layout, easy inspection and maintenance.
8. Standard remote control console ensures that the operator has enough safe working distance, convenient operation and good vision, and is easy to observe various working conditions such as opening holes, drilling holes and connecting drill rods.

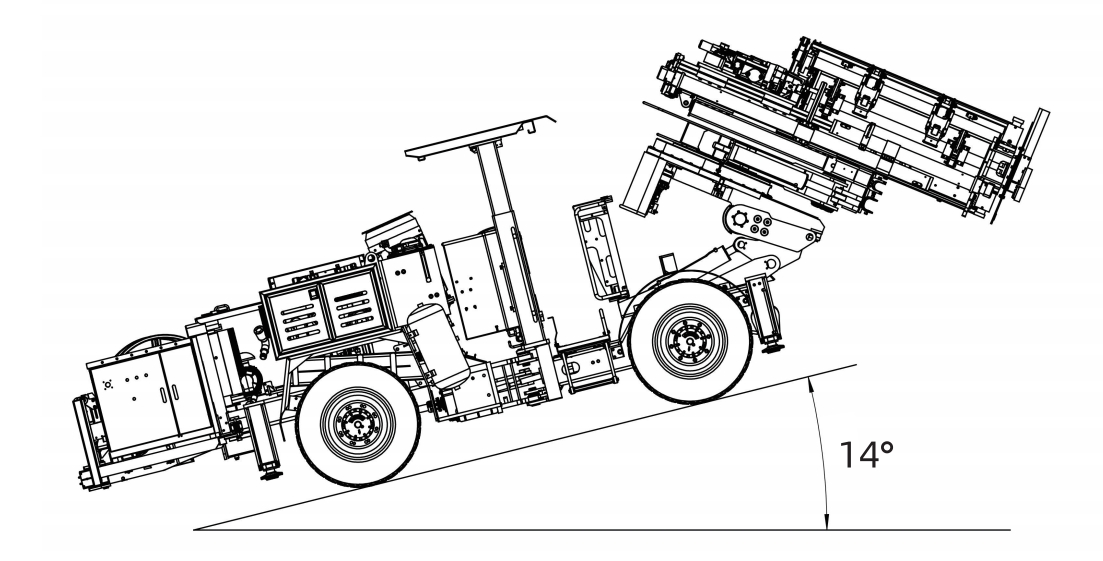

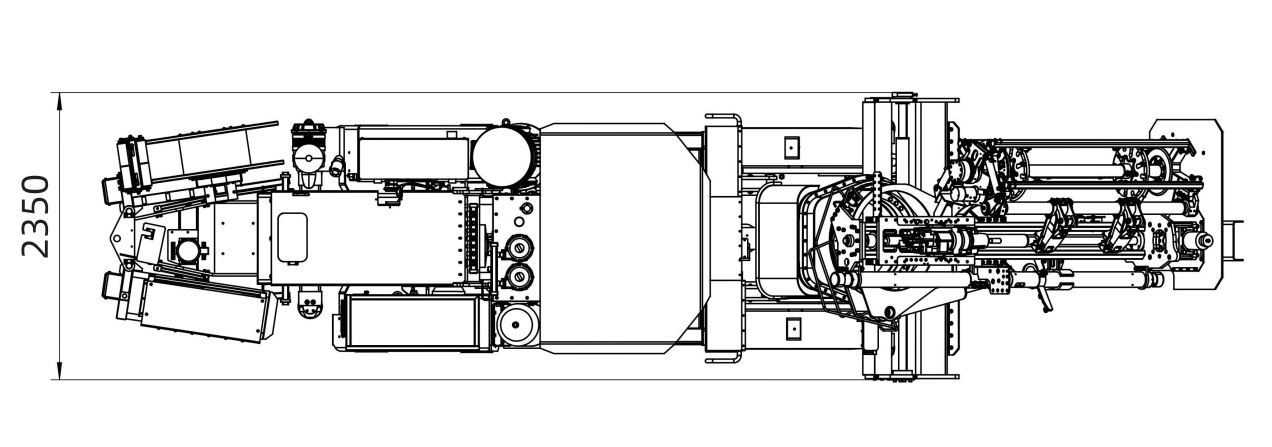

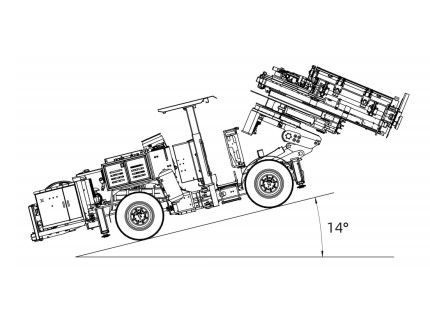

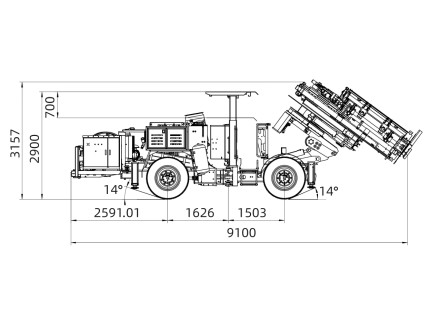

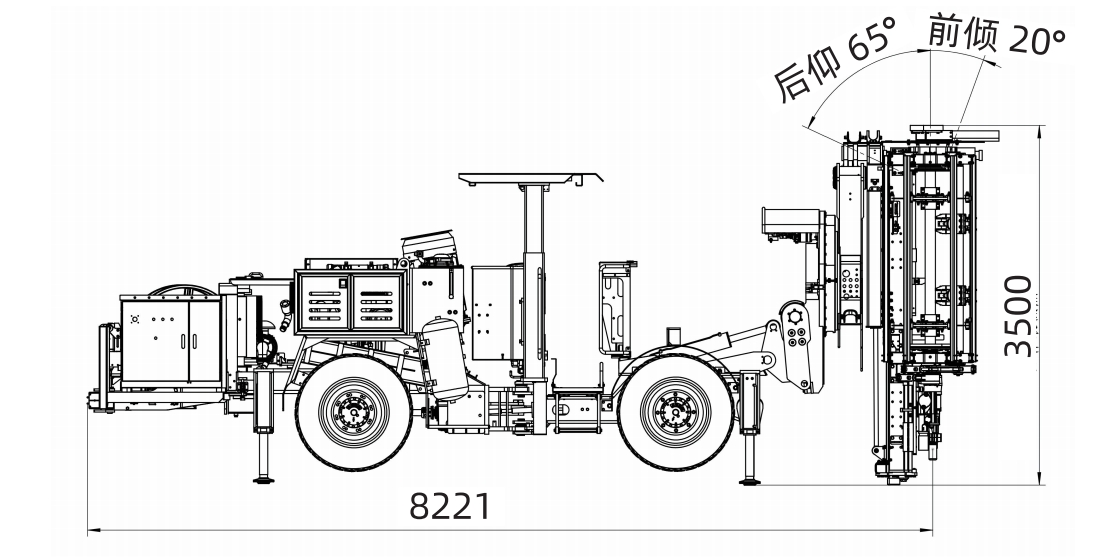

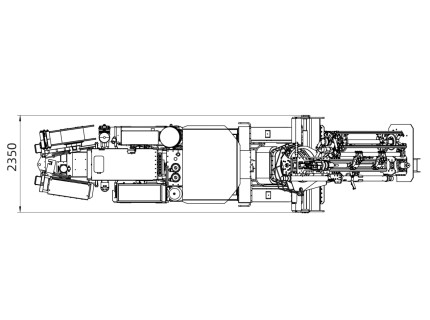

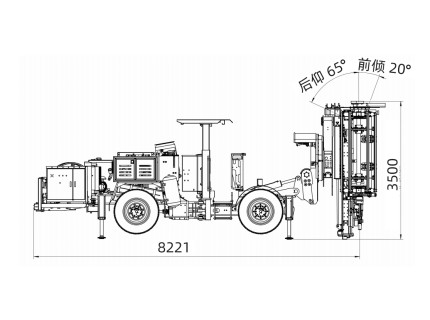

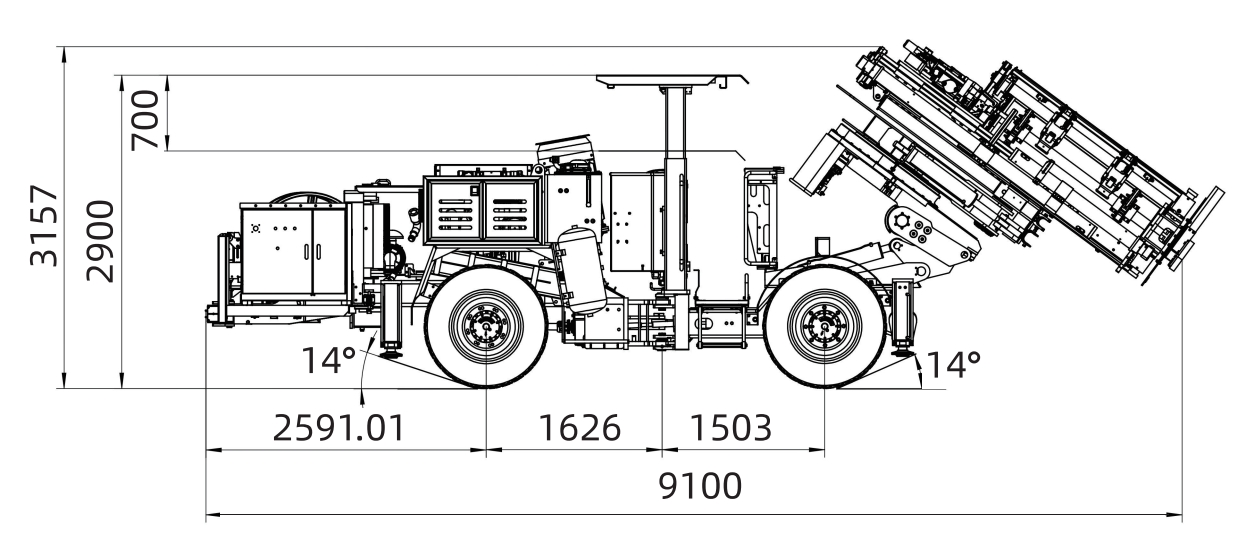

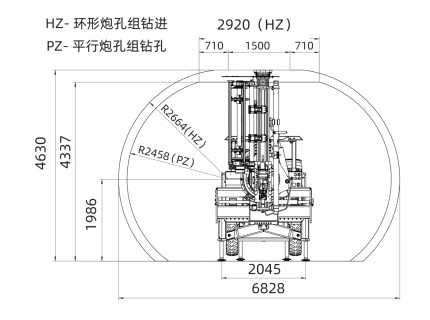

Equipment View
