CYTC41Q(A)

Mining hydraulic mining drill trolley

It is a fully mechanized drilling and blasting trolley with functions such as drilling and installing explosives. It is suitable for secondary crushing operations in eyebrow lines, tunnels, and stopes of underground mines with non-explosion-proof requirements such as various metal mines, non-metal mines, water conservancy and hydropower, etc. It can achieve eyebrow line dredging and crushing of large pieces of ore.

Impact energy：44J
Drilling depth：1m
Drilling diameter：41mm

Product Introduction

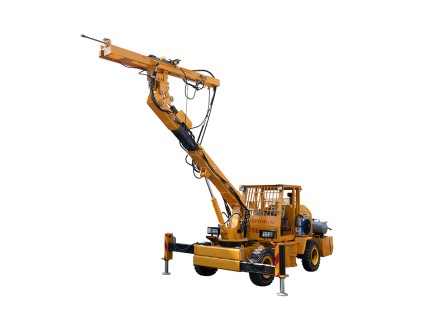

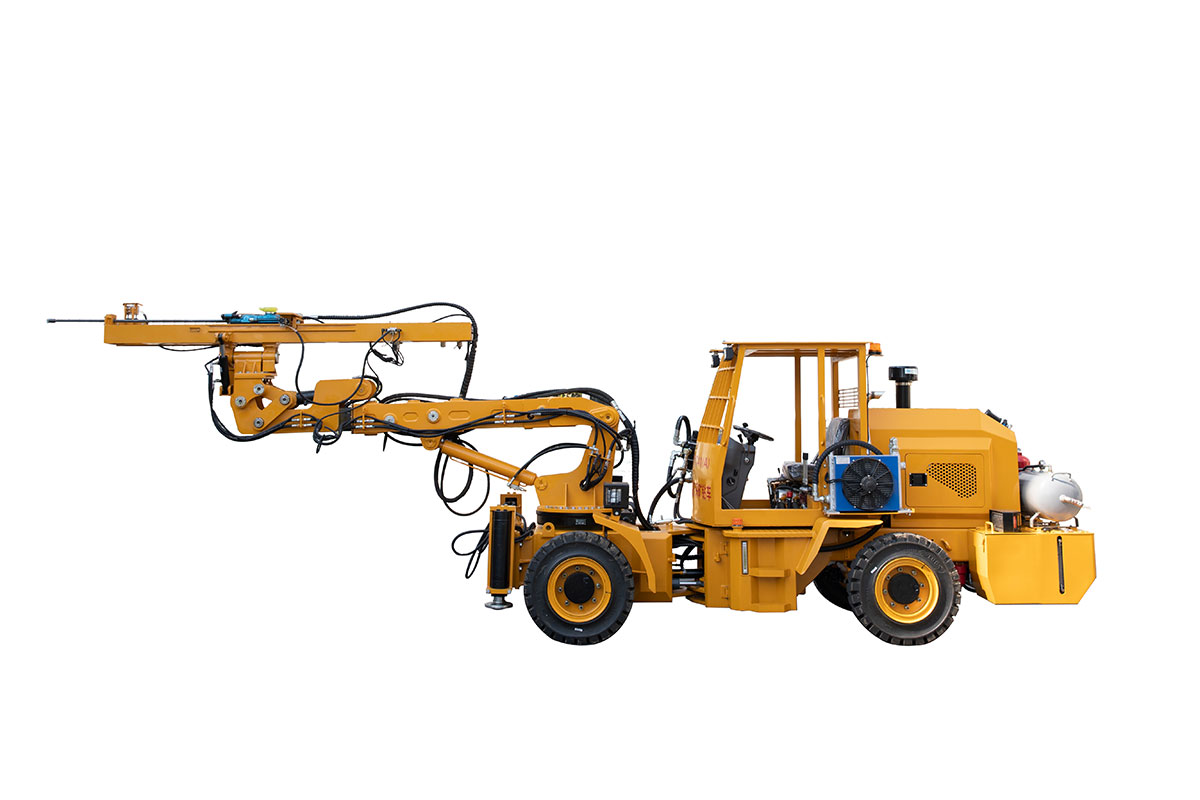

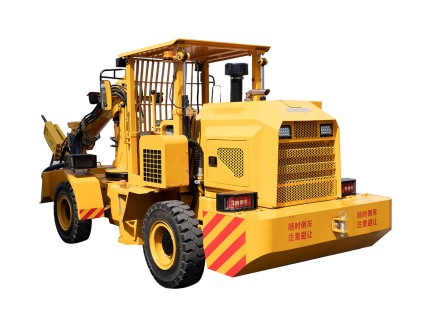

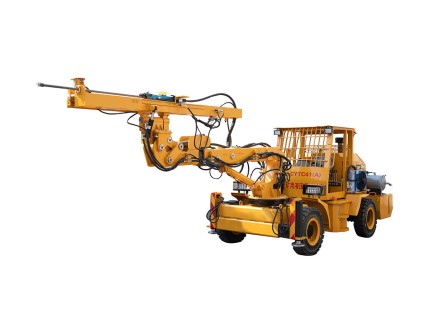

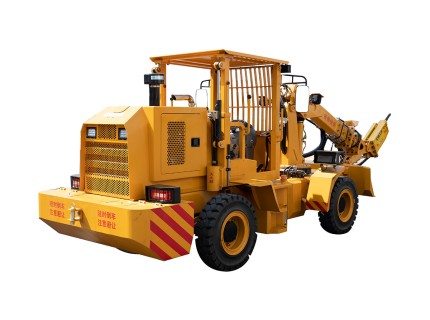

Product Pictures

Product Features

1. Multifunctional: drilling, placing explosives, etc.

2. Flexibility: modular design, compact and reasonable layout, articulated steering, flexible walking and turning;

3. Powerful: full diesel power, torque converter four-wheel drive engineering chassis;

4. Safety: hydraulic wet dual brake system, driving oil brake, parking closed spring brake;

5. Equipped with prefabricated PVC pipe drug roll warehouse, a single entry can complete the installation of one drug roll;

6. The internal blasting effect far exceeds the currently commonly used surface blasting effect;

7. Accuracy: drill arm support mechanism, rock drill and drug roll installation push rod rotation switch;

8. Remote control system (optional), can realize drilling, charging, switching workstations and other operations through remote control, safe and reliable;

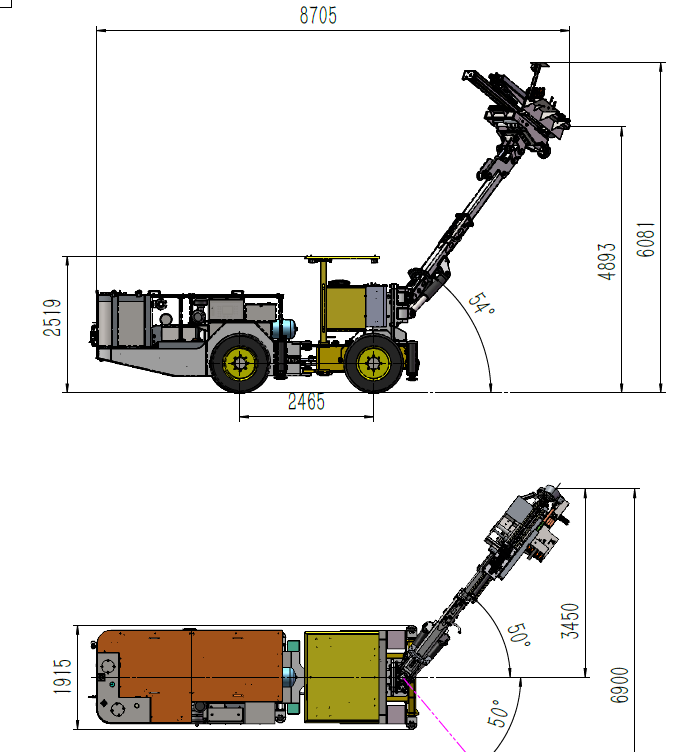

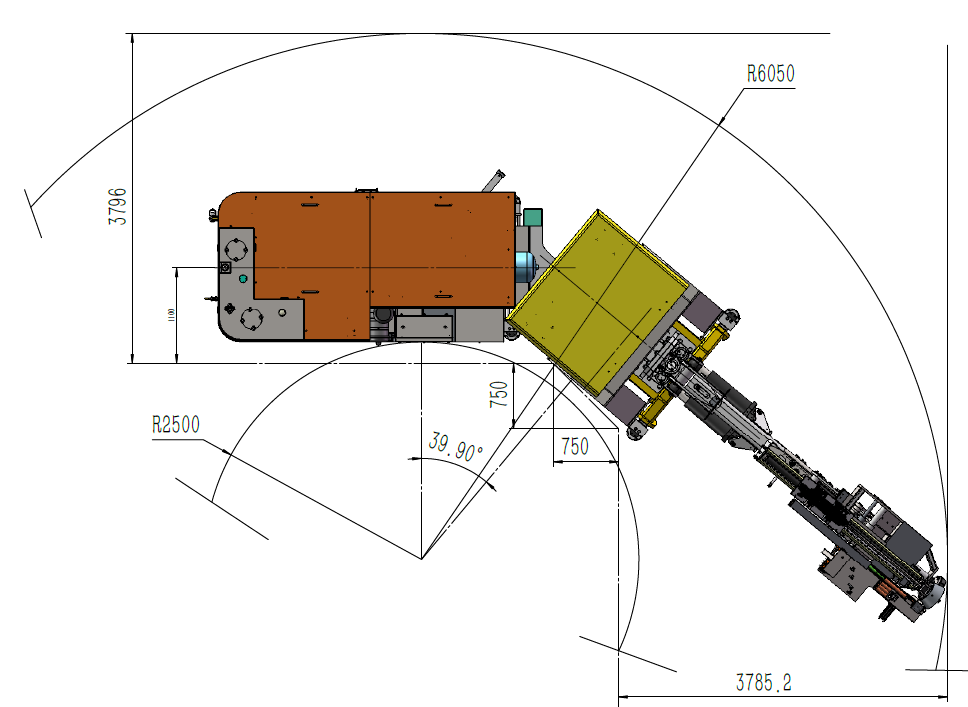

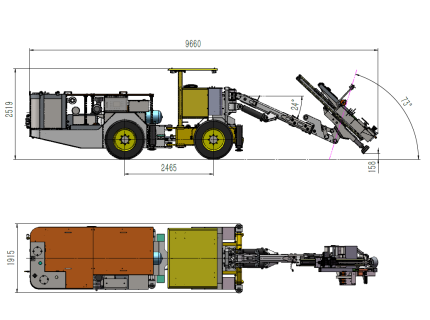

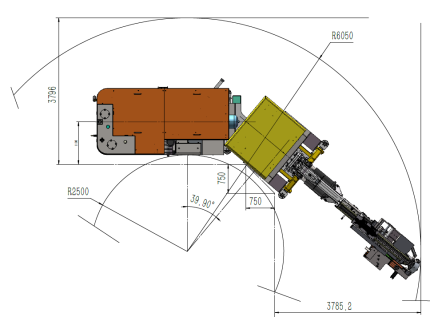

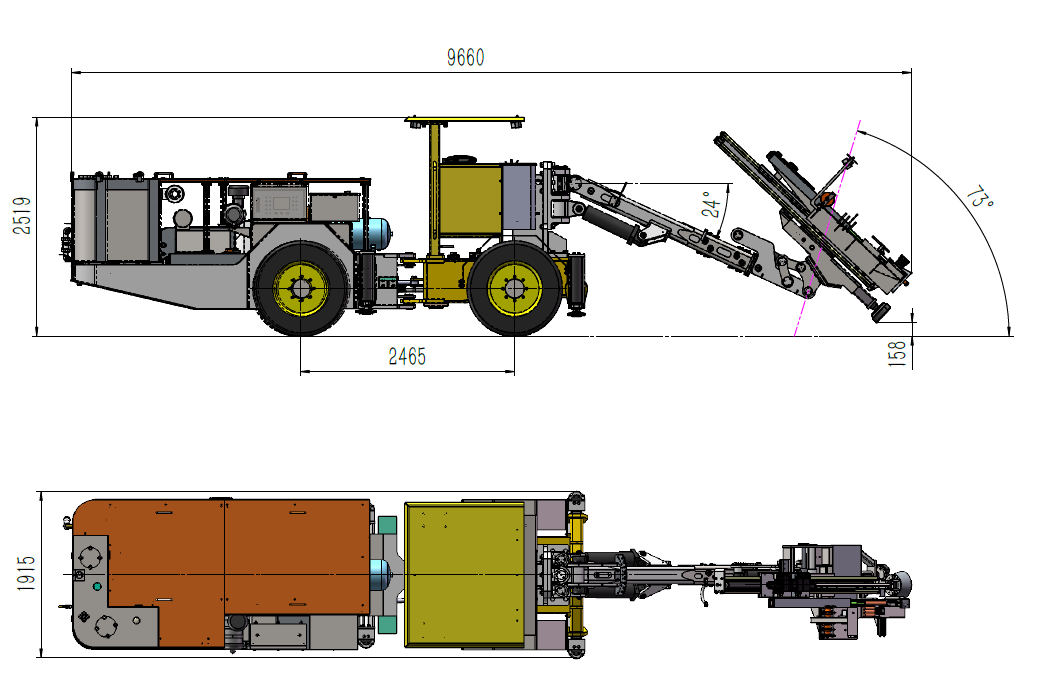

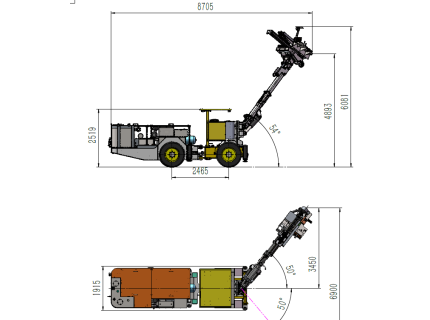

Equipment View

Equipment Parameters

Project			Unit	Parameter value
Overall performance	Dimensions	Length × Width × Height	mm	7750±100×1800±50×2530±50
	Minimum turning radius		mm	Inside: about 1600; outside: about 4500
	Minimum ground clearance		mm	≥225
	Machine weight		kg	5400±200
	Rated drilling diameter		mm	41
	Drilling depth		mm	1000
Air leg rock drill	Working air pressure		MPa	0.5--0.63
	Impact energy		J	≥44
	Gas consumption		m³/min	3.1--5
Traveling mechanism	Rear axle oscillation angle		(°)	±6.5~±8.5
	Walking speed	Ⅰ gear～Ⅳ gear	km/h	9.5±0.9～21±2.1
	Maximum climbing ability		(°)	14
Drill arm mechanism	Telescopic length		mm	513
	Radial swing angle		(°)	±90
	Longitudinal swing angle		(°)	﹢70
Diesel engine	Rated power		kW	81
	Rated speed		r/min	2400
Hydraulic system	Rated working pressure		MPa	17
	Maximum working pressure		MPa	18
Water supply device	Water tank capacity		L	250
Medicine roll push mechanism	Pushing mechanism rotation angle		(°)	35
	Library capacity		indivual	1
	Coil diameter		mm	32
	Maximum propulsion stroke		mm	1000

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
