(Vehicle mounted)Mining shotcrete machine
UPS-10ZT

(Vehicle mounted)Mining shotcrete machine

The vehicle-mounted concrete spraying machine is a low and compact wet concrete spraying platform developed for concrete spraying operations in short mine tunnels. It is widely used in metal and non-metal mine tunnels, hydraulic tunnels, underground buildings (military and civilian), and road slope wet concrete spraying support operations without explosion hazards, which can make up for the gap in operations where the boom cannot reach the location. The whole machine is simple to operate and maintain, and has high production efficiency.
  • Spraying capacity:10m³/h
  • Hopper loading height:1.1m
  • Accelerator pump type:Diaphragm pump

Product Introduction

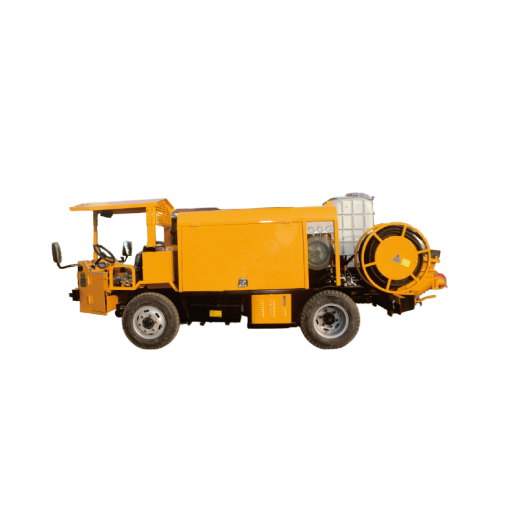

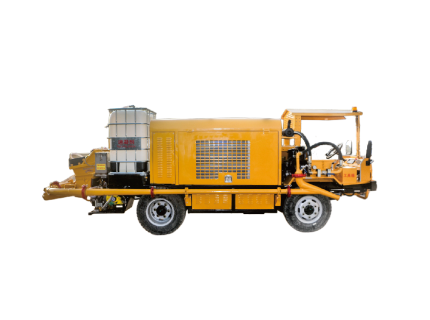

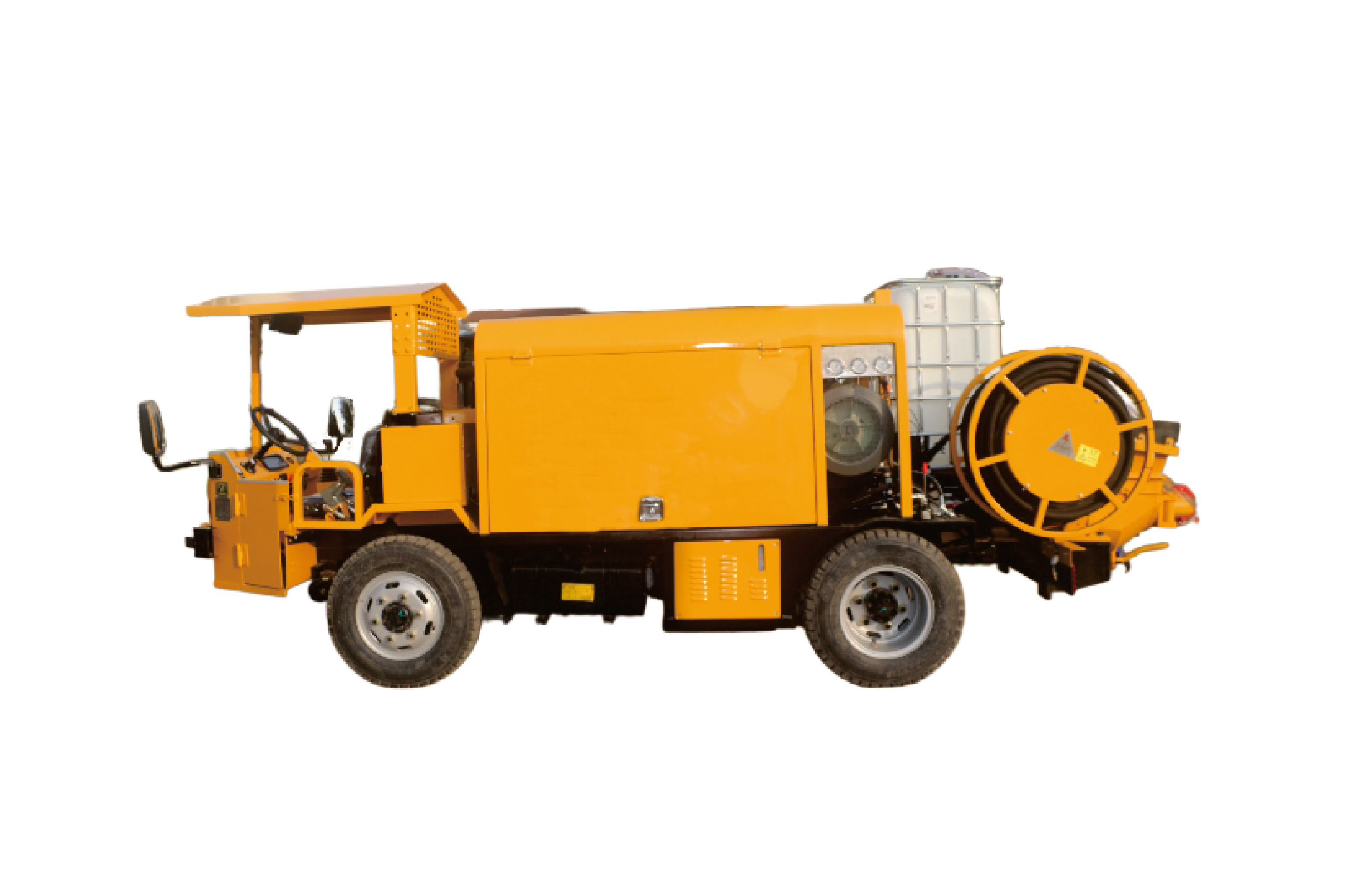

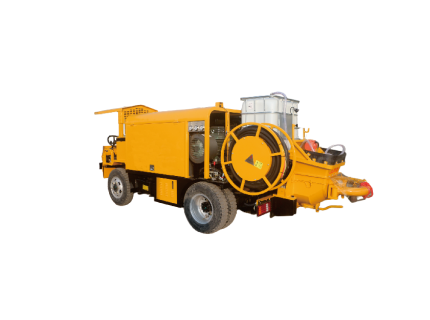

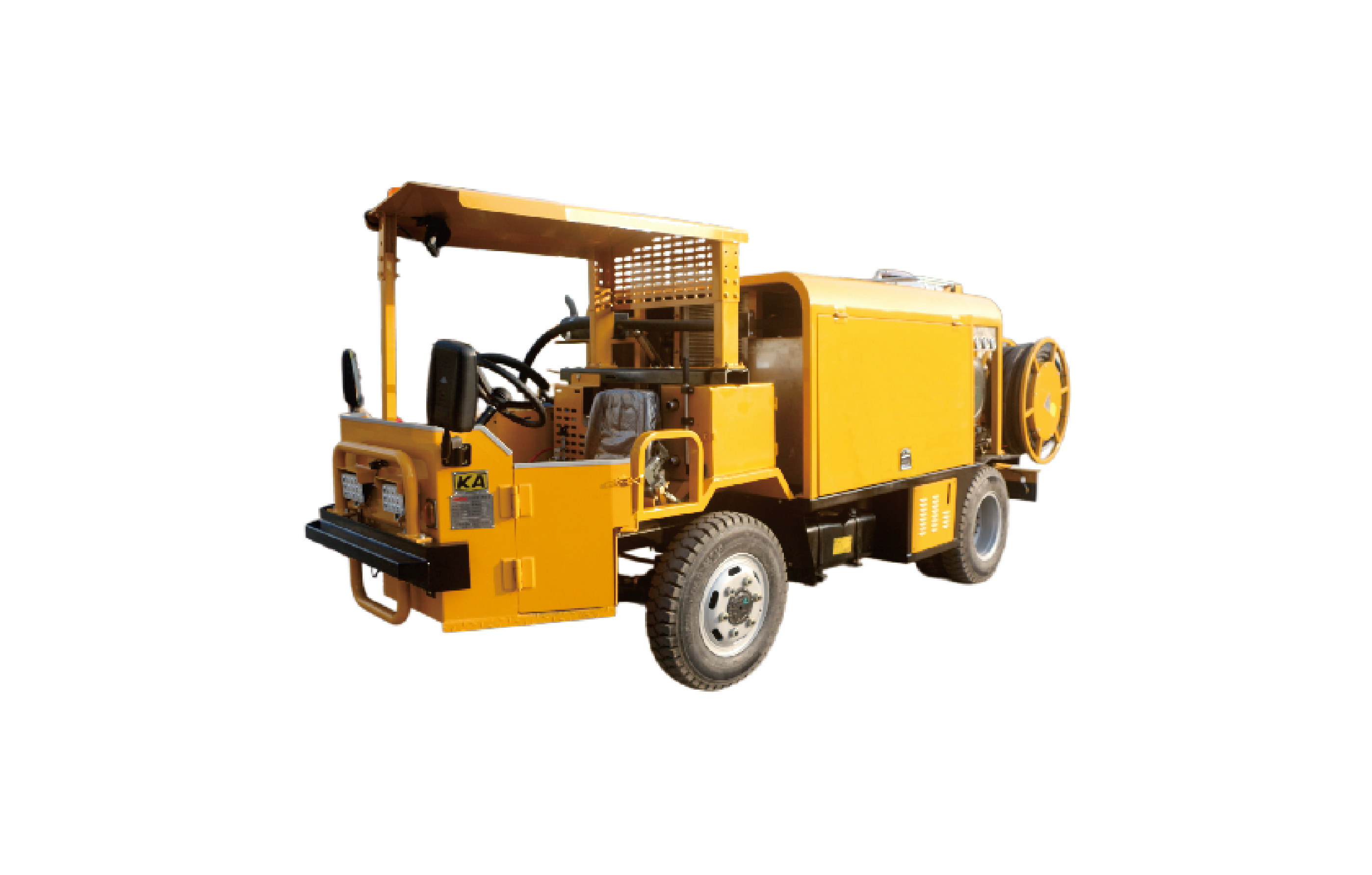

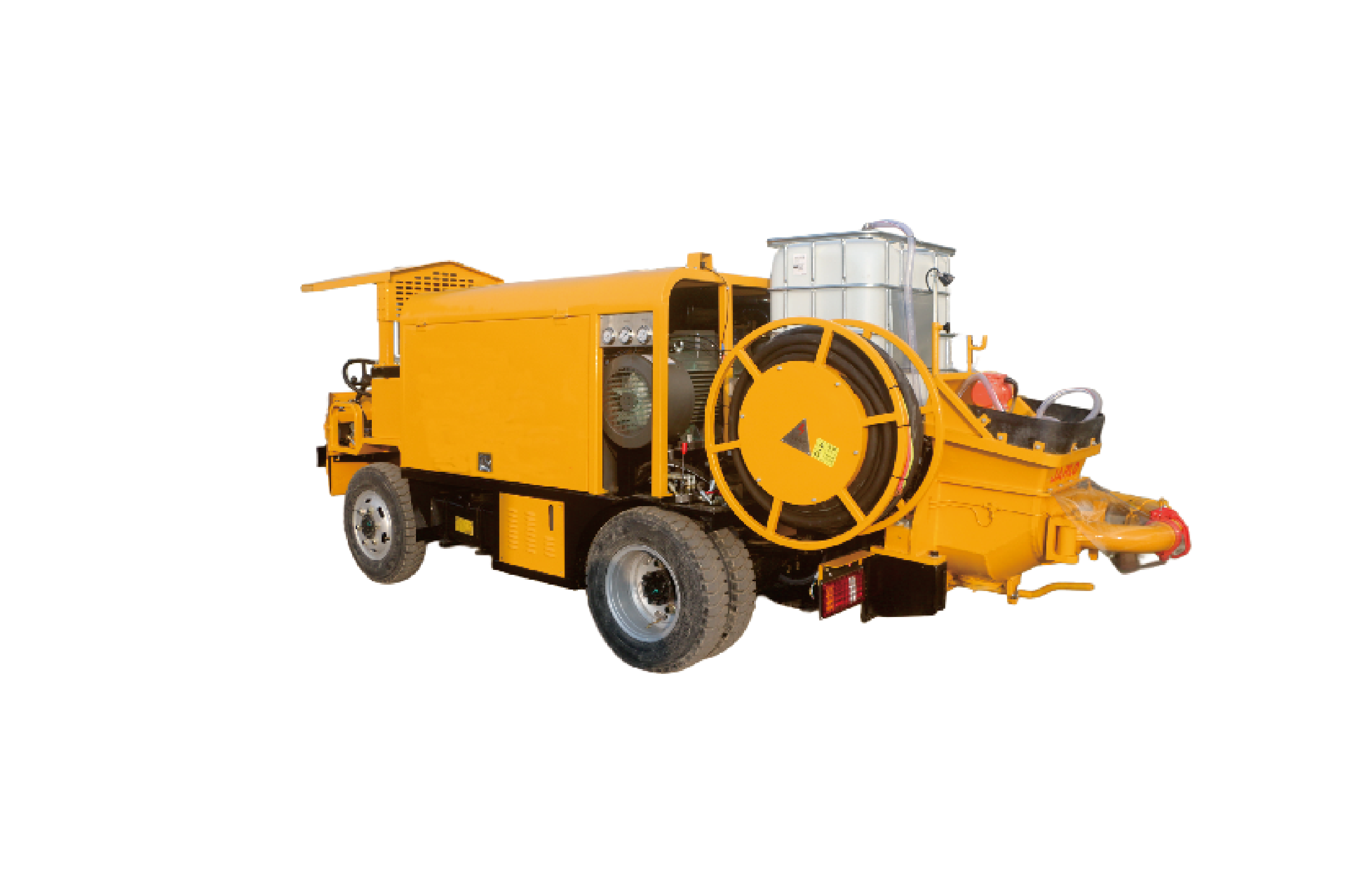

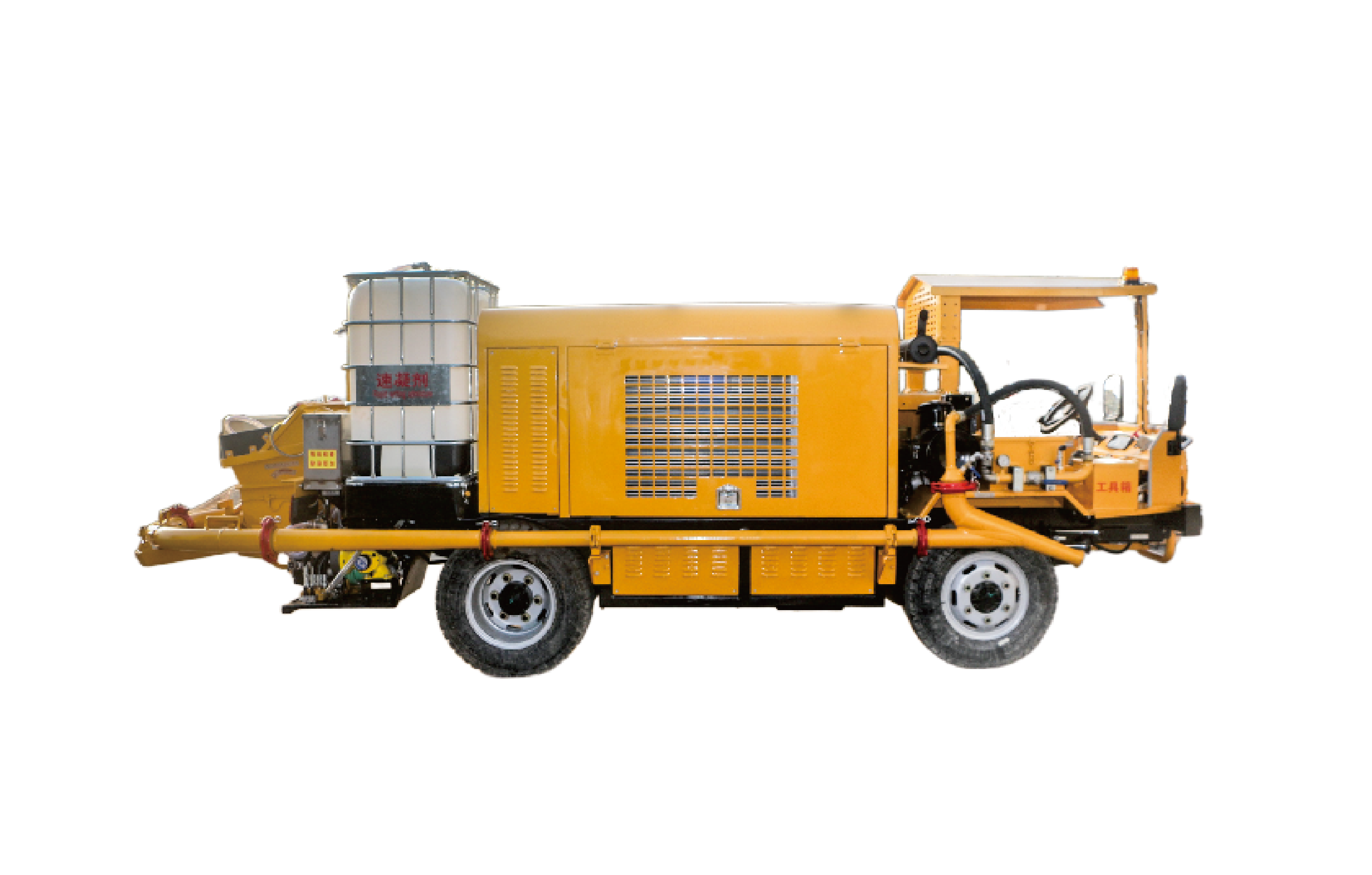

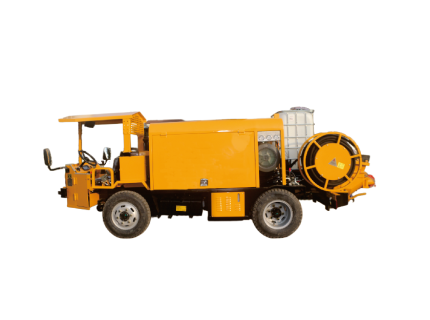

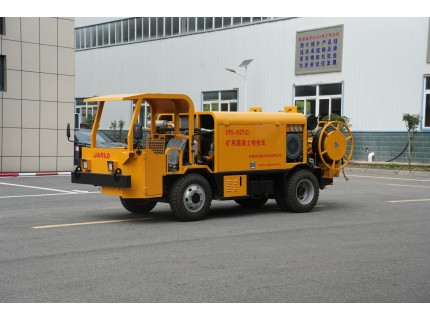

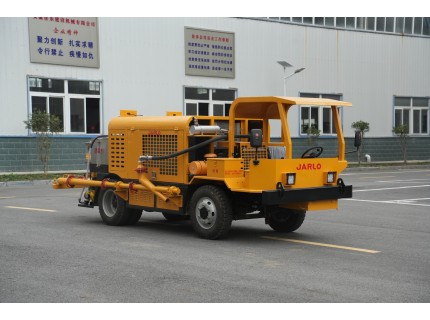

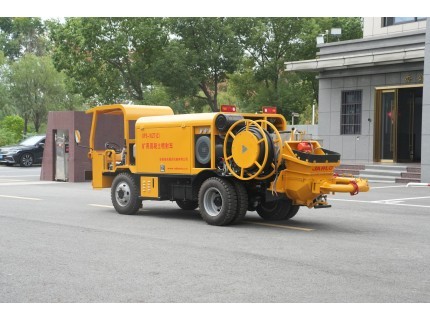

Product Pictures

Product Features

1.The handheld spray head is used for spraying, which can realize the flexible switching between single-head and multi-head spraying at the same time.

2.Automobile chassis, fast transfer speed, 50-meter cable, greatly improves the efficiency of construction.

3.It has its own air supply system, and no external air source is required.

4.It has outstanding advantages such as high spraying efficiency, long conveying distance, low rebound rate, less wear on machine parts, long service life, low consumption of accessories, and low technical requirements for operators.

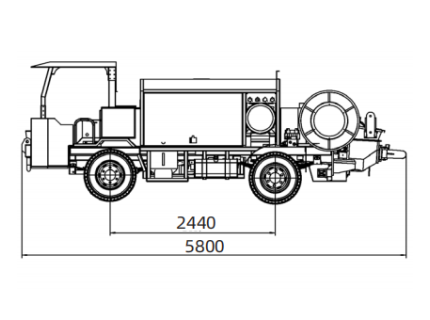

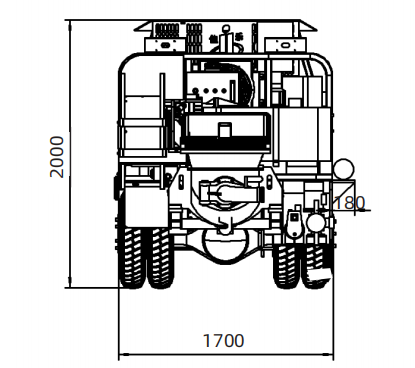

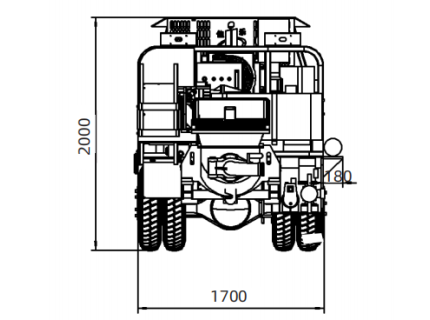

Equipment View

Equipment Parameters

Item Parameters

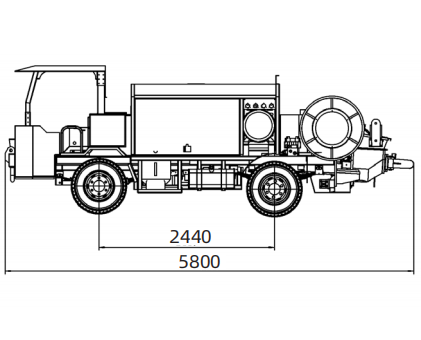

Overall dimensions (L×W×H) 5800×1700×2000mm
Machine weight 5700kg
Rated engine power and speed Yunnei 36.8kW/2400rpm
Total motor power (pumping + air compressor) 56kW(11kW+45kW)
Drive type, steering method Four-wheel drive, front-wheel steering
Braking system Driving: Hydraulic wet brakes
Parking: Closed spring brake, hydraulic release, fail-safe parking brake
Max. Driving speed 25km/h
Max. Climbing ability 14°

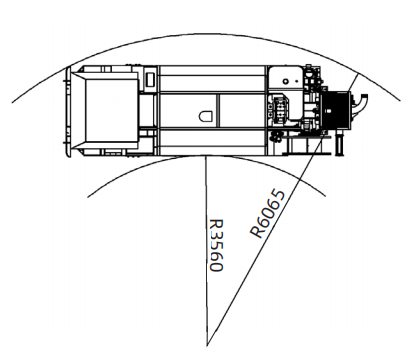

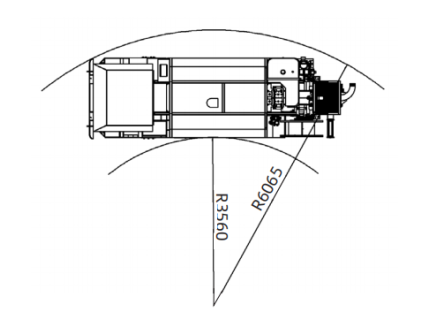

Min. Turning radius Inner:3560mm;Outer:6065mm
Ground clearance 180mm
Actual concrete spraying capacity 10m³/h
Glass aggregate particle size 12mm
Hopper volume 0.15m³
Hopper loading height 1.1m
Grinding operation method Use a handheld spray head for spraying operations
Accelerator pump type Diaphragm pump
Accelerator tank volume 220L
Cable specifications 3×35+1×16mm²
Cable length 50m
Tire Mining pneumatic tires
Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
