Mining shotcrete machine
UPS-8ZT

Mining shotcrete machine

UPS-8ZT is a low and compact wet concrete spraying machine designed and developed for concrete spraying operations in small mine tunnels. It is widely used in metal and non-metal mine tunnels, hydraulic tunnels, underground buildings (military and civilian), road slope wet spraying support and spraying concrete operations without explosion hazards. This machine has full functions, small size and high degree of integration. It adopts handheld spraying nozzles for spraying operations and wireless remote control for driving. It is easy to operate, flexible, safe and reliable, and has strong adaptability to working conditions.
  • Spraying capacity:8m³/h
  • Hopper loading height:1m
  • Accelerator pump type:Diaphragm pump

Product Introduction

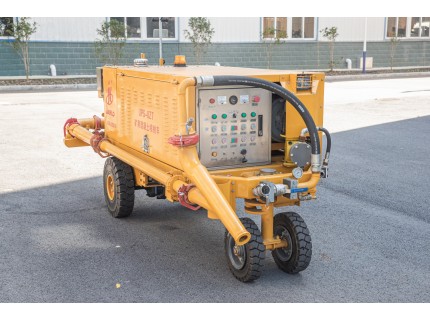

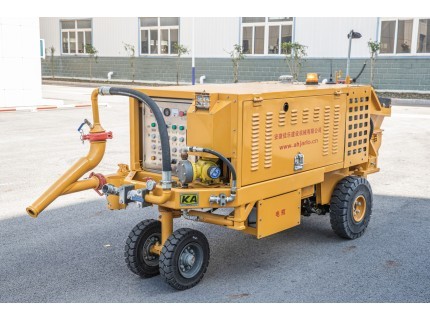

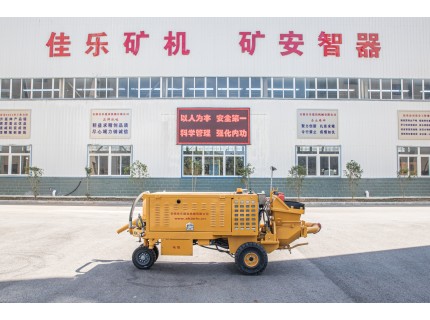

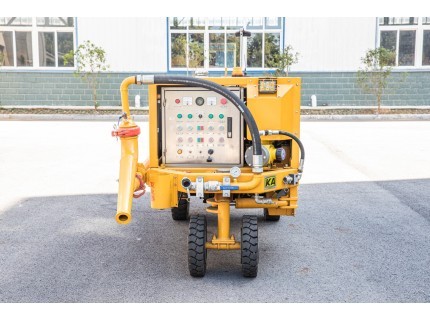

Product Pictures

Product Features

1.The handheld spray head is used for spraying operation, which can realize the flexible switching between single-head and multi-head spraying at the same time.

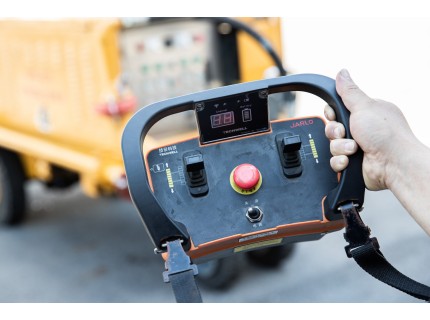

2.Wireless remote control walking, which can remotely control walking, and the remote control distance is up to 60m, which greatly improves the safety of construction.

3.It has outstanding advantages such as high spraying efficiency, long conveying distance, low rebound rate, small wear of machine parts, long service life, low consumption of accessories, and low technical requirements for operators.

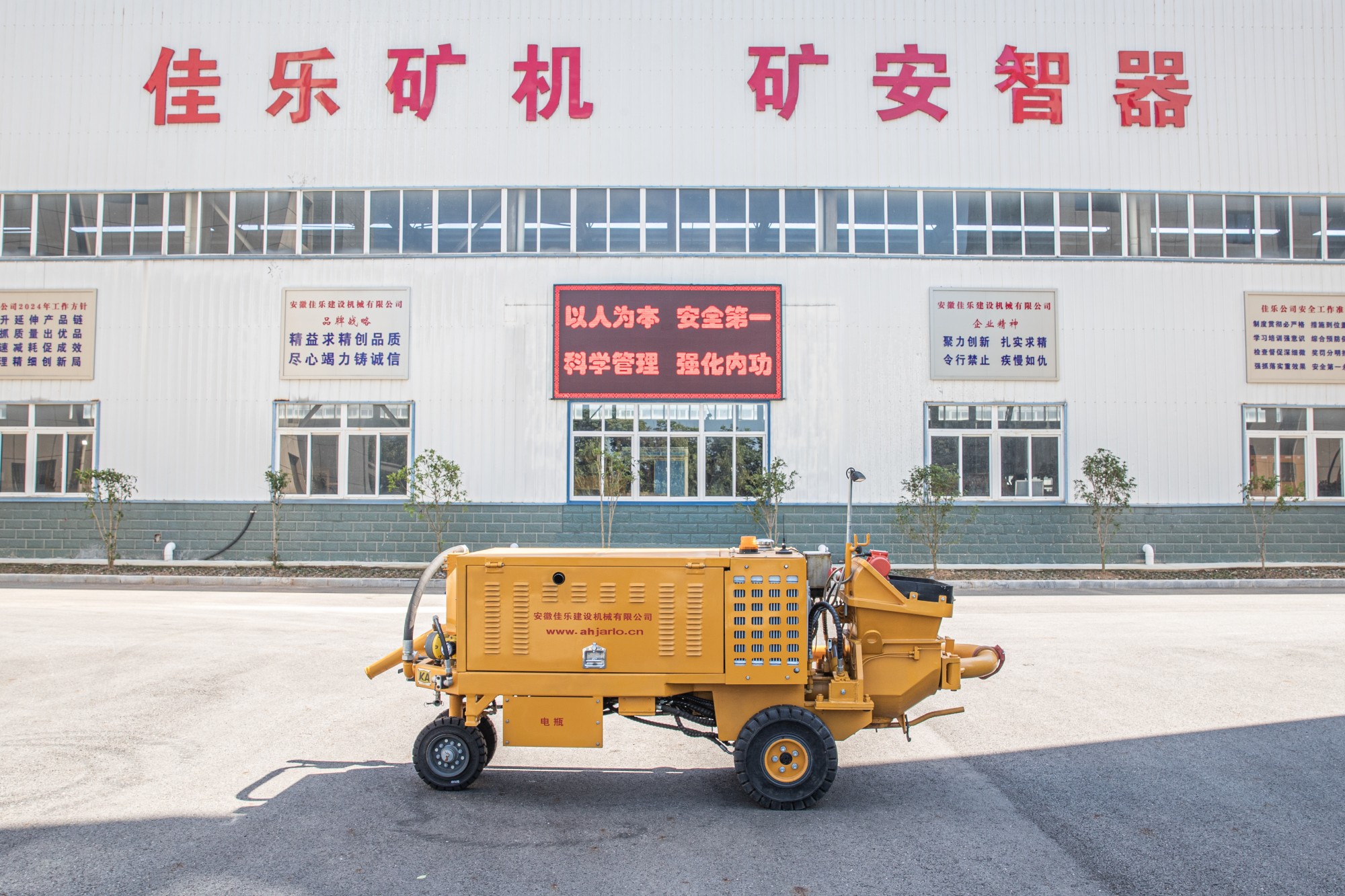

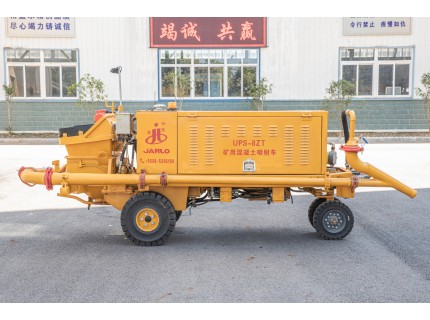

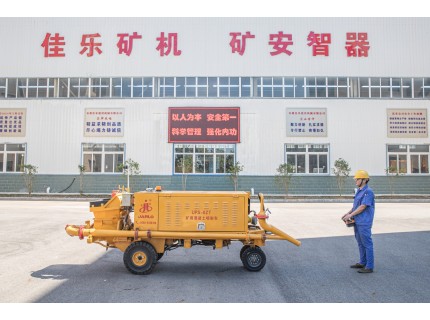

Equipment View

Equipment Parameters

Item

Parameter

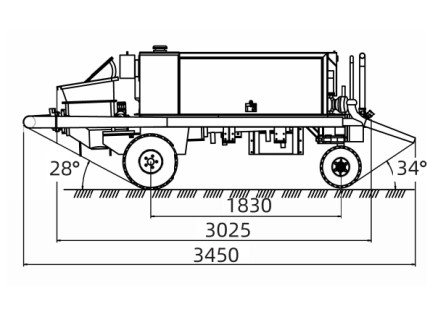

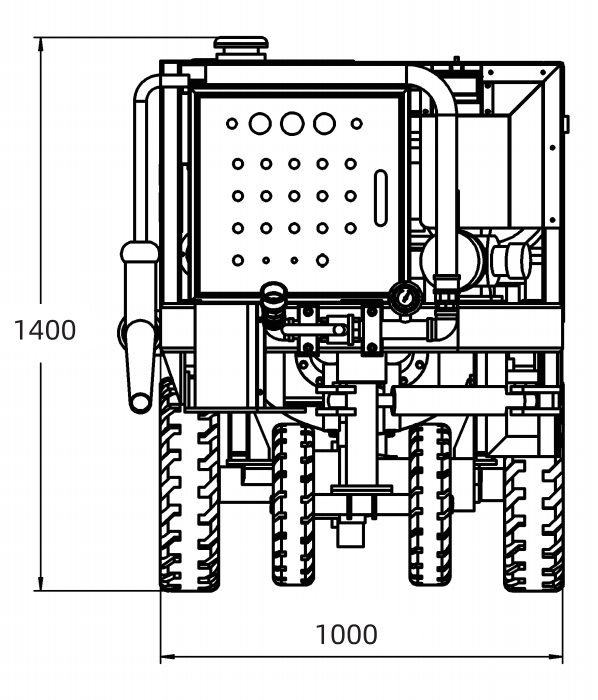

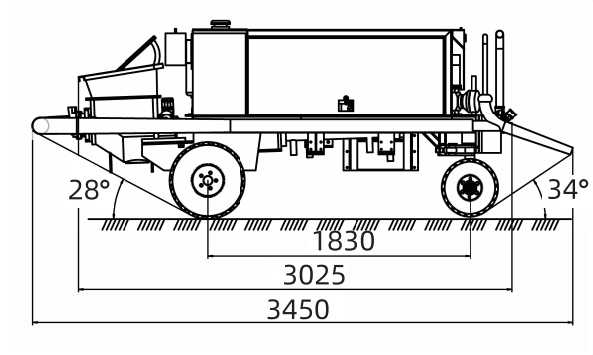

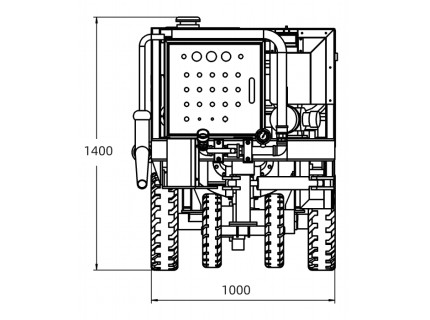

Overall dimensions(L×W×H)

3450×1000×1400mm

Machine weight

2000kg

Engine rated power and speed

Kaima 9.2kW/3600rpm

Electric motor total power

11kW

Drive mode,steering mode

Hydraulic drive,wireless remote control driving

Braking system

Driving:hydraulic wet brake

Parking:closed spring brake,hydraulic release,fail-safe parking brake

Max.Driving speed

5km/h

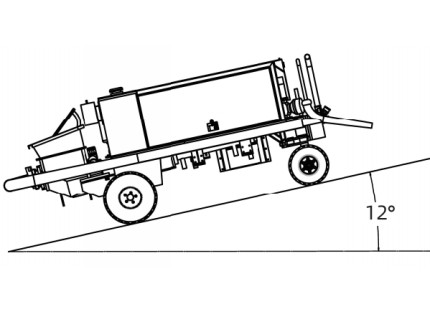

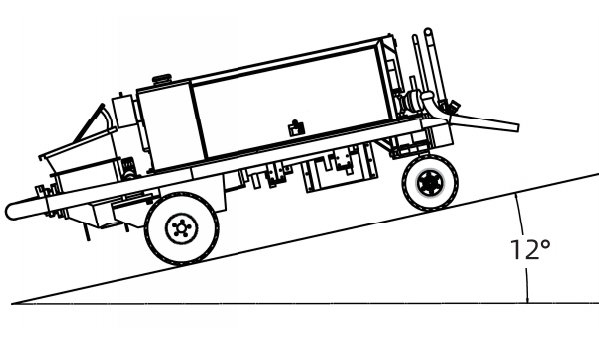

Max.Climbing ability

12°

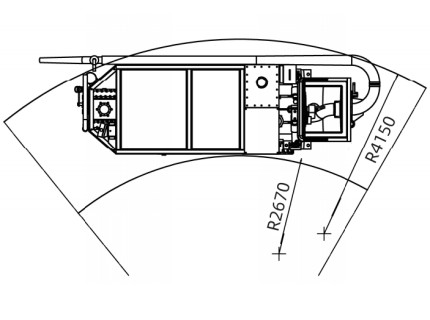

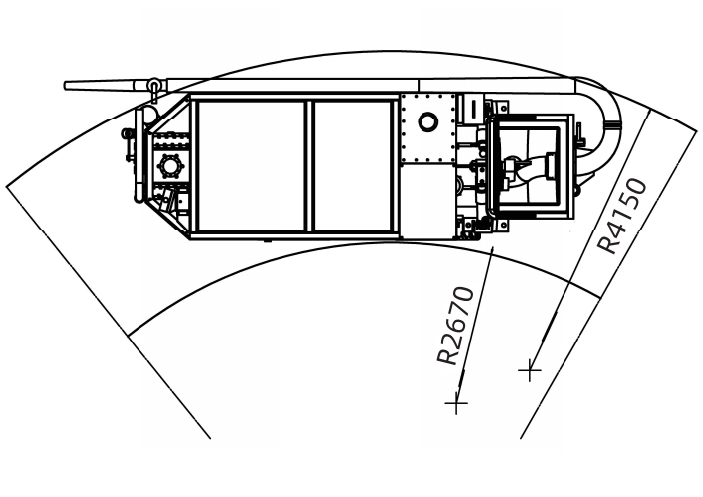

Min.Turning radius

Inner:2670mm;Outer:4150mm

Ground clearance

120mm

Actual concrete spraying capacity

8m³/h

Shotcrete aggregate particle size

12mm

Hopper volume

0.15m³

Hopper loading height

1m

Spraying operation mode

Handheld spray nozzle for spraying

Air compressor exhaust rated pressure

0.5MPa

Accelerator pump type

Diaphragm pump

Accelerator tank

External

Tire

Mining solid tire

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
