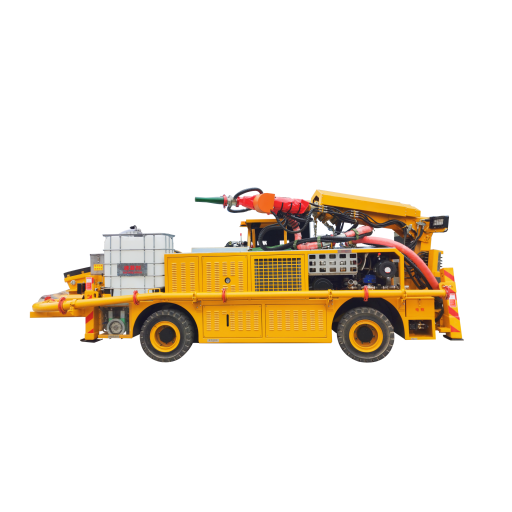

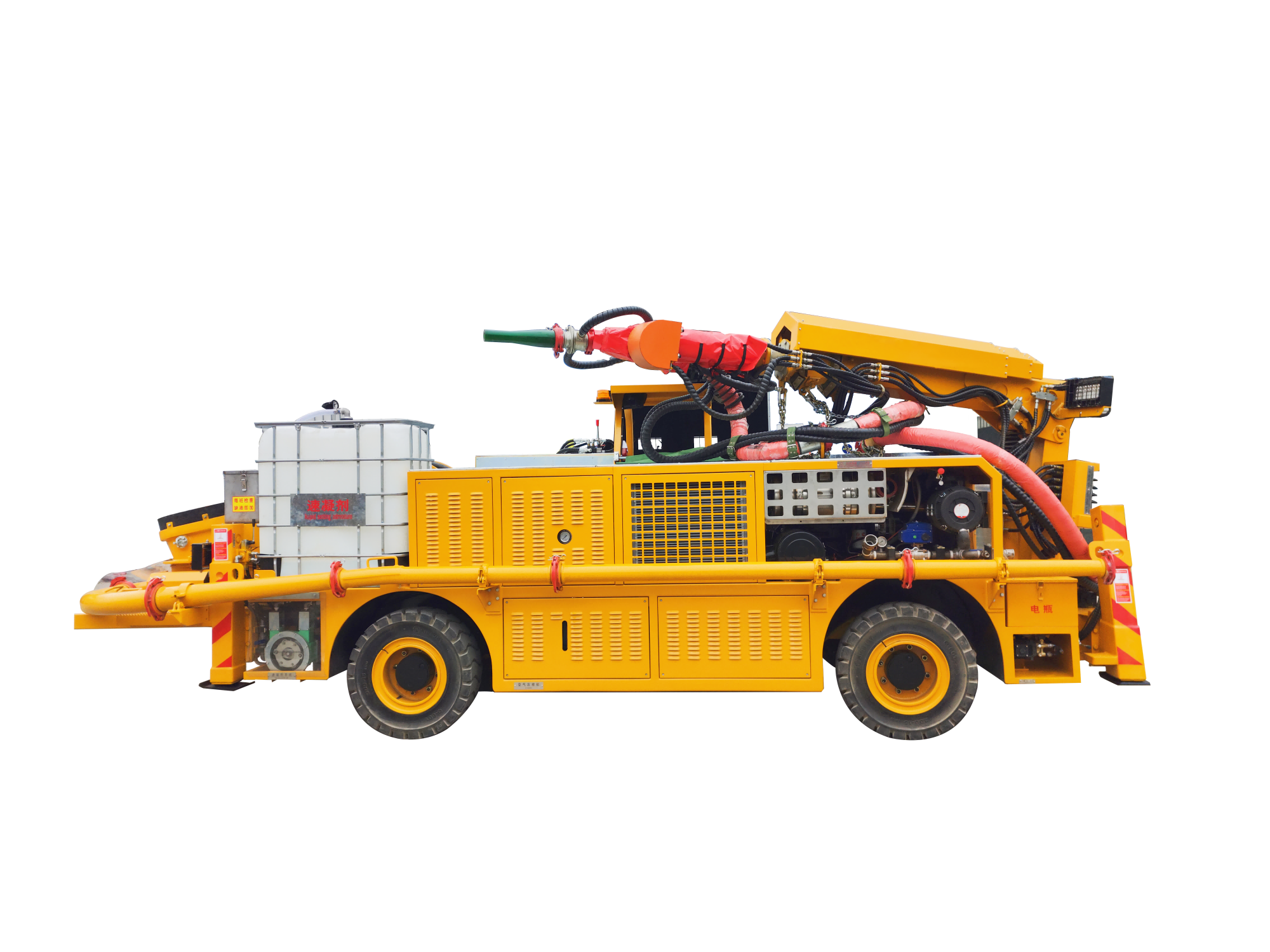

UPS-20ZT

Diesel engine wet concrete spraying machine

It is a special wet spraying equipment designed and developed by our company to meet the construction requirements of mechanized, intelligent, uniform and no-dead-angle spraying. It is widely used in metal and non-metal mine tunnels, hydraulic tunnels, underground buildings (military and civilian), road slope wet spraying support and shotcrete spraying operations without explosion hazards. This machine is easy to operate, flexible, safe and reliable, with high working efficiency and less rebound.

Engine power：54kW
Spraying capacity：20m³/h

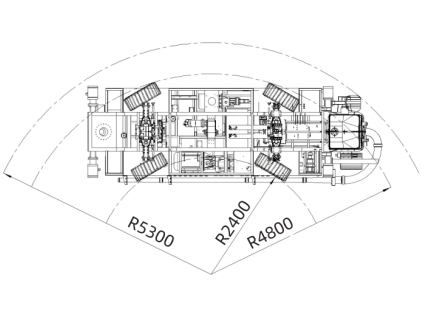

Turning radius：3800mm

Product Introduction

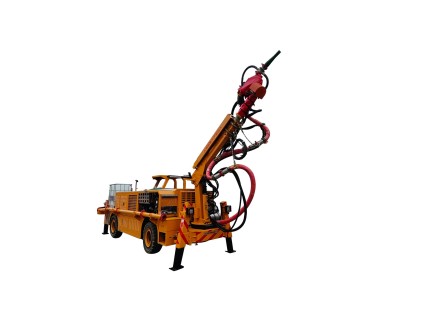

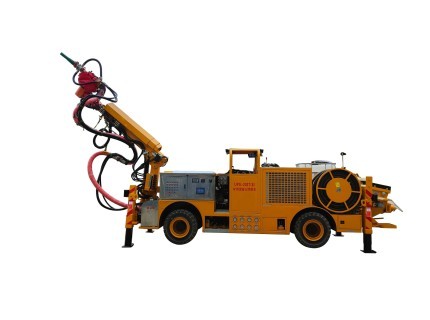

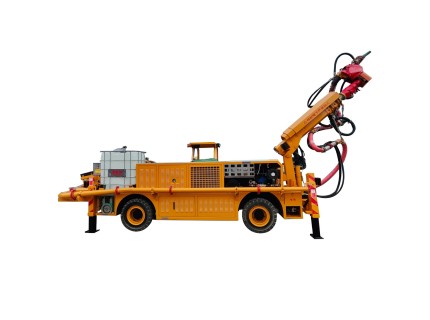

Product Pictures

Product Features

1. The highest point of the whole machine is 2m above the ground, with a closed hydrostatic drive engineering chassis, four-wheel drive, four-wheel steering, hydraulic wet dual brake system, driving oil brake, and parking closed spring brake, which meet the safety requirements of long slopes and low tunnels in mines.

2. Fully integrated proportional wireless + wired dual-control remote control, all control operations in the system are performed through the remote control to reduce labor intensity and improve construction safety and efficiency.

3. The electronic control system adopts the German ifm dedicated controller and customized human-machine interface. Multi-parameter operation monitoring and fault alarm.

4. The admixture dosage and concrete pumping volume are intelligently synchronized, so that the admixture always maintains the preset ratio with the concrete output, and can be monitored and adjusted in real time through the human-machine interface or remote control.

5. The external power supply 380V/660V/1140V can be selected at will.

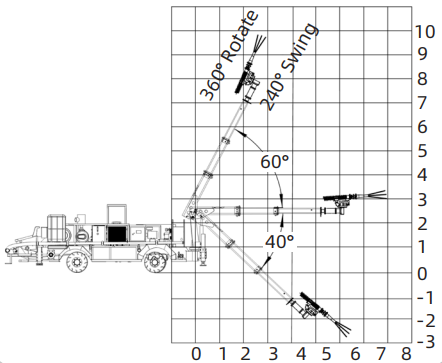

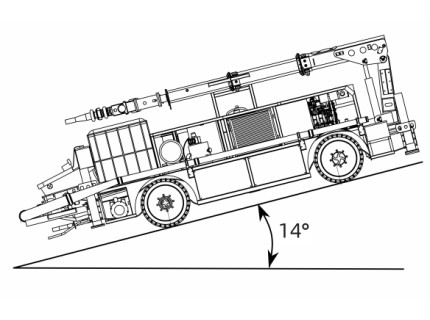

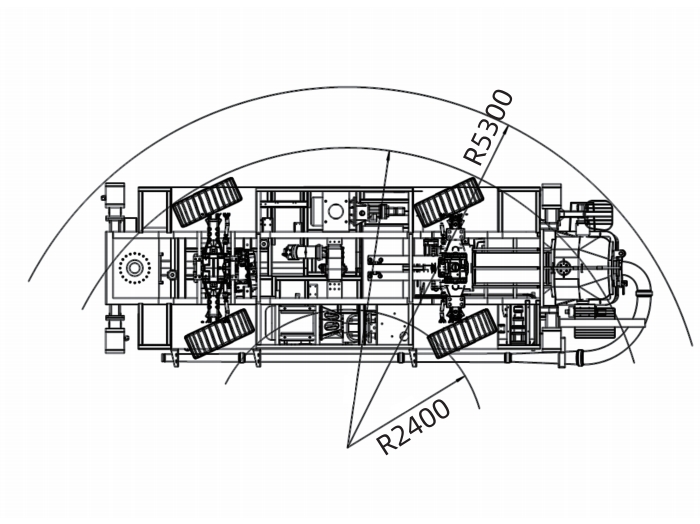

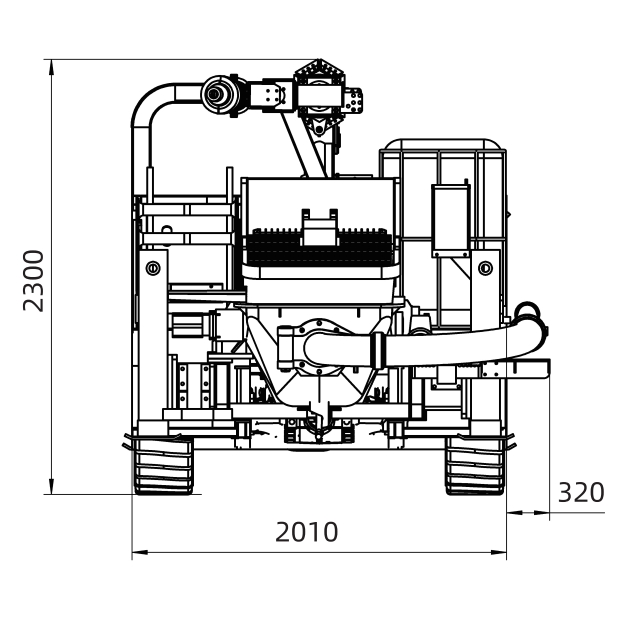

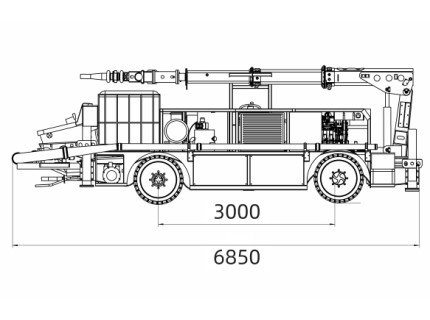

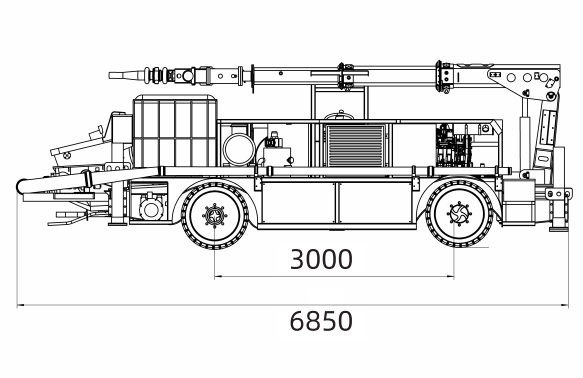

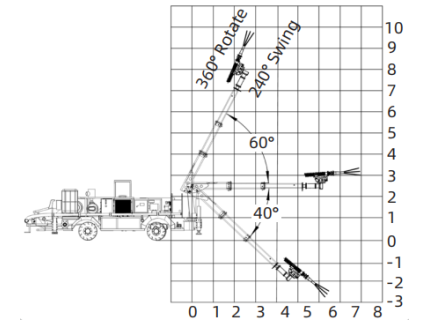

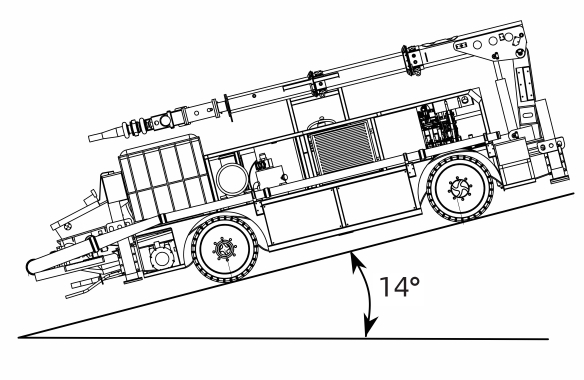

Equipment View

Equipment Parameters

Project		Unit	Parameter value

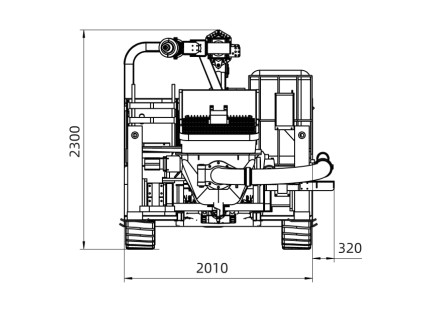

Machine parameters	Overall dimensions (length x width x height)	mm	6850×2010×2190
Machine parameters	Weight	kg	10500
Host parameters	Minimum ground clearance	mm	230
	Maximum climbing ability	%	40
	Top speed	km/h	17
	Turning radius	mm	3800
	Engine rated power	kW	54
	Engine speed	rpm	2400
	Hydraulic oil tank capacity	L	380
	Boom structure	—	Main arm rotation, small arm pitching + extension
Pumping system	Theoretical displacement	m³/h	20
	Concrete pumping pressure	MPa	7.5
	Inner diameter of conveying cylinder	mm	Φ160
	Delivery cylinder stroke	mm	800
	Maximum aggregate size	mm	≤25
	Concrete slump range	cm	12～18
	Hopper capacity	m³	0.48
Assistance systems	Cable	m	100
	Air compressor power	kW	37
	Air compressor displacement	m³/min	7.3
	Air compressor working pressure	MPa	0.5
	Accelerator system pressure	MPa	1
	Accelerator tank capacity	L	500
	Remote control	m	16 wired + 100 wireless

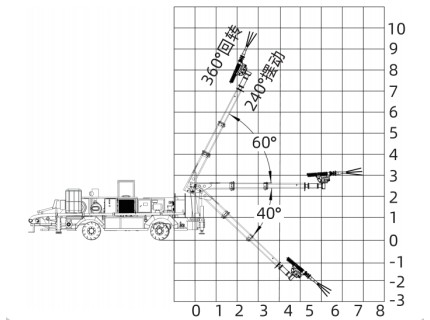

Scope of work	Up	m	10
	Down	m	3
	Forward	m	8
	Width	m	16

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
