Mining concrete spraying truck
UPS-10ZT(A)

Mining concrete spraying truck

UPS-10ZT(A) Mining Concrete Spraying Truck is a low-profile pump-type wet spraying truck developed for small cross-section mine tunnel concrete spraying operations.It is widely used in wet spraying support concrete operations in metal and non-metal mine tunnels (non-explosive environments), hydraulic tunnels, underground structures (military and civilian), and road slopes. This machine is easy to operate, flexible, safe, reliable, with high efficiency and low rebound.
  • Spraying capacity:10m³/h
  • Loading height:0.95m
  • Accelerator pump type:Diaphragm pump

Product Introduction

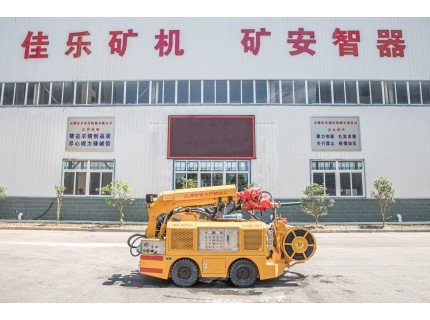

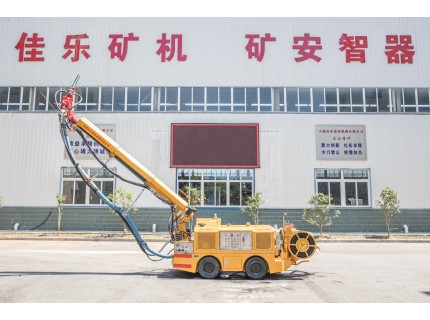

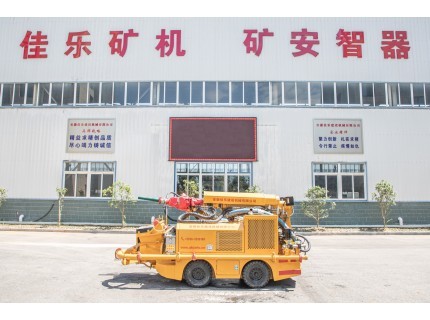

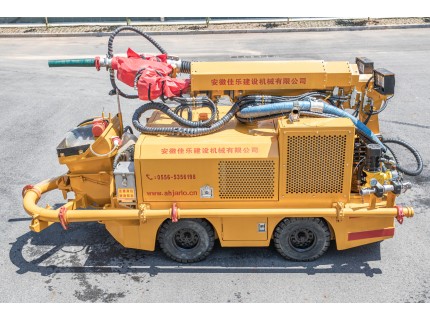

Product Pictures

Product Features

1.Sliding chassis design, wireless remote control for wet spraying and travel.

2.Fully hydraulic telescopic and slewing mechanical arm, high load capacity, stable action, easy operation, no blind spots.

3.Spraying arm at the frontmost of the unit, no interference, maximizing arm flexibility; main arm slewing angle up to 360°, uniform spraying without dead corners.

4.Compact size, flexible movement in different sized mines; high integration, built-in accelerator pump.

5.Only requires two operators (sprayer and assistant), greatly reducing labor input.

6.Pumping system assembly has good concrete suction, long life, less clogging.

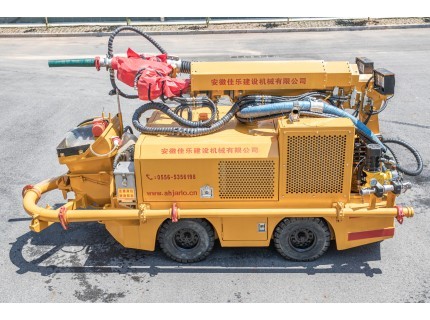

Equipment View

Equipment Parameters

Item

Parameter

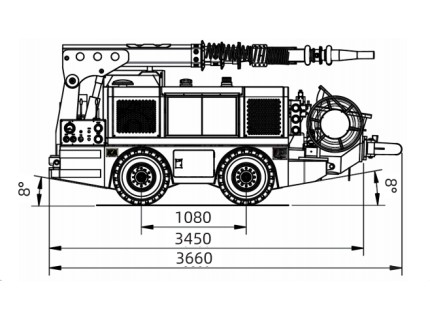

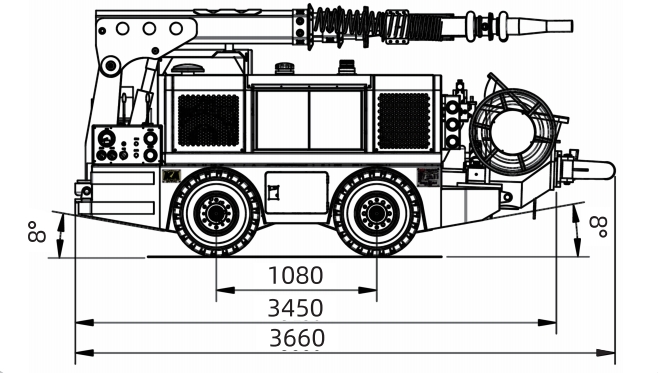

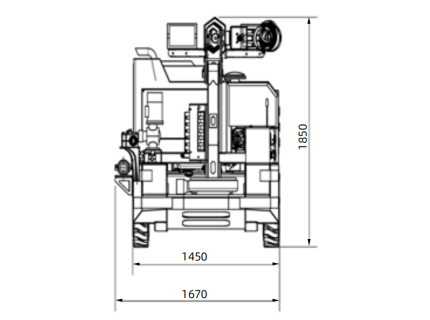

Dimensions (L × W × H)

3450×1450×1850mm

Overall Weight

4200kg

Engine Rated Power & Speed

Yunnei 36.8kW/2400rpm

Total Electric Motor Power

18.5kW

Drive Type,Steering Method

Hydraulic 4WD, skid steer

Brake System

Service/Parking: Closed spring brake, hydraulic release, fail-safe wet brake

Max. Driving Speed

4.5km/h

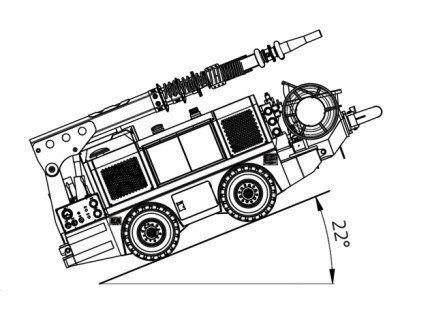

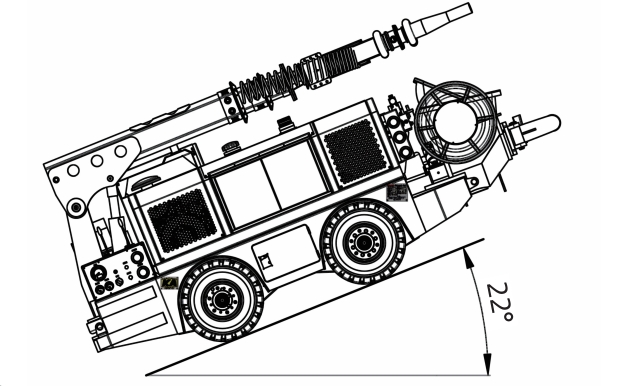

Max. Gradeability

22°

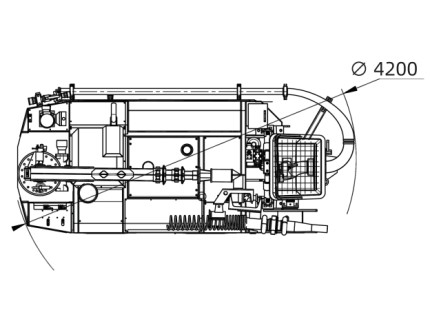

Min. Turning Radius

4200mm

Ground Clearance

235mm

Actual Concrete Spraying Capacity

10m³/h

Concrete Aggregate Size

12mm

Hopper Volume

0.15m³

Hopper Loading Height

0.95m

Boom Operation Mode

100m wireless remote

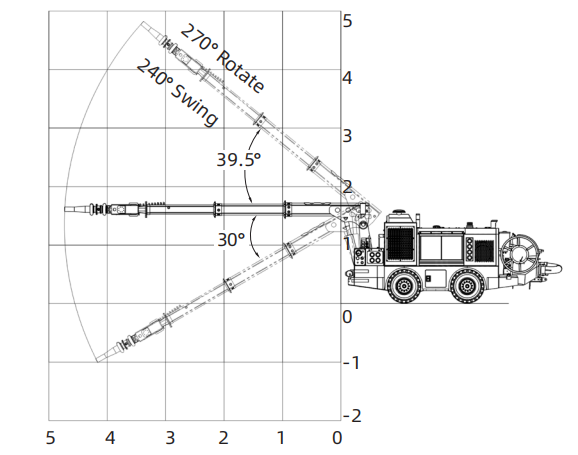

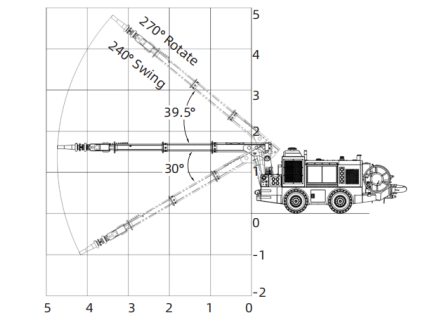

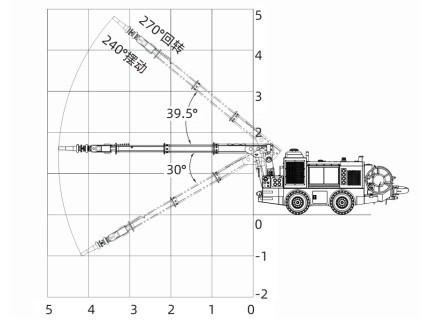

Max. Upward Effective Spraying Range

5m

Max. Forward Effective Sparying Range

6m

Max. Downward Effective Sparying Range

2m

Max. Effective Spraying Width

12m

Accelerator Pump Type

Diaphragm pump

Accelerator Tank

External

Cable Specification

3×10+1×10mm²

Cable Length

50m

Tires

Mining solid tires



Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
