UPS-12ZT

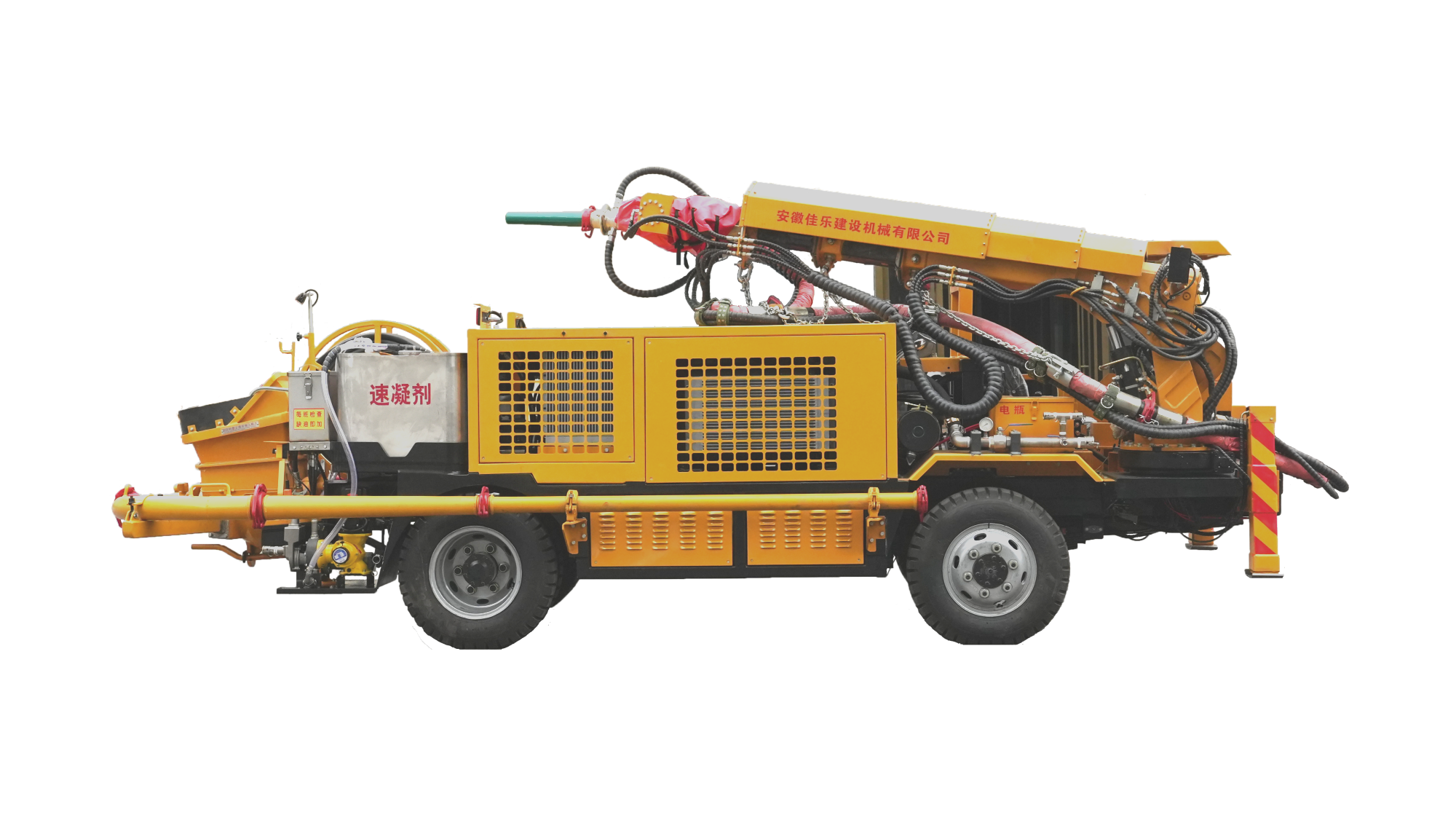

Mining concrete spraying truck

UPS-12ZT Mining Concrete Spraying Truck is a low-profile pump-type wet spraying truck developed for small cross-section mine tunnel concrete spraying operations.It is widely used in wet spraying support concrete operations in metal and non-metal mine tunnels (non-explosive environments), hydraulic tunnels, underground structures (military and civilian), and road slopes.This machine is easy to operate, flexible, safe, reliable, with high efficiency and low rebound.

Spraying capacity：12m³
Loading height：1.1m
Accelerator pump type：Diaphragm pump

Product Introduction

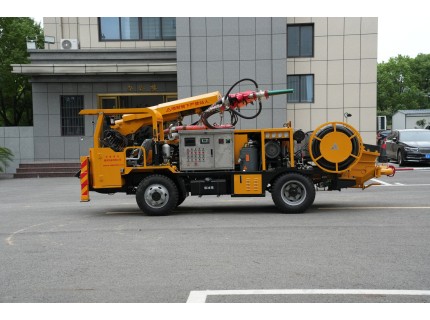

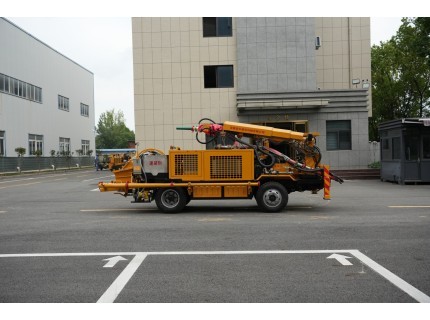

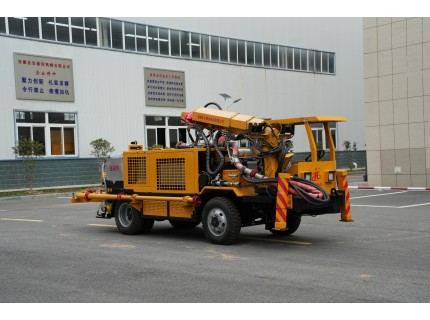

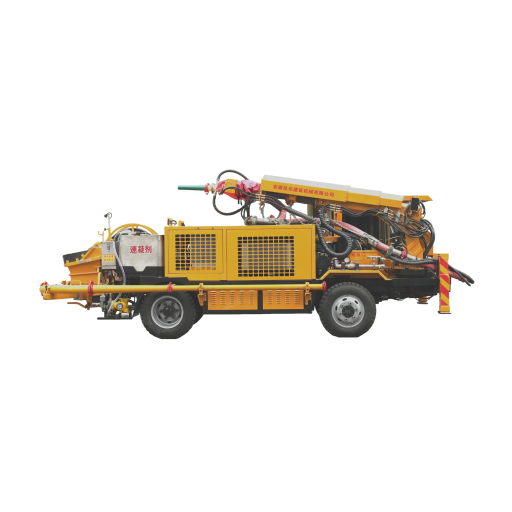

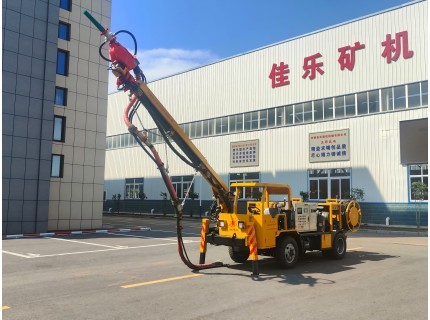

Product Pictures

Product Features

1.Multi-stage telescopic boom, fully integrated proportional wireless + wired dual-control remote control for spraying, flexible operation, wide coverage, high efficiency.

2.Truck chassis travel, fast transfer speed, 50m cable, greatly improving construction efficiency.

3.Low rebound, low parts wear, long service life, low consumables, durable.

4.IFM dedicated controller and customized HMI interface adopted for the electrical control system, with multi-parameter operation monitoring and fault alarm.

Equipment View

Equipment Parameters

Item	Parameter

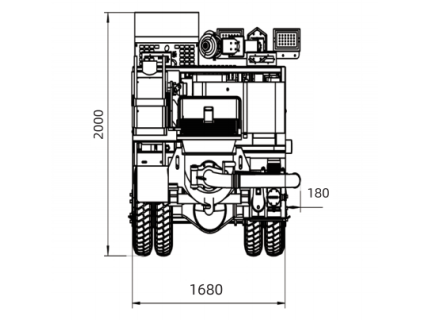

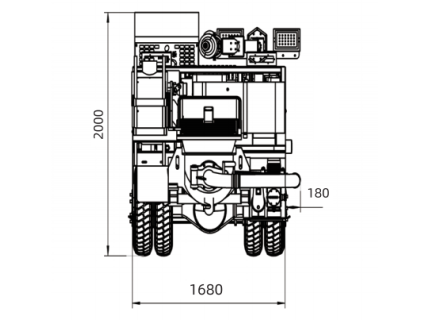

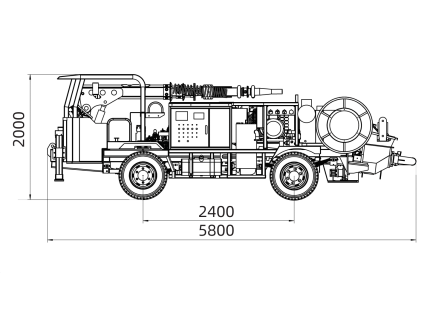

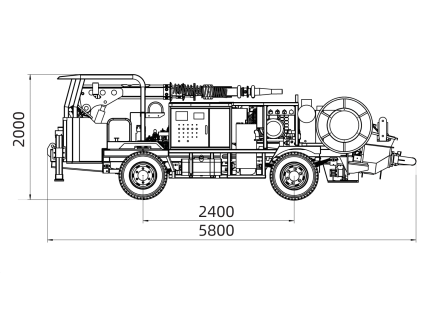

Dimensions（L × W × H）	5800×1680×2000mm
Overall Weight	6240kg
Engine Rated Power & Speed	Yunnei 36.8kW/2400rpm
Total Electric Motor Power (Motor+Air Compressor)	40.5kW（18.5kW+22kW）
Drive Type,Steering Method	4WD,front wheel steering
Brake System	Service/Parking: Closed spring brake, hydraulic release, fail-safe wet brake
Max. Driving Speed	25km/h

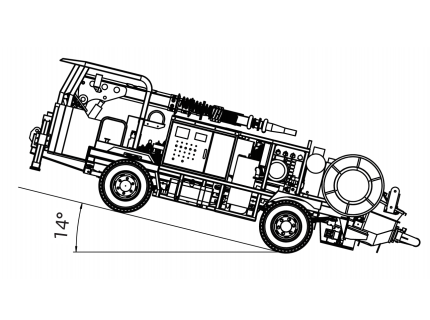

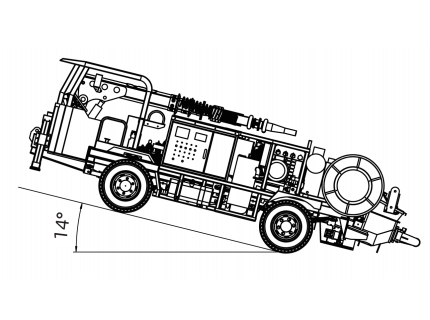

Max. Gradeability	14 °

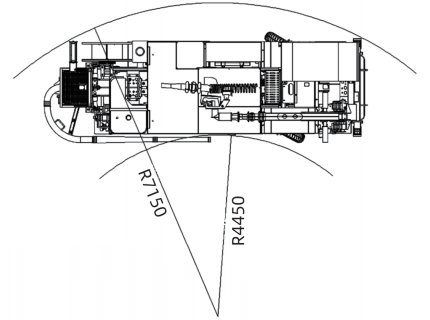

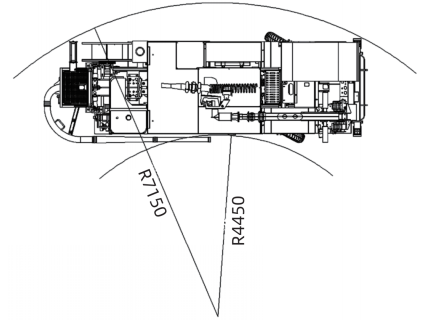

Min. Turning Radius	Inner：4450mm； Outer：7150mm
Ground Clearance	180mm
Actual Concrete Spraying Capacity	12m³/h
Concrete Aggregate Size	12mm
Hopper Volume	0.15m³
Hopper Loading Height	1100mm

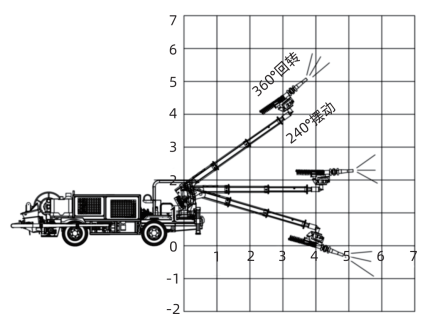

Boom Operation Mode	Dual control：16m wired +100m wireless remote
Max. Upward Effective Spraying Range	7m
Max. Forward Effective Spraying Range	6m
Max. Downward Effective Spraying Range	2m
Max. Effective Spraying Width	6+4m
Air Compressor Rated Pressure	0.5MPa
Accelerator Pump Type	Diaphragm pump
Accelerator Tank Volume	220L
Cable Specification	3×25+1×16mm²
Cable Length	50m
Tires	Mining pneumatic tires

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
