Product Introduction

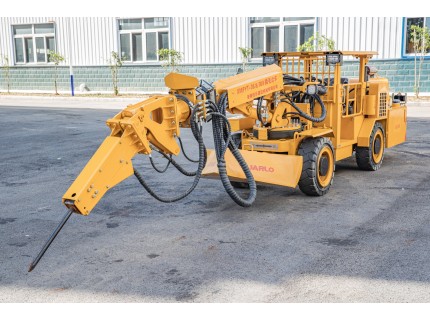

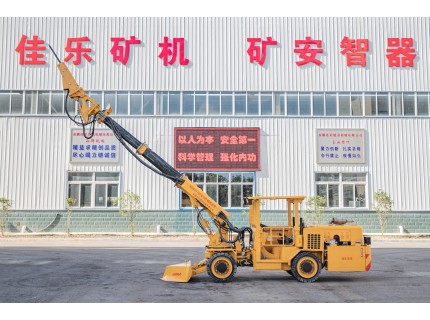

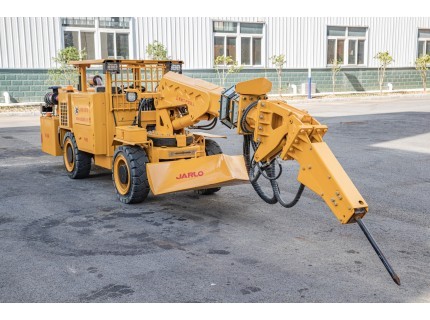

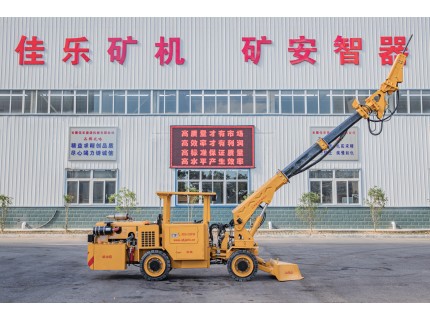

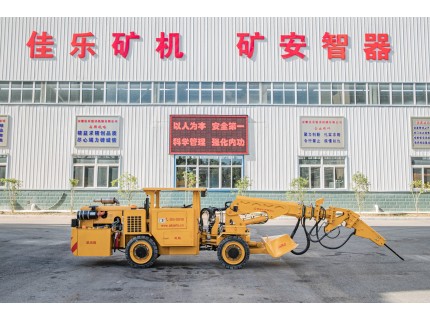

Product Pictures
Product Features

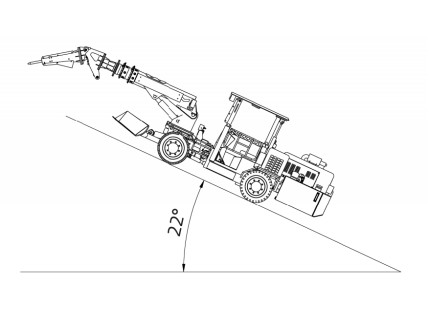

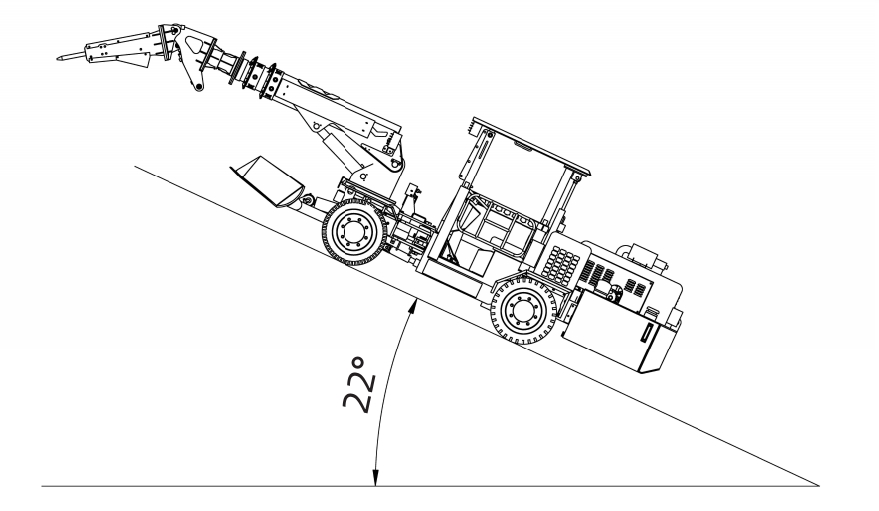

1.Electronic-controlled closed hydrostatic drive engineering chassis, four-wheel drive, large driving torque, high bulldozing capacity, and strong climbing performance.
2.The liftable cab meets the mine safety ergonomic design, meets the FOPS and ROPS anti-smashing and anti-rolling standards, centralized control, reasonable layout, comfortable and convenient.

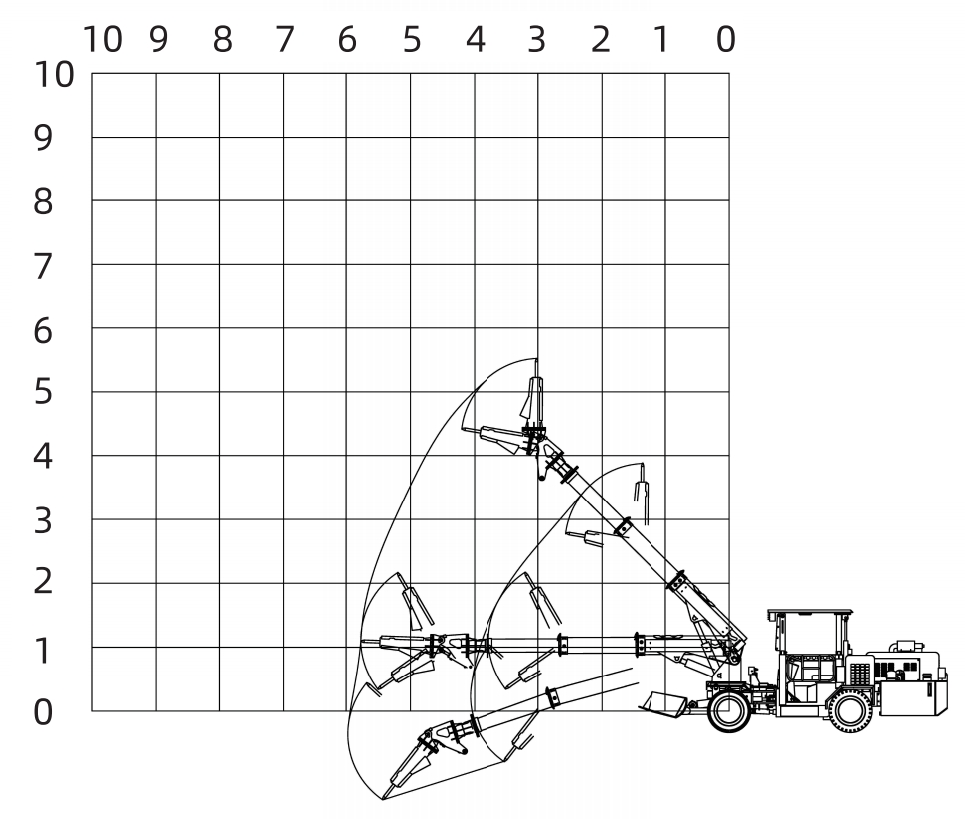

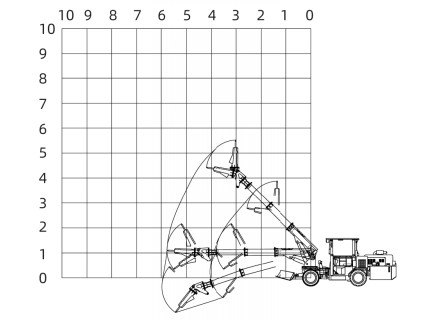

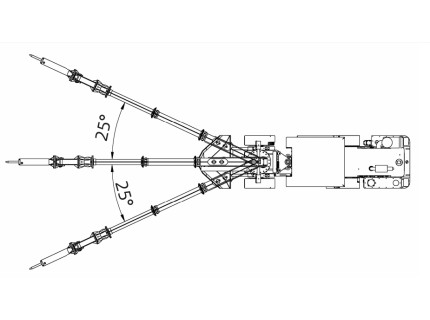

3.The fully hydraulic telescopic and rotating mechanical arm has strong carrying capacity, stable movement, flexible operation, and no construction blind spots.

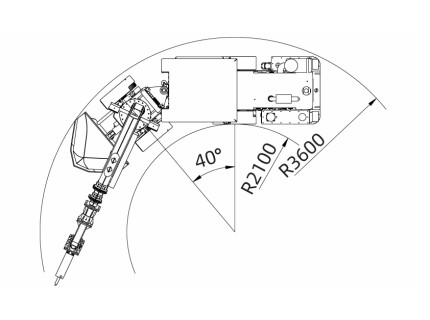

4.The articulated ultra-narrow special chassis has a smaller turning radius and a narrower body, which can meet the operation needs of low and narrow shafts to the maximum extent.
5.The breaker adopts the Korean engineer brand, with stable performance, flexible switching, high impact energy, and small recoil force.
6.The electronic control system collects the engine speed and load information, summarizes and processes it, and accurately controls the displacement of the oil pump in real time, making the chassis more maneuverable and safer, preventing braking and overload stalling, and effectively protecting the engine and drive system.
7.The boom is equipped with an overload protection system, which can effectively protect the boom and hydraulic cylinder during the contact scaling process.
8.Equipped with a slag-clearing shovel, the blast pile can be cleaned up quickly and properly before mucking out, so that the scaling rig can go to the working surface to clean the loosen stones on the roof and side walls, which has better passability and stronger adaptability.

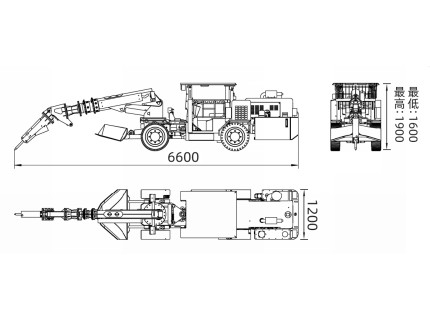

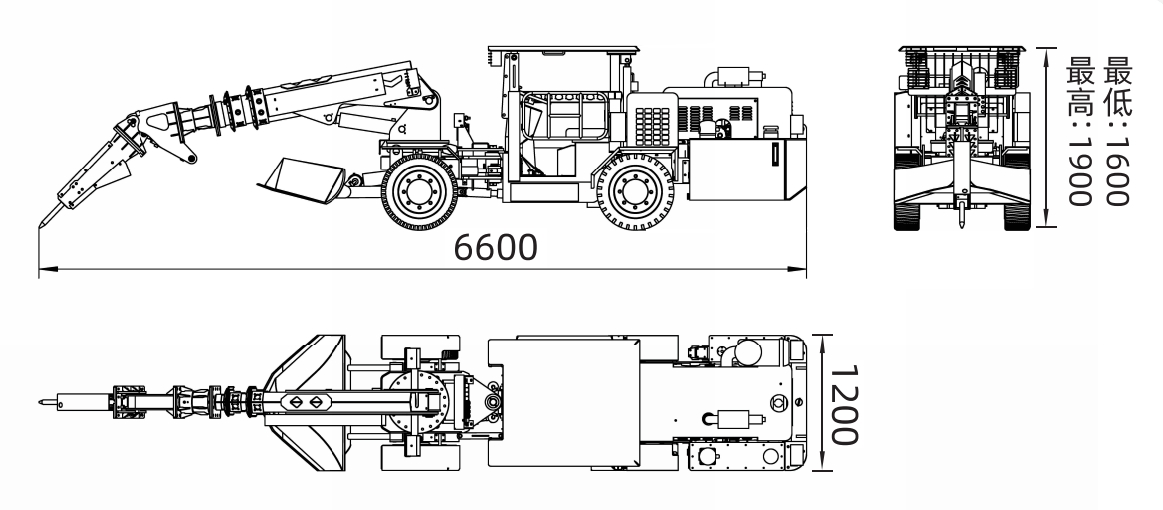

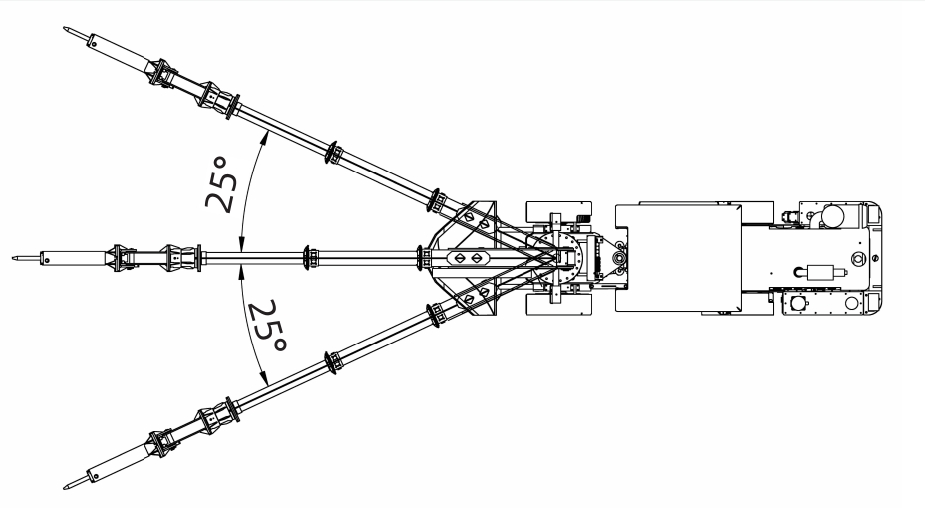

Equipment View
