Drawpoint blockage charging manipulator
FLT-15(B)

Drawpoint blockage charging manipulator

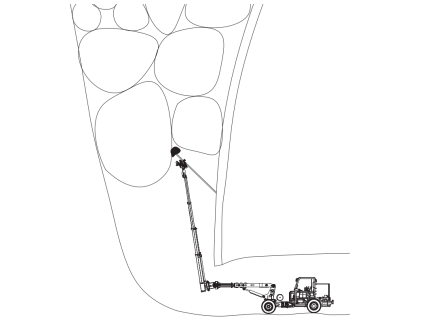

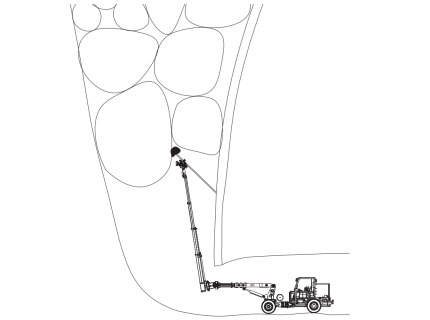

FLT-15(B) Drawpoint Blockage Clearing Manipulator is designed for high-risk mine stope scenarios, suitable for drawpoint and LHD drawpoint large boulder blockage clearing. Operators do not need to enter dangerous areas; high-definition wireless remote control allows operation. Special gripper on manipulator stably clamps charged bamboo or plastic rod, precisely delivering to blasting position, achieving full man-machine isolation. Fundamentally avoids safety risks, completely replaces traditional manual operations, ensuring safety and efficiency.

Product Introduction

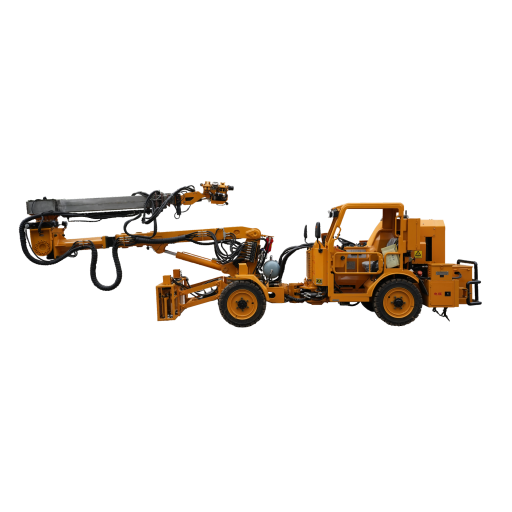

Product Pictures

Product Features

1.Flexible equipment, high reliability.

2.Camera system for safe isolation.

3.Can handle 80% of drawpoint blockages, strong adaptability.

4.Features both oil-driven and electric-driven operating modes, providing a quiet working environment.

5.High clearing efficiency, average single charging within 5 minutes (excluding preparation).

6.Low clearing cost, bamboo pole is the only consumable besides detonators and explosives.

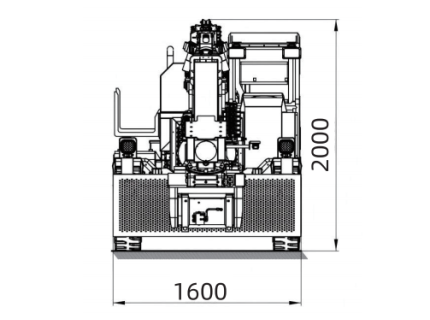

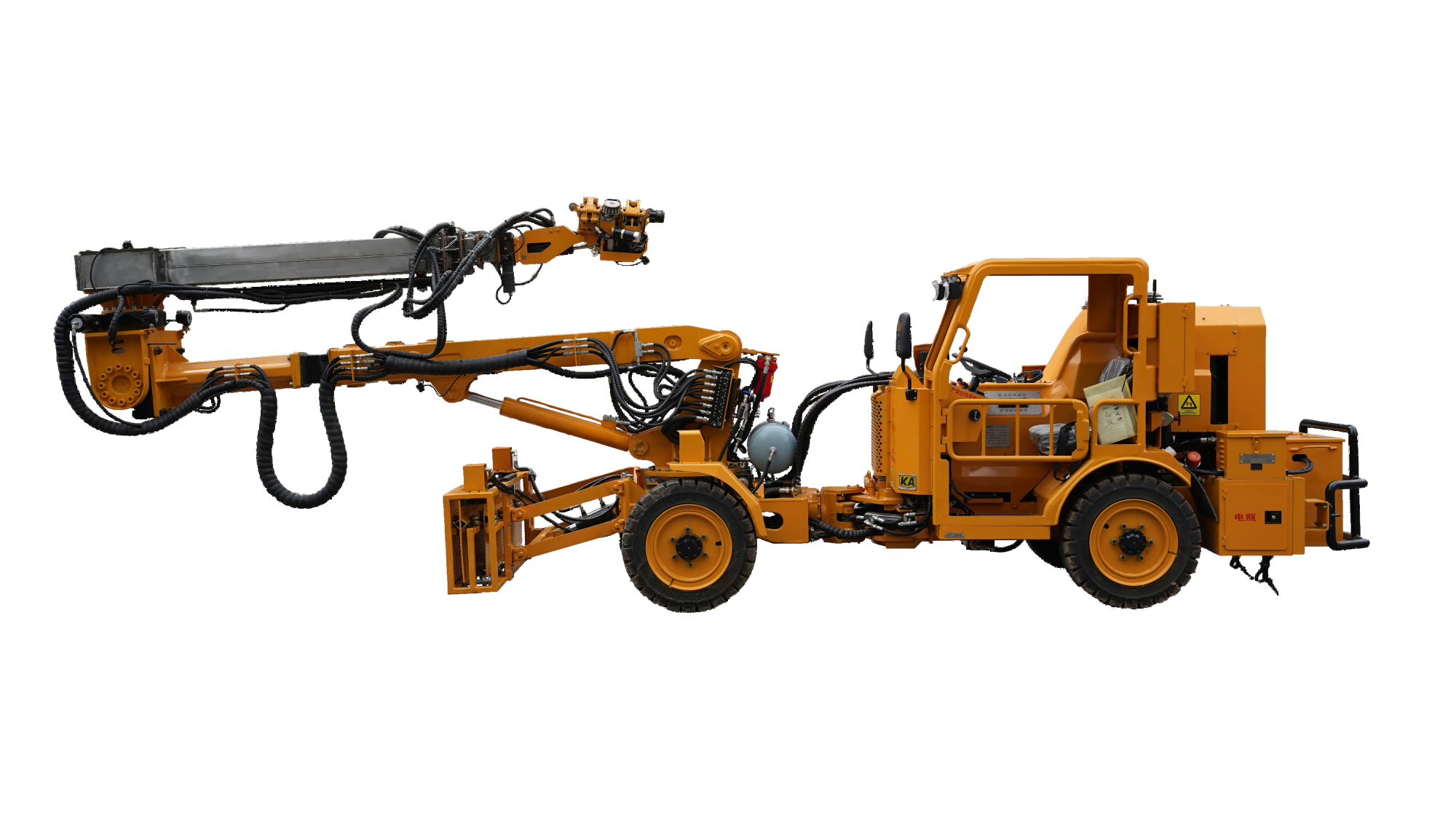

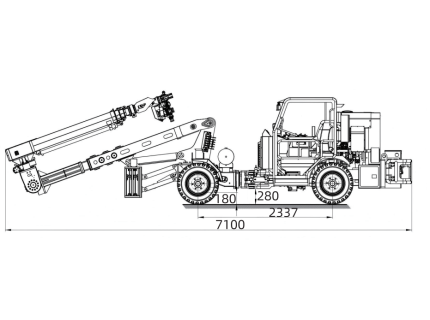

Equipment View

Equipment Parameters

Item

Parameter

Overall Performance

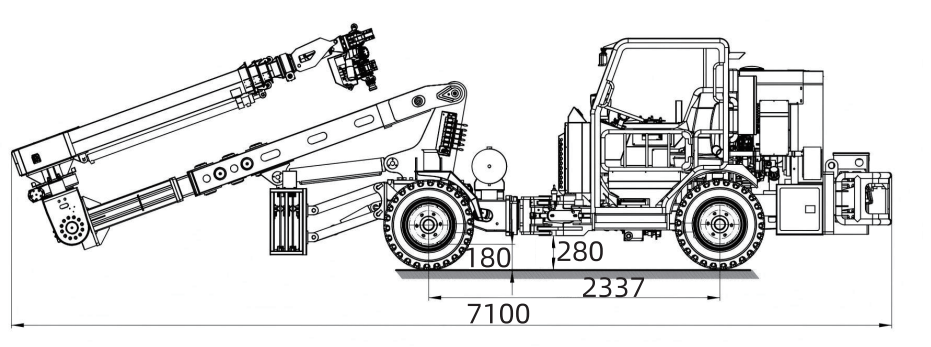

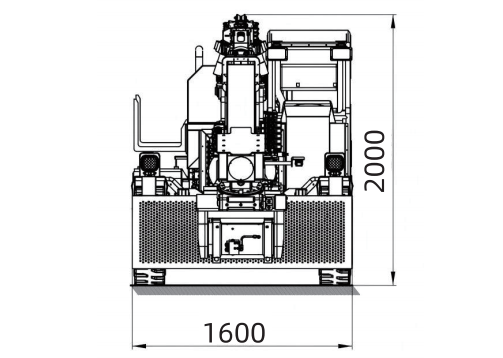

Dimensions(L × W × H)

7100×1600×2000mm

Overall Weight

4800kg

Engine Rated Power & Speed

36.8kW/2400rpm

Drive Type,Steering Method

Torque converter 4WD, articulated steering

Brake System

Closed spring brake, hydraulic release, fail-safe parking brake

Driving System

Traction Force

≥12kN

Max. Driving Speed

13.5km/h

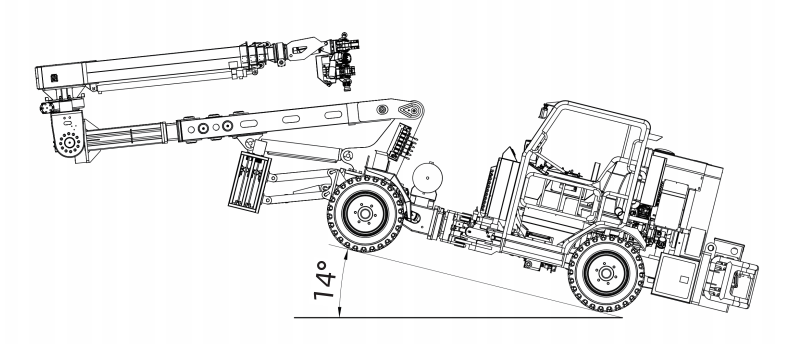

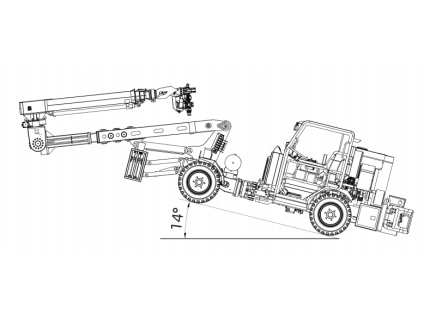

Max. Gradeability

14°

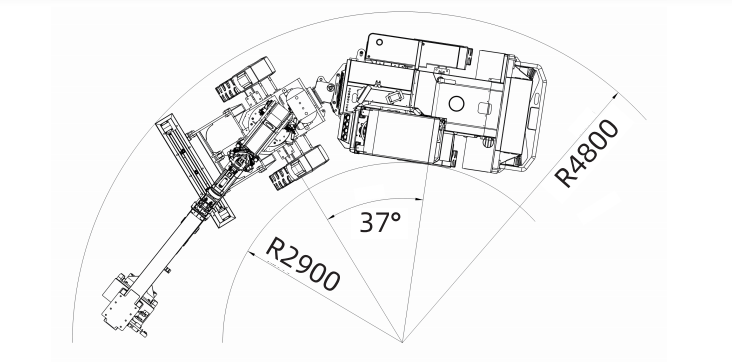

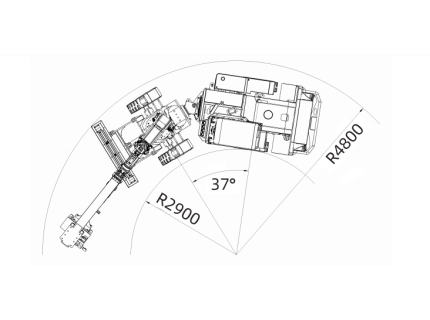

Min. Turning Radius

Inner:2900mm;  Outer:4800mm

Axle Housing Ground Clearance

180mm

Body Ground Clearance

270mm

Frame Swing Angle

±6.5~±8.5°

Boom Mechanism

Main Boom Lateral Swing Angle

±30°

Arm Lateral Swing Angle

±45°

Arm Front/Rear Swing Angle

Front:60°;Rear:90°

Arm Telescopic Height

6m

Boom Telescopic Stroke

1m/0.5m

Gripper Pitch Angle

0~90°

Gripper Swing Angle

±180°

Charging Height(including pole)

10m

Charging Weight

6~12kg



Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
