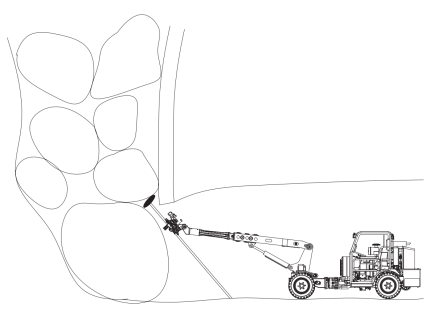

1.Boom meeting various spatial needs, strong applicability.
2.Equipped with camera system, isolating operator from hazard.
3.Torque converter gearbox transmission, high reliability, stable performance, low maintenance cost.
4.Articulated steering, good mobility, compact size, suitable for different mines.
|
Item |
Parameter |
|
|
Overall Performance |

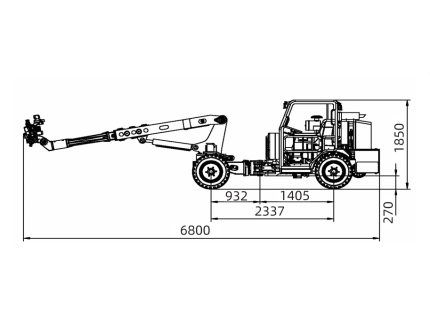

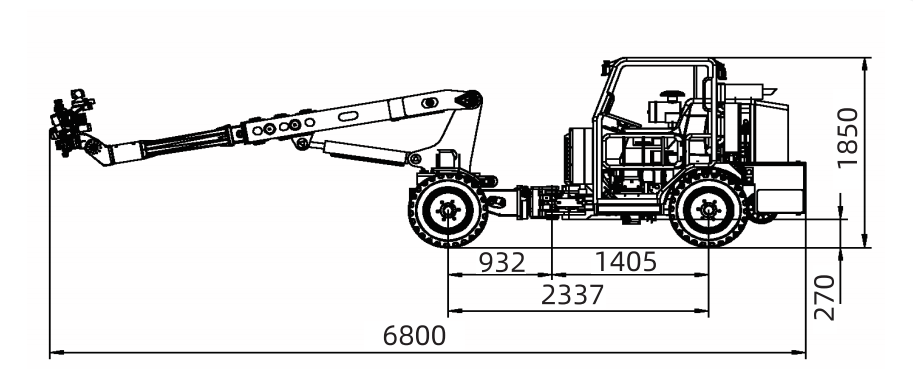

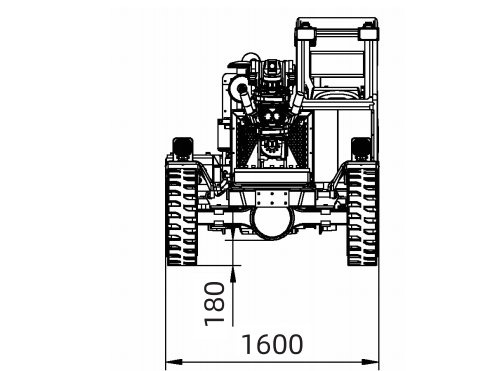

Dimensions（L × W × H） |
6800×1600×1850mm |
|
Overall Weight |
4000kg |
|
|
Engine Rated Power & Speed |
36.8kW/2400rpm |
|
|
Cabin |
Meeting mining safety ergonomic design, centralized control, comfortable |
|
|
Drive Type,Steering Method |
Torque converter 4WD, articulated steering |
|
|
Brake System |
Closed spring brake, hydraulic release, fail-safe parking brake |
|
|
Driving System |
Traction Force |
≥12kN |
|
Max. Driving Speed |
13.5km/h |
|
|

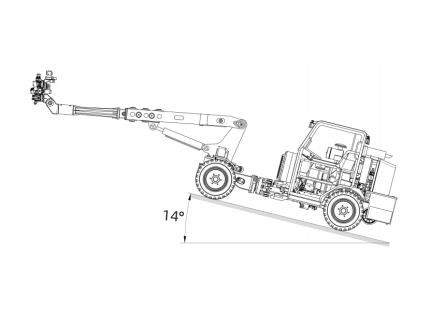

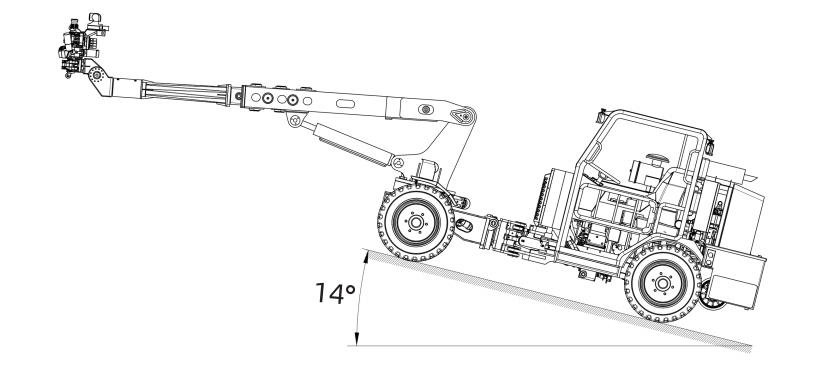

Max. Gradeability |
14° |
|
|

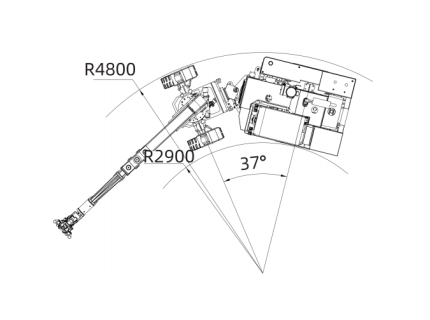

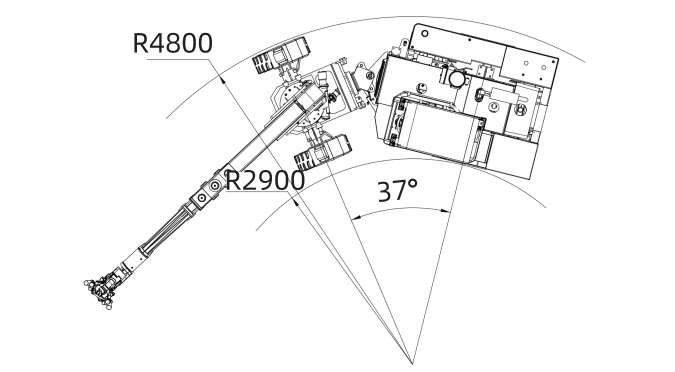

Min. Turning Radius |
Inner：2900mm; Outer：4800mm |
|
|
Axle Housing Ground Clearance |
180mm |
|
|
Body Ground Clearance |
270mm |
|
|
Frame Swing Angle |
±6.5~±8.5° |
|
|
Boom Mechanism |
Boom Lateral Swing Angle |
±60° |
|
Boom Telescopic Stroke |
1200mm |
|
|
Gripper Pitch Angle |
0~90° |
|
|
Gripper Rotation Angle |
360° |
|
|

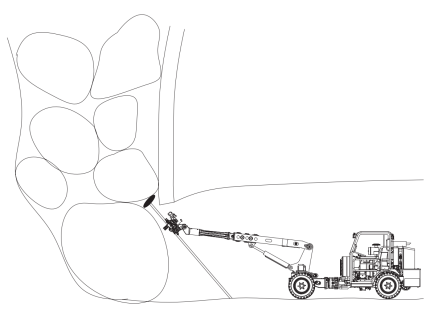

Charging Height(including pole) |
6m |
|
|
Charging Weight |
6~12kg |
|
