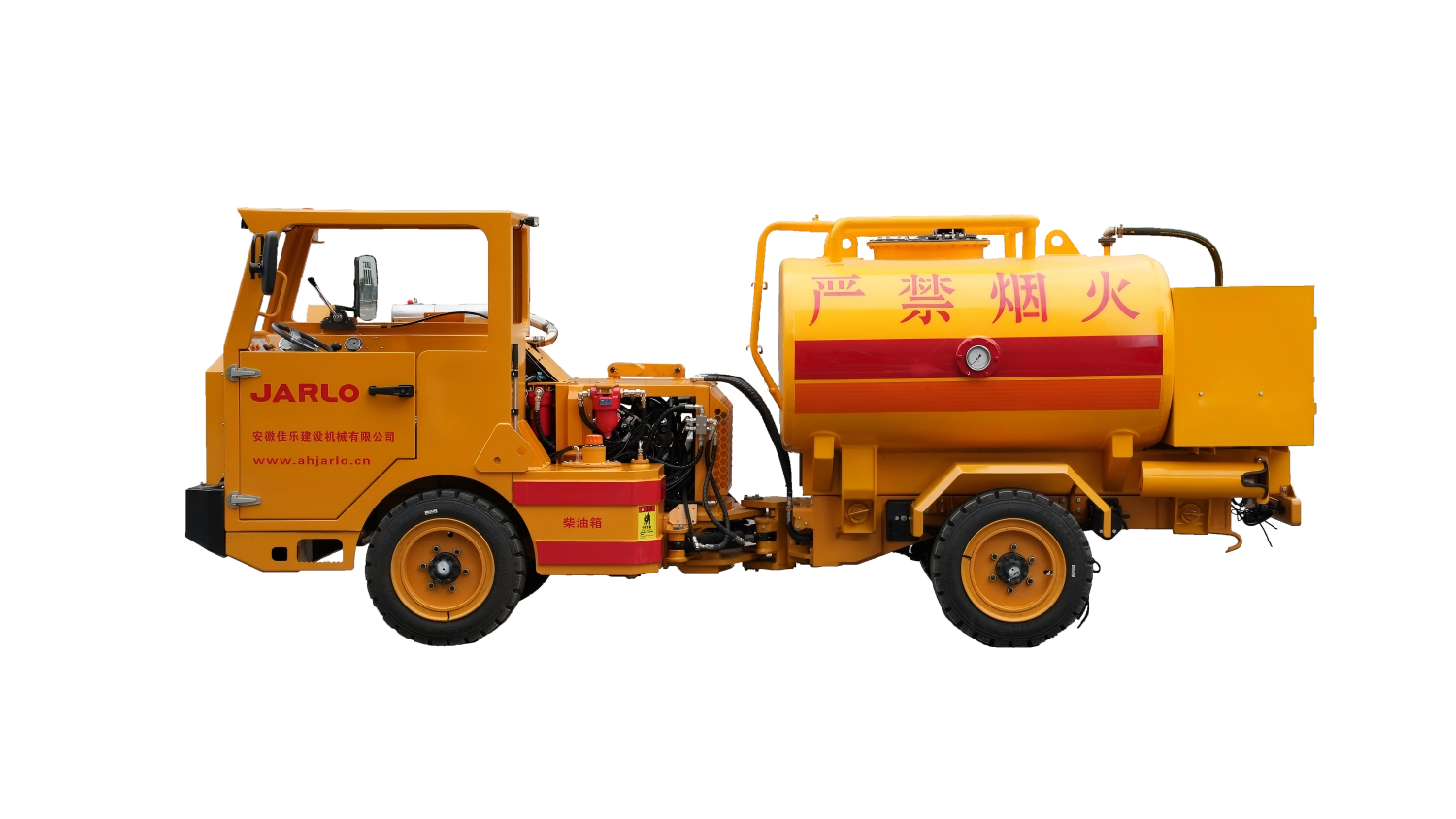

Product Introduction

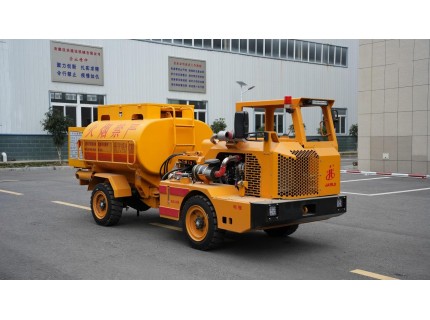

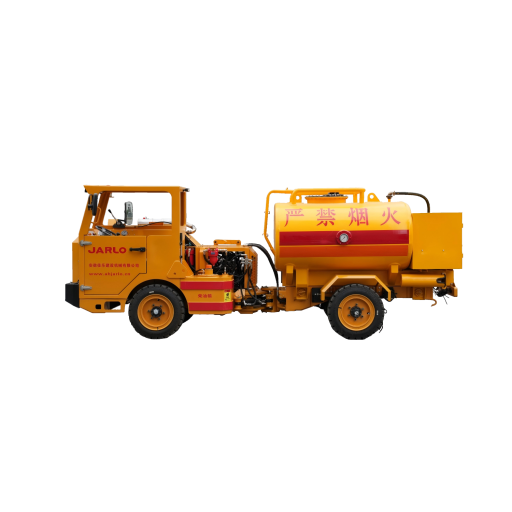

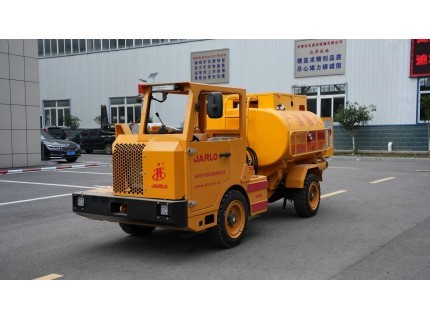

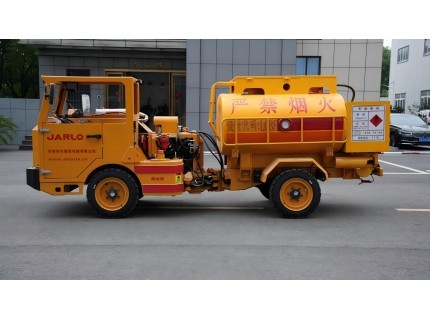

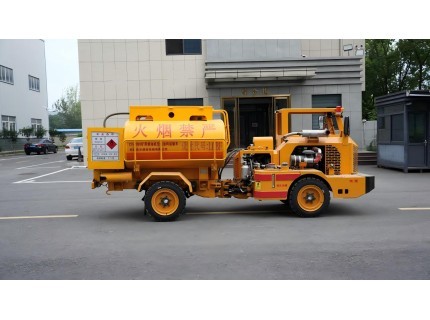

Product Pictures
Product Features
1.2.5-ton articulated fixed chassis, sturdy and reliable.

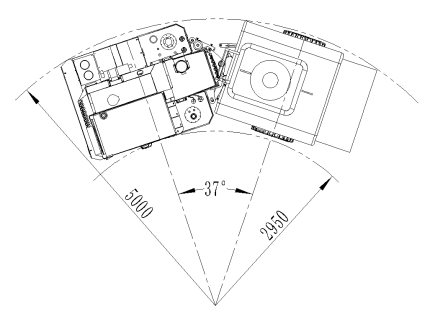

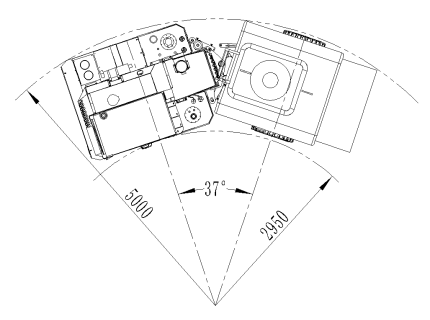

2.Dual-cylinder hydraulic steering, 4WD, small turning radius.
3.Central articulation with swing frame, increasing vertical swing angle, improving wheel adhesion and passability on rough roads.
4.Power system: Yunnei 4-cylinder water-cooled turbocharged engine, low noise, long life.
5.Transmission: Torque converter and gearbox integrated power shift transmission, reliable, strong climbing.
6.Cab: Ergonomic design, ROPS/FOPS certified, high driving safety.
7.Hydraulic system main components from imported or domestic well-known brands, ensuring the reliability of the hydraulic system
8.Brake system: Dual-circuit hydraulic closed brake system; fully enclosed wet multi-disc hydraulic brake; service, emergency, parking brake: closed spring brake, hydraulic release, fail-safe.
9.Frame: Post-weld annealing and shot blasting, eliminating welding stress and ensuring the overall quality.
10.Cab equipped with onboard computer system, real-time display of engine status, protection info, speed, fault info, ensuring safe operation.
11.Vehicle equipped with reverse camera system, recording and storing relevant information.
12.Refueling device with self-priming function, can load and discharge oil. Equipped with breather valve, safety valve, emergency shut-off valve, explosion-proof solenoid valve, anti-static drag chain, warning light, and dry powder fire extinguisher.

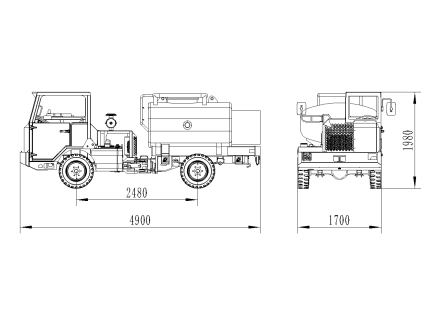

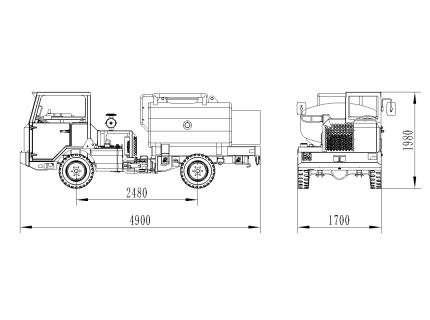

Equipment View
