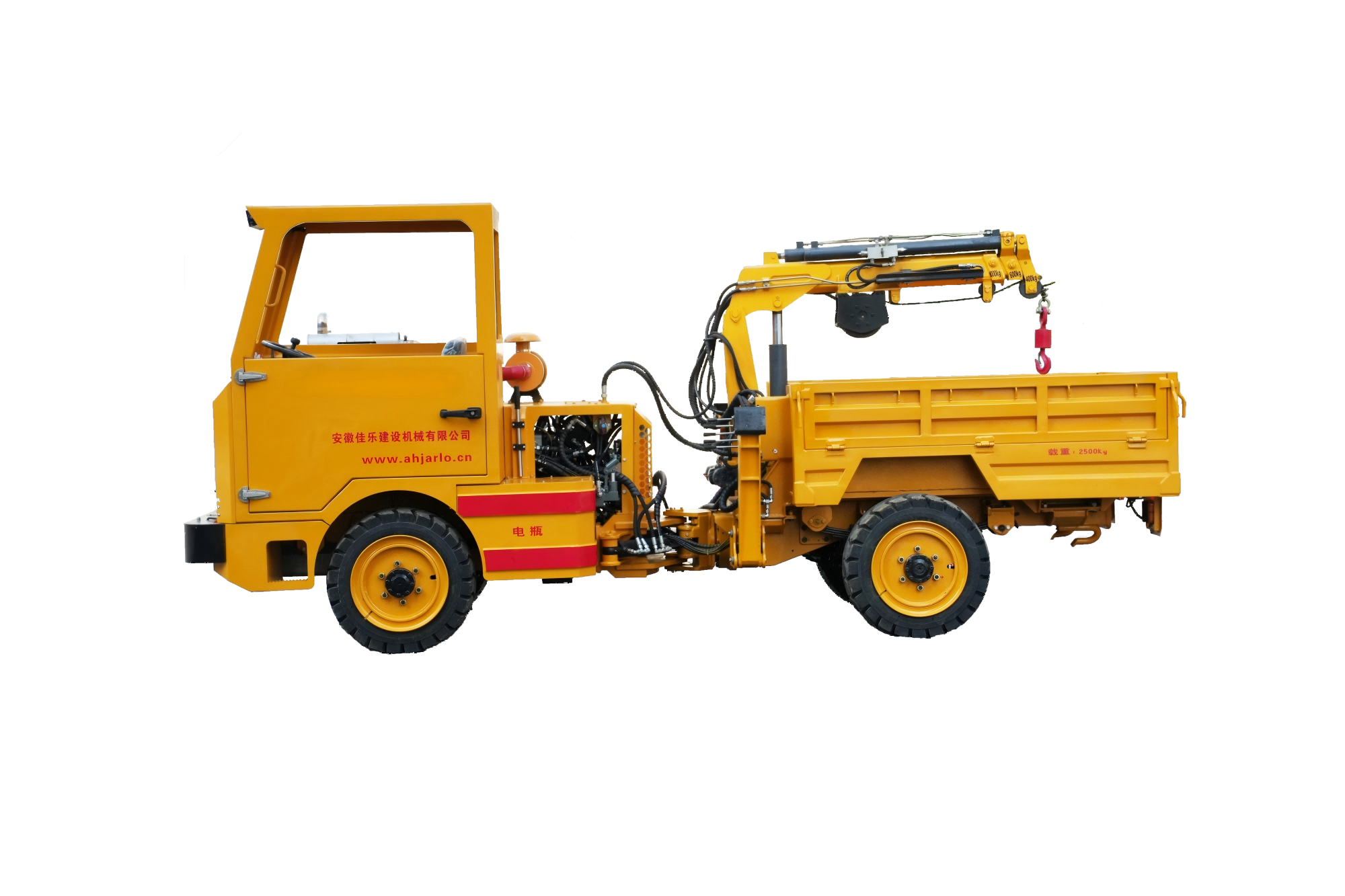

FL-2.5Q

Material transport vehicle

FL-2.5Q Material Transport Vehicle is a compact underground material transport vehicle with a load capacity of 2.5 tons. The cargo box is equipped with a small crane arm that can lift 400kg at full extension, with a max lifting height of 3760mm. Its compact size and strong maneuverability enable it to assist with transport, maintenance, and other operations.

Engine power：36.8kW
Rated load：2500kg
Max. lifting height：3760mm

Product Introduction

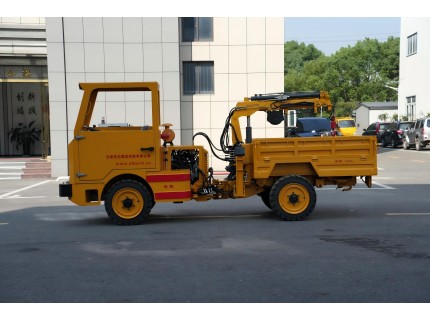

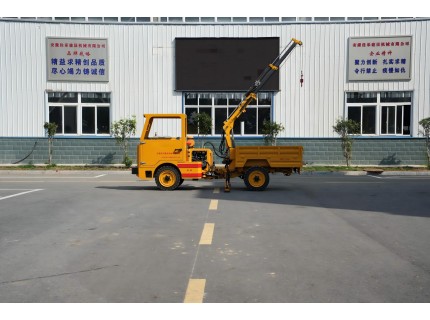

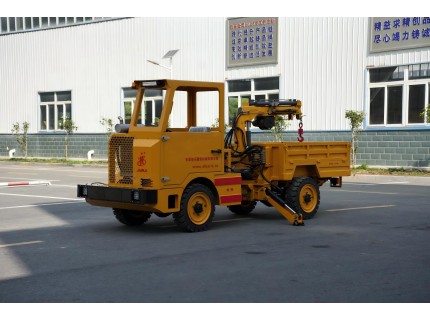

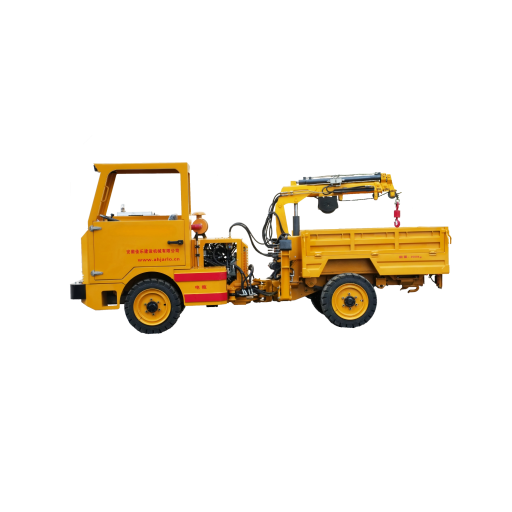

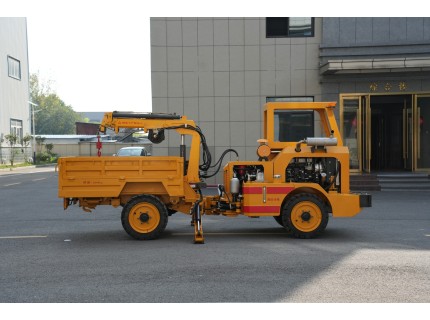

Product Pictures

Product Features

1.Compact Size:As a compact articulated vehicle, it has low tunnel size requirements, strong chassis mobility, and a small turning radius, making it adaptable to different underground conditions, and suitable for most mines.

2.Self-loading Capability:The vehicle can achieve self-loading with high efficiency and requires no other auxiliary equipment, effectively reducing operating costs.

3.Durable and Reliable Components:All components are specifically designed for mining, making them more durable and giving them a longer service life.

4.Efficient Transmission:The power system adopts an integrated drive combining the engine, torque converter, gearbox, and axle, delivering reliable and efficient transmission, strong mobility, and low maintenance cost.

5.Safe and Convenient Driving:The cab meets mining safety and ergonomic design standards, features centralized controls, and is comfortable and convenient.

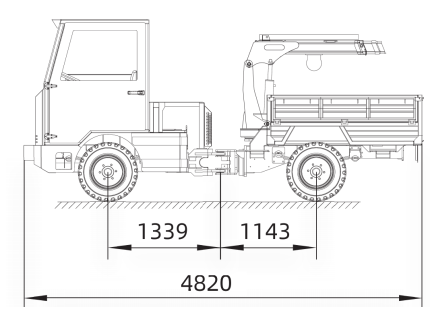

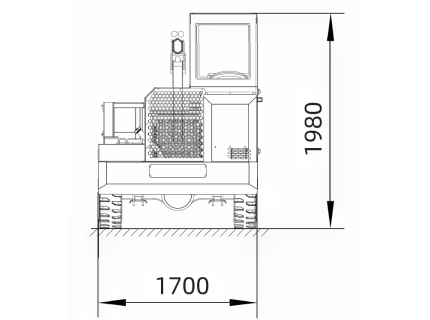

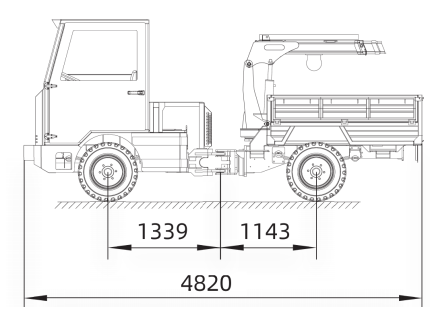

Equipment View

Equipment Parameters

Item		Parameter

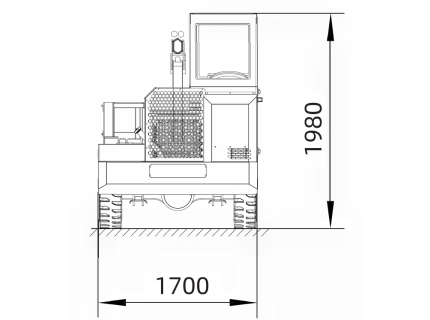

Overall Performance	Dimensions（L × W × H）	4820×1700×1980mm
	Overall Weight	3700kg
	Engine Rated Power & Speed	Yunnei 36.8kW/2400rpm
	Cabin	Meeting mining safety and ergonomic design standards, featuring centralized controls, comfortable and convenient
Driving System	Drive Type, Steering Method	Torque converter 4WD, articulated steering
	Brake System	Service/Parking: Closed spring brake, hydraulic release, fail-safe wet brake
	Traction Force	≥30kN
	Max. Driving Speed	23km/h

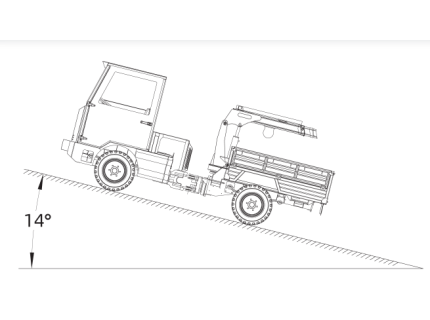

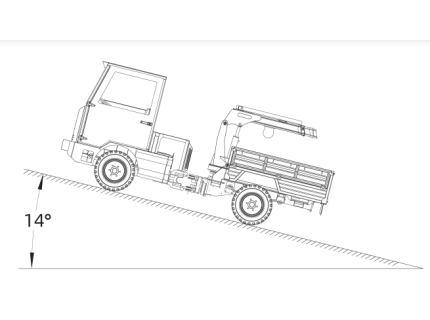

	Max. Gradeability	14°（full load）

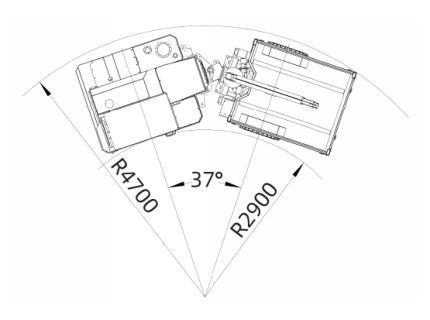

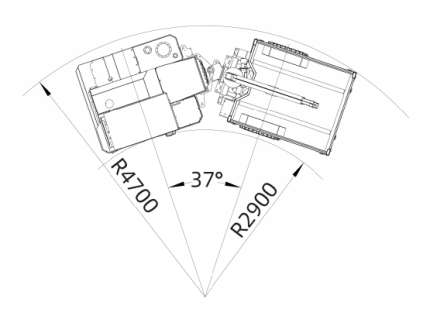

	Min. Turning Radius	Inner：2900mm；Outer：4700mm
	Ground Clearance	180mm
	Rear Axle (Body) Oscillation Angle	±8°
Cargo Box	Dimensions	1780×1550×550mm
	Flatbed Height	710mm
	Rated Load	2500kg
Boom Mechanism	Rated Lifting Weight	Shortest boom: 1000kg, longest boom: 400kg
	Max. Lifting Height	3760mm
	Telescopic Stroke	1700mm
	Lifting Speed	50mm/s

Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
