Mining diesel engine trackless explosives transportation vehicle
FCB-3

Mining diesel engine trackless explosives transportation vehicle

It is a diesel engine trackless blasting equipment transport vehicle for underground mining in mine tunnels independently developed by our company according to the latest national safety standards. The blasting equipment box has a rated load capacity of 3 tons and is mainly used for the transportation of explosives and related blasting equipment.
  • Engine power:96kW
  • Explosive compartment load:3000kg
  • Gradeability:25%

Product Introduction

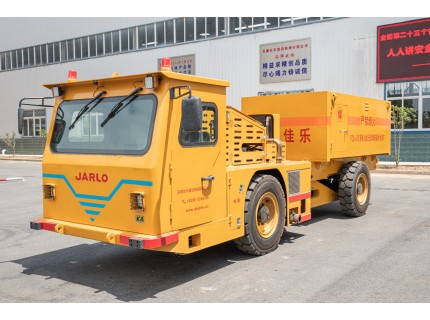

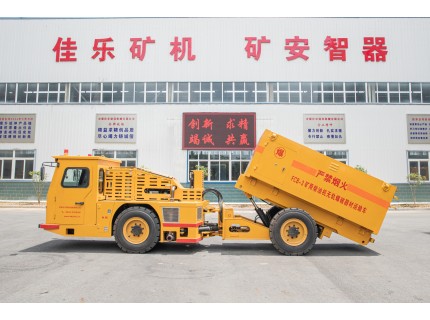

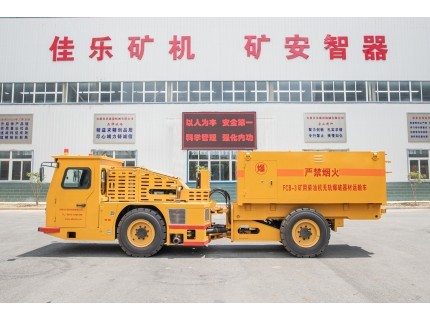

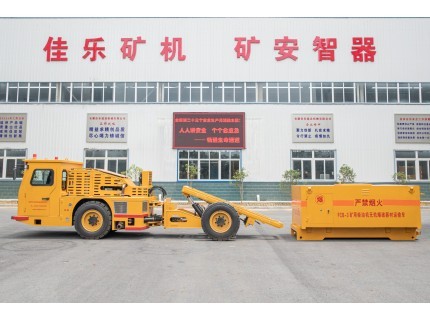

Product Pictures

Product Features

1.  Adopting American DANA wet multi-disc brake and dual-circuit braking system, it effectively ensures braking safety.

2.  The enclosed cab adopts ergonomic design, meets FOPS/ROPS (anti-smash/anti-rollover) standards, and is equipped with air conditioning, which improves driving comfort.

3.  The main purchased accessories are well-known domestic brands, which can ensure the normal operation of the equipment, low failure rate and low equipment maintenance frequency.

4.  The chassis is equipped with a quick-change mechanism, which can achieve multiple uses of one machine.

5.  The imported brand Cummins high-pressure common rail water-cooled engine is selected, which has low emissions, good fuel economy performance, and can provide excellent climbing and power performance.

6.  The frame adopts post-weld annealing and shot blasting to eliminate welding stress and ensure the quality of the whole machine.

Equipment View

Equipment Parameters

Project

Unit

Parameter value

Machine parameters

Overall dimensions (length x width x height)

mm

7640×1900×2370

Weight

kg

8500±300

Explosive box load

kg

3000

Wheelbase

mm

1530

Wheelbase

mm

3500

Explosive box dimensions (length x width x height)

mm

3200×1700×1160

Maximum traction

kN

≥80

Travel system

Minimum ground clearance

mm

250

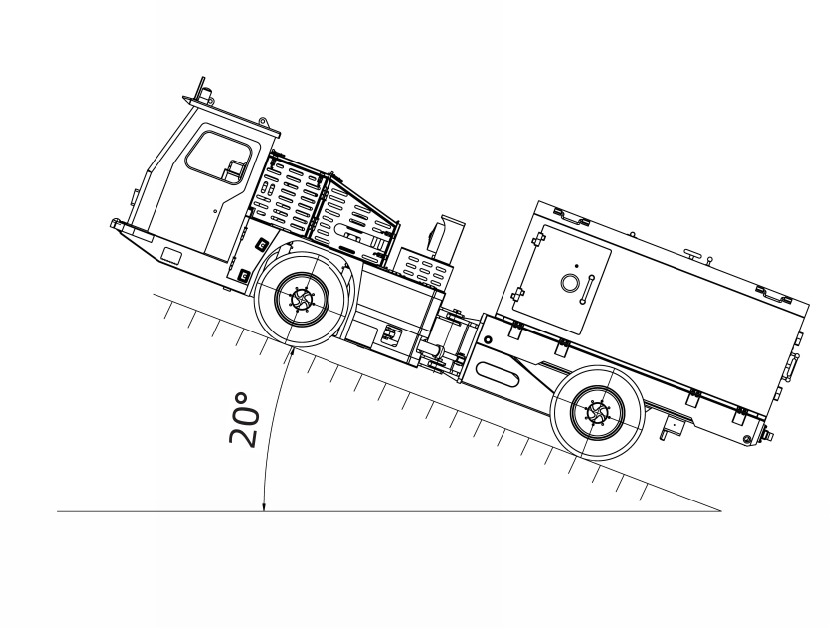

Maximum climbing ability

%

25

Steering angle

°

±40

Lateral swing angle

°

±6~8

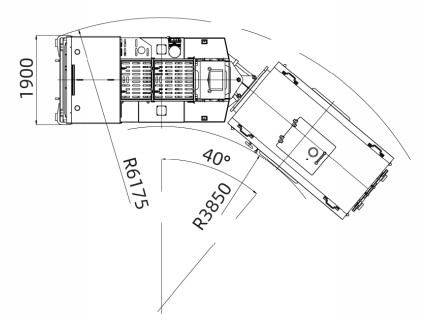

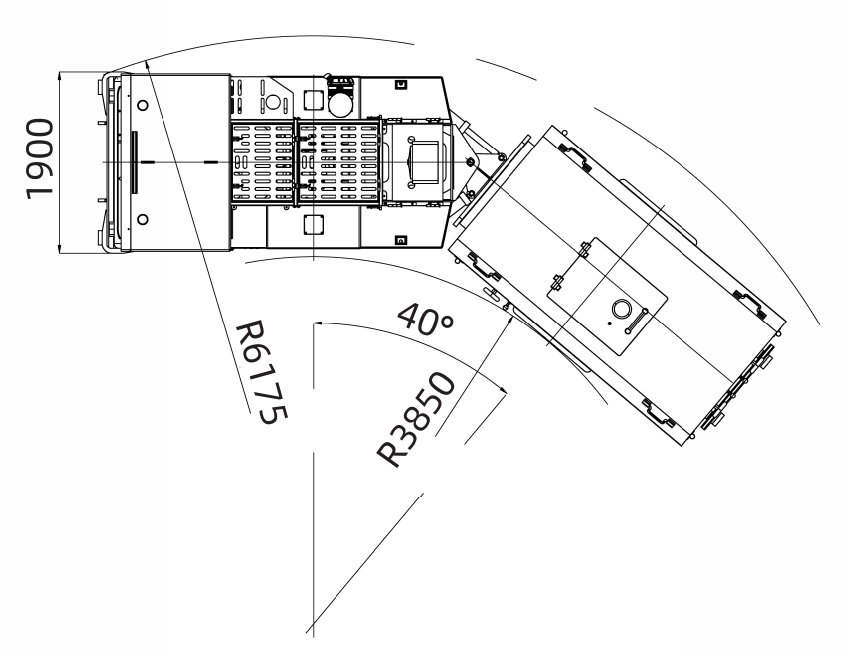

Turning radius

mm

Inside: 3850 Outside: 5850

Travel speed

km/h

Level 1: 6

km/h

Level II: 12

km/h

Level III: 20

Exhaust emissions

Country IV

Engine power

kW/rpm

96/2500

Engine torque

N·m/rpm

520/1600



Due to different customer needs, parameter settings may vary. Our company reserves the final right of interpretation for the above content. If you need the latest information or product customization, please contact customer service: Questions and Quotes
